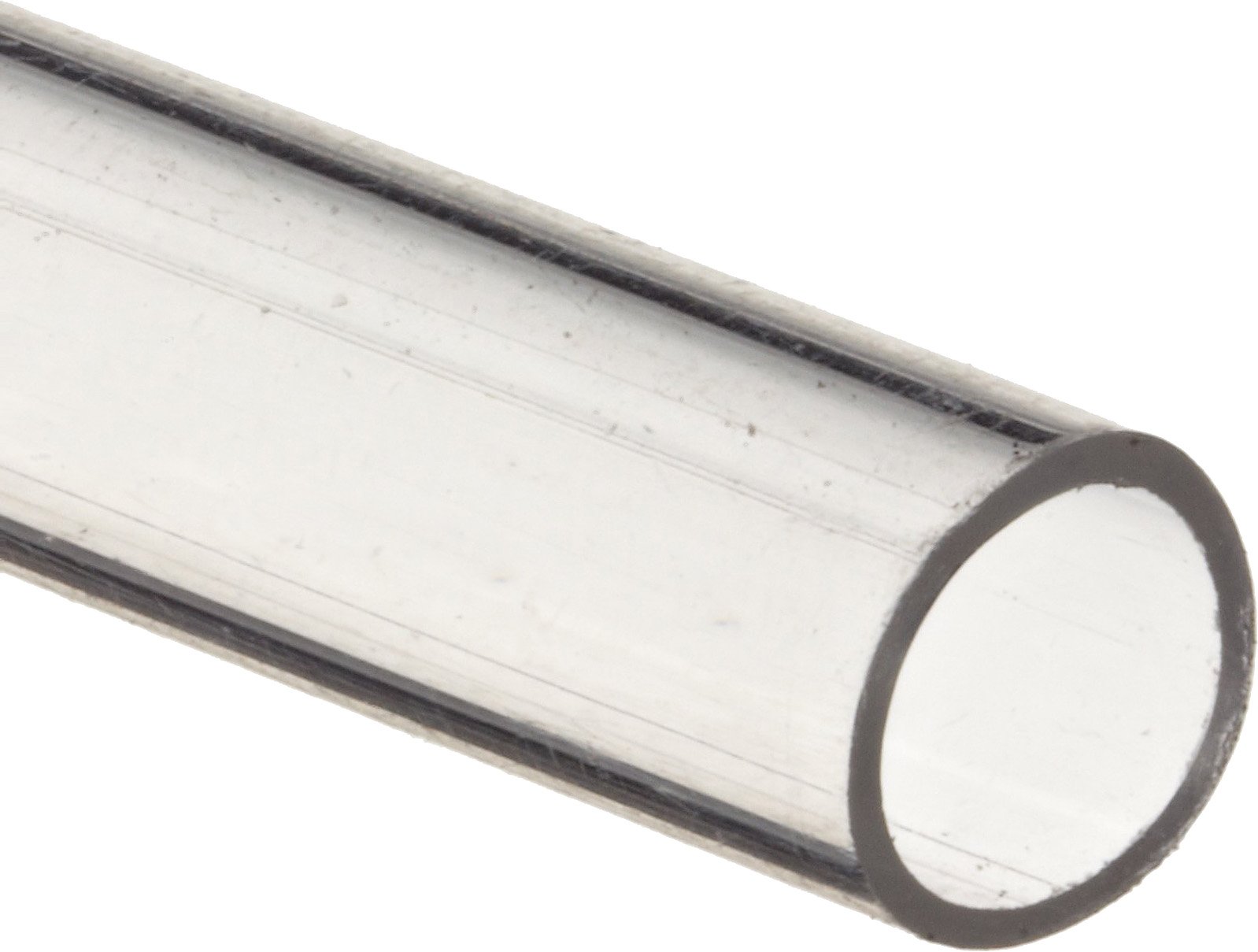

Zeus FEP Heat Shrink Tubing, 14 Gauge, 0.009" Wall, Heat Shrink Rat 1.13:1 48" Length

Be the first to review this item


Specifications for this item
Item Shape
Part Number
Wall Thickness Tolerance
+/-0.002  inches
Brand Name
Special Features
Number of Items
Material Type
Fluorinated Ethylene Propylene
Color Name
White Translucent
Upper Temperature Range
500  Degrees Fahrenheit
Inside Diameter
0.092  inches
Wall Thickness
0.009  inches
System of Measurement
Overall Length
48  inches

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Tensile Strength, psi at 73 Deg F 3,000 - 4,000
  • Elongation at 73 Deg F .300 percent
  • Specific Gravity 2.12 - 2.17
  • Shrink ratio is 1.3 to 1
  • Maximum continuous operating temp. 500 F
  • Inside diameter is 0.092 inch prior to heat shrinking

Package Details

Shipping Weight: 0.3 pounds
Package Size: 12.1 x 1.1 x 0.9 inches

Product Description

This heat shrinkable FEP (Fluorinated Ethylene-Propylene) Tubing will shrink rapidly over inserted objects upon exposure to moderate heat. Soldered joints, parts, components and fittings of plastic, metal or wood that could not previously be protected because of the high temperature required for shrinkage can now have a transparent surface of Teflon with a continuous service temperature of 400 F (204 C). Shrinkage will occur completely at exposure to 350 F (177 C) with partial shrinkage beginning as low as 200 F (93 C). Suggested for connecting metal, glass or plastic tubes of similar or dissimilar diameters in low pressure applications. FEPs chemical resistance and dielectric properties are equal to PTFE (Polytetrafluoroethylene).
