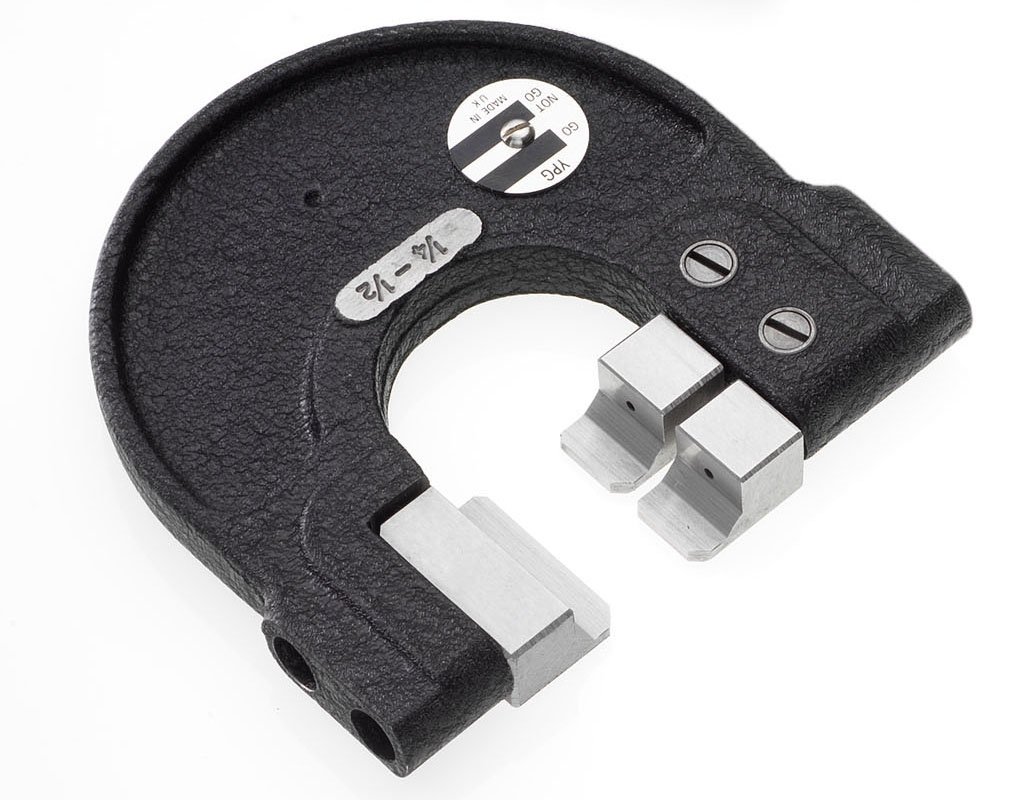

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

YPG Adjustable Limit Snap Gage for Measuring External Grooves

Be the first to review this item

Product Specifications
Number of Items
1
UNSPSC Code
41111619
Brand Name
YPG Gages

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 20 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 26 Next 6 »
Range Resolution Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 26 Next 6 »
0"-1/4" N/A U2X B00794LF3G yes $251.05 Buy Options
0"-3/16" N/A MU00 B00794LUPO yes $205.15 Buy Options
1"-1-1/4" N/A U4X B00794LIA6 Temporarily out of stock. Order now and we'll deliver when available. $286.09 Buy Options
1-1/2"-1-3/4" N/A U5X B00794LJV4 Temporarily out of stock. Order now and we'll deliver when available. $288.84 Buy Options
1-1/4"-1-1/2" N/A U5 B00794LJ8W Temporarily out of stock. Order now and we'll deliver when available. $288.84 Buy Options
1-3/4"-2" N/A U6 B00794LKGI Temporarily out of stock. Order now and we'll deliver when available. $290.28 Buy Options
1/2"-3/4" N/A U3X B00794LH52 yes $269.27 Buy Options
1/4"-1/2" N/A U3 B00794LGBM yes $269.27 Buy Options
19/32"-3/4" N/A MU0X B00794LWA2 Temporarily out of stock. Order now and we'll deliver when available. $205.15 Buy Options
2"-2-1/4" N/A U6X B00794LL5I Temporarily out of stock. Order now and we'll deliver when available. $290.28 Buy Options
2-1/4"-2-5/8" N/A U7 B00794LLX0 Temporarily out of stock. Order now and we'll deliver when available. $293.14 Buy Options
2-5/8"-3" N/A U7X B00794LMGQ Temporarily out of stock. Order now and we'll deliver when available. $293.14 Buy Options
3"-3-3/8" N/A U8 B00794LN56 yes $124.78 Buy Options
3-3/4"-4-1/8" N/A U9 B00794LNYW Temporarily out of stock. Order now and we'll deliver when available. $322.55 Buy Options
3/16"-3/8" N/A MU00X B00794LV30 yes $205.15 Buy Options
3/4"-1" N/A U4 B00794LHS4 yes $286.09 Buy Options
3/8"-19/32" N/A MU0 B00794LVKS yes $205.15 Buy Options
4-1/2"-4-7/8" N/A U10 B00794LP1I yes $187.81 Buy Options
4-1/8"-4-1/2" N/A U9X B00794LODC Temporarily out of stock. Order now and we'll deliver when available. $322.55 Buy Options
4-7/8"-5-1/4" N/A U10X B00794LPJU yes $143.10 Buy Options

Key Features

  • A fully stabilized cast iron frame forms the base of the 'U' type adjustable limit snap gage
  • The one piece, knife edge, rectangular anvil and the two knife edge, adjustable anvils are all manufactured from hardened, lapped, tool steel
  • The blades of the type 'U' make its primary use that of gauging the lower diameter of external grooves

Product Description

Sound, structurally stable, design and specifications, coupled with a highly experienced, solid manufacturing and quality management system, guarantees YPG Adjustable Limit Snap gages supplied into the USA market are of the highest quality. gages can be 'Set, Sealed and Certified' to pre-determined Go/No Go sizes in YPG's accredited calibration laboratory. A fully stabilized cast iron frame forms the base of the 'U' type adjustable limit snap gage. The one piece, knife edge, rectangular anvil and the two knife edge, adjustable anvils are all manufactured from hardened, lapped, tool steel. The blades of the type 'U' make its primary use that of gauging the lower diameter of external grooves. Having only two adjustable anvils, the Go/No Go setting procedure is quick and straightforward. The blades are supplied with a standard thickness and depth, both of which can be modified by YPG to meet specific customer application requirements. Radius and chamfer changes can also be modified on request. In addition the 'U' type is very readily used as a more robust replacement for the "Reef" type gage. The Quality Management System operated by YPG is ISO 9001-2000 registered. This certification encompasses the entire organization and confirms the company's management system meets the required standard and in particular confirms the desire to exceed customer expectations and to be continually improving the products and services offered. All gages set at YPG are done in the company's state of the art, A2LA certified metrology laboratory. Product certification can be supplied on any gage calibrated or set in the laboratory. Adjustable Limit Snap Gages are precision gauging devices generally used in a production environment for the rapid, accurate and foolproof inspection of component parts during and after a production. There are certain basic rules which need to be followed to ensure adjustable limit snap gages perform to their expected accuracy and have a long operational life.
