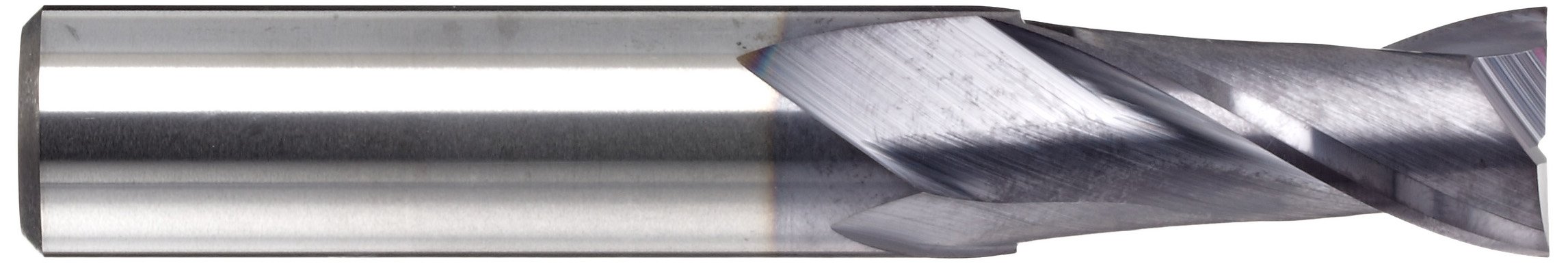

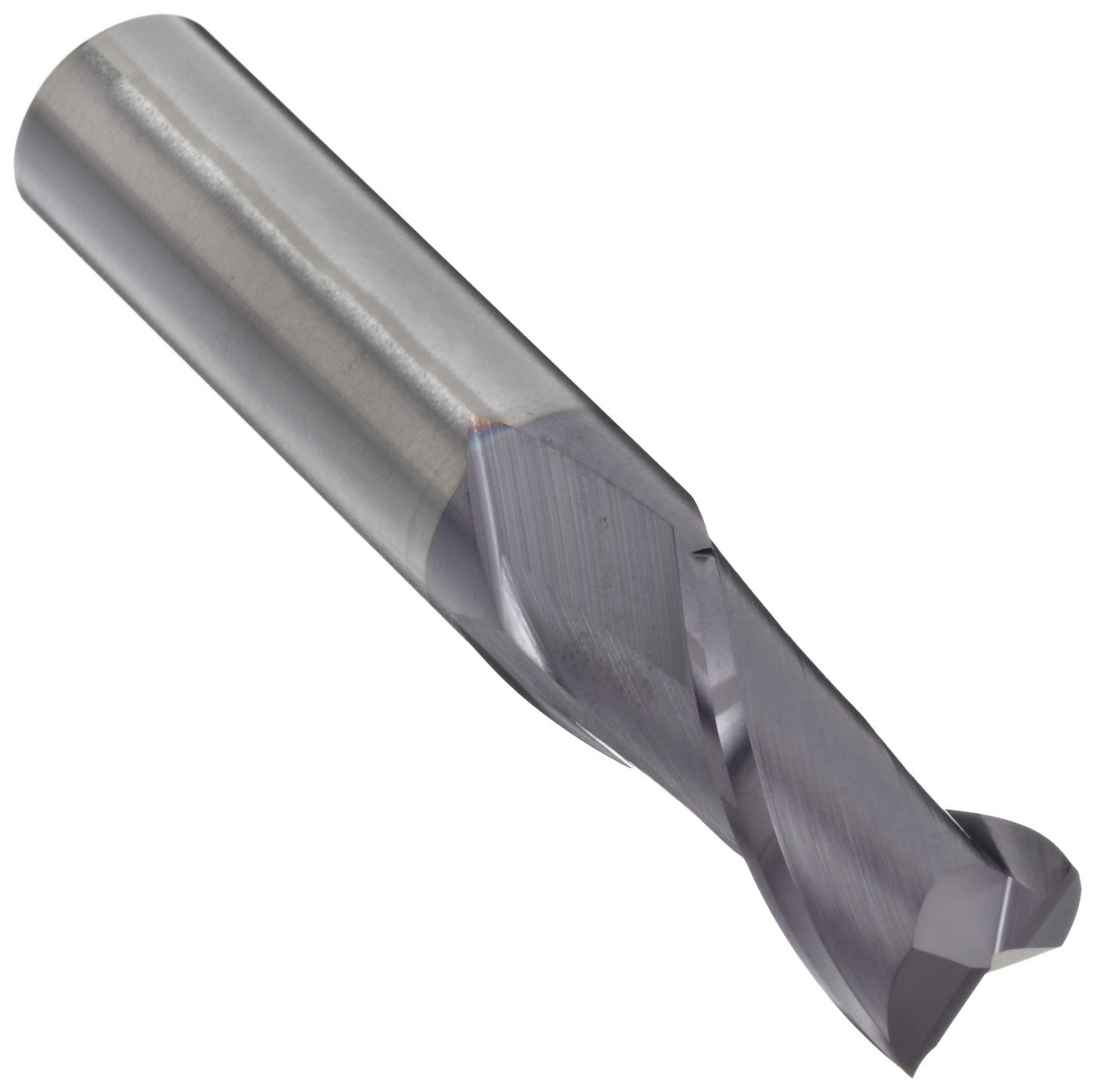

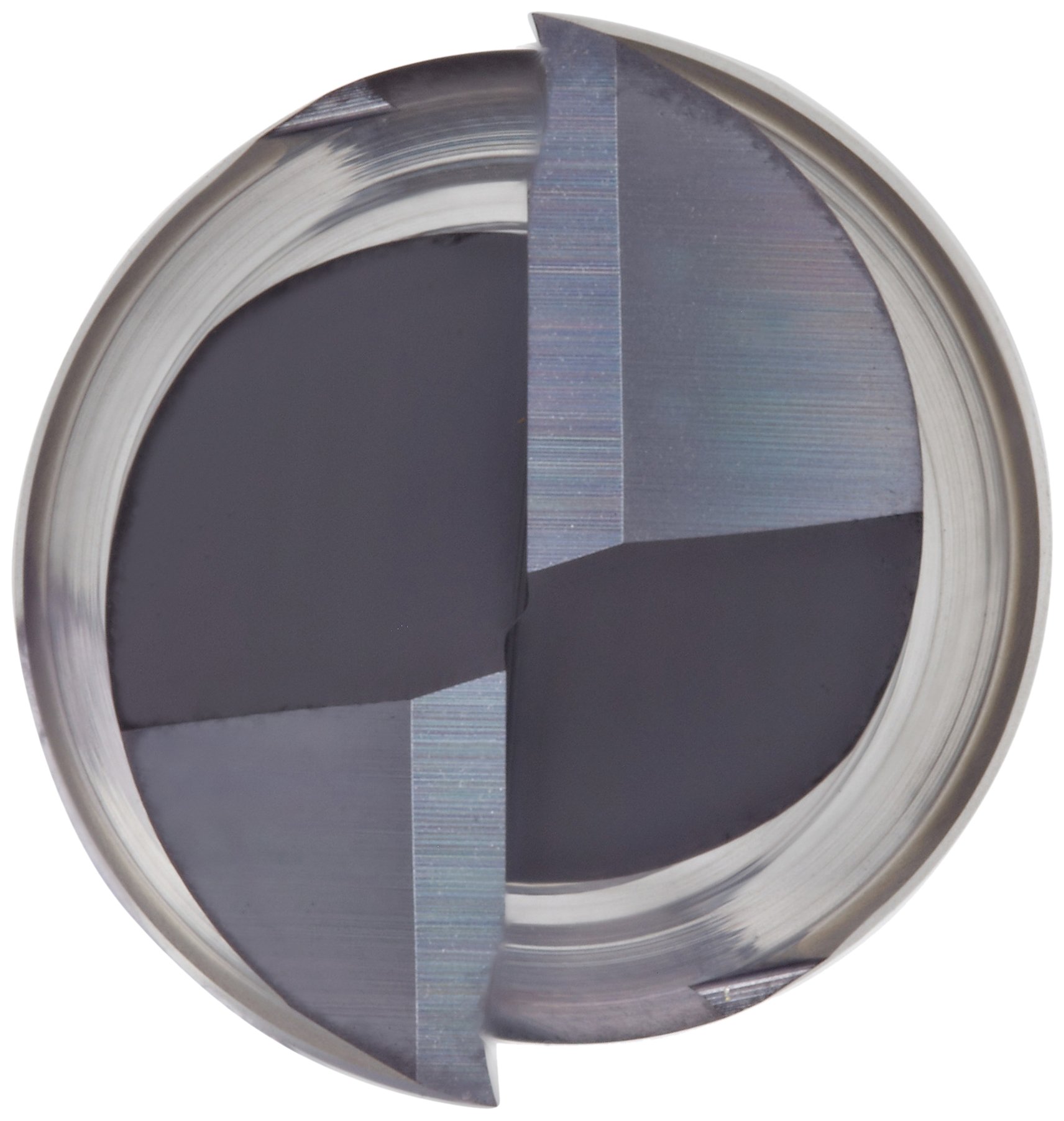

YG-1 E5020 Carbide Square Nose End Mills, Inch, TiAlN Finish, 30 Degree Helix, For Use With Aluminum/Aluminum Alloys, Plastics, Steel/Steel Alloys

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Specific Uses For Product
Slot Milling
Finish Types
TiAlN
End Cut Type
Center Cutting
Material Type
Carbide
Cutting Angle
30  Degrees
Brand Name
YG-1
Manufacturer Series Number
E5020
Compatible Material
Aluminum/Aluminum Alloys, Plastics, Steel/Steel Alloys
Specification Met
N/A
Shank Type
Round
Cut Type
General Purpose
Shank Material Type
N/A
UNSPSC Code
27112803
Special Features
N/A
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 22 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 22 Next 2 »
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 22 Next 2 »
1/32" 1/8" 0.0781" 1.5" 2 01552TF B0080B7DY2 Usually ships in 1 to 3 months $16.50 Buy Options
3/64" 1/8" 0.1093" 1.5" 2 01553TF B0080B7EZK yes $16.48 Buy Options
1/16" 1/8" 0.1875" 1.5" 2 01554TF B0080B7GGW yes $15.37 Buy Options
5/64" 1/8" 0.1875" 1.5" 2 01555TF B0080B7IBK yes $16.50 Buy Options
3/32" 1/8" 0.375" 1.5" 2 01556TF B0080B7JHI yes $15.37 Buy Options
7/64" 1/8" 0.375" 1.5" 2 01557TF B0080B7L6W yes $16.20 Buy Options
1/8" 1/8" 0.5" 1.5" 2 01558TF B0080B7N1U yes $15.37 Buy Options
9/64" 3/16" 0.5" 2" 2 01560TF B0080B7OQO yes $18.89 Buy Options
5/32" 3/16" 0.5625" 2" 2 01562TF B0080B7Q3K yes $18.53 Buy Options
11/64" 3/16" 0.625" 2" 2 01564TF B0080B7RTI yes $18.89 Buy Options
3/16" 3/16" 0.625" 2" 2 01565TF B0080B7T5K yes $18.53 Buy Options
13/64" 1/4" 0.625" 2.5" 2 01569TF B0080B7UJU yes $22.02 Buy Options
7/32" 1/4" 0.625" 2.5" 2 01570TF B0080B7W52 yes $21.59 Buy Options
15/64" 1/4" 0.75" 2.5" 2 01572TF B0080B7YAA yes $22.02 Buy Options
1/4" 1/4" 0.75" 2.5" 2 01573TF B0080B82M4 yes $22.01 Buy Options
5/16" 5/16" 0.8125" 2.5" 2 01579TF B0080B866Q yes $26.92 Buy Options
3/8" 3/8" 1" 2.5" 2 01584TF B0080B87HE yes $33.06 Buy Options
7/16" 7/16" 1" 2.75" 2 01588TF B0080B89GI yes $39.25 Buy Options
1/2" 1/2" 1" 3" 2 01593TF B0080B8BCU yes $43.97 Buy Options
5/8" 5/8" 1.25" 3.5" 2 01595TF B0080B8COC yes $75.73 Buy Options

Key Features

  • Center-cutting design allows the end mill to plunge into material like a drill bit for applications such as slotting, drilling, and pocketing, as well as general-purpose machining
  • Suitable for machining on hardened and high-alloy steel, chromium-nickel steel, steel casting, and malleable cast iron
  • Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
  • Titanium aluminum nitride (TiAlN) coating lubricates the end mill for high-temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than uncoated finish, TiN coating, and TiCN coating
  • Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures

Product Description

The YG-1 E5020TF TiAlN-coated carbide square nose end mill has two flutes, a center-cutting design, and a 30-degree helix angle for a range of plunge-milling and general-purpose applications on hardened and high-alloy steel, chromium-nickel steel, steel casting, and malleable cast iron. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit for applications such as slotting, drilling, and pocketing, as well as general-purpose machining. The two flutes have better chip-carrying capacity than end mills with more flutes while offering additional support when the tool goes deep into the material in applications with a high depth of cut. The tool’s square end creates sharp, unrounded cuts. The 30-degree helix angle supports general-purpose applications. It balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action.

The TiAlN coating resists heat better than the uncoated finish and TiN and TiCN coatings, increasing tool life and performance. It also offers increased hardness compared to TiN and may reduce the need for lubricants based on the application. The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. Cutting diameter tolerance is + 0.0000 to - 0.0012". The round shank accommodates a range of tool holders.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

YG-1 manufactures drills, taps, end mills, and rotary tooling. The company, founded in 1981, is headquartered in South Korea and has a U.S. office in Vernon Hills, IL.
