YG-1 EM153 Carbide Square Nose End Mills, Inch, TiAlN Finish, 30 Degree Helix, For Use With Steel/Steel Alloys
Be the first to review this item
Product Specifications
- Brand Name
- YG-1
- Cut Type
- General Purpose
- Cutting Angle
- 30 Degrees
- Cutting Direction
- Right Hand
- End Cut Type
- Center Cutting
- Finish Types
- TiAlN
- Manufacturer Series Number
- EM153
- Material Type
- Carbide
- Shank Material Type
- N/A
- Shank Type
- Round
- Specific Uses For Product
- N/A
- Specification Met
- N/A
- System of Measurement
- Inch
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 2 days 20 hours 26 minutes and choose One-Day Shipping at checkout.
Key Features
- Suitable for machining high-hardness materials such as tool steel, alloy steel, and mold steel up to Rockwell hardness C70
- Four flutes produce a better finish than fewer flutes
- Titanium aluminum nitride (TiAlN) coating lubricates the end mill for high-temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than TiN and TiCN coatings
- High-performance carbide provides better wear resistance and toughness than standard carbide and can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
- Square nose end mills (also called square end) create sharp, unrounded cuts
Product Description

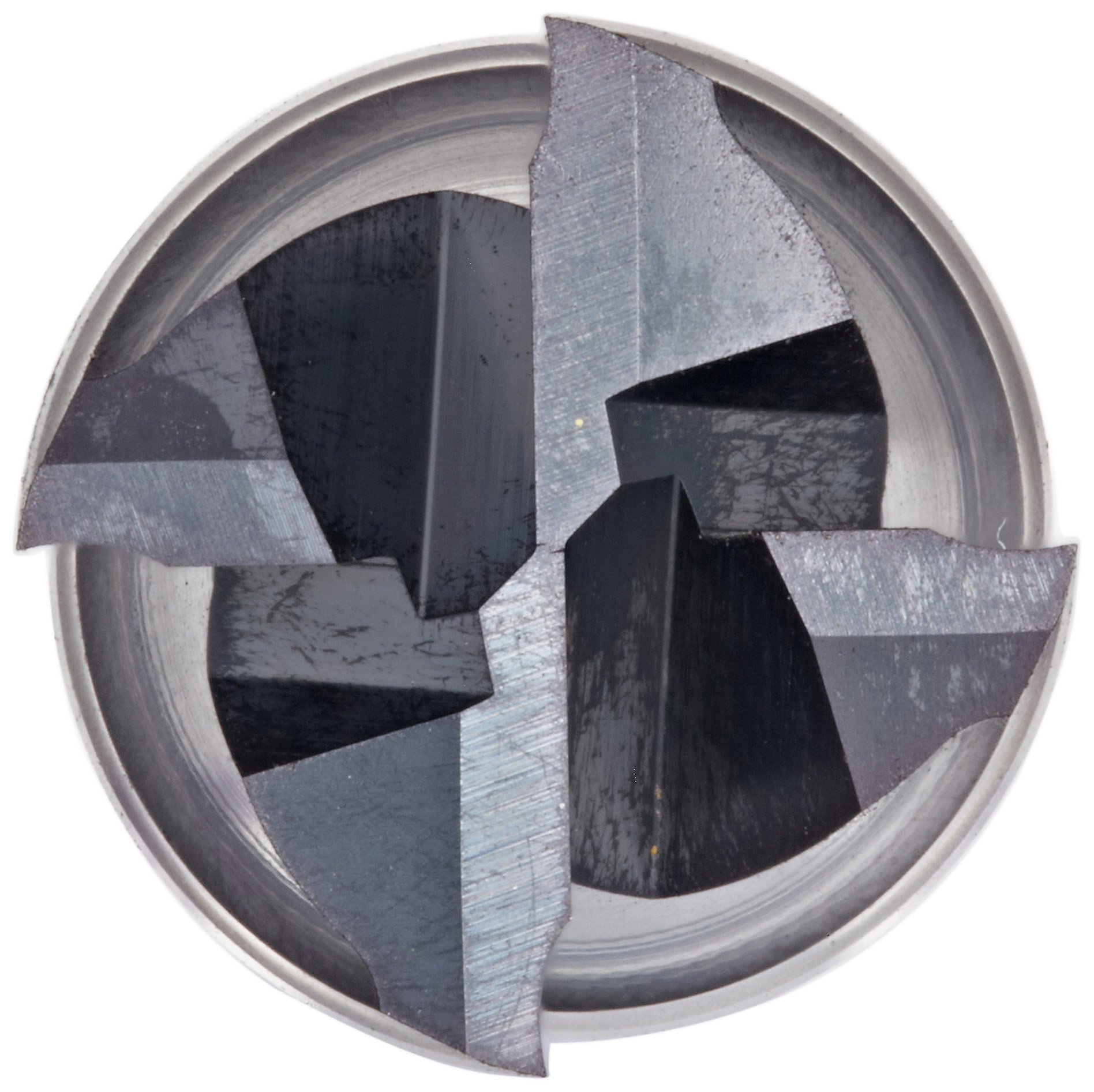

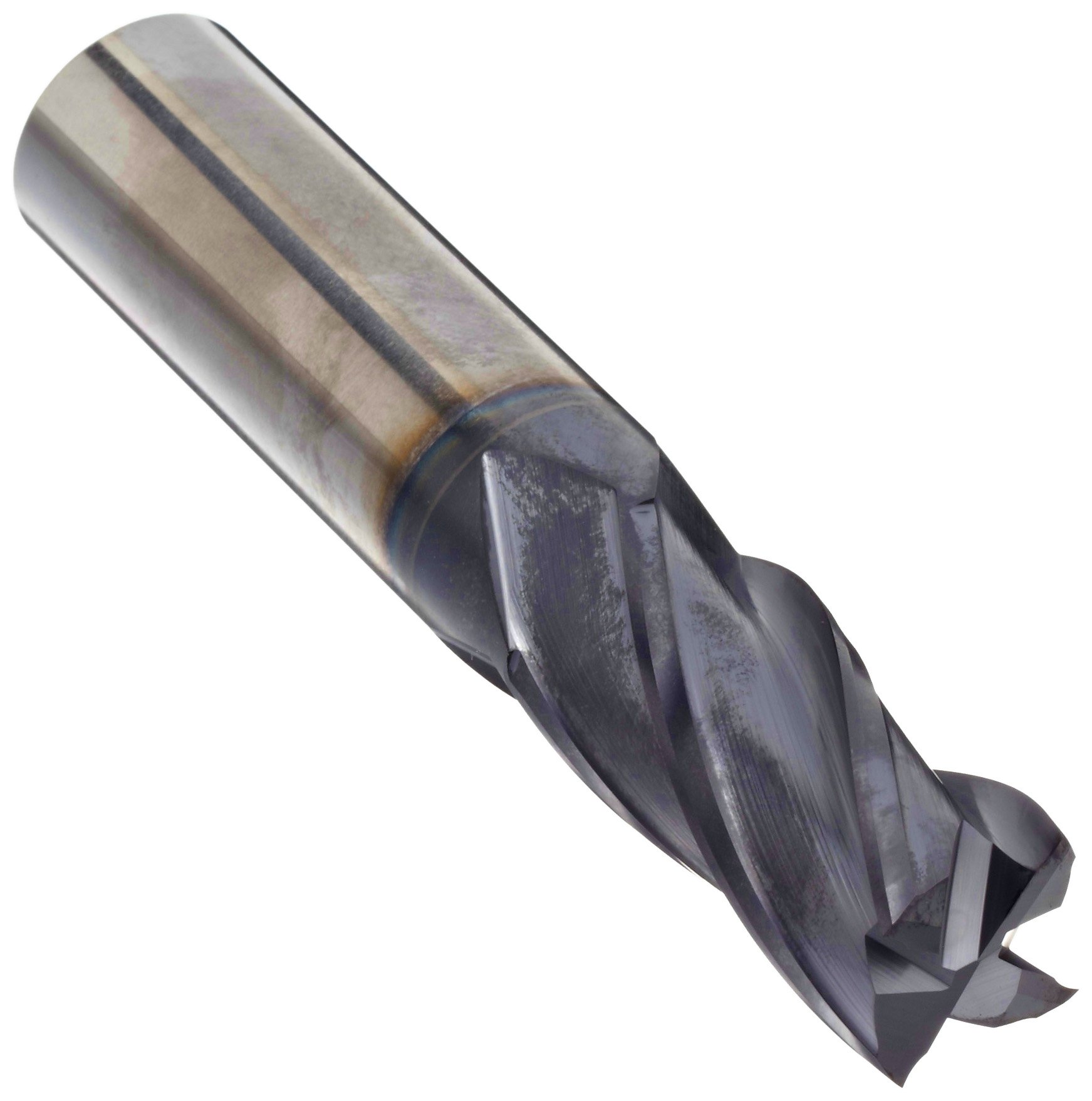

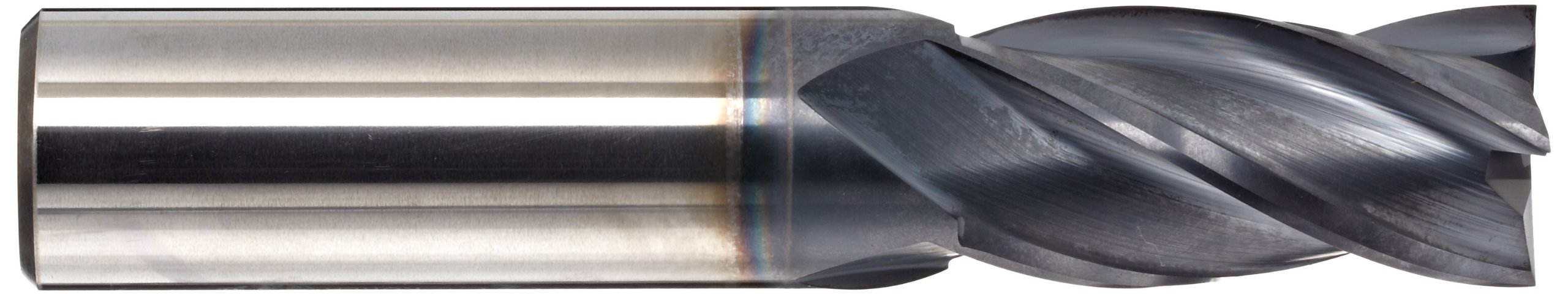

The YG-1 EM153 TiAlN-coated high-performance carbide square nose end mill has four flutes, a center-cutting design, and a 30-degree helix angle for machining high-hardness materials such as tool steel, alloy steel, and mold steel up to Rockwell hardness C70. Four flutes produce a better finish than fewer flutes. The tool’s square end creates sharp, unrounded cuts. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit. The 30-degree helix angle balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action.
The TiAlN coating resists heat better than TiN and TiCN coatings, increasing tool life and performance. It also offers increased hardness compared to TiN and may reduce the need for lubricants based on the application. The high-performance carbide substrate provides better wear resistance and toughness than standard carbide. It is also harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. Cutting diameter tolerance is + 0.0000 to - 0.0012". The round shank accommodates a range of tool holders.
End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.
YG-1 manufactures drills, taps, end mills, and rotary tooling. The company, founded in 1981, is headquartered in South Korea and has a U.S. office in Vernon Hills, IL.
