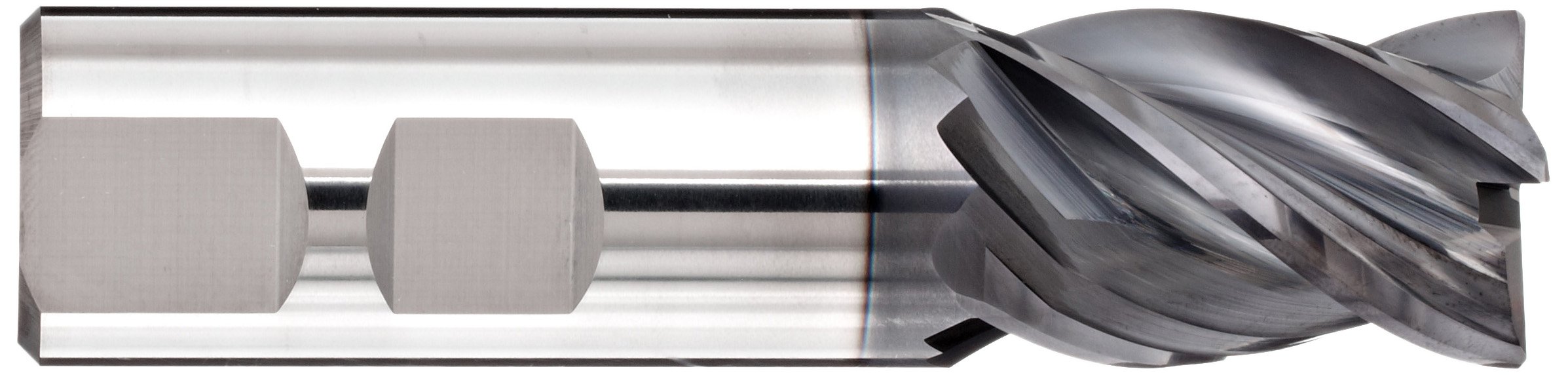

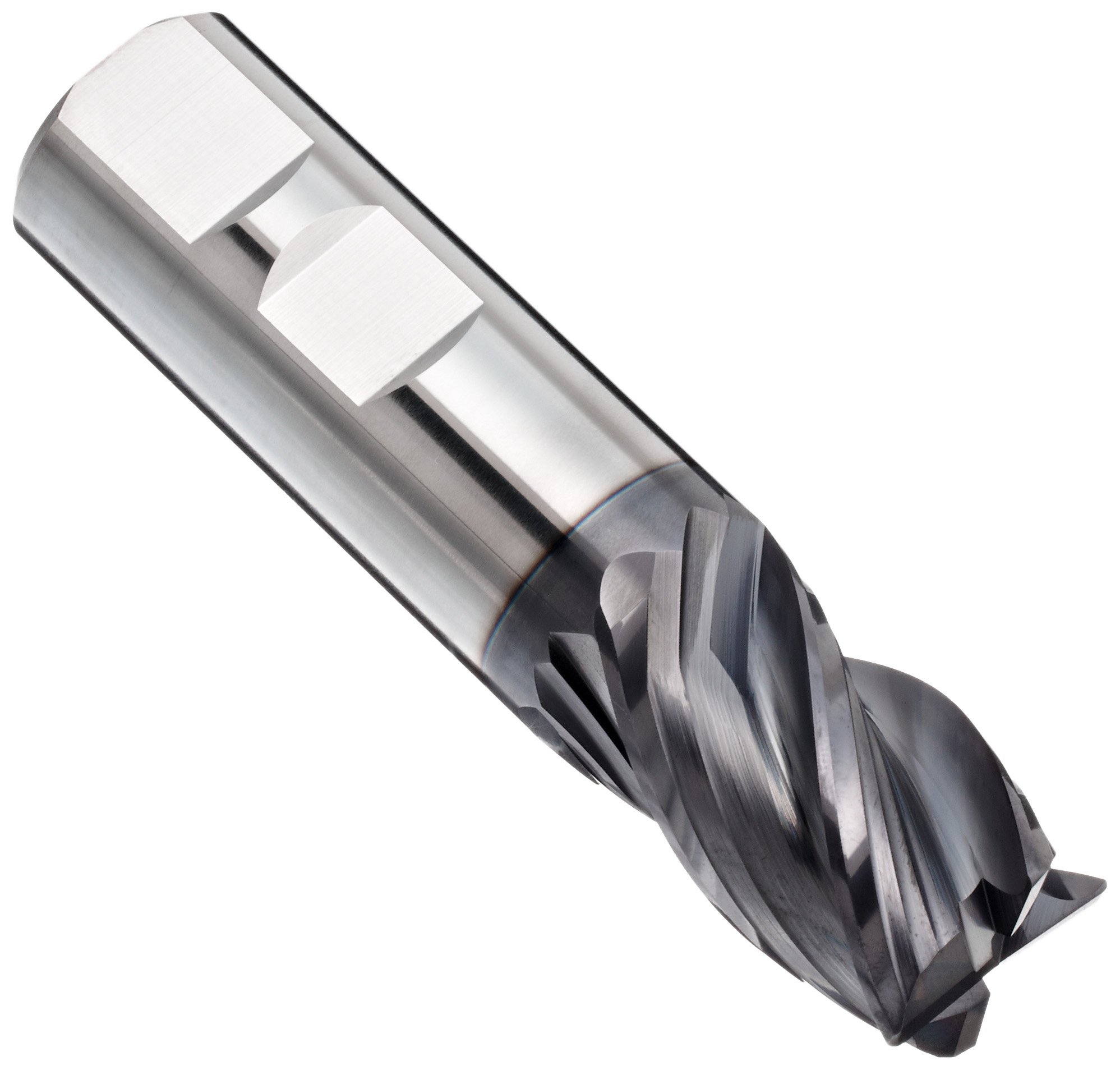

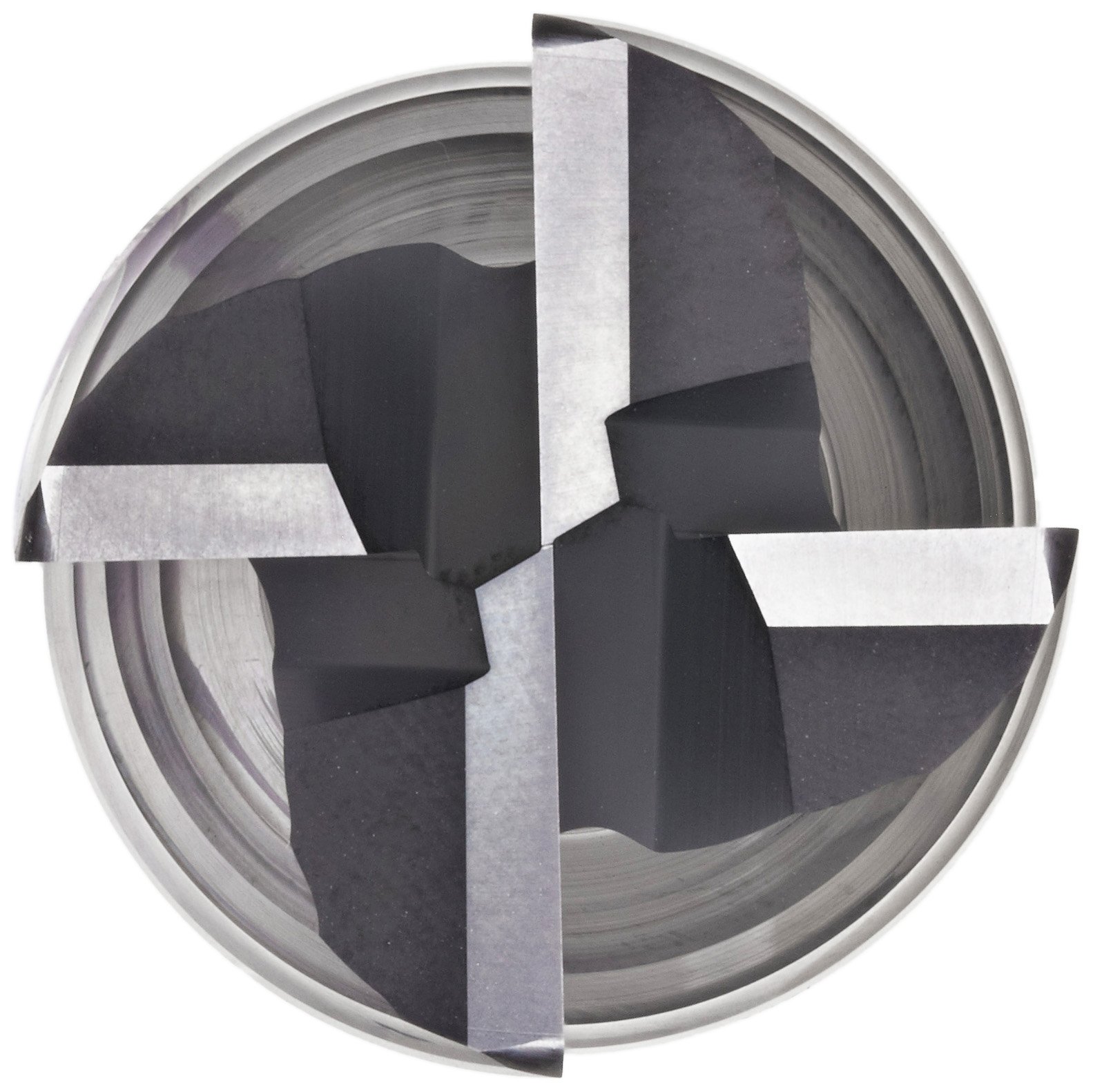

YG-1 EMB40 Carbide Corner Radius End Mills, Metric, Long Length, Weldon Shank, AlTiN Finish Helix, For Use With All Materials

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Specific Uses For Product
N/A
Finish Types
AlTiN
End Cut Type
Center Cutting
Material Type
Carbide
Cutting Angle
60  Degrees
Brand Name
YG-1
Manufacturer Series Number
EMB40
Compatible Material
General Purpose
Specification Met
N/A
Shank Type
Weldon
Cut Type
General Purpose
Shank Material Type
N/A
UNSPSC Code
27112803
Special Features
N/A
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Sep 19? Order in-stock items in the next 13 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Cutting Diameter Shank Width Cutting Length Overall Length Corner Radius Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-6 of 6
12 mm 12 mm 26 mm 83 mm 0.64 mm 4 EMB40120 B0080CD6I8 yes $53.93 Buy Options
14 mm 14 mm 26 mm 83 mm 0.64 mm 4 EMB40140 B0080CD6ZQ yes $91.48 Buy Options
16 mm 16 mm 32 mm 92 mm 0.89 mm 4 EMB40160 B0080CD7HS yes $98.25 Buy Options
18 mm 18 mm 32 mm 92 mm 0.89 mm 4 EMB40180 B0080CD85Y yes $142.48 Buy Options
20 mm 20 mm 38 mm 104 mm 0.89 mm 4 EMB40200 B0080CD9Q2 yes $175.64 Buy Options
25 mm 25 mm 38 mm 104 mm 0.89 mm 4 EMB40250 B0080CDAZ2 yes $221.65 Buy Options

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Titanium aluminum nitride coatings become self-lubricating when used at very high speeds, making them ideal for cutting without coolant ("dry machining")
  • Weldon shanks feature a round shank with one of more flats machined into the side for easy indexing and alignment
  • When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
  • Higher speeds, deeper cuts and metal removal rates

Product Description

Higher speeds, deeper cuts and metal removal rates. Improved surface finishes. Machining of most materials under 40Rc.
