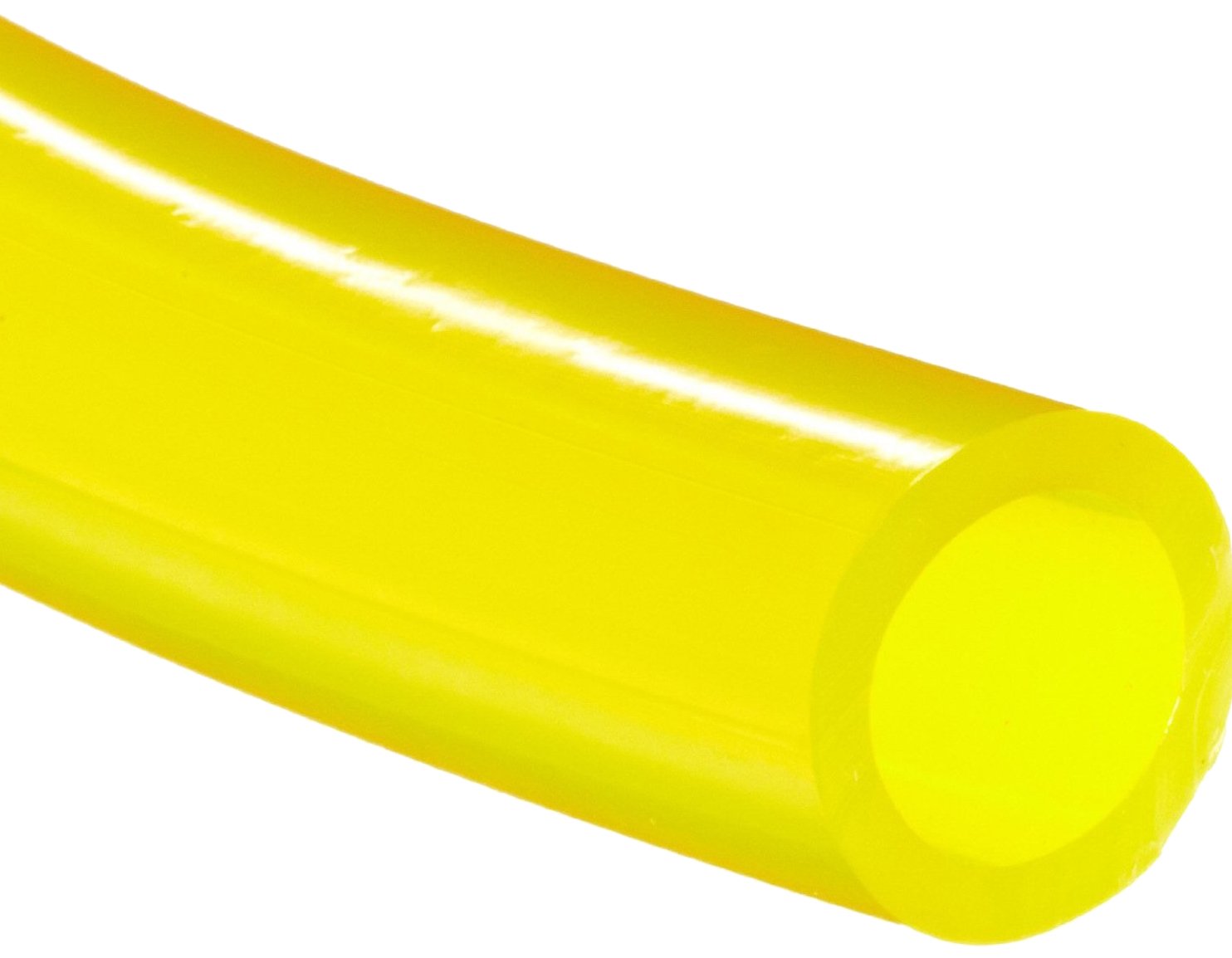

Tygon F-4040-A PVC Fuel And Lubricant Tubing, Yellow

Be the first to review this item

Product Specifications
Item Shape
Round
Hardness
50A
Durometer
50A
Material Type
PVC (Polyvinyl Chloride)
Color Name
Yellow
Structure Description
Very Flexible
Brand Name
Tygon

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 28? Order in-stock items in the next 1 day 20 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 44 Next 20 »
Inside Diameter Outside Diameter Wall Thickness Max Pressure Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 44 Next 20 »
0.08" 0.140" 0.030" 40 PSI 10 ft 1 B0013HR3TK 4 $13.94 Buy Options
0.08" 0.140" 0.030" 40 PSI 25 ft 1 B0013HP0KE 3 $28.88 Buy Options
0.08" 0.140" 0.030" 40 PSI 5 ft 1 B0013HR3TA 24 $8.46 Buy Options
0.08" 0.140" 0.030" 40 PSI 50 ft 1 B0013HP0KO 1 $34.67 Buy Options
3/4" 1" 1/8" 20 PSI 10 ft 1 B000PHF0EE 3 $88.65 Buy Options
3/4" 1" 1/8" 20 PSI 2 ft 1 B000PHCEOI 15 $21.74 Buy Options
3/4" 1" 1/8" 20 PSI 25 ft 1 B000PHDLEK 2 $238.40 Buy Options
3/4" 1" 1/8" 20 PSI 5 ft 1 B000PHCCZ4 3 $50.49 Buy Options
3/8" 1/2" 1/16" 20 PSI 10 ft 1 B000PHF17A 2 $29.99 Buy Options
3/8" 1/2" 1/16" 20 PSI 25 ft 1 B000PHDMDU 4 $78.06 Buy Options
3/8" 1/2" 1/16" 20 PSI 5 ft 1 B000PHGYYY 9 $19.97 Buy Options
3/8" 1/2" 1/16" 20 PSI 50 ft 1 B000PHDME4 2 $117.61 Buy Options
1/8" 1/4" 1/16" 50 PSI 10 ft 1 B000PHF06C 21 $13.91 Buy Options
1/8" 1/4" 1/16" 50 PSI 25 ft 1 B000PHCDK8 3 $36.65 Buy Options
1/8" 1/4" 1/16" 50 PSI 50 ft 1 B000PHF09E 1 $51.71 Buy Options
3/32" 3/16" 3/64" 50 PSI 25 ft 1 B000PHDL86 1 $29.95 Buy Options
3/32" 3/16" 3/64" 50 PSI 50 ft 1 B000PHAI00 2 $39.36 Buy Options
1/2" 3/4" 1/8" 30 PSI 10 ft 1 B000PHCEM0 3 $69.09 Buy Options
1/2" 3/4" 1/8" 30 PSI 2 ft 1 B000PHF0WQ 6 $22.45 Buy Options
1/2" 3/4" 1/8" 30 PSI 25 ft 1 B000PHCEMK 3 $172.34 Buy Options

Key Features

  • Plastic tubing for use with fuel and lubricants, including gasoline, kerosene, heating oils, cutting compounds, and glycol-based coolants
  • Translucent Tygon formulation F-4040-A plastic to allow visual flow monitoring with reduced exposure to ozone and UV light
  • Yellow color for quick tube identification among other system or machine tubes
  • Resistant to swelling, hardening, and embrittlement typically caused by hydrocarbon-based fluids
  • Working temperature range of -35 to 165 degrees F and durometer (hardness) of 57A

Product Description

This yellow plastic tubing is made of Tygon formulation F-4040-A and is designed for transferring with fuel and lubricants, including gasoline and coolants. The translucent tubing permits limited ozone and ultraviolet (UV) light filtration while allowing visual flow monitoring, and the yellow color provides quick visual identification from other system tubing. The Tygon formulation F-4040-A plastic construction is designed for use with various fuels and lubricants, including gasoline, kerosene, heating oils, cutting compounds, and glycol-based coolants. It resists the swelling, hardening, and embrittlement typically caused by hydrocarbon-based fluids. The tubing has a working temperature range of -35 to 165 degrees F, a durometer (hardness) of 57A, and the working pressure ratings vary by tube size. This plastic tubing is rated as very flexible as it bends more easily than flexible or rigid tubing. The tubing is suitable for non-potable fluid service transferring coolants, heating fuels, polishing fluids and other lubricants, and for engine line and garden hose applications, among others.

Plastic tubing is used to transfer liquids, air, or solids, and it is characterized by a round, rectangular, or square shape and a hollow center. Plastic tubing is crimp-resistant and varies in bend radius (flexibility), chemical resistance, wall thickness, durometer hardness, and temperature and pressure handling abilities. The clarity of plastic tubing may be transparent (clear), translucent (semi-clear), or opaque (solid), and the tubing's coloring may indicate suitable applications. Barbed fittings are used to connect tubing or redirect flow in a fluid handling system. Plastic tubing is used in a wide variety of industries, such as agriculture, automotive, laboratory, and medicine. Applications for plastic tubing include blood and fluid handling, peristaltic pumps, electrical and thermal insulation, analytical systems, and food and beverage handling, among others.

Saint-Gobain Corporation manufactures plastic tubing for the food and beverage, chemical processing, industrial, laboratory, medical, pharmaceutical, and semiconductor processing industries under the Tygon brand in the Saint-Gobain Performance Plastics sector. Founded in 1665, the company is headquartered in Courbevoie, France, and operates 45 plastics manufacturing sites worldwide.
