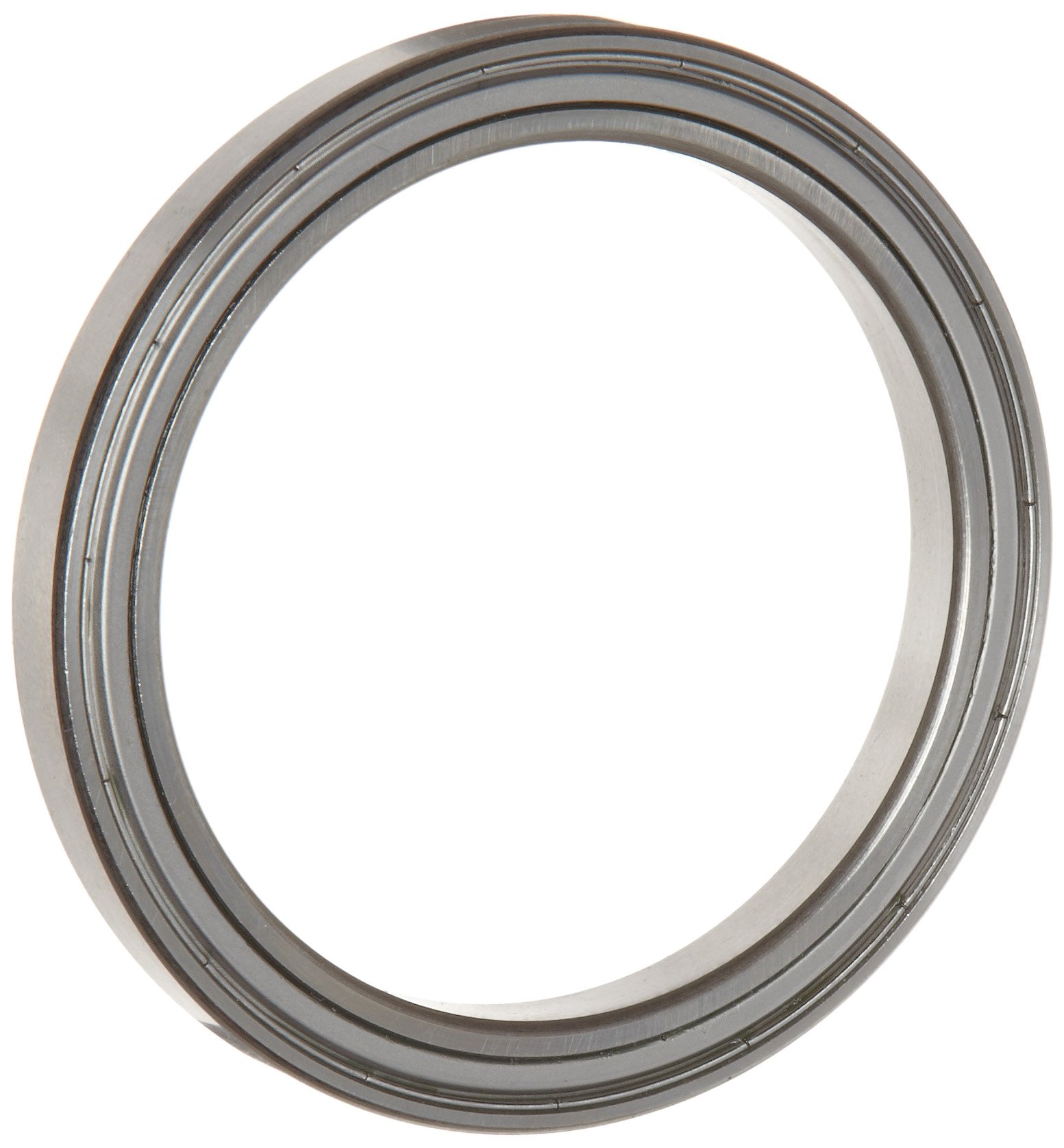

WJB 6800-ZZ Series Deep Groove Ball Bearing, Double Sheilded, Metric

Be the first to review this item

Product Specifications
UNSPSC Code
31171504
Brand Name
WJB

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 4 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-16 of 16
Mfr Part # Bore Diameter Outside Diameter Bearing Width Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-16 of 16
6800-ZZ 10 mm 19 mm 5 mm 208 lbs 410 lbs B007HRZXS8 yes $7.60 Buy Options
6801-ZZ 12 mm 21 mm 5 mm 234 lbs 430 lbs B007HS0026 yes $7.69 Buy Options
6802-ZZ 15 mm 24 mm 5 mm 283 lbs 465 lbs B007HS018Y yes $7.10 Buy Options
6803-ZZ 17 mm 26 mm 5 mm 385 lbs 630 lbs B007HS02LU yes $7.28 Buy Options
6804-ZZ 20 mm 32 mm 7 mm 555 lbs 900 lbs B007HS053A yes $7.52 Buy Options
6805-ZZ 25 mm 37 mm 7 mm 665 lbs 965 lbs B007HS07BA yes $8.00 Buy Options
6806-ZZ 30 mm 42 mm 7 mm 815 lbs 1060 lbs B007HS08NW yes $8.00 Buy Options
6807-ZZ 35 mm 47 mm 7 mm 905 lbs 1100 lbs B007HS0A0I yes $8.00 Buy Options
6808-ZZ 40 mm 52 mm 7 mm 985 lbs 1140 lbs B007HS0BQQ yes $8.00 Buy Options
6809-ZZ 45 mm 58 mm 7 mm 1270 lbs 1419 lbs B007HS0D3W yes $8.00 Buy Options
6810-ZZ 50 mm 65 mm 7 mm 1370 lbs 1480 lbs B007HS0EWW yes $8.00 Buy Options
6811-ZZ 55 mm 72 mm 9 mm 1820 lbs 1980 lbs B007HS0G20 yes $10.69 Buy Options
6812-ZZ 60 mm 78 mm 10 mm 2380 lbs 2580 lbs B007HS0HU6 yes $19.34 Buy Options
6814-ZZ 70 mm 90 mm 10 mm 2680 lbs 2720 lbs B007HS0JWC yes $14.39 Buy Options
6815-ZZ 75 mm 95 mm 10 mm 2890 lbs 2820 lbs B007HS0MHO Usually ships in 2 to 3 weeks $16.82 Buy Options
6820-ZZ 100 mm 125 mm 13 mm 4750 lbs 4400 lbs B007HS0OW2 yes $56.40 Buy Options

Key Features

  • Deep-groove geometry for high speeds and supporting both radial and axial loads
  • Single-row bearing for supporting radial loads
  • Shields on both sides of the bearing to keep lubricant in and contaminants out

Product Description

The WJB 6800-ZZ series deep groove ball bearing is a double-shielded ball bearing and has a single-row deep-groove geometry for high speeds and supporting both radial and axial loads. The bearing is shielded on both sides for additional protection from debris and other contaminants. This WJB 6800-ZZ series deep groove double-shielded ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy and stiffness at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

WJB Bearings, Inc. manufactures various types of bearings and components including ball and roller bearings, bronze bushings, and sprockets and chains. The company, founded in 1992, is based in City of Industry, CA.
