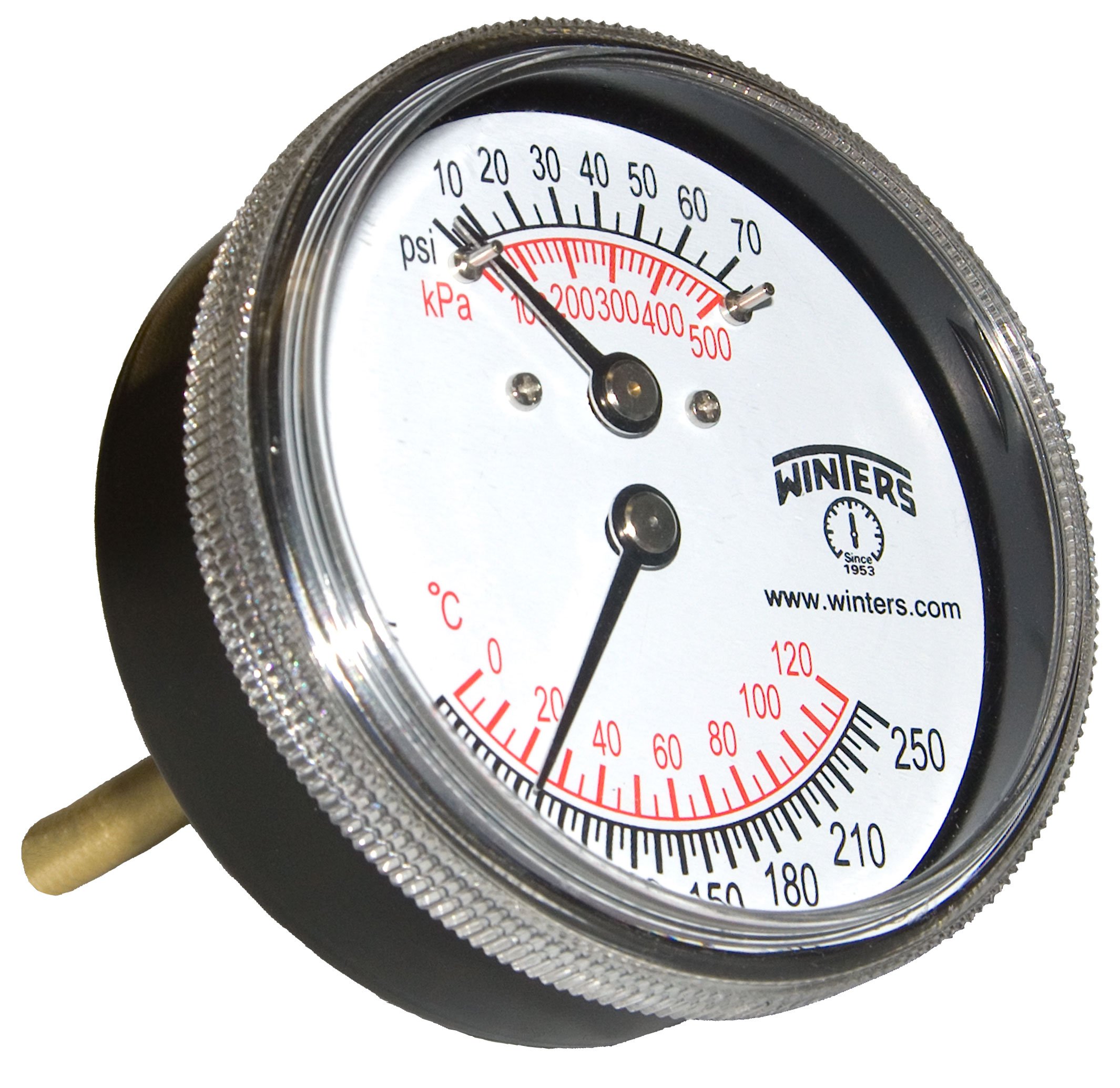

Winters TTD Series Steel Dual Scale Tridicator Thermometer with 2" Stem, 0-250psi/kpa, 3" Dial Display, ±3-2-3% Accuracy, 1/2" NPT Back Mount, 70-320 Deg F/C

Be the first to review this item

ASIN B0087VKSR4

Specifications for this item
Number of Items
1
Range
0-250 psi/kpa, 50-250 Deg F/C
Material Type
Steel
Part Number
TTD398
Outside Diameter
3  inches
UPC
628311000078
Brand Name
Winters
EAN
0628311000078
Measurement Accuracy
+/-3-2-3%, +/-3%
Maximum Measurement
0-250 psi/kpa, 70-320 Deg F/C
Style Name
Back
Special Features
Brass
System of Measurement
Inch and Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 2 days 6 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures both pressure and temperature on the same dial
  • Dial: 3"
  • Dual scale
  • Brass wetted parts
  • 1 Year warranty

Package Details

Shipping Weight: 0.5 pounds
Package Size: 5.1 x 3.5 x 3.4 inches

Product Description

Measures both pressure and temperature on the same dial. Dual scale. Back connection. Brass wetted parts. 2" Stems. Multiple pressure and temperature ranges available. Ranges are compliant to industry standard ASME boiler code section IV HG-612. 1 Year warranty. Hot water and steam pressure for boilers. Dial: 3" aluminum, painted white. Case: steel, painted black. Lens: glass. Ring: chrome. Stem: brass. Socket: brass. Tube: brass. Movement: brass and phosphor bronze. Sensing element: bi-metallic coil, bourdon tube. Pointer: aluminum, anodized black. Welding: tin-alloy solder. Pressure limit: 75 percent of full scale range. Ambient temperature: 23 degree fahrenheit to 122 degree fahrenheit. Process temperature: 75 percent of full scale range. Accuracy: +/-3-2-3 percent, +/-3 percent of full scale. Enclosure rating: IP50. Temperature range: 50 degree F to 250 degree F. Pressure range: 0-250psi
