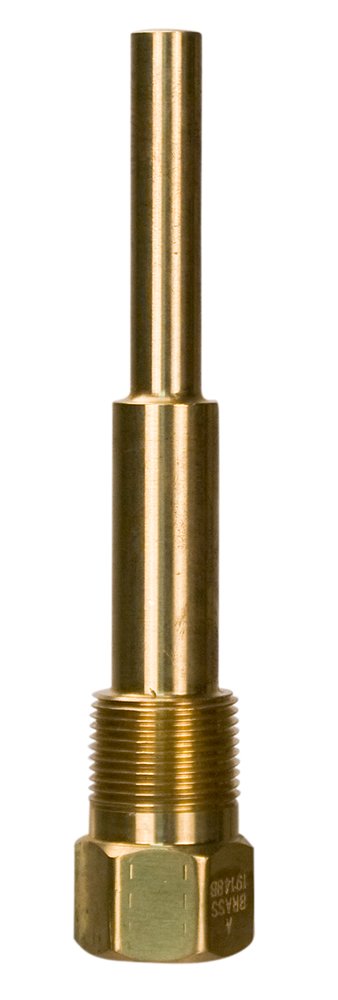

WIKA Brass Threaded Thermowell Reduced Shank for Bimetal and Gas Actuated Thermometers

Be the first to review this item

Product Specifications
Manufacturer Series Number
TH2R010BR
Brand Name
WIKA

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 16 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-5 of 5
1" U Dimension, 1/2" NPT Process Connection B005P16I1Y yes $31.51 Buy Options
1.625" U Dimension, 3/4" NPT Process Connection B005P16IWS yes $8.68 Buy Options
2.5" U Dimension, 1/2" NPT Process Connection B005P16JN6 yes $47.40 Buy Options
2.5" U Dimension, 3/4" NPT Process Connection B005P16JVS yes $47.40 Buy Options
4.5" U Dimension, 3/4" NPT Process Connection B005P16LNO yes $68.40 Buy Options

Key Features

  • Process connection: Threaded
  • Shank configuration: Reduced
  • Bore diameter: 0.260"
  • Surface finish: Brass: 60-100 Ra, AISI 304 and AISI 316: 60-100 Ra
  • U Dimension: Length of well inserted into the piping system, measured from the base of the process connection to the end tip of well

Product Description

Application Thermowells for temperature instruments are recommended for all process systems where pressure, velocity or viscous, abrasive and corrosive materials are present individually or in combination. A properly selected thermowell will protect the temperature instrument from possible damage resulting from these process variables. Furthermore, a thermowell permits removal of the temperature instrument for replacement, repair or testing without effecting the process media or the system. Process Connection: External means to connect thermowell to process piping system. Wells can be threaded, bolted (to matching flange), clamped or welded in place. Bore Diameter: Dimension of internal bore to match the diameter of the instrument stem/bulb inserted into the well. The 0.260" sizes fit instrument stem/bulb diameters of 1/4" and 3/8" respectively. Bore length equals "S" dimension. Reduced Shank: Also called reduced tip. The shank OD is reduced over the last 2-1/2" of the "U" dimension from the standard root diameter to a 1/2" OD.
