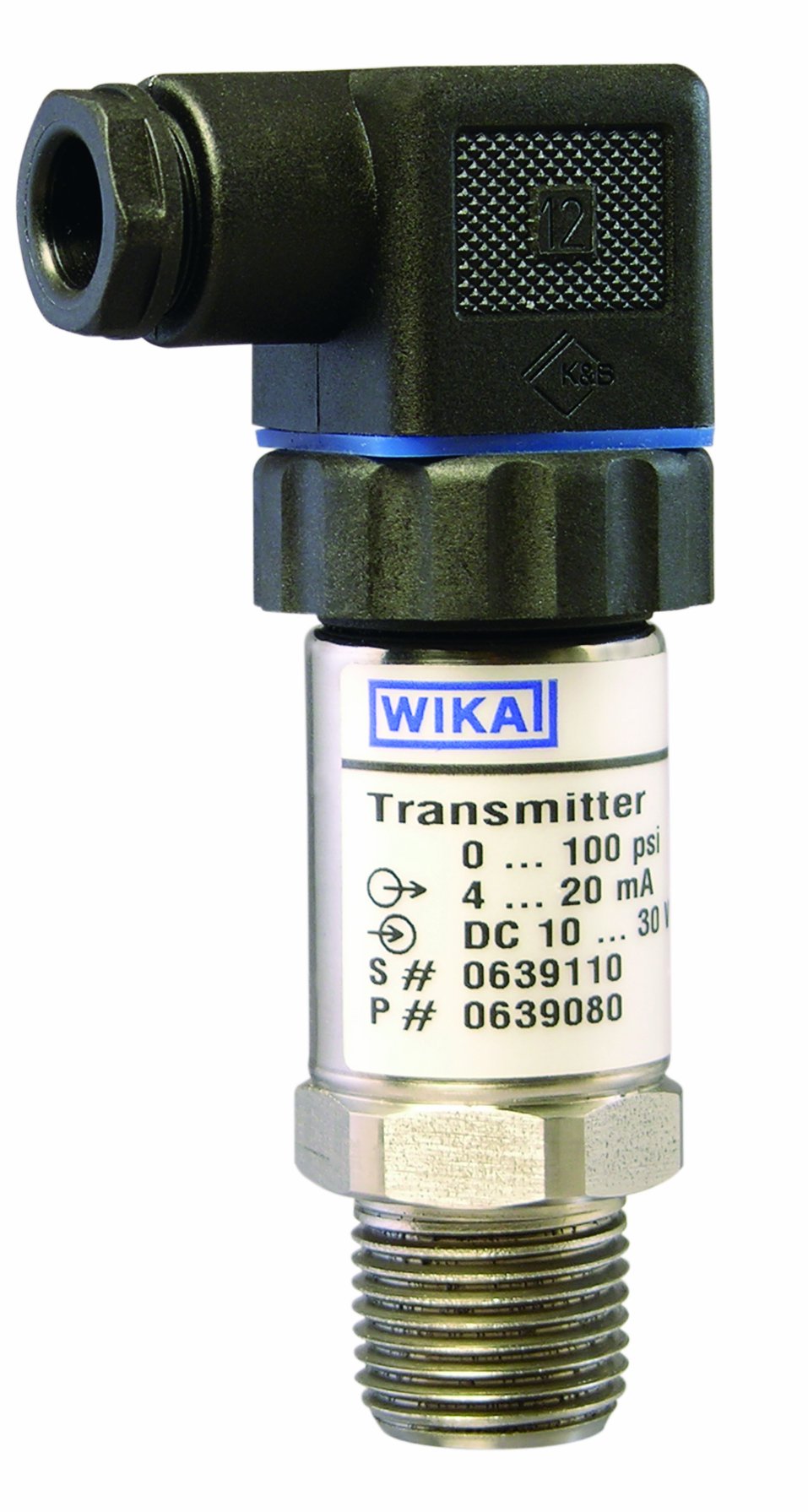

WIKA S-10 Stainless Steel General Purpose Pressure Transmitter, 4 - 20mA 2-Wire Signal Output, 0.25% Accuracy, 1/2" Male NPT Connection

Be the first to review this item

ASIN B007JWK426

Specifications for this item
Manufacturer Series Number
S-10
Measurement Accuracy
0.25%
Material Type
Stainless Steel
UNSPSC Code
41111927
Output Type
4 - 20mA 2-Wire
Brand Name
WIKA
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Highly resistant to pressure spikes and vibration
  • Stainless steel case and wetted parts
  • Can be assembled to diaphragm seals for special applications
  • Applicable for hydraulics and pneumatics, test equipment, pump and compressor control; liquid level measurement
  • Internal transmission fluid: synthetic oil; 58 psi maximum pressure and 1000 psi burst pressure

Product Description

WIKA S-10 pressure transmitters are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations. A wide range of electrical connection and process connection options are available to meet almost any requirement. The S-10 features an all-welded stainless steel measuring cell for improved media compatibility. There are no internal soft sealing materials that may react with the media or deteriorate over time. The compact case is also made of stainless steel and is available with environmental protection ratings up to NEMA 6P / IP 68. Shock resistance: 1000g according to IEC 60068-2-27 (mechanical shock); Vibration resistance: 20g according to IEC 60068-2-6 (vibration under resonance). Wiring protection: Protected against reverse polarity, overvoltage and short circuit. Weight: Approx. 0.4lb. L-connector, DIN EN 175301-803, Form A (DIN 43 650) for conductor cross section up to max. 1.5 sq mm, conductor outer diameter 0.3" (6-8 mm). Supply voltage: 10-30 VDC. Process connection: 1/2 NPT male. Electrical connection: DIN EN 175301-803 (DIN 43 650) with plug connector. Piezoresistive sensor and thin-film sensor technology. 4-20 mA 2-wire output signal, others available.
