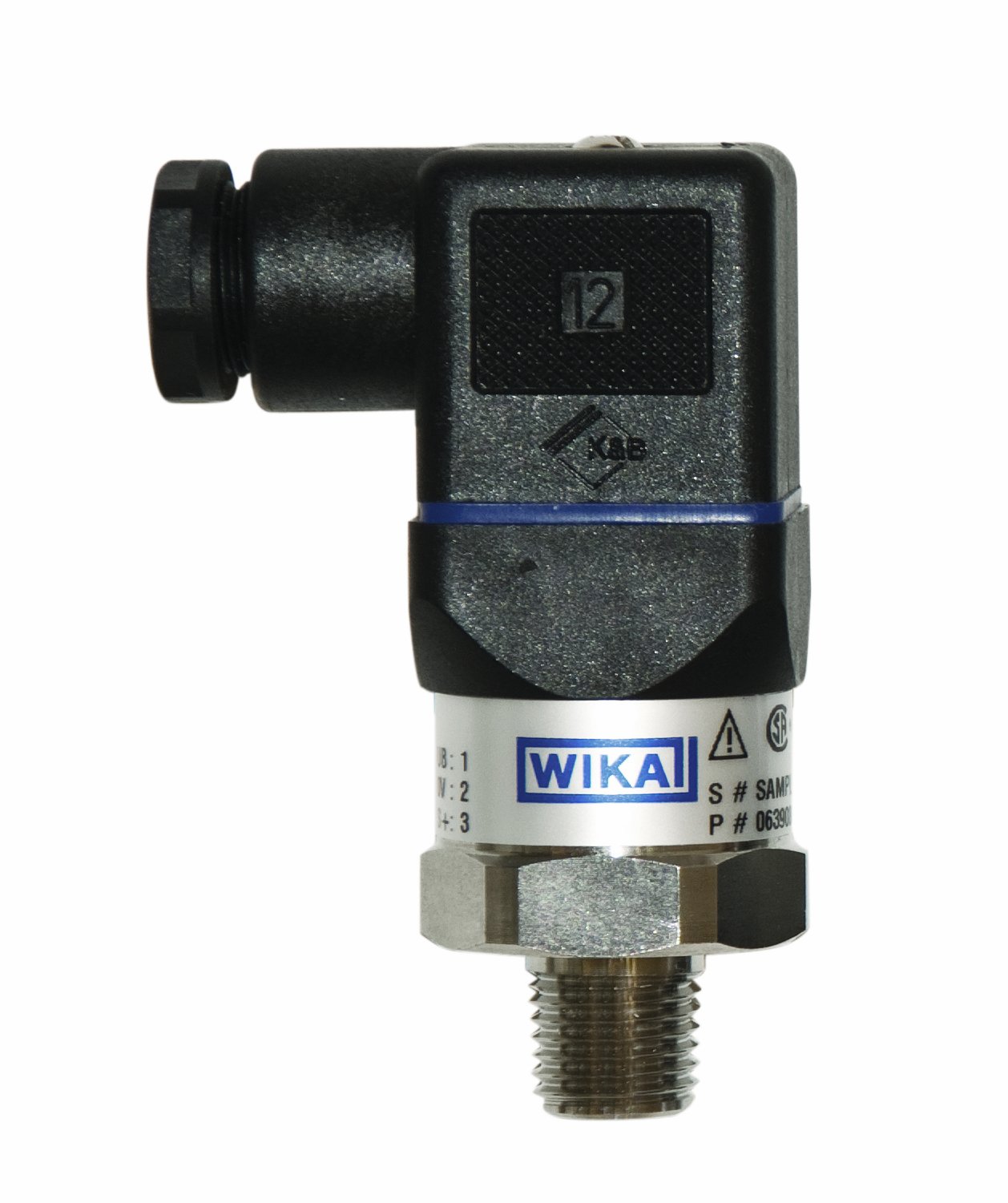

WIKA A-10 Stainless Steel 316L General Purpose Pressure Transmitter, 0 - 10V 3-Wire Signal Output, +/-0.5% Accuracy, 1/4" Male NPT Connection

Be the first to review this item

Product Specifications
Manufacturer Series Number
A-10
Accuracy
+/-0.5%
Grade
316L
Case
Stainless Steel
Output Type
0 - 10V 3-Wire
UNSPSC Code
41111927
Brand Name
WIKA
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 19 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Special Features Pressure Range Connection Wetted Parts Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-14 of 14
0-100 PSI 0-100 psi 1/4" Male NPT Stainless Steel 316L 50426818 B003CA28T6 Usually ships in 1 to 4 weeks $137.50 Buy Options
0-100 PSIA 0-100 psia 1/4" Male NPT Stainless Steel 316L 50426761 B005P1561W yes $170.50 Buy Options
0-1000 PSI 0-1000 psi 1/4" Male NPT Stainless Steel 316L 50426869 B003CA0320 yes $137.50 Buy Options
0-10000 PSI 0-10000 psi 1/4" Male NPT Stainless Steel 316L 50426915 B003CA0456 yes $137.36 Buy Options
0-15 PSI 0-15 psi 1/4" Male NPT Stainless Steel 316L 50426770 B003CA68CY yes $137.50 Buy Options
0-15 PSIA 0-15 psia 1/4" Male NPT Stainless Steel 316L 50426737 B005P1571G yes $170.50 Buy Options
0-1500 PSI 0-1500 psi 1/4" Male NPT Stainless Steel 316L 50426877 B003C9YFFC yes $137.50 Buy Options
0-200 PSI 0-200 psi 1/4" Male NPT Stainless Steel 316L 50426834 B003CA4696 yes $137.50 Buy Options
0-2000 PSI 0-2000 psi 1/4" Male NPT Stainless Steel 316L 50426885 B003CA03J8 yes $137.50 Buy Options
0-300 PSI 0-300 psi 1/4" Male NPT Stainless Steel 316L 50426842 B003CA46GY yes $137.50 Buy Options
0-3000 PSI 0-3000 psi 1/4" Male NPT Stainless Steel 316L 50426893 B003C9WAYK yes $137.50 Buy Options
0-50 PSI 0-50 psi 1/4" Male NPT Stainless Steel 316L 50426800 B003C9WG3A yes $137.50 Buy Options
0-500 PSI 0-500 psi 1/4" Male NPT Stainless Steel 316L 50426851 B003CA3ZM0 Usually ships in 1 to 4 weeks $137.50 Buy Options
0-5000 PSI 0-5000 psi 1/4" Male NPT Stainless Steel 316L 50426907 B003CA69CI yes $137.50 Buy Options

Key Features

  • Fatigue life: 10 million load cycles maximum
  • 316 L case and wetted parts
  • Internal transmission fluid: silicone oil
  • Applicable for mechanical engineering, machine tools, process control and automation, hydraulics and pneumatics, pumps and compressors
  • UL, CSA, GOST Approvals; 200 psi over pressure safety and 500 psi burst pressure

Product Description

The WIKA A-10 pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications. Performance and reliability is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The stateof- the-art manufacturing and assembly process increases the long term reliability of the A-10. Primary applications include process control and automation, hydraulics, pneumatics and machine controls. Pressure ranges: from 0 - 15 psi up to 0 - 10,000 psi. Non-linearity: +/- 0.5% BFSL ( +/- 0.25% available). RoHS-conformity. CE-conformity: Pressure equipment directive - 97/23/EC; EMC directive - 2004/108/EEC (Group 1, Class B) and immunity according to EN 61 326. Shock resistance: 500g according to IEC 60068-2-27 (mechanical shock). Vibration resistance: 10g according to IEC 60068-2-6 (vibration under resonance). Wiring protection: Overvoltage protection: 32 VDC, 36 VDC with 4-20 mA; Short-circuit protection - Sig+ to UB-; Reverse polarity protection - UB+ to UB-. Test pereference conditions according to IEC 61298-1: Relative humidity: 45-75%; Temperature - 59-77 degree F (15-25 degree C); Atmospheric Pressure - 86-106KPa (25.4…31.3 inhg). Weight: Approx. 2.8 oz. (80 g). Supply voltage: 8-30 DC (14-30 VDC). Process connection: 1/4 NPT Male. Electrical connection: DIN EN 175301-803 (DIN 43 650) with plug connector. 200 psi Over pressure safety and 500 psi burst pressure.
