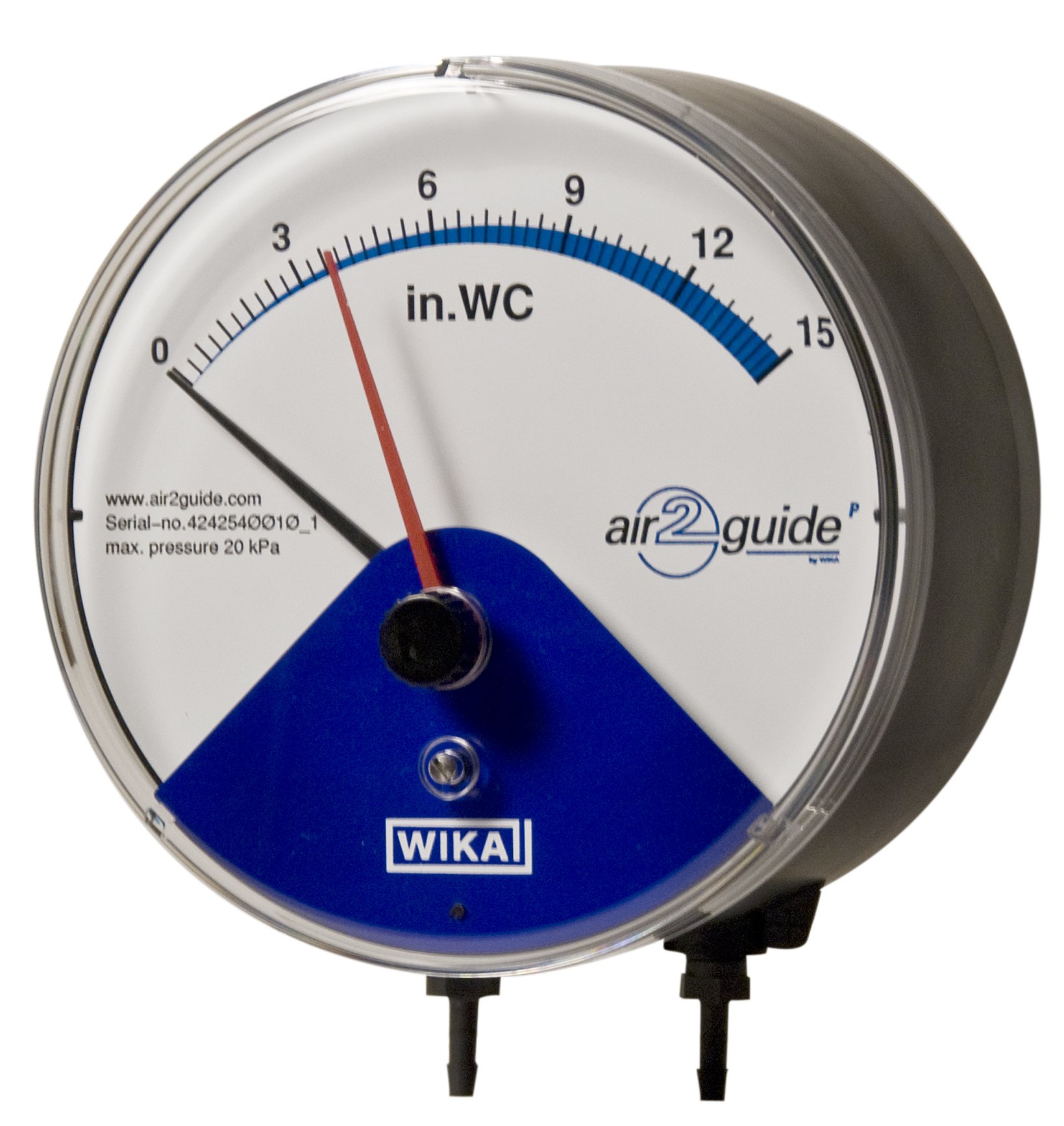

WIKA Differential Low Pressure Gauge

Be the first to review this item

Product Specifications
Manufacturer Series Number
A2G-10
Case
Polycarbonate (PC)
UNSPSC Code
41112412
Brand Name
WIKA
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-17 of 17
Dial Size Special Features Pressure Range Connection Mount Accuracy Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-17 of 17
4-1/2" -0.5-0.5" WC Range, 4-1/2" Dial -0.5-0.5" WC 2" x 1/8" Hose Barb Bottom Mount +/-3% 50677055 B005P15DYW yes $44.22 Buy Options
4-1/2" -1-1" WC Range, 4-1/2" Dial -1-1" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50807099 B005P15KEK yes $79.00 Buy Options
4-1/2" -1-1" WC Range, 4-1/2" Dial -1-1" WC 2" x 1/8" Hose Barb Bottom Mount +/-3% 50807137 B005P15KIQ Usually ships in 1 to 2 months $79.00 Buy Options
4-1/2" -4-4" WC Range, 4-1/2" Dial -4-4" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50807111 B005P15L58 yes $79.00 Buy Options
4-1/2" -4-4" WC Range, 4-1/2" Dial -4-4" WC 2" x 1/8" Hose Barb Bottom Mount +/-3% 50807153 B005P15LEY Usually ships in 1 to 2 months $79.00 Buy Options
4-1/2" -6-6" WC Range, 4-1/2" Dial -6-6" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50807129 B005P15LJ4 yes $79.00 Buy Options
4-1/2" 0-0.25" WC Range, 4-1/2" Dial 0-0.25" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50676857 B005P15E3M yes $69.00 Buy Options
4-1/2" 0-0.25" WC Range, 4-1/2" Dial 0-0.25" WC 2" x 1/8" Hose Barb Bottom Mount +/-3% 50677063 B005P15E8C yes $69.00 Buy Options
4-1/2" 0-10" WC Range, 4-1/2" Dial 0-10" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50676938 B005P15FA4 yes $69.00 Buy Options
4-1/2" 0-10" WC Range, 4-1/2" Dial 0-10" WC 2" x 1/8" Hose Barb Bottom Mount +/-3% 50556754 B005P15FGI yes $69.00 Buy Options
4-1/2" 0-15" WC Range, 4-1/2" Dial 0-15" WC 2" x 1/8" Hose Barb Back Mount +/-3% 40246604 B005P15FXQ yes $69.00 Buy Options
4-1/2" 0-2" WC Range, 4-1/2" Dial 0-2" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50676890 B005P15GMG yes $69.00 Buy Options
4-1/2" 0-20" WC Range, 4-1/2" Dial 0-20" WC 2" x 1/8" Hose Barb Bottom Mount +/-3% 50556771 B005P15H7U yes $27.97 Buy Options
4-1/2" 0-25" WC Range, 4-1/2" Dial 0-25" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50676962 B005P15HKC yes $69.00 Buy Options
4-1/2" 0-4" WC Range, 4-1/2" Dial 0-4" WC 2" x 1/8" Hose Barb Back Mount +/-3% 40246582 B005P15IHO yes $69.00 Buy Options
4-1/2" 0-50" WC Range, 4-1/2" Dial 0-50" WC 2" x 1/8" Hose Barb Back Mount +/-3% 50676997 B005P15JN2 yes $69.00 Buy Options
4-1/2" 0-6" WC Range, 4-1/2" Dial 0-6" WC 2" x 1/8" Hose Barb Bottom Mount +/-3% 50556738 B005P15K2C yes $69.00 Buy Options

Key Features

  • Circular dial is four and one-half inches in diameter and is enclosed in a thermoplastic case for increased durability in low temperature environments
  • Pressure ranges from 0.02 to 50 inch water column
  • Display accuracy is + or - 3 percent of span over the entire range of the gauge
  • Plastic hose barb female connection for increased durability
  • Can be mounted and dismounted easily without requiring additional tools

Product Description

The WIKA differential low pressure gauge has a circular dial that is 4" in diameter and is enclosed in a thermoplastic case with a polycarbonate window for increased durability in low temperature environments. The gauge measures pressure from 0.02 to 50 inch water column (inWC) and is accurate to + or - 3 percent of span over the entire range of the gauge. The female connection is a hosed barb that is made of plastic for increased durability. The gauge can be mounted and dismounted easily without the use of tools. The low pressure gauge is suitable for measuring differences of pressure in isolation chambers and for monitoring blowers and ventilators.

Pressure gauges are instruments used to measure the pressure of a gas or liquid inside a vessel and, often, to help ensure the optimal amount of pressure for a given application. Pressure gauges can range from everyday instruments, such as those used to measure the air pressure in a car or bicycle tire, to highly accurate gauges used in mechanical and industrial processing. Most often, pressure gauges measure pressure relative to another reference. For instance, gauge pressure measures pressure relative to ambient air. An example of a pressure gauge measuring relative to ambient air is a tire pressure gauge or a blood pressure gauge. Differential pressure is the difference in pressure between two points, such as when measuring liquid flow along various points in a pipeline. An absolute pressure gauge measures pressure relative to a perfect vacuum, such as an atmospheric or barometric pressure gauge. All types of pressure gauges include either a male or a female mount to connect to the vessel where pressure is being measured, and display results on a dial with varying increments of measure across a given range.

WIKA Instrument Corporation is a global manufacturer of pressure and temperature measurement instruments, including pressure gauges, diaphragm seals, pressure transmitters, and thermometers, that meet International Organization for Standardization (ISO) standards for quality assurance. The company, founded in 1946, is headquartered in Lawrenceville, GA.
