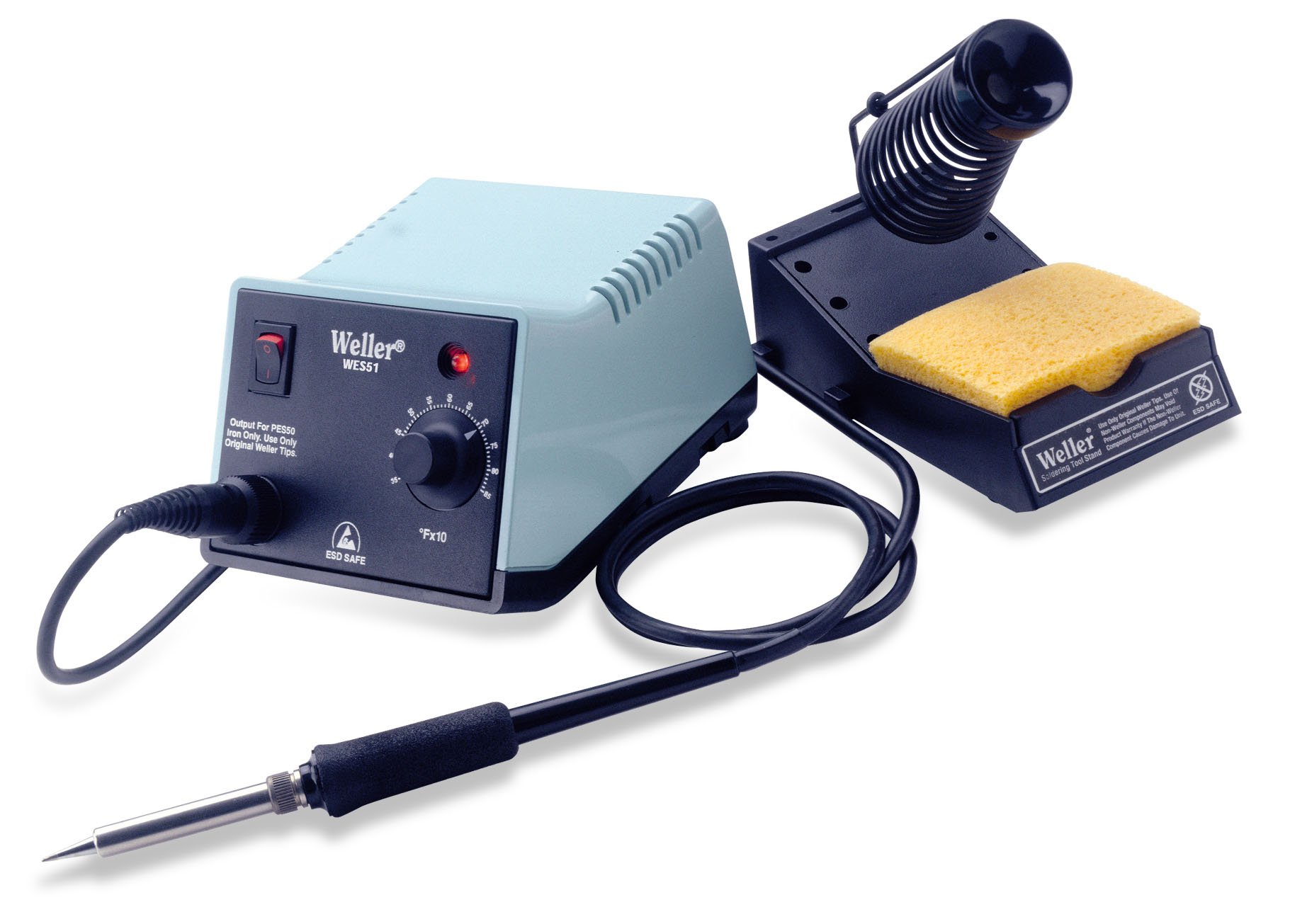

Weller WES51 Analog Soldering Station

Be the first to review this item

ASIN B000BRC2XU

Specifications for this item
Number of Items
1
Part Number
WES51
UPC
086000240141 , 163121089528 , 115970927193 , 037103191311 , 071020270148 , 031113093535 , 971477796034 , 601000228786 , 611101170440 , 168141255397 , 971478461320 , 609722135306
Item Weight
3.9 pounds
Brand Name
Apex Tool Group
EAN
0611101170440 , 0086000240141 , 0609722135306 , 0601000228786 , 0031113093535 , 0071020270148 , 0971477796034 , 0037103191311 , 0115970927193 , 0168141255397 , 0163121089528 , 0971478461320
UNSPSC Code
23271603
Warranty
1 year

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Jul 25? Order in-stock items in the next 27 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Station Includes Power Unit, Soldering Pencil, Stand and Sponge
  • New Receptacle For Easier Iron Replacement
  • Designed For Continuous Production Soldering
  • Slim, Comfortable Pencil With Eta Tip Reduces Operator Fatigue
  • Tip Temperature Offset Capability
  • This is for 120v only

Package Details

Shipping Weight: 4.2 pounds
Package Size: 11.5 x 9 x 4.3 inches

Product Description

This analog soldering station from Weller is an innovative heater and sensor combination that gives you a quick heat-up and rapid temperature recovery. It has a wireless temperature lockout to prevent operators from raising the temperature levels higher than specified for the board or component so if gives you control over the process. The station automatically powers down after 90 minutes of inactivity to prolong tip like and save power.

Amazon.com

The Weller WES51 Analog Soldering Station, with included soldering pencil, stand, and sponge, is the perfect choice for a variety of soldering applications, including industrial manufacturing, rework, repairs, and more. The comfortable foam-grip pencil and variable temperature controls give you complete command of your work for precise results. Plus, with a non-burnable silicone rubber cord, ESD safety, and automatic shut-off technology, the WES51 is safe enough to use in a continuous production environment.


The WES51's heater and sensor combination offers quick heat-up times and temperature recovery for highly efficient soldering.View larger.
The Weller WES51 Analog Soldering Station features:
  • An included power unit, soldering pencil, stand, and sponge
  • A durable design ideal for industrial manufacturing applications
  • Temperature lock-out that prevents excessive temperatures
  • An automatic sleep-mode that turns off soldering station after 99 minutes of inactivity
  • Adjustable temperature controls; quick heat-up and recovery times

Electronic Temperature Control for Precise Performance
No matter what your soldering job is, the WES51's electronic control system lets you set the temperature you need to get the job done right. The soldering temperature is adjustable from 350 to 850 degrees Fahrenheit and is accurately measured to within nine degrees. And the WES51's innovative built-in heater and sensor combination offers quick heat-up times and temperature recovery for better heat control over the course of your job.

The WES51's wireless temperature lockout prevents you from raising the temperature beyond what is recommended for a specific workpiece, board, or component. This eliminates the possibility of damaging components by accidentally setting the temperature too high for the job.

Comfortable, Easy-to-Use Soldering Pencil
The kit's included PES51 Soldering Pencil features a durable Nichrome-wound stainless steel heating element for long life and quick response time. Stainless steel will not corrode at high temperatures, meaning you can use this durable pencil for a long time to come. An added bonus, the PES51 Soldering Pencil is compatible with Weller ET series tips.

The PES51 also features a non-burning silicone rubber cord, a lightweight handle made from high-impact ESD (electro-static discharge) plastic, and a foam sleeve that allows for continuous use without fatigue or heat discomfort.


Wireless temperature lockout enhances your work's precision.
Innovative Features for Long-Term, Safe Use
The WES51 Soldering Station meets Weller's high standards for quality and safety. The station will automatically shut off power to the PES51 Soldering Pencil after 99 minutes of inactivity, which helps to conserve electricity and extends the tip life. Additionally, the easy-to-understand LED (light-emitting diode) lets you know what mode the WES51 is in, so you can easily see if the temperature is locked or unlocked and whether or not the unit is turned on.

The Weller WES51 Soldering station is UL/CUL listed, which means that it meets or exceeds independent safety standards. Furthermore, the PES51 Soldering Pencil is designed to be used in electrostatic-free workstations, and, for added safety, it is completely free of stored static charges. The WES51 Soldering Station is backed by a one-year warranty.

What's in the Box

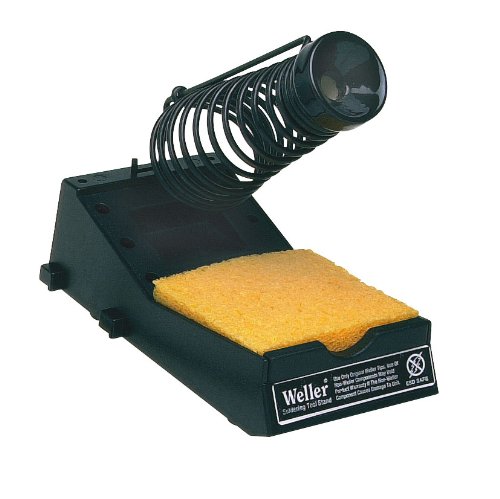

WES51PU Power Unit, PES51 Soldering Pencil, PH50 Stand, and sponge.

From the Manufacturer

The Weller WES51 is a powerful and economical continuous production soldering station. This unit has wireless temperature limit lockout that gives you control over the process, and an automatic power-down features that prolongs tip life and saves power. The WES51's heater and sensor combination allows for relatively quick heat-up and recovery, and comes with an improved iron plug and receptacle for easier iron changes. The static sensitive grounded 50-watt slim profile iron accepts the new miniature tips for surface mount soldering, and it's slim design reduces operator fatigue. Temperature is adjustable from 350-degrees to 850-degrees Fahrenheit. Temperature accuracy +/- 9-degrees Fahrenheit. UL and cUL listed.
