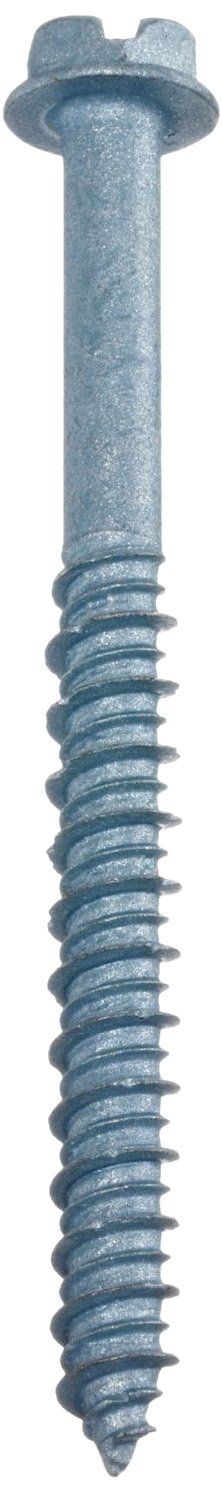

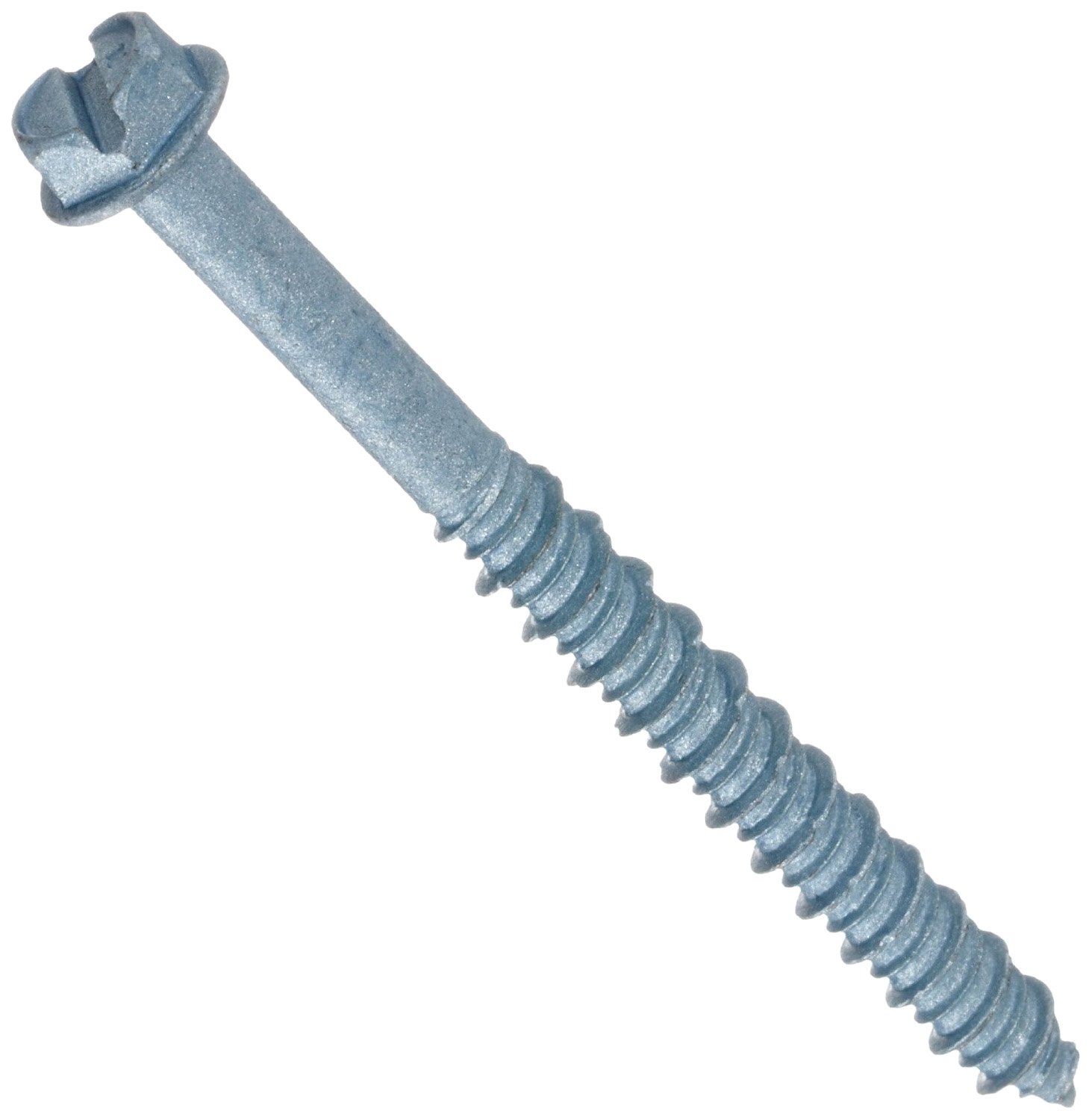

Wej-It Wej-Con Concrete Screw, 1022 Carbon Steel, Blue R-Blocker Finish, Hex Washer Head, Slotted Drive, Fits 3/16" Hole Size, 2-1/4" Length, 1/4" Threads (Pack of 100)

Be the first to review this item

ASIN B006SRYR94

Product Specifications
Part Number
HCS3621
UPC
013918108393
Head Diameter
0.348  inches
Head Height
0.133  inches
Length
2-1/4  inches
Thread Size
1/4"
Thread Coverage
Partially Threaded
Drill Point
Gimlet
EAN
0013918108393
Fits Hole Size
5/32 inches
Indentation Hardness
52  Rockwell C
Outside Diameter
1/4  inches
Outside Diameter
3/16  inches
Pkg Qty
100
Shear Strength
900 pounds
Thread Length
1-5/8  inches
Specification for this product family (See all  products)
Drive Style
Slotted
Exterior Finish
Blue R-Blocker Coating
Grade
1022
Material Type
Carbon Steel
Head Style
Hex Washer
UNSPSC Code
31161526
Brand Name
Wej-It
Thread Style
Right Hand
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 24? Order in-stock items in the next 16 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Concrete screw cuts threads into concrete, hollow block, brick, mortar, and concrete masonry units to provide a secure hold without requiring threaded inserts
  • 1022 carbon steel screw has a corrosion-resistant blue R-Blocker coating that meets ASTM B117 specifications to resist 1,000 hours of salt spray
  • Hex washer head has a flange that provides additional bearing surface to distribute the force over the fixture being fastened and has a slotted drive for use with a flat-blade driver
  • Ultimate tensile strength is 425 lb. at 1" embedment depth and 1" edge distance in 2,730-psi concrete
  • Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)

Package Details

Shipping Weight: 1.32 pounds
Package Size: 6.5 x 4.3 x 3.1 inches

Product Description

The Wej-It Wej-Con concrete screw cuts threads into concrete, hollow block, brick, mortar, and concrete masonry units (CMUs) to provide a secure hold without requiring threaded inserts. The anchor is made of 1022 carbon steel for strength and has a corrosion-resistant blue R-Blocker coating that meets American Society for Testing and Materials (ASTM) B117 standards to resist 1,000 hours of salt spray. The hex washer head has six flat sides that a wrench can grip to turn from the side, enabling use when there is no space above the head for a screwdriver. It also has a linear slot for use with a flat-blade driver. The head's washer increases the fastener's bearing surface and distributes the clamping force over a larger area, reducing damage to the fixture being fastened.

The twin-lead threads and the fully threaded point cut into the mounting material to secure the screw placement and resist pull-out. The screw includes a drill bit to create the correct size hole for installation. The screw can be removed and reinstalled into the same hole to enable fixture changes or screw replacement.

Specifications
Fits Hole SizeUltimate Tensile Strength in 1,924-psi Hollow Block @ 1-1/4" Embedment Depth and 1" Edge DistanceUltimate Shear Strength in 1,924-psi Hollow Block @ 1-1/4" Embedment Depth and 1" Edge DistanceUltimate Tensile Strength in 2,730-psi Concrete @ 1" Embedment Depth and 1" Edge DistanceUltimate Shear Strength in 2,730-psi Concrete @ 1" Embedment Depth and 1" Edge DistanceUltimate Tensile Strength in 2,730-psi Concrete @ 1-3/4" Embedment Depth and 1" Edge DistanceUltimate Shear Strength in 2,730-psi Concrete @ 1-3/4" Embedment Depth and 1" Edge Distance
3/16"425 lb.550 lb.425 lb.695 lb.1,100 lb.860 lb.
1/4"1,000 lb.900 lb.670 lb.635 lb.1,860 lb.920 lb.

Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's literature.

Concrete screws are threaded fasteners that install into hard, brittle materials such as concrete, brick, and block to securely fasten a fixture. These screws have hardened threads that cut into the sides of a drilled hole to secure their placement in the material.

Wej-It Fastening Systems manufactures mechanical and adhesive fasteners for use in concrete and drywall. The company, founded more than 60 years ago, is headquartered in Norwalk, CT.

What's in the Box?

  • 100 Wej-it HCS3621 concrete screws
  • 1 drill bit
