Wej-It Stalgard Coated Coated Carbon Steel Hex Washer Head Drive, Concrete Screw, USA Made, 3/16" Diameter, 1-3/4" Length, Pack of (100)

Be the first to review this item

ASIN B006SRYQZ4

Specifications for this item
Drive Style
1/4" Hex Combo
Head Height
.133  inches
Part Number
HCS3613
Brand Name
Wej-It
Number of Items
100
Fits Hole Size
5/32  inches
Material Type
Carbon Steel
Thread Coverage
Partially Threaded
UPC
013918108201
EAN
0013918108201
Head Diameter
.348  inches
Exterior Finish
Blue Stalgard
Thread Length
1-5/8  inches
System of Measurement
Inch
Overall Length
1-3/4  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 22 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • For static loads, it is recommended that a safety factor of 4:1 (one-fourth or 25%) be applied to the ultimate tensile & shear strengths shown
  • Fast, easy & consistent installations (no breaking or snapping)
  • Long-term corrosion resistance

Package Details

Shipping Weight: 1.5 pounds
Package Size: 3.6 x 3.1 x 3.1 inches

Product Description

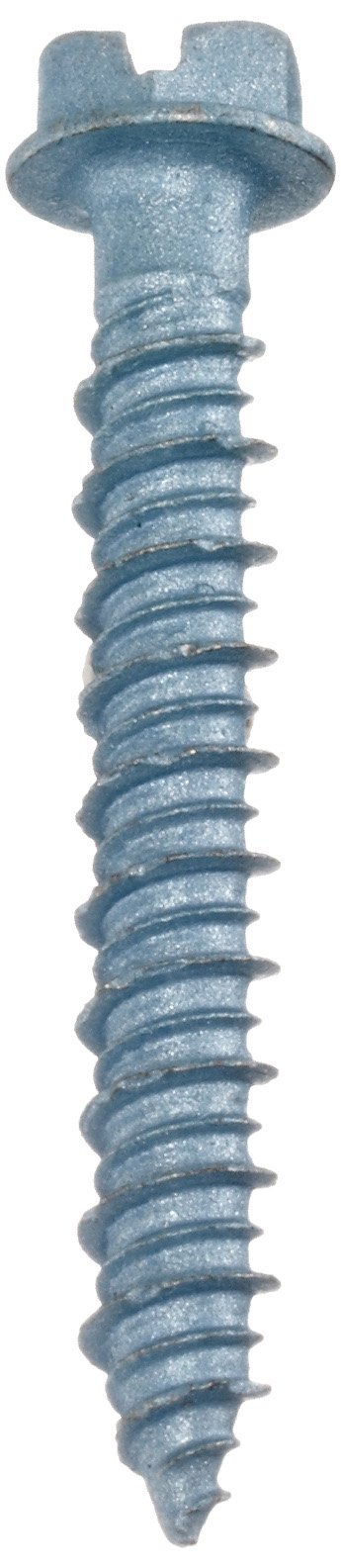

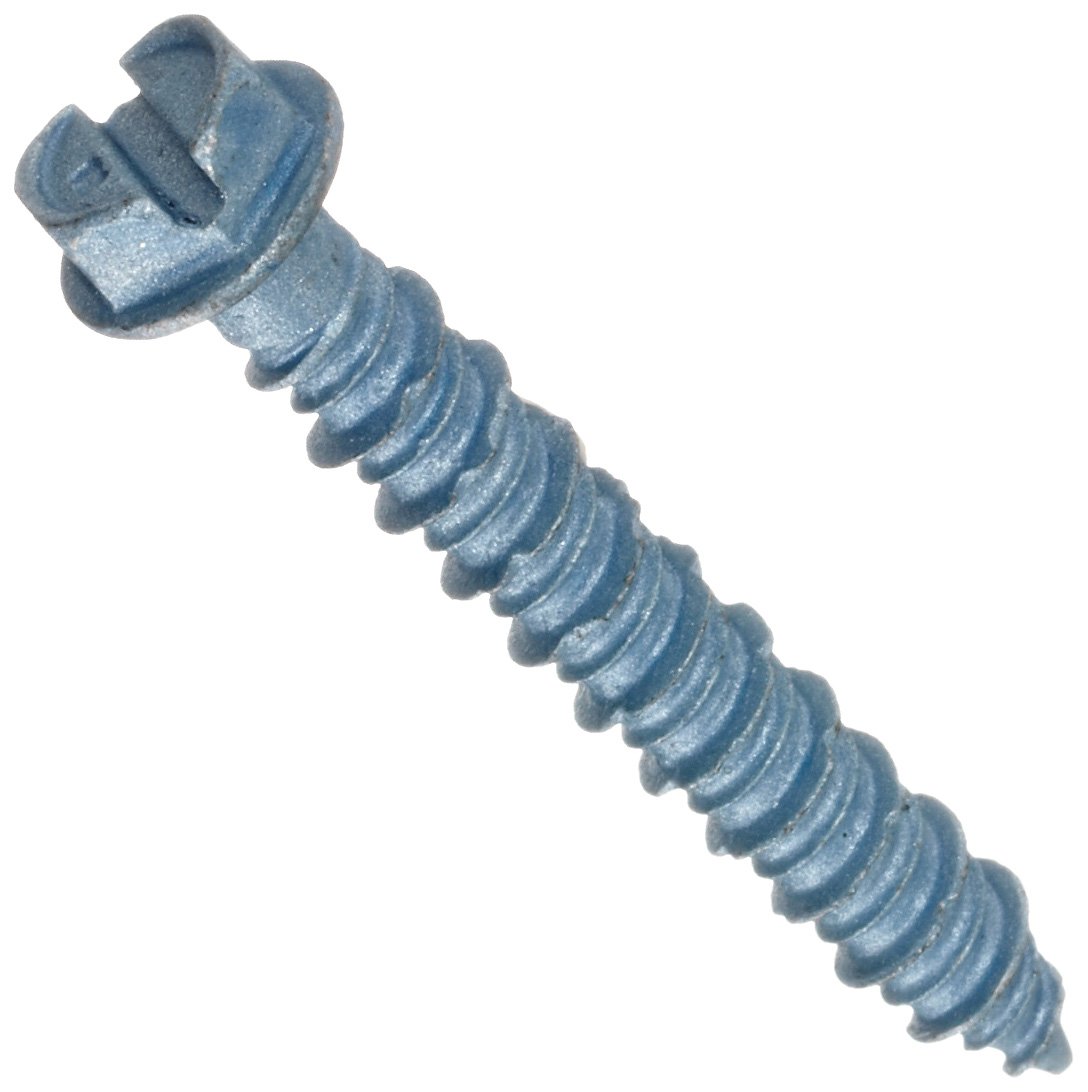

The Wej-It Wej-Con concrete screw cuts threads into concrete, hollow block, brick, mortar, and concrete masonry units (CMUs) to provide a secure hold without requiring threaded inserts. The anchor is made of 1022 carbon steel for strength and has a corrosion-resistant blue R-Blocker coating that meets American Society for Testing and Materials (ASTM) B117 standards to resist 1,000 hours of salt spray. The hex washer head has six flat sides that a wrench can grip to turn from the side, enabling use when there is no space above the head for a screwdriver. It also has a linear slot for use with a flat-blade driver. The head's washer increases the fastener's bearing surface and distributes the clamping force over a larger area, reducing damage to the fixture being fastened.

The twin-lead threads and the fully threaded point cut into the mounting material to secure the screw placement and resist pull-out. The screw includes a drill bit to create the correct size hole for installation. The screw can be removed and reinstalled into the same hole to enable fixture changes or screw replacement.

Specifications
Fits Hole SizeUltimate Tensile Strength in 1,924-psi Hollow Block @ 1-1/4" Embedment Depth and 1" Edge DistanceUltimate Shear Strength in 1,924-psi Hollow Block @ 1-1/4" Embedment Depth and 1" Edge DistanceUltimate Tensile Strength in 2,730-psi Concrete @ 1" Embedment Depth and 1" Edge DistanceUltimate Shear Strength in 2,730-psi Concrete @ 1" Embedment Depth and 1" Edge DistanceUltimate Tensile Strength in 2,730-psi Concrete @ 1-3/4" Embedment Depth and 1" Edge DistanceUltimate Shear Strength in 2,730-psi Concrete @ 1-3/4" Embedment Depth and 1" Edge Distance
3/16"425 lb.550 lb.425 lb.695 lb.1,100 lb.860 lb.
1/4"1,000 lb.900 lb.670 lb.635 lb.1,860 lb.920 lb.

Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's literature.

Concrete screws are threaded fasteners that install into hard, brittle materials such as concrete, brick, and block to securely fasten a fixture. These screws have hardened threads that cut into the sides of a drilled hole to secure their placement in the material.

Wej-It Fastening Systems manufactures mechanical and adhesive fasteners for use in concrete and drywall. The company, founded more than 60 years ago, is headquartered in Norwalk, CT.

What's in the Box?

  • 100 Wej-it HCS3613 concrete screws
  • 1 drill bit
