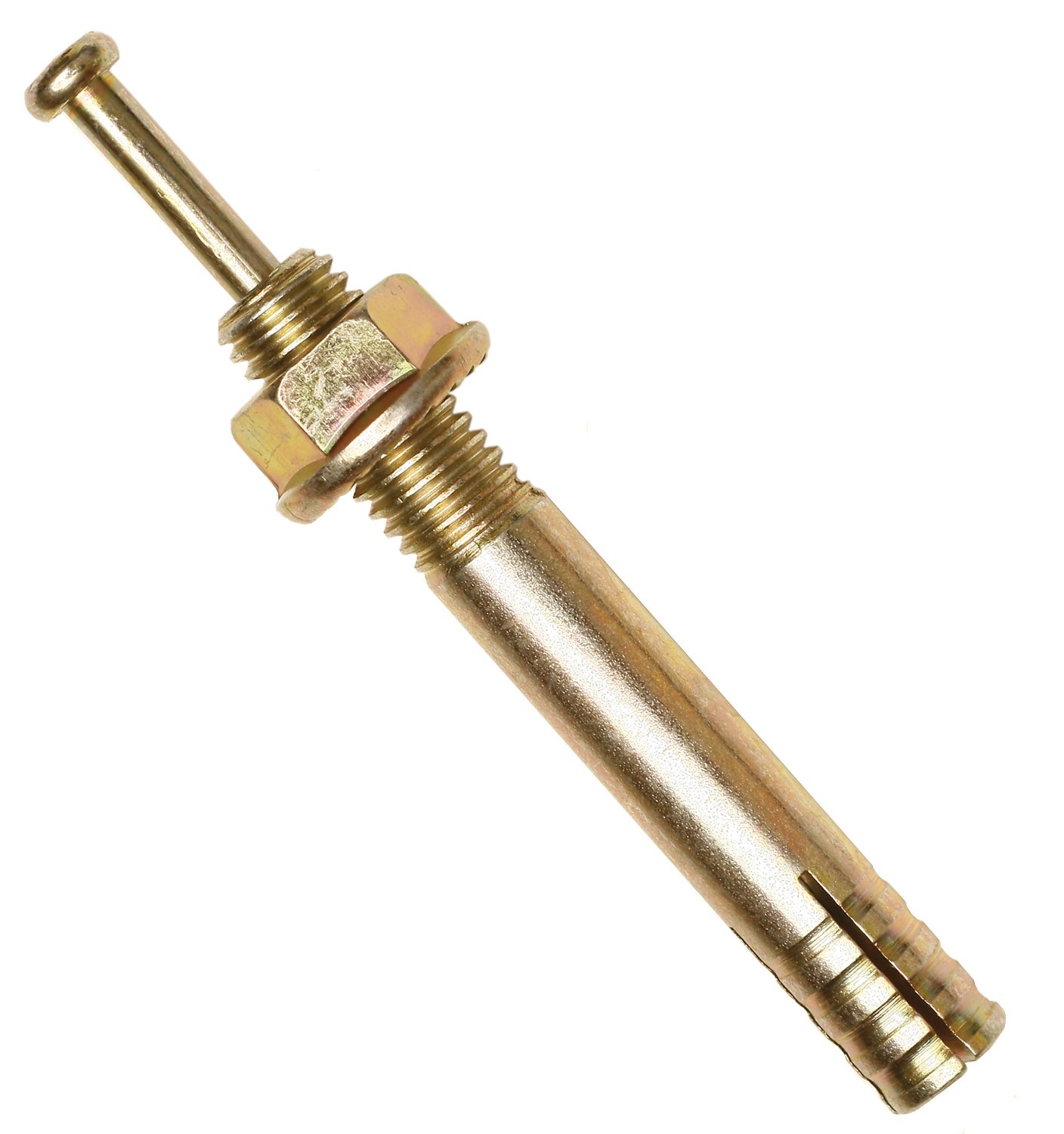

Wej-It CP5620 Pin Drive Anchor, Steel, Corrosion-Resistant, 5/16" Diameter, 2" Length 5/16" - 18 Threads, Pack Of 100
Be the first to review this item
ASIN B009EAXOBE
Specifications for this item
- Brand Name
- Wej-It
- Exterior Finish
- Yellow Dichromate
- Finish Types
- Yellow Dichromate
- Length
- 2 inches
- Material Type
- Steel
- Outside Diameter
- 5/16 inches
- Outside Diameter
- 0.3125 inches
- Part Number
- CP5620
- Pkg Qty
- 100
- Style Name
- Pin Drive
- System of Measurement
- Inch
- Thread Coverage
- N/A
- Thread Size
- 5/16" - 18
- Thread Style
- Right Hand
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 17 hours 24 minutes and choose One-Day Shipping at checkout.
Key Features
- Easy to install: just hammer the center pin and it's set, anchor tensions itself automatically, so no wrench is needed
- Easy to inspect: anchor is set when center pin is flush with top of hole
- Depth of hole not critical: no depth gauge required
- Actual diameter of the anchor is the same as its nominal diameter: no templates required
- Serrations on nut provide vibration resistance
- For static loads use one-fourth (25%) of the ultimate tensile & shear strengths shown
- 3,159 psi ultimate tensile strength in 4,000 psi concrete at 1-1/2" embedment depth
- 1,320 psi ultimate shear strength in 4,000 psi concrete at 1-1/2" embedment depth
Package Details
Shipping Weight:
4.55 pounds
Package Size:
8.2 x 4.8 x 3 inches
Product Description
Center pin drive anchor. Easy to install: just hammer the center pin and it’s set, anchor tensions itself automatically, so no wrench is needed Easy to inspect: anchor is set when center pin is flush with top of hole. Depth of hole not critical: no depth gauge required. Actual diameter of the anchor is the same as its nominal diameter: no templates required. Serrations on nut provide vibration resistance. Yellow dichromate finish provides superior corrosion resistance. Materials: anchor body: hot rolled steel, pin: hot wrought iron. Finish: yellow dichromate coating. Federal specifications: QQZ-325Z, type II Class 3 (yellow dichromate added), GSA FFS-325 Group II Type 4 Class I. Measures 5/16" diameter by 2" length. 5/16" Maximum thickness fastened material. 1-3/8" Minimum embedment.
