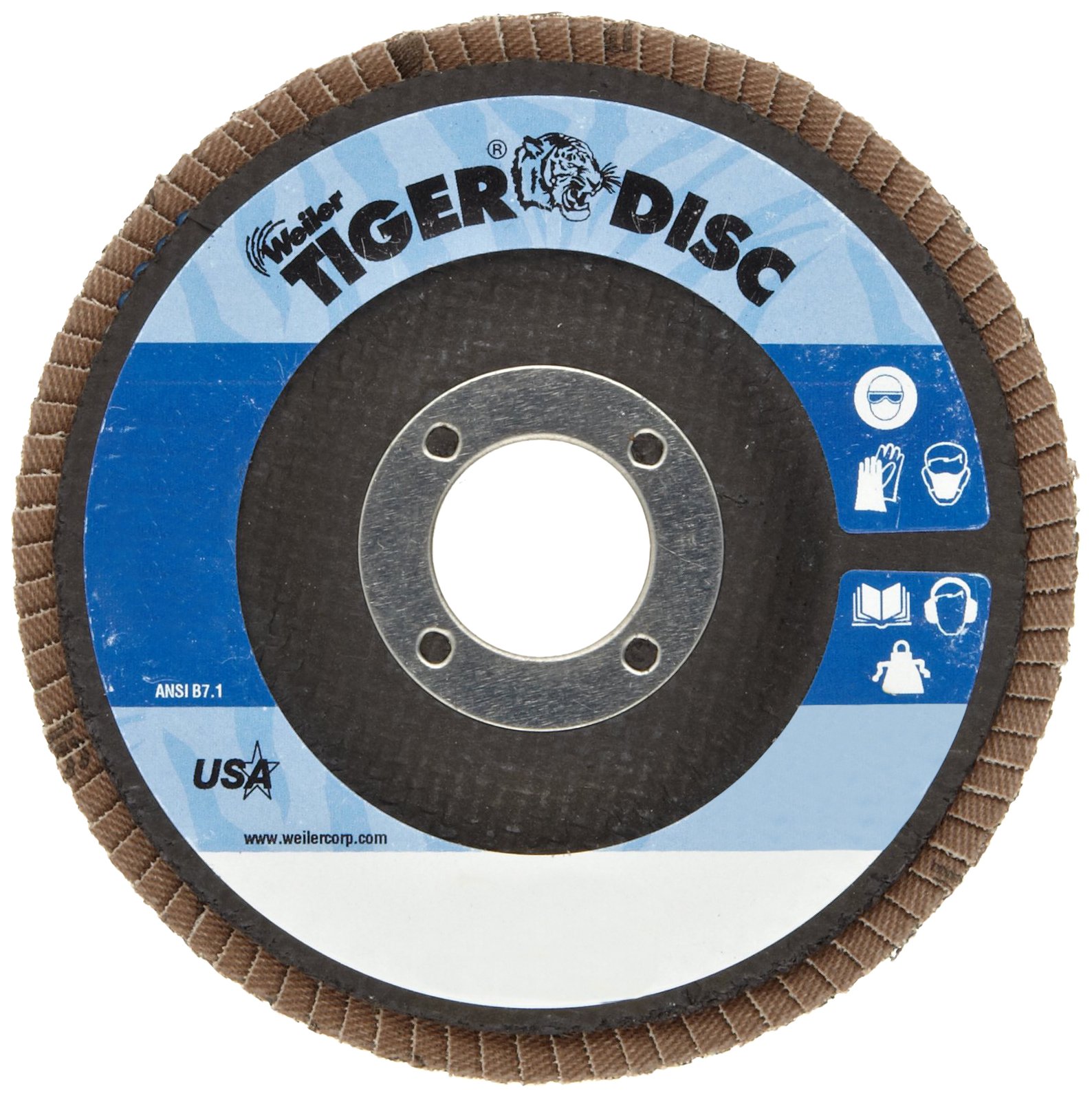

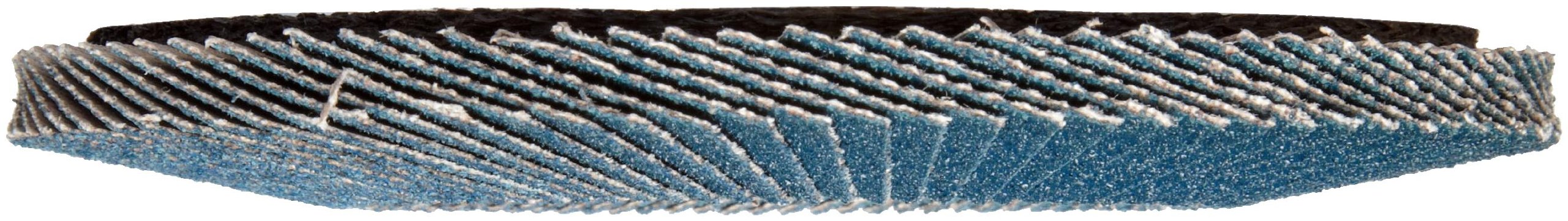

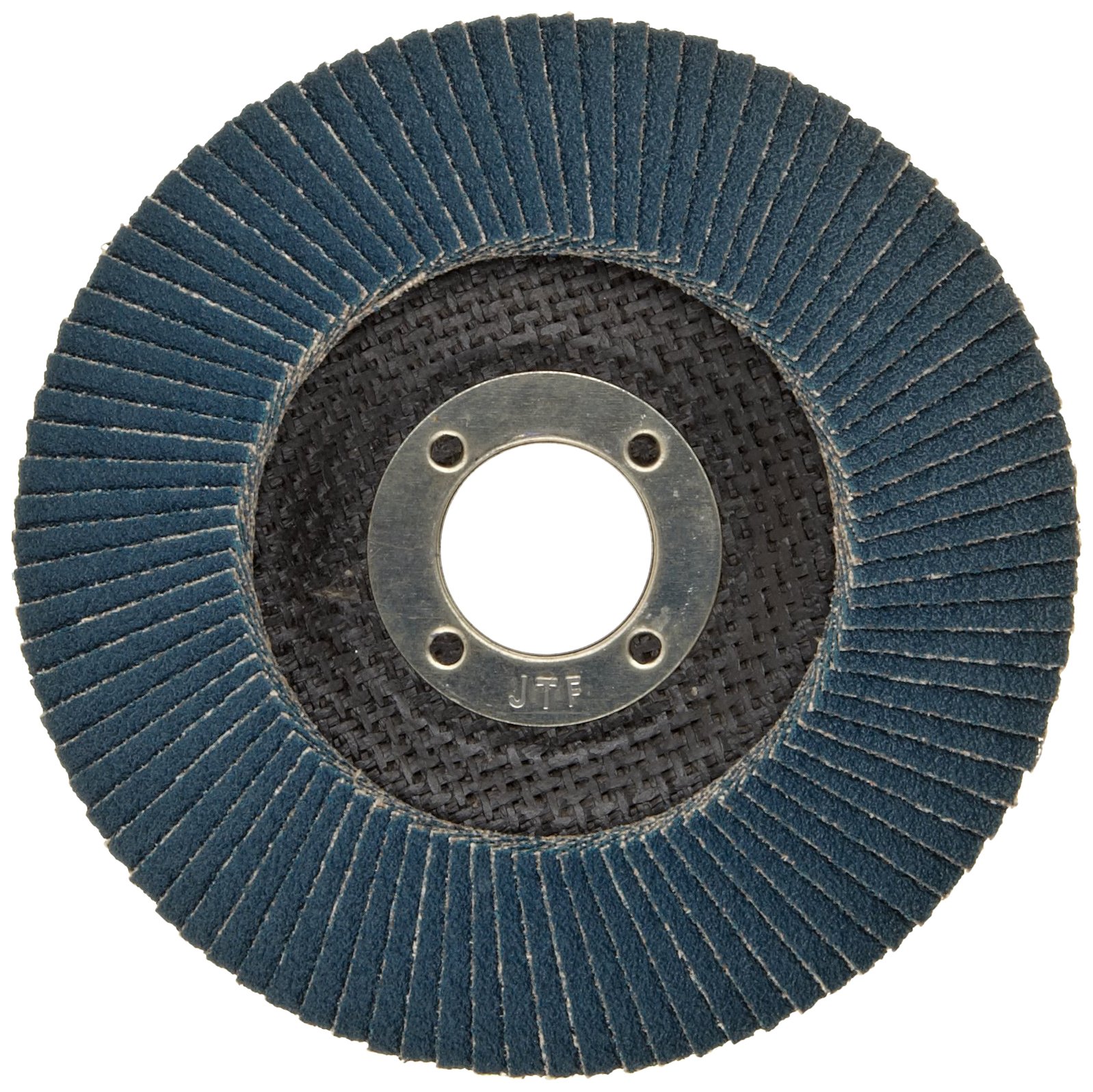

Weiler Tiger Abrasive Flap Disc, Type 29, Round Hole, Phenolic Backing, Zirconia Alumina

Be the first to review this item

Product Specifications
Attachment Type
Round Hole
Material Type
Phenolic Resin
Construction Type
Coated
Grit Material Type
Zirconia Alumina
Brand Name
Weiler
Manufacturer Series Number
Tiger
Backing Type
Cloth
Style Name
Type 29
UNSPSC Code
31191506

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 14 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Disc Diameter Grit Size Arbor Diameter Maximum Speed Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-12 of 12
4" 60 Grit 5/8" 15000 rpm 1 50594 B004FTPV0G yes $11.24 Buy Options
4-1/2" 120 Grit 7/8" 13000 rpm 1 50606 B004FTPV1U yes $8.20 Buy Options
4-1/2" 80 Grit 7/8" 13000 rpm 1 50605 B004FTPV1K yes $12.76 Buy Options
4-1/2" 60 Grit 7/8" 13000 rpm 1 50604 B004FTPV1A yes $12.76 Buy Options
4-1/2" 40 Grit 7/8" 13000 rpm 1 50603 B004FTPV10 yes $7.72 Buy Options
4-1/2" 36 Grit 7/8" 13000 rpm 1 50602 B004FTPV0Q yes $12.76 Buy Options
6" 80 Grit 7/8" 10200 rpm 1 50651 B004FTPV74 yes $10.49 Buy Options
6" 60 Grit 7/8" 10200 rpm 1 50650 B004FTPV5Q yes $16.53 Buy Options
6" 40 Grit 7/8" 10200 rpm 1 50649 B004FTPV5G yes $16.53 Buy Options
7" 60 Grit 7/8" 8600 rpm 1 50624 B004IZL4BC yes $16.83 Buy Options
7" 40 Grit 7/8" 8600 rpm 1 50623 B004FTPV2Y yes $16.48 Buy Options
7" 80 Grit 7/8" 8600 rpm 1 50625 B004IZL4BM yes $15.61 Buy Options

Key Features

  • Zirconia alumina abrasive is self-sharpening and more durable than aluminum oxide
  • Type 29 angled style is more aggressive than type 27 style and is used for weld blending, deburring, deflashing, edge chamfering, stock removal, and grinding and finishing in one step
  • Phenolic backing prevents disc from scratching the workpiece and offers durability and reinforcement
  • Designed for use at a 15- to 35-degree angle
  • Unthreaded round hole for attachment to grinding tools

Product Description

The Weiler Tiger type 29 angled-style zirconia alumina abrasive flap disc has a phenolic backing for reinforcement and an unthreaded round hole for attachment to grinding tools, and works well on curved surfaces. The zirconia alumina abrasive is self-sharpening and more durable than aluminum oxide, which makes it suitable for fast material removal rates and aggressive grinding. Applications include weld blending, deburring, deflashing, edge chamfering, stock removal, and grinding and finishing in one step. The disc has an angled shape for maximum workpiece contact and is commonly used with right-angle grinders at a 15- to 35-degree angle. It has an unthreaded round hole for attachment to the grinding tool. The tool's arbor goes through the central hole in the disc for fastening.

Abrasive flap discs are made from overlapping pieces of coated abrasive attached to a hub. They help reduce finishing time and cost by grinding and finishing in the same step, such as when removing a weld bead and smoothing the workpiece around the weld. Flap discs are coated, meaning an adhesive is used to attach the abrasive grains to a backing of paper, plastic, or cloth. The action of a flap disc is much like that of a sanding disc: the grinding or polishing occurs on the face of the disc. They are used for a variety of applications from shaping a part to fine finishing, depending on the grit size. Low grit numbers like 40 are coarse (with fewer, larger grains) and remove excess material and shape parts. High grit numbers like 400 are fine (with more, smaller grains) and help create a smooth surface finish.

Weiler manufactures precision brushes, abrasives, and maintenance products. The company was founded in 1898 in Germany, is headquartered in Cresco, PA, and is International Organization for Standardization (ISO) 9001 certified.
