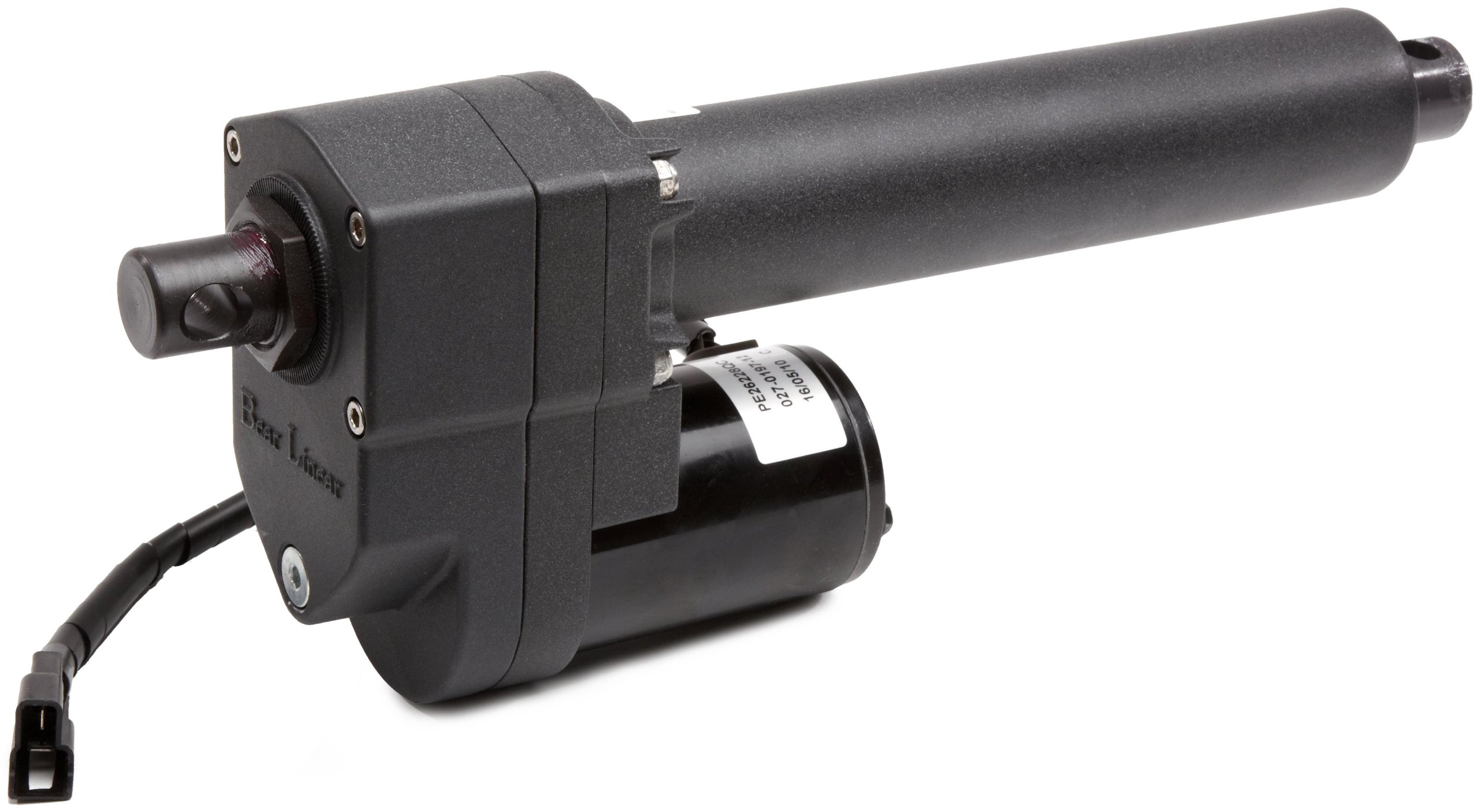

Warner Linear K2G05-12v-BR-04 B-Track K2 4" Stroke Length Rugged Duty Actuator

Be the first to review this item

ASIN B003XT6AY0

Specifications for this item
Overall Height
4.3  inches
Part Number
K2G05-12v-BR-04
Brand Name
Warner Linear
Number of Items
1
Material Type
Steel
UPC
786582949271
EAN
0786582949271
Upper Temperature Range
150  Degrees Fahrenheit
Exterior Finish
powder coat black paint
UNSPSC Code
31251511
Breaking Point
300  pounds
LowerTemperature Range
-15  Degrees Fahrenheit
Overall Length
10.32  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Pushes or pulls load in 4" stroke
  • 5:1 gear ratio for moving loads up to 300 lb. at 2" per second
  • Internal bronze screw nut for load transfer
  • Double-ended ball bearing motors and hardened gears for rugged duty use
  • 12V operation with an operating range of 10 to 16VDC

Package Details

Shipping Weight: 9.95 pounds
Package Size: 20 x 6.7 x 3.6 inches

Product Description

This Warner K2G05-12v-BR-04 B-Track linear actuator has a 4" stroke and a 5:1 gear ratio for use in rugged duty applications such as platform and engine lifts. This K2 series unit is capable of moving loads up to 300 pounds at a rate of 2 inches per second. The linear actuator uses a solid bronze screw nut for transferring the load, and has double-ended ball bearing motors and hardened gears for rugged duty use. Its protective coatings and O-ring seals provide an Ingress Protection (IP) 65 rating for protection against dust and liquids, and the unit is permanently lubricated. The 12VDC motor has thermal overload protection and has an operating voltage range of 10 to 16VDC. This linear motion actuator is suitable for use in applications such as deck and implement lifts for tractors, wheelchair lifts, and flow control mechanisms.

Specifications

Power requirements12VDC 25 amp
Duty cycle10 percent maximum on time for 80 to 100 percent load capability
Control switchdouble pole, double throw
Operating range–30 to +140 degrees F (-34 to + 60 degrees C)
Degree of protectionIP65

Linear motion actuators are independent units that, when combined with a switch and power source, push or pull loads in a straight line. Actuator types (mechanical, hydraulic, pneumatic, piezoelectric, electro-mechanical, and telescoping) vary and their application is determined by the power source available, as well as the load and space requirements. Linear motion actuators are used in a variety of applications, such as computer disk drives, deck and implement lifts for tractors, wheelchair lifts on a vehicle, and flow control mechanisms, such as flood gates on a dam.

Warner Linear manufactures electromechanical actuators and controls. The company, founded in 1927, is headquartered in Belvidere, IL.
