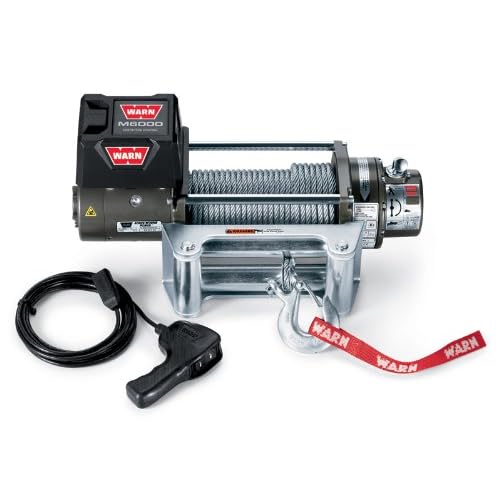

WARN 45880 M6000 6000-lb Winch

Be the first to review this item

ASIN B000182E00

Specifications for this item
Part Number
45880
Item Weight
78.6 pounds
UPC
012748458807
Brand Name
Warn
EAN
0012748458807
Warranty
Limited Lifetime Warranty
UNSPSC Code
24101608

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 16 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Great value and works with most trucks and SUVs
  • Reliable, proven designs for real-world conditions
  • Has a 12 feet remote lead
  • 12V 4.8 hp, 24V 2.1 hp, Series Wound motor
  • Pulling capacity up to 6000 pounds

Package Details

Shipping Weight: 81 pounds
Package Size: 25.4 x 18.5 x 7.6 inches

Product Description

Warn Industries M6000 6000-lb Winch can pull up to 6000 pounds and comes in a compact and efficient package. This light-to-medium-duty winch is made to be compact and powerful and is ideal for smaller vehicles with big ambitions. It is backed by a limited lifetime warranty.

From the Manufacturer

The M6000 Self-Recovery Winch is a compact, medium-to-light duty winch that features a 6,000-pound capacity making it ideal for smaller vehicles with big ideas. A 4.8 hp Series Wound motor with a 48.5-ft./minute no-load retrieval rate and a 10 ft./minute full-load pull rate pulls vehicles out of the barrow pit or bog quickly. An 80-foot wire rope with hook provides plenty of reach without the bulk. The Self-Recovery Winch also features a remote control on a 12-foot lead, a clutch, a roller fairlead and battery cables.

FEATURES

  • 6,000-pound capacity for use with smaller vehicles
  • 4.8 hp Series Wound motor for optimal power
  • 48.5-ft./minute no-load retrieval rate and a 10 ft./min. full-load pull rate for retrieval
  • 80-foot wire rope with hook for plenty of reach
  • Remote control on a 12-foot lead for outside-the-vehicle operations

SPECIFICATIONS

  • Rated Line Pull: 6000 lbs. (2720 kgs) single-line
  • Motor: 12V 4.8 hp, 24V 2.1 hp, Series Wound
  • Remote Control: Remote switch, 12' (3.7m.) lead
  • Gear train: 3-Stage Planetary
  • Gear Ratio: 156:1
  • Lubrication: Aero shell #17
  • Clutch (free spooling): Sliding Ring Gear
  • Brake: Automatic Direct Drive Cone
  • Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
  • Weight: 74 lbs. (34 kgs.)
  • Wire Rope for PN 45880, 458802, 465052: 80', 5/16" diameter (24m, 8mm diam.)
  • Wire Rope for PN 37960: 50', 5/16" diameter (15m, 8mm diam.)
  • Fairlead for PN 45880, PN 458802, PN465052: Roller
  • Fairlead for PN 37960: Hawse
  • Recommended Battery: 650 CCA minimum for winching
  • Battery Leads: 2 gauge, 72" (1.83m)
  • Finish: Argent Gray Powder Coat
  • Nuts/Bolts: PN 39625
  • CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.
  • 12V DC PERFORMANCE SPECS
  • Line Pull
  • Lbs.(Kgs.) Line Speed
  • FT./min(M/min.) Motor
  • Current Pull by layer
  • Layer/Lbs(Kgs.)
  • 0 48.5(14.8) 85 amps 1/6000(2722)
  • 2000(910) 23.7(7.22) 175 amps 2/5460(2477)
  • 4000(1810) 12.9(3.93) 360 amps 3/5000(2268)
  • 6000(2720) 10.0(3.05) 465 amps 4/4670(2118)
