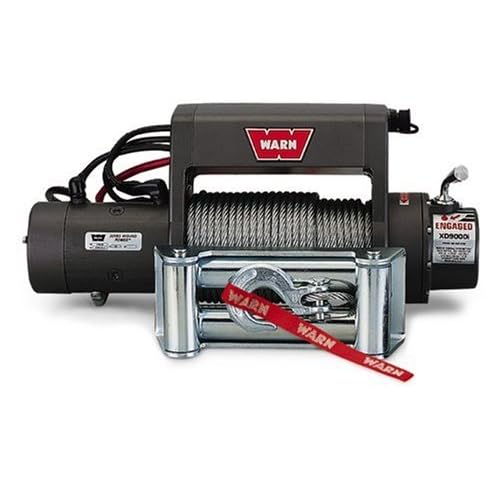

WARN 27550 XD9000i 9000-lb Winch

Be the first to review this item

ASIN B000182DYW

Specifications for this item
Catalog Number
WARN-27550 , W3627550 , BCSQ27550
Part Number
27550
UPC
012748275503
Brand Name
Warn
EAN
0012748275503
Warranty
Limited Lifetime Warranty
List price:
$1,483.99
Price:
$923.56
You save:
$560.43 (38%)
Quantity:

In Stock (5)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 16 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Features an integrated control box for additional protection to the electrical components
  • Series-wound, high-speed motor provides fast line speed and strong pulls up to 9,000 pounds
  • Includes 125' of 5/16" wire rope and remote control with 12' lead
  • Runs cool with low amp draw for long winching duty cycles
  • Durable 3-stage planetary geartrain for smooth, reliable, operation

Package Details

Shipping Weight: 94 pounds
Package Size: 25.5 x 18.4 x 7.6 inches

Product Description

From the Manufacturer

You'll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.

SPECIFICATIONS

  • Part Number: PN 27550 (12V DC), PN 275502 (12V DC, CE), PN 274022 (24V DC, CE)
  • Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
  • Motor: 12V 4.6 hp, 24V 2.5 hp, Series WoundTM
  • Remote Control: Remote switch, 12' (3.7m) lead
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 156:1
  • Lubrication: Aeroshell #17
  • Clutch (freespooling): Sliding Ring Gear
  • Brake: Automatic Direct Drive Cone
  • Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
  • Weight: 85 lbs. (38.5 kgs.)
  • Wire Rope: 125', 5/16" diameter (38m, 8mm diameter)
  • Fairlead: Roller
  • Recommended Battery: 650 CCA minimum for winching
  • Battery Leads: 2 gauge, 72" (1.83m)
  • Finish: Argent Powder Coat
  • Nuts/Bolts: PN 39570
  • CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble.
  • Winch Dimensions: 21.8" L. x 6.3" D. x 9.94" H. (553mm L. x 160mm D. x 252mm H.)
  • Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Product Description

Warn Industries XD9000i Winch has pulling capacity rated up to 9,000 pounds. The series-wound, high-speed motor provides fast line speed and strong pulls. Runs cool with low amp draw for long winching duty cycles. Includes 125' of 5/16" wire rope. The integrated control box provides excellent protection to electronics. Exclusive brake design provides superior control while winching. Has a durable 3-stage planetary geartrain for smooth, reliable, operation. Chip-resistant, powder-coated finish. This winch is backed by a limited lifetime warranty.
