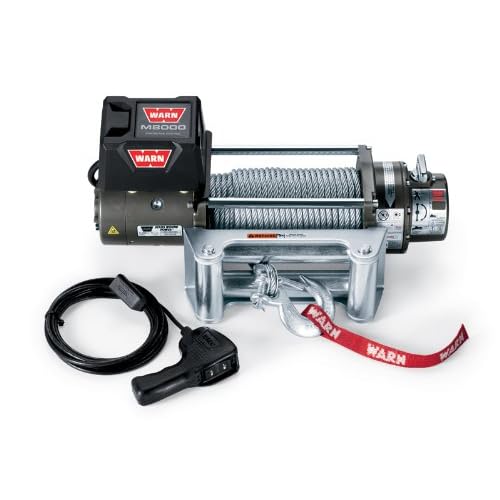

WARN 26502 M8000 8000-lb Winch

Be the first to review this item

ASIN B000182DYM

Specifications for this item
Part Number
26502
Item Weight
83 pounds
UPC
012748265023
Brand Name
Warn
Size Name
M8000
EAN
0012748265023
Warranty
Limited Lifetime Warranty
UNSPSC Code
24101608

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 22 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Low-profile design and separate control box allows for a wide range of mounting options
  • Powers load in and out via 100 ft of 5/16 in wire rope
  • Efficient, 3-stage planetary gear box and automatic direct drive cone brake system
  • Powerful 4.8 hp series wound motor, with a 8,000 lb pull rating and sliding ring gear freespooling clutch
  • Electrical control box and hand-held remote with 12 ft (3.7m) lead

Package Details

Shipping Weight: 85 pounds
Package Size: 25.5 x 18.6 x 7.5 inches

Product Description

The M8000 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs. It is a compact, efficient and robust package that has a powerful 4.8 horsepower Series Wound motor and 3-stage planetary gear train. This winch includes 100-feet wire rope with a roller fairlead. Chip-resistant powder-coated finish. Limited lifetime warranty.

Amazon.com

Warn Industries' 26502 M8000 vehicle recovery winch an outstanding value for trucks, sport utility vehicles and Jeeps. Featuring a 4.8-hp series wound motor packing an 8,000 lbs pull rating, as well as a 3-stage planetary geartrain, it provides advanced pulling power that is efficient yet quiet. Add this to its 100' of 5/16 wire rope with standard roller fairlead, a sliding ring gear freespooling clutch and wired remote and you have the perfect winching tool for work or play.

Warn Industries logo
Warn Industries 26502 M8000 8000-lb self-recovery winch showing the inner workings of the drum, geartrain and clutch
Classic design, proven performance.
View larger.
Warn Industries 26502 M8000 8000-lb self-recovery winch operated from inside a jeep
Competitive power, speed and reliability.
View larger.
The wired rubber remote with 12-foot cord included with the Warn Industries 26502 M8000 8000-lb self-recovery winch
A 12-foot wired rubber remote for all-weather safety.
View larger.
High Efficiency and Power and Performance
The Premium Series 26502 M8000 vehicle recovery winch from Warn Industries features the classic design that has been the staple of Warn's longtime best selling winch lines. The M8000 has an 8,000 lb line pull rating and is just the right size for Jeeps, trucks, and SUVs. Its high power 4.8-hp series wound motor is powered via 72" color-coated leads attaching to your vehicle's 12-volt battery, while its 3-stage planetary geartrain ensures that it is capable of getting any job done fast and quietly. The unit comes standard with 100' of 5/16" wire rope and a roller fairlead, but can also be fitted with a hawse fairlead (sold separately), and also includes an automatic brake and a handheld rubber controller with a 12' lead cord making for easy and safe operation in all scenarios. Additional features include a sliding ring gear freespooling clutch with stainless steel hardware and lever, a remote mount control box that allows for a variety of mounting options and a limited lifetime warranty.

Standard Features:

  • Powers load in and out.
  • 100' of 5/16" wire rope.
  • Gear ratio 216:1.
  • Automatic direct drive cone brake.
  • Efficient, 3-stage planetary gear box.
  • Sliding ring gear freespooling clutch.
  • Powerful 4.8 hp series wound motor, with a 8,000 LB pull rating.
  • Heavy duty clevis hook with rope thimble.
  • Heavy duty roller fairlead (optional hawse fairlead).
  • Rubber handheld remote with 12' (3.7m) cord.
  • Limited lifetime warranty.
What's in the Box
1-Warn Industries 26502 M8000 self-recovery winch, 1-roller fairlead, 1-100' length of 5/16 wire rope, 1-heavy duty clevis hook with rope thimble, 1-12' rubber handheld remote, 1-hook strap, 1-users manual.

Specifications:
Rated line pull 8000 LB (3630 kg) single line
Motor 4.8 hp series wound, 12V DC
Gearing 3-stage planetary
Gear ratio 216:1
Brake Automatic direct drive cone
Freespool clutch Sliding ring gear
Wire rope 100', 5/16" diam. (30m, 8mm diam.)
Dimensions 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.)
Mounting bolt pattern 10.0" x 4.5" (254mm x 114.3mm)
Installed weight 74 lbs. (34 kgs.)
Fairlead Roller
Recommended battery 650 CCA minimum for winching
Battery leads 2 gauge, 72� (1.83m)
Finish Argent gray powder coat
12V DC Performance Specs (first layer):
Line Pull
Line Speed
Motor Current
Pull by layer
lbs (kgs)
ft/min (M/min )
amps
layer/lbs (kgs)
0
42 (12.8)
80
1/8000 (3629)
2000 (910)
16 (4.88)
200
2/7280 (3302)
4000 (1810)
11.9 (3.63)
285
3/6670 (3,026)
6000 (2720)
9.79 (2.98)
350
4/6230 (2826)
8000 (3630)
8.01 (2.44)
435

Warranty
Warn Industries, Inc. warrants to the original purchaser that the mechanical components of the Warn Self-recovery winch will be free of defects in material and workmanship for the lifetime of the winch, and that the electrical components will be free of defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty applies only to the original purchaser of the winch and does not apply to finish and wire rope, or if the winch has been damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation, or improper service.

About Warn Industries
Headquartered in Clackamas Oregon, Warn Industries designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles, ATV's and utility vehicles. In addition, the company's Industrial Division markets electric and hydraulic winches and hoists to commercial, industrial and severe duty customers around the world. The company also has a line of utility winches and hoists that are specifically designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. With customers in more than 65 countries on six continents, Warn is one of the world's most recognized brands in vehicle performance enhancing equipment.

From the Manufacturer

Compact. Tough. An outstanding value. Available with a roller or hawse fairlead and your choice of 80 or 100' of 5/16" diameter wire rope, the M8000 pulls a fast 8ft. per minute at rated load. The 4.8 hp Series Wound motor delivers big torque and power. Includes an all-weather remote control on a 12' (3.7m) lead.

SPECIFICATIONS

  • Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
  • Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
  • Remote Control: Remote switch, 12' (3.7m) lead
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 216:1
  • Lubrication: Aeroshell #17
  • Clutch (freespooling): Sliding Ring Gear
  • Brake: Automatic Direct Drive Cone
  • Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
  • Weight: 74 lbs. (34 kgs.)
  • Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.)
  • Fairlead for PN 20910: Hawse
  • Fairlead for PN 26502, 265022, 265032: Roller
  • Recommended Battery: 650 CCA minimum for winching
  • Battery Leads: 2 gauge, 72" (1.83m)
  • Finish: Argent Gray Powder Coat
  • Nuts/Bolts: PN 39625
  • Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H. (534mm L. x 160m D. x 193mm H.)
  • Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
