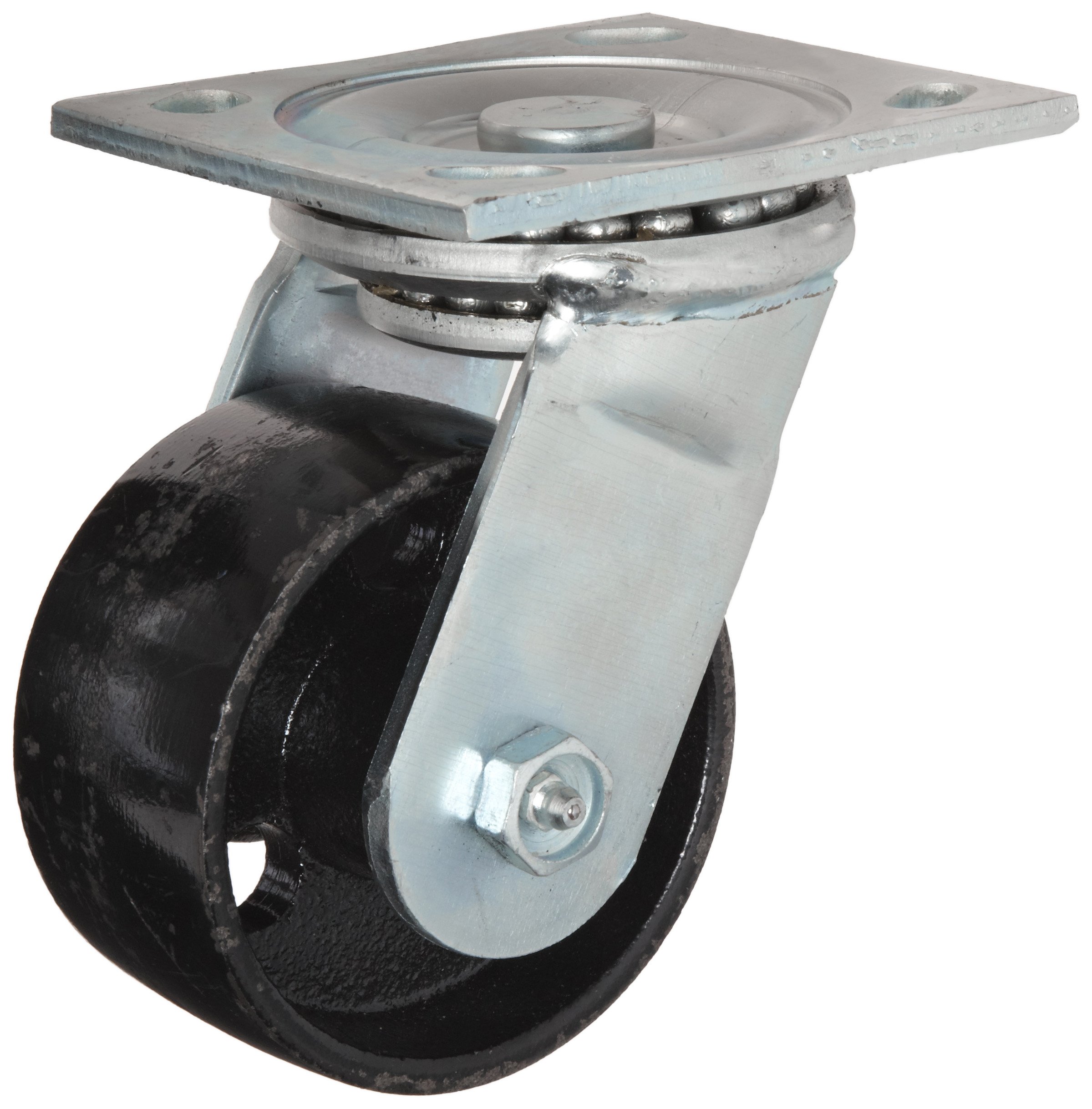

E.R. Wagner Plate Caster, Swivel, Cast Iron Wheel

Be the first to review this item

Product Specifications
Material Type
Cast Iron
UNSPSC Code
31162701
Brand Name
ER Wagner
Special Features
Swivel
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 8 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Load Capacity Wheel Diameter Tread Width Mount Height Plate Length Plate Width Color ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-7 of 7
1000 lbs 4" 2" 5-5/8" 4-1/2" 4" Black B003E7E6W4 Temporarily out of stock. Order now and we'll deliver when available. $33.30 Buy Options
1000 lbs 5" 2" 6-1/2" 5-1/2" 5" Black B003E7E7FA yes $36.54 Buy Options
1000 lbs 5" 2" 6-1/2" 4-1/2" 4" Black B003E7E7D2 yes $29.22 Buy Options
1200 lbs 8" 2" 9-1/2" 5-1/2" 5" Black B003E7EAKC Temporarily out of stock. Order now and we'll deliver when available. $40.15 Buy Options
1200 lbs 6" 2" 7-1/2" 5-1/2" 5" Black B003E7E8IG yes $37.39 Buy Options
1200 lbs 8" 2" 9-1/2" 4-5/8" 4" Black B003E7E9EO yes $40.95 Buy Options
1200 lbs 6" 2" 7-1/2" 4-1/2" 4" Black B003E7E8FE yes $38.78 Buy Options

Key Features

  • Plate caster has a flat base with holes for bolting or welding to an object
  • Swivel caster allows a 360-degree change in direction
  • Double-row swivel construction with extra-large raceways for durability
  • Cast iron wheel rolls with ease under heavy loads and resists wear and shock
  • Chromed zinc-plated finish resists corrosion

Product Description

This E.R. Wagner plate caster has a cast iron wheel, a flat base with holes for bolting or welding to an object, and a swivel design to allow movement with a 360-degree change in direction. The double-row swivel construction and extra-large raceways provide durability. The plate caster's wheel consists of cast iron enriched with steel. It rolls with ease under heavy loads, is durable, performs well in extreme temperatures, and is resistant to wear and shock. The wheel is suitable for bearing medium to heavy loads on rough floors and environments where floor protection and noise are not concerns. The wheel has a recommended operating temperature range of -50 to 500 degrees F. The flat base has a chromed zinc-plated finish that helps resist corrosion. The plate caster's welded leg construction allows high load capacity.

Plate casters are wheeled mechanisms used to support and maneuver objects such as carts, racks, and dollies. Plate casters are named for their mounting system: they have a flat plate, usually with four bolt holes, that forms the top of the caster and attaches to the object. Plate casters vary in their maneuverability. Some are rigid and only roll at a fixed angle, while other casters swivel to allow a 360-degree change in direction. Plate casters may have brakes, and swivel casters may have locks to set them to a fixed angle. Casters may have single or twin (dual) wheels made from a variety of materials. Generally, wheels with hard tread material have a higher load capacity and roll easier than soft tread wheels, which provide quieter operation and cushioning. Load capacity for plate casters is also affected by tread width and wheel diameter. Plate casters are used on furniture, carts, shelving, appliances, scrap bins, production dollies, and utility trucks for material handling applications in a variety of industries.

E.R. Wagner manufactures casters, wheels, hinges, stampings, and tubular products. The company, founded in 1900, is headquartered in Milwaukee, WI.
