E.R. Wagner Plate Caster, Swivel with Total-Lock Brake, Polyurethane on Aluminum Wheel

Be the first to review this item

Product Specifications
Material Type
Polyurethane , Aluminum
Brand Name
ER Wagner
Special Features
Swivel with Brake & Lock
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 8 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Load Capacity Wheel Diameter Tread Width Mount Height Plate Length Plate Width Color ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-5 of 5
1050 lbs 5" 2" 6-1/2" 4-1/2" 4" Red B003E7E7U0 6 $42.21 Buy Options
1050 lbs 5" 2" 6-1/2" 5-1/2" 5" Red B003E7E7V4 9 $48.53 Buy Options
1200 lbs 6" 2" 7-1/2" 4-1/2" 4" Red B003E7E8S6 27 $46.51 Buy Options
1200 lbs 8" 2" 9-1/2" 5-1/2" 5" Red B003E7E9Q2 11 $51.41 Buy Options
1200 lbs 6" 2" 7-1/2" 5-1/2" 5" Red B003E7E8UO 16 $46.53 Buy Options

Key Features

  • Plate caster has a flat base with holes for bolting or welding to an object
  • Swivel caster allows a 360-degree change in direction
  • Total-lock brake simultaneously prevents rolling and restricts swivel movement
  • Polyurethane on aluminum wheel rolls with ease, resists abrasion and impact, is quiet, and provides floor protection
  • Roller bearing for high load capacity and greater durability than ball bearings

Product Description

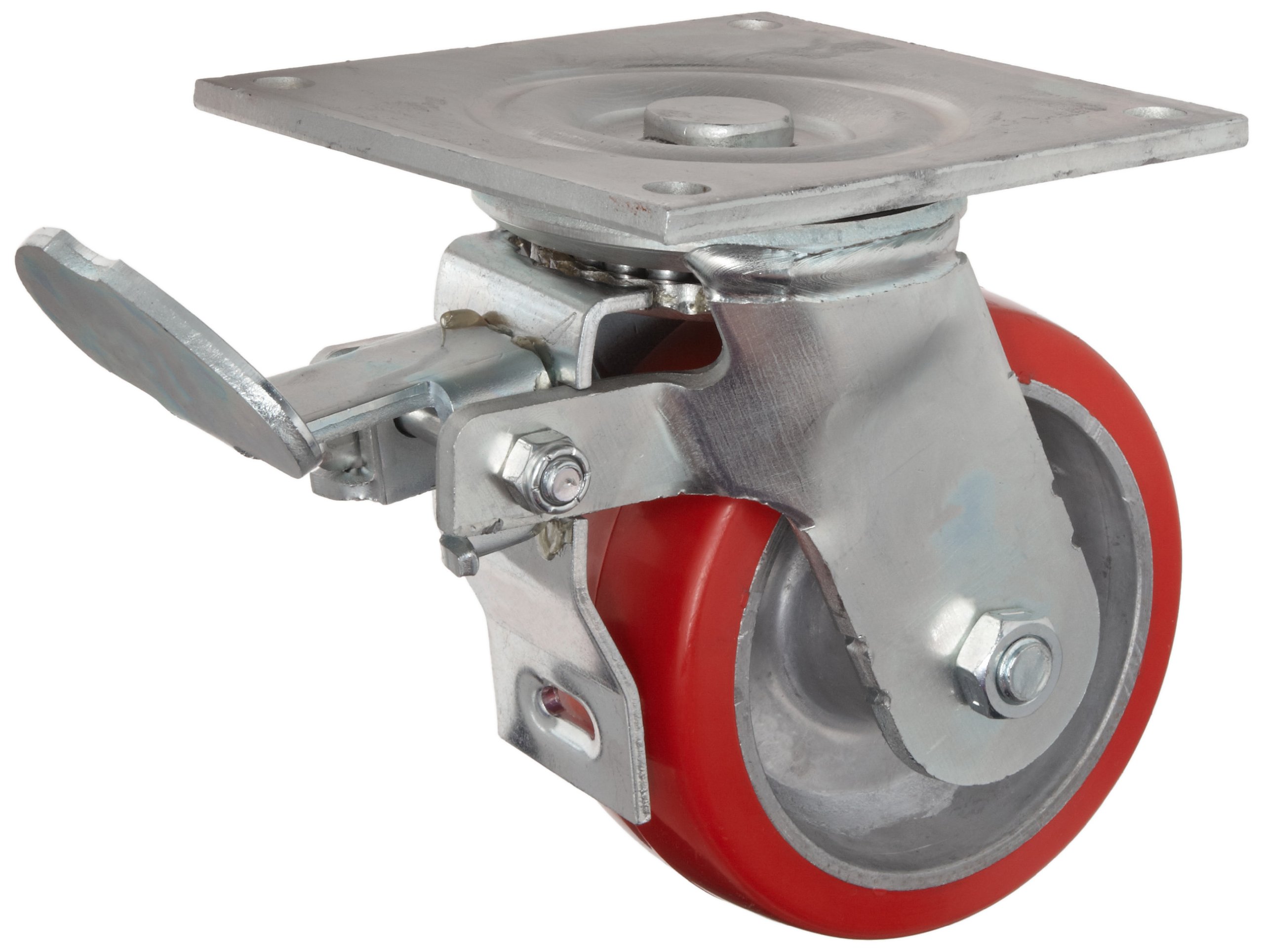

This E.R. Wagner plate caster has a polyurethane on aluminum wheel, a flat base with holes for bolting or welding to an object, and a swivel design to allow movement with a 360-degree change in direction. A total-lock brake simultaneously prevents rolling and restricts swivel movement when the foot-operated lever is depressed. The plate caster's wheel consists of a polyurethane tread molded and mechanically locked to an aluminum core. The wheel rolls with ease, resists abrasion and impact, provides quiet operation, and protects floors. The tread is non-marking and has a hardness of 50 to 60 Shore D. This wheel is suitable for bearing medium to heavy loads on carpeted and hard-surfaced floors. The wheel has a recommended operating temperature range of -20 to 180 degrees F. The roller bearing provides high load capacity and greater durability than ball bearings.

Plate casters are wheeled mechanisms used to support and maneuver objects such as carts, racks, and dollies. Plate casters are named for their mounting system: they have a flat plate, usually with four bolt holes, that forms the top of the caster and attaches to the object. Plate casters vary in their maneuverability. Some are rigid and only roll at a fixed angle, while other casters swivel to allow a 360-degree change in direction. Plate casters may have brakes, and swivel casters may have locks to set them to a fixed angle. Casters may have single or twin (dual) wheels made from a variety of materials. Generally, wheels with hard tread material have a higher load capacity and roll easier than soft tread wheels, which provide quieter operation and cushioning. Load capacity for plate casters is also affected by tread width and wheel diameter. Plate casters are used on furniture, carts, shelving, appliances, scrap bins, production dollies, and utility trucks for material handling applications in a variety of industries.

E.R. Wagner manufactures casters, wheels, hinges, stampings, and tubular products. The company, founded in 1900, is headquartered in Milwaukee, WI.
