E.R. Wagner Plate Caster, Swivel, Polyolefin Wheel

Be the first to review this item

Product Specifications
Material Type
Polyolefin
UNSPSC Code
31162701
Special Features
Swivel
Brand Name
ER Wagner
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 9 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Load Capacity Wheel Diameter Tread Width Mount Height Plate Length Plate Width Color ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-13 of 13
300 lbs 4" 1-3/8" 5-1/16" 4-5/8" 3-3/4" Black B003E48GHI yes $18.16 Buy Options
300 lbs 4" 1-3/8" 5-1/16" 4-1/8" 3-1/8" Black B003E48GGO yes $16.77 Buy Options
350 lbs 3" 1-3/4" 3-7/8" 4-1/8" 3-1/8" Black B003E7E4S0 yes $14.79 Buy Options
350 lbs 3" 1-3/4" 3-7/8" 4-1/8" 3-1/8" Black B003E7E4U8 yes $16.54 Buy Options
350 lbs 3" 1-3/4" 3-7/8" 4-5/8" 3-3/4" Black B003E7E4VC yes $20.05 Buy Options
350 lbs 5" 1-3/8" 6-1/16" 4-1/8" 3-1/8" Black B003E48GQE yes $17.87 Buy Options
400 lbs 4" 2" 5-5/8" 4-1/2" 4" Black B003E7E7BE yes $43.42 Buy Options
650 lbs 5" 2" 6-1/2" 4-1/2" 4" Black B003E7E8B8 yes $30.16 Buy Options
650 lbs 5" 2" 6-1/2" 5-1/2" 5" Black B003E7E8DG yes $42.35 Buy Options
700 lbs 6" 2" 7-1/2" 5-1/2" 5" Black B003E7E99E yes $33.92 Buy Options
700 lbs 6" 2" 7-1/2" 4-1/2" 4" Black B003E7E98U yes $34.50 Buy Options
900 lbs 8" 2" 9-1/2" 4-5/8" 4" Red B003E7EA1G yes $37.31 Buy Options
900 lbs 8" 2" 9-1/2" 5-1/2" 5" Red B003E7EA2K yes $47.41 Buy Options

Key Features

  • Plate caster has a flat base with holes for bolting or welding to an object
  • Swivel caster allows a 360-degree change in direction
  • Polyolefin wheel rolls with ease, provides floor protection, and resists impact, water, oil, and most acids
  • Wheel has a recommended operating temperature of -20 to 180 degrees F
  • 60 to 75 Shore D tread hardness

Product Description

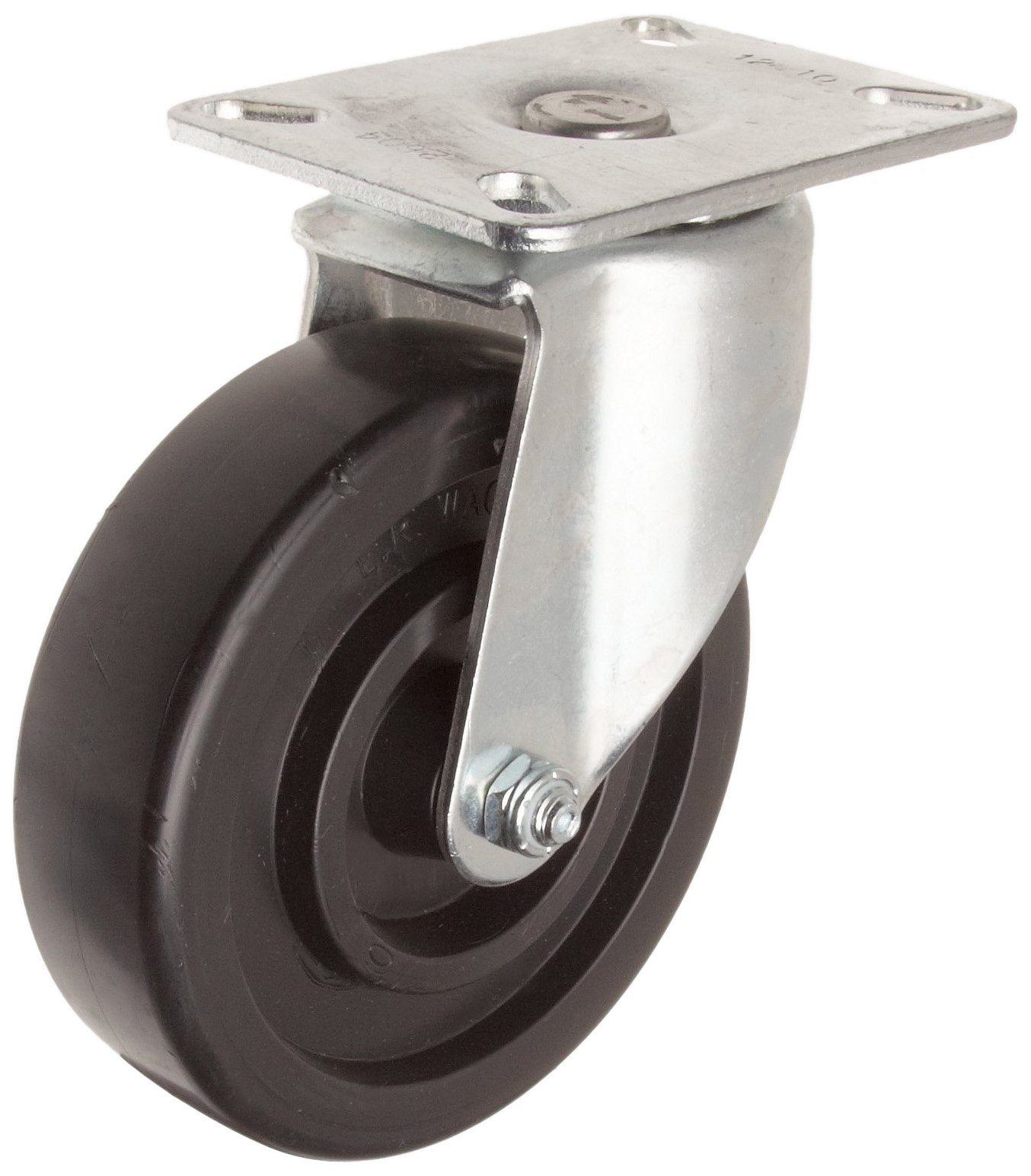

This E.R. Wagner plate caster has a polyolefin wheel, a flat base with holes for bolting or welding to an object, and a swivel design to allow movement with a 360-degree change in direction. The plate caster's wheel is one-piece injection molded from polyolefin. The wheel rolls with ease, protects floors, and is resistant to impact, water, oil, and most acids. It is non-marking and suitable for bearing light to heavy loads on carpeted and hard-surfaced floors. The wheel has a recommended operating temperature range of -20 to 180 degrees F and a tread hardness of 60 to 75 Shore D.

Plate casters are wheeled mechanisms used to support and maneuver objects such as carts, racks, and dollies. Plate casters are named for their mounting system: they have a flat plate, usually with four bolt holes, that forms the top of the caster and attaches to the object. Plate casters vary in their maneuverability. Some are rigid and only roll at a fixed angle, while other casters swivel to allow a 360-degree change in direction. Plate casters may have brakes, and swivel casters may have locks to set them to a fixed angle. Casters may have single or twin (dual) wheels made from a variety of materials. Generally, wheels with hard tread material have a higher load capacity and roll easier than soft tread wheels, which provide quieter operation and cushioning. Load capacity for plate casters is also affected by tread width and wheel diameter. Plate casters are used on furniture, carts, shelving, appliances, scrap bins, production dollies, and utility trucks for material handling applications in a variety of industries.

E.R. Wagner manufactures casters, wheels, hinges, stampings, and tubular products. The company, founded in 1900, is headquartered in Milwaukee, WI.
