SHOP FOX W1773 15 HP 37-Inch Three Phase Drum Sander

Be the first to review this item

ASIN B001R23THG

Specifications for this item
UPC
754001007734
Brand Name
Shop Fox
EAN
0754001007734

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Dual drums
  • Hinged hood
  • Control panel with Amplifier load meter
  • Variable speed conveyor control box
  • State of the art computer balanced drums

Package Details

Shipping Weight: 1351 pounds
Package Size: 61.2 x 56.4 x 44.1 inches

Product Description

Shop Fox 37-Inch Dual Drum Sander
View larger
Dual Sanding Drums
View larger
Variable Speed Conveyor Control Box
View larger

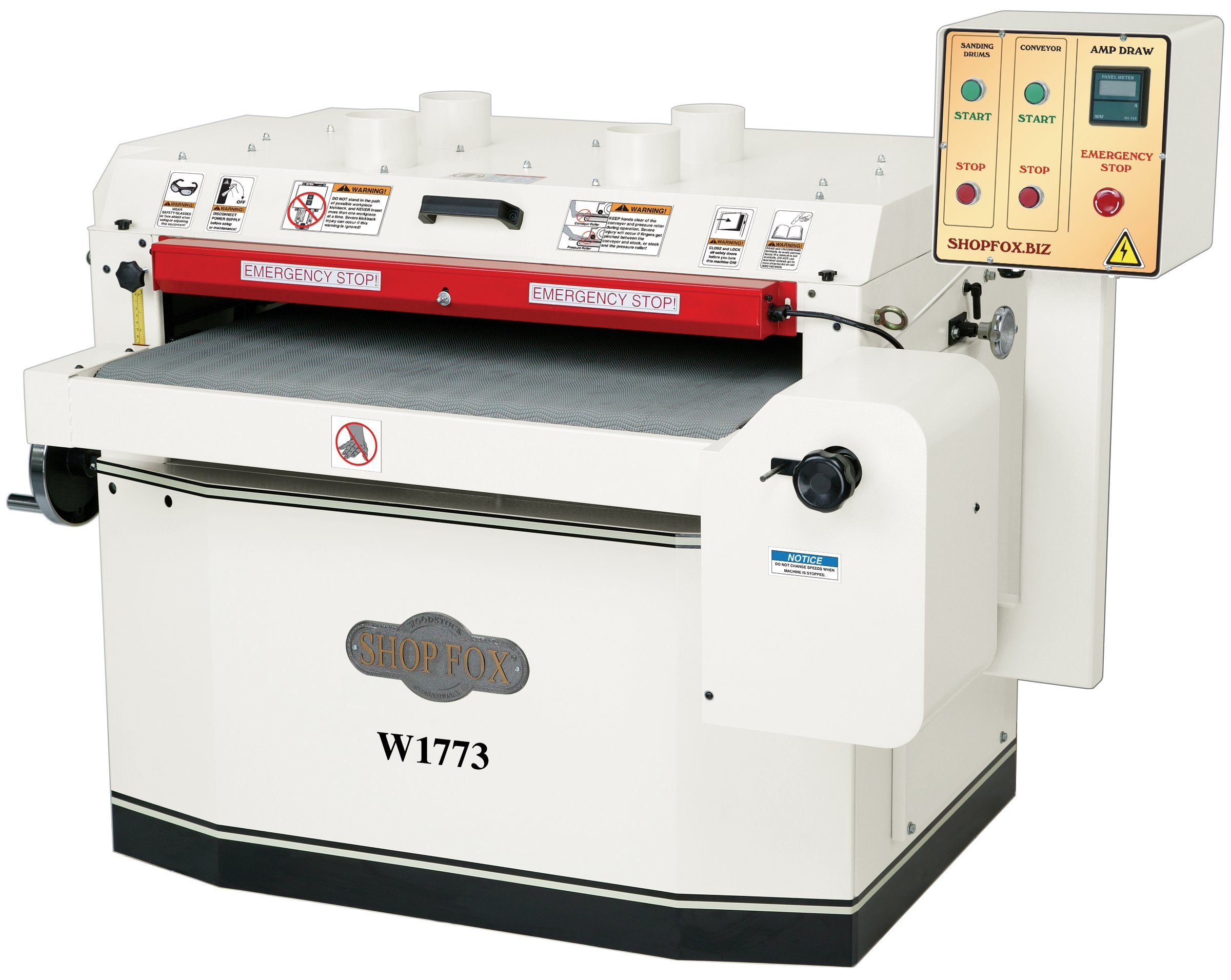

Shop Fox W1773 37-Inch Dual Drum Sander, 15HP

Designed for production shops, this 37-inch sander has what it takes to get those big jobs done - fast. Sand panels and boards up to 4-inch thick and 36-1/2-inch wide with the dual 6-inch sanding drums. The feed speed is adjustable from 6 to 18 FPM so you can fine-tune your production speed to provide the desired finish. The variable speed knob and amp meter make it easy to monitor workpiece load. Other great features: a hinged hood, an emergency stop bar, pedestal-mounted controls, four 4-inch dust ports, and a 15 HP 220V/440V* single-phase motor.

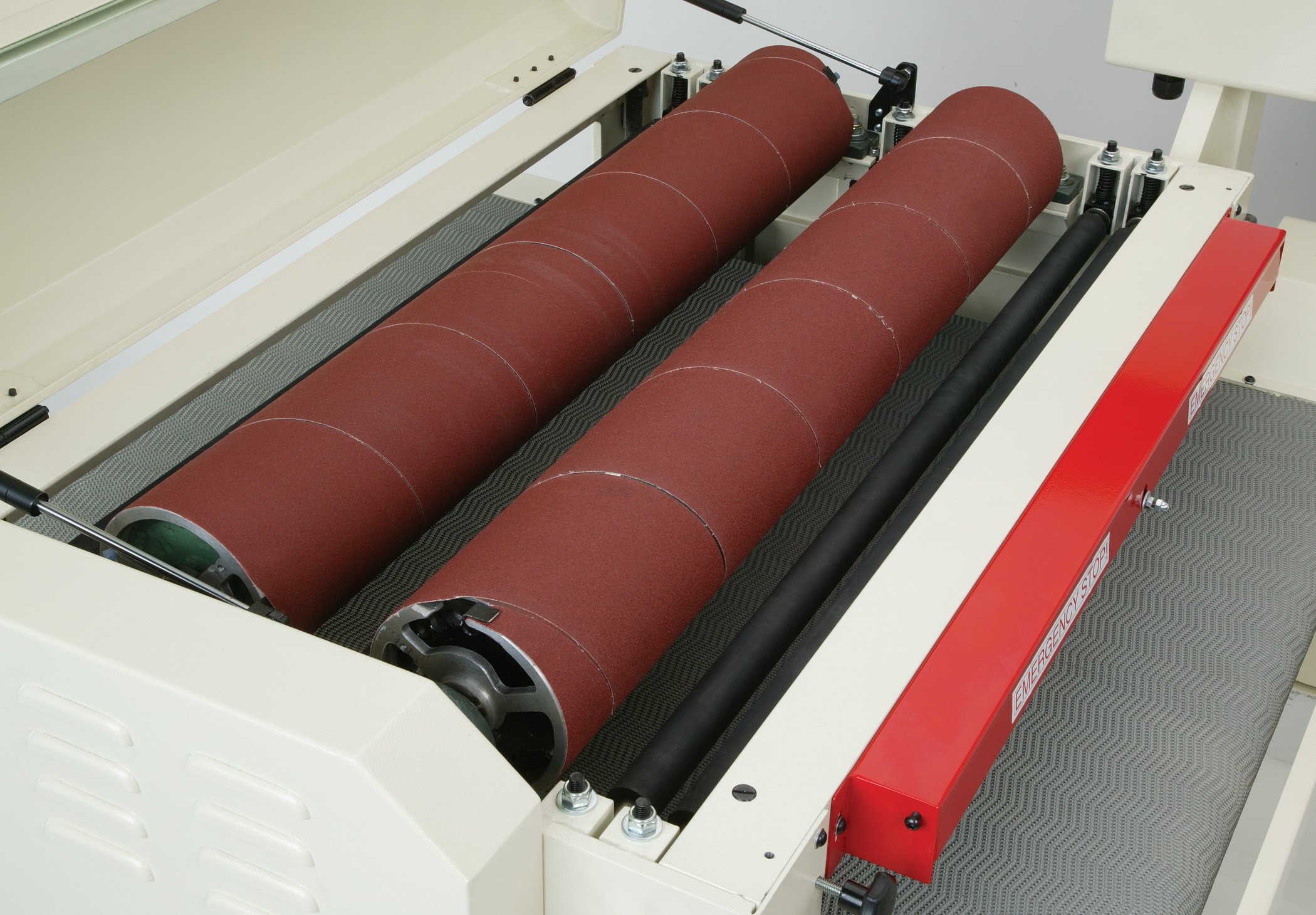

Dual Sanding Drums

State-of-the-art computer balanced dual sanding drums can be fitted with two different grits of abrasive, allowing both rough and finish sanding in one pass saving you time and energy from changing between machines or grits. The sanding drums are fully adjusted for height and parallelism to the conveyor.

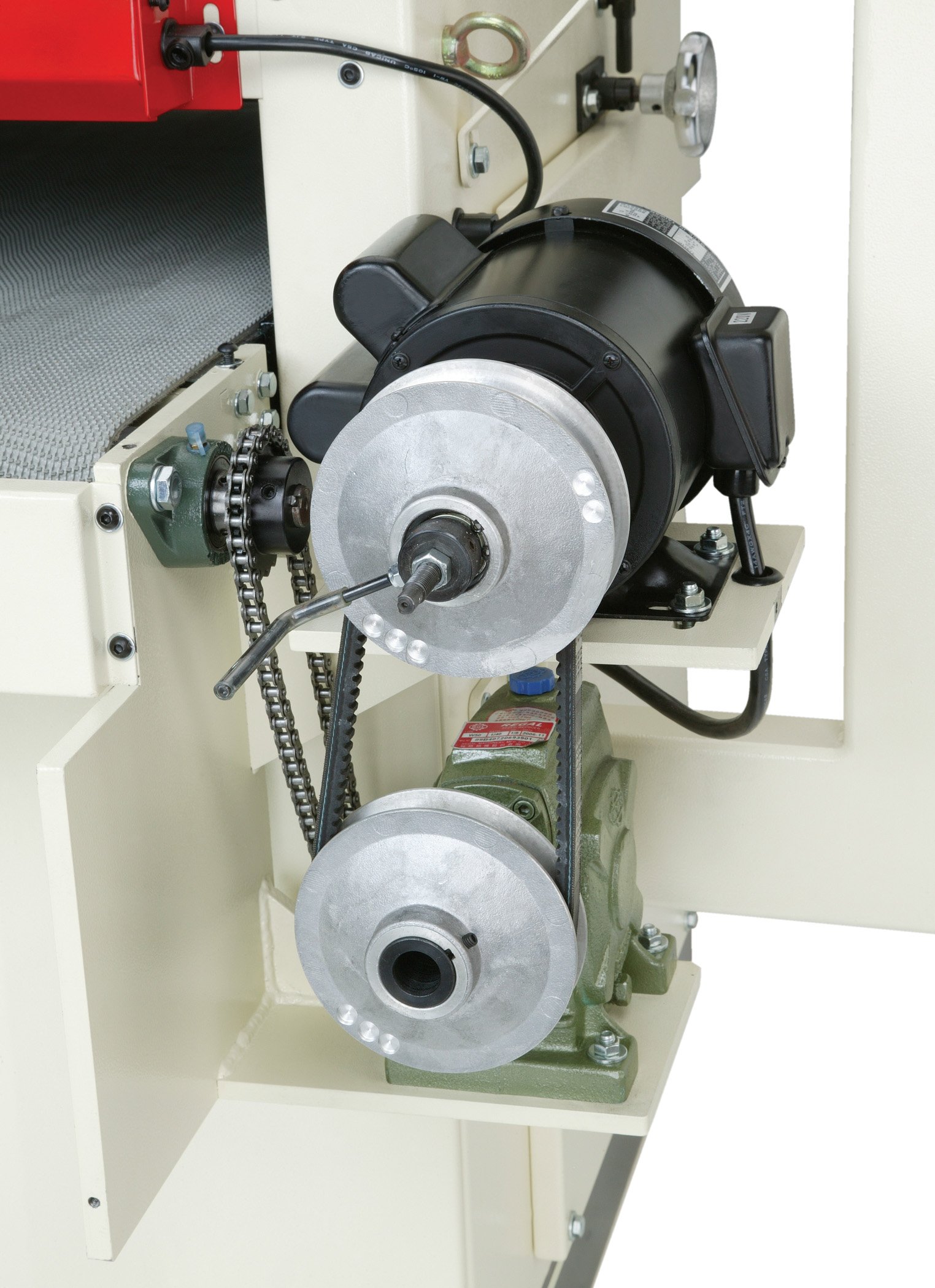

Variable Speed Conveyor

The variable conveyor speed is a very useful feature when sanding different species of wood. The feed rate is adjustable from 6 to 18 FPM. The ideal speed depends on the type of stock you are using (hardwood vs. softwood) and the stage of finish you are at with that workpiece. The conveyor belt is made of heavy duty industrial rubber ensuring many years of use.

Built to Last

The Shop Fox W1773 Dual Drum Sander has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Features and Specifications

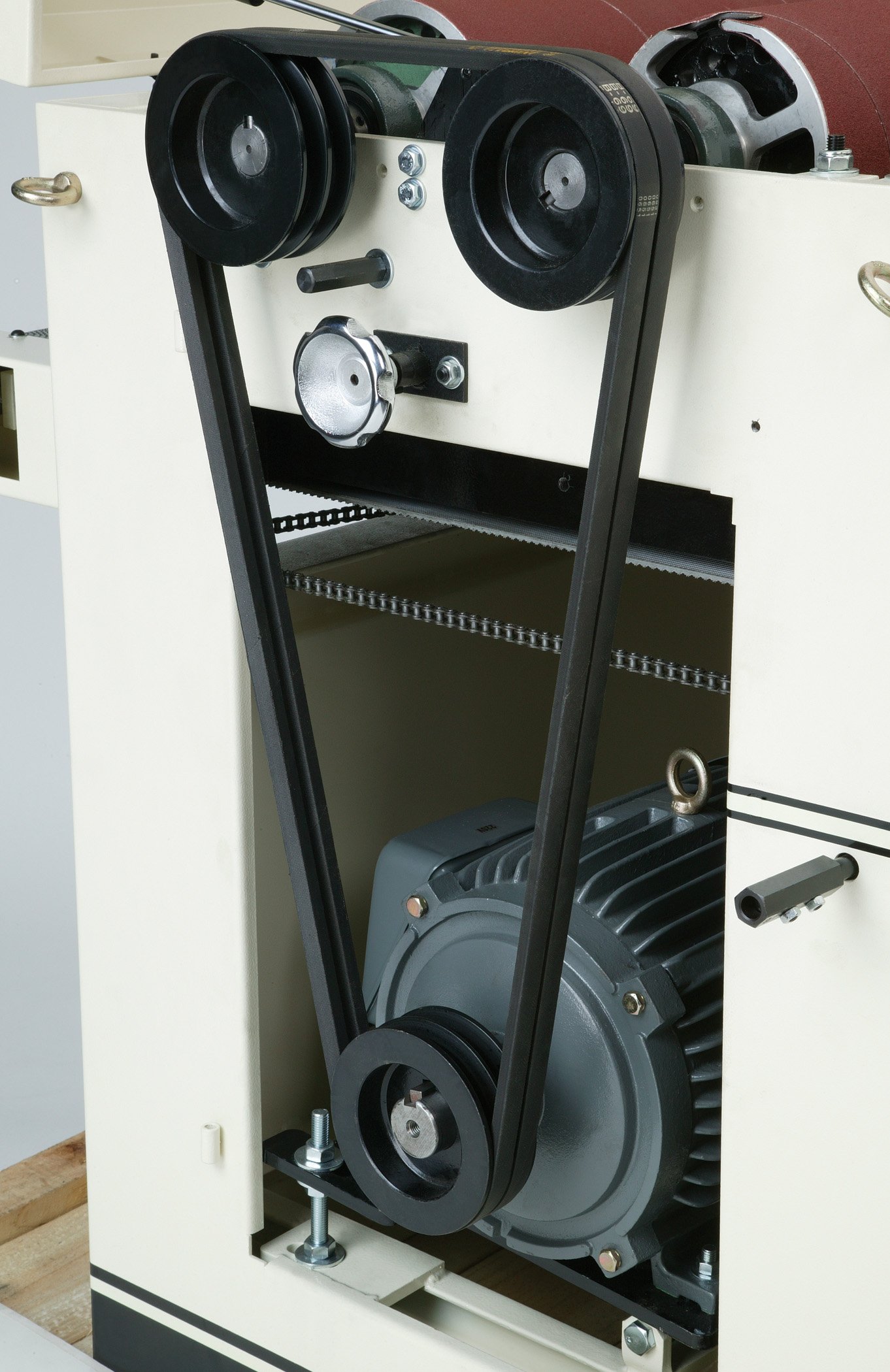

  • Sanding drum motor: 15 HP, 220V/440V*, 3-phase, TEFC, 1725 RPM
  • Conveyor motor: 1/4 HP
  • Maximum board width: 36-1/2-inch
  • Maximum board thickness: 4-inch
  • Minimum board length: 9-inch
  • Minimum board thickness: 1/16-inch
  • Surface speed of drums: 2800 FPM
  • Conveyor feed rate: Variable, 6 - 18 FPM
  • Sanding drums: 2, steel/rubber
  • Drum diameter: 6-inch
  • Dust ports: 4, 4-inch
  • Sandpaper width: 6-inch
  • Overall size: 49 H x 68 W x 50-1/2-inch D
  • Industrial rubber conveyor belt (similar to wide belt sander belts)
  • Dual drums
  • State-of-the-art computer balanced drums
  • Hinged hood
  • Control panel with Amp load meter
  • Variable speed conveyor control box
  • Approximate shipping weight: 1374 lbs.
  • *440V operation requires purchase of additional components
