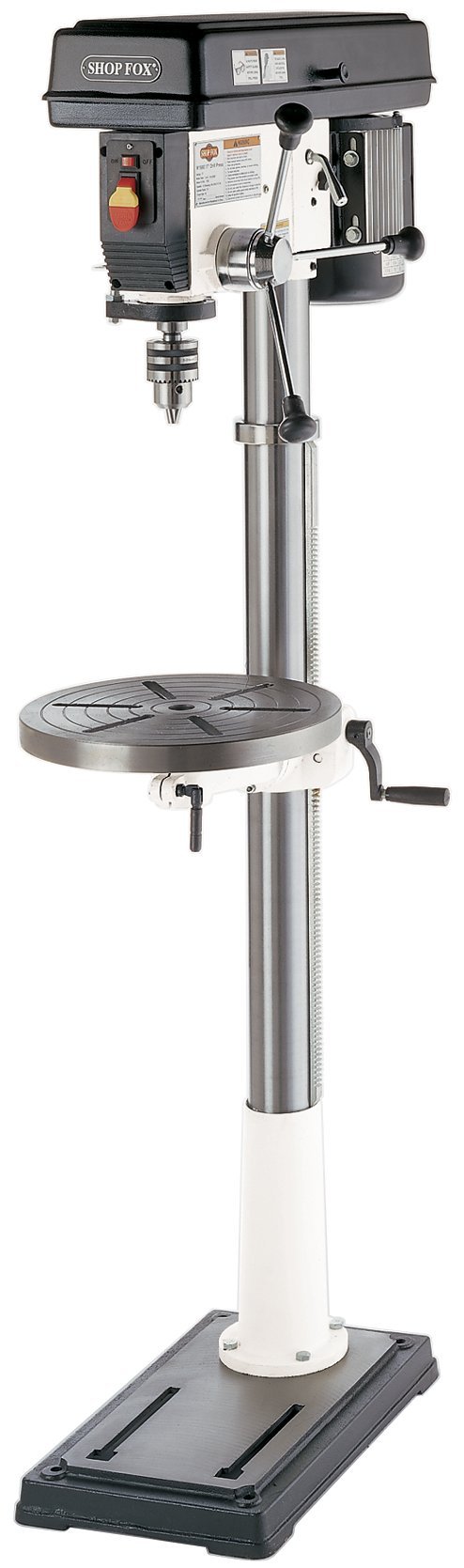

SHOP FOX W1680 1-Horsepower 17-Inch Floor Model Drill Press

Be the first to review this item

ASIN B0000DD101

Specifications for this item
Part Number
W1680
Item Weight
185 pounds
UPC
754001016804
Brand Name
Shop Fox
EAN
0754001016804
Voltage
110  Volts
Horsepower
1

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Motor size: 1 HP, 1,720 RPM
  • Switch: Toggle type
  • Spindle travel: 3-1/4-inch
  • Accepts 5/8-inch drill chuck
  • Built-in 110V light socket

Package Details

Shipping Weight: 239 pounds
Package Size: 56.5 x 21 x 11 inches

Product Description

Shop Fox W1680 1 HP 17-inch Floor Model Drill Press

Powerful Aluminum-Finned 1HP Motor
View larger
Tilting Table
View larger

This solid performing drill press is perfect for the average size cabinet shop or small machine shop. With the powerful cool-running 1 HP aluminum finned motor, Morse Taper #3 spindle for the larger direct mount bits and the closely spaced spindle shaft bearings, you have one of the most accurate drill presses in its class. Solid cast iron construction, precision ground table, sealed ball bearings, and rubber coated quick-adjust handles provide the quality and convenience you want in your machine investment. We even added a built-in light so you can see what you're doing.

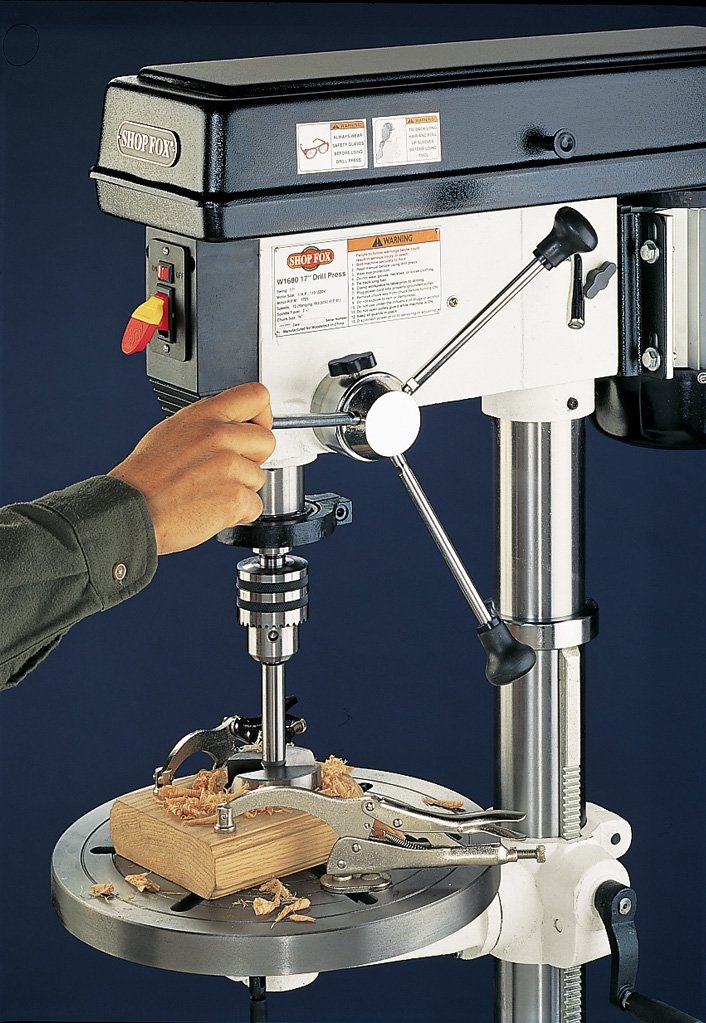

Tilting Table

This drill press features a 14-inch diameter tilting table which allows drilling angles from 90 to 0-degrees. The table can be adjusted for height, rotation and angle for a variety of applications. With a 31-1/2-inch maximum drilling depth from chuck to table, this machine offers unmatched versatility.

Safety Features

The W1680 includes a chuck guard to help protect the operator from accidental contact with moving parts or flying debris. The spring loaded guard conveniently flips out of the way for easy tool changes. The paddle switch provides a greater degree of safety over other ON/OFF switches due to its oversize paddle and lock-out key. Simply slap the paddle down to switch off power.

Wood, Metal or Plastic

The W1680 Drill Press is capable of a wide variety of drilling operations in metal, wood and plastic. The 150 RPM setting is ideal for working with very large bits or wide circle cutters and the precision ground spindle, table, base and column ensure dependable accuracy. This drill press is packaged with a drill chuck, motor, work light and paddle switch with removable key. Specially designed to provide many years of trouble free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Specifications and Features
  • Motor size: 1 HP, 1,720 RPM
  • Voltage: 110V
  • Switch: Toggle type
  • Built-in Light Socket
  • Overall height: 65-1/2-inches
  • Spindle travel: 3-1/4-inch
  • Number of speeds: 12
  • Drill chuck: 5/8-inch
  • Spindle taper: MT#3
  • Range of speeds: 140-3,050 RPM
  • Swing: 17-inch
  • Drilling capacity: 1-inch steel
  • Table: Precision ground cast iron
  • Table size: 14-inch dia.
  • Approx. shipping weight: 200 lbs.
Flip-up Blade Guard and Safety Switch
View larger
