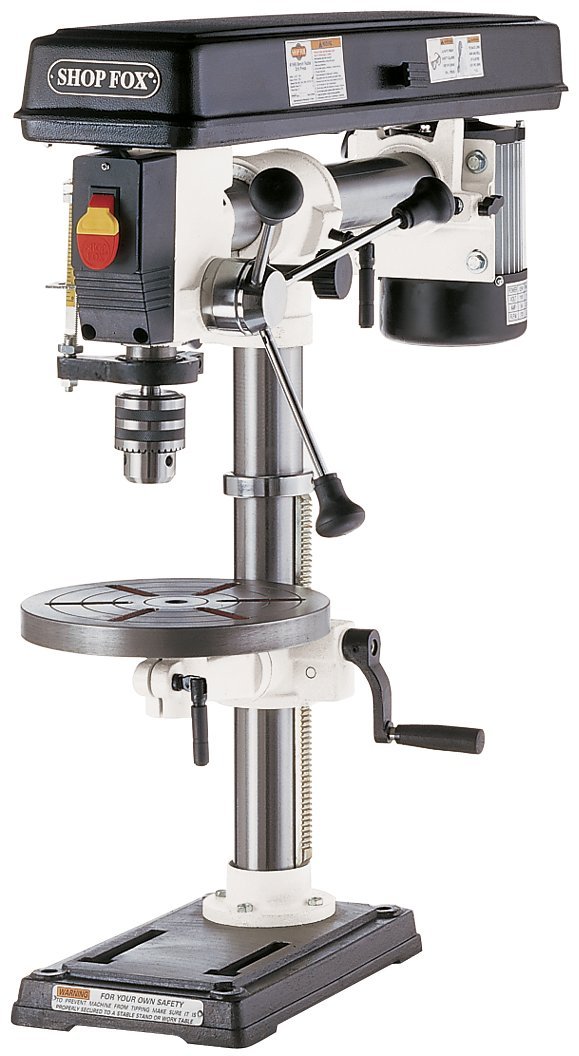

SHOP FOX W1669 1/2-Horsepower Benchtop Radial Drill Press

Be the first to review this item

ASIN B001R23SOA

Specifications for this item
Part Number
W1669
UPC
754001016699
Brand Name
Shop Fox
EAN
0754001016699
Voltage
110  Volts
UNSPSC Code
23241800
Horsepower
0.5

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 22 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Motor: 1/2 HP, 110V
  • Overall height: Bench model: 31-1/2"
  • Number of speeds: 5
  • Drill chuck: 5/8"

Package Details

Shipping Weight: 96.55 pounds
Package Size: 35.7 x 18 x 12.7 inches

Product Description

SHOP FOX W1669 1/2-Horsepower Benchtop Radial Drill Press


Shop Fox Radial Drill Press
View larger


Tilting Table
View larger
Shop Fox W1669 1/2 HP 34-inch Bench-Top Radial Drill Press

The Radial Drill Press is one of the most versatile and handy drill presses you can add to your shop. Between the tilt of the head and the tilt of the table, you can drill any angle necessary. You can also use it as a horizontal boring machine. Add to this an incredible swing which allows you to bore to the center of a workpiece that is 34-inches wide and you have one of the best values available in a drill press.

Horizontal Sliding Headstock

This drill press offers the ability to drill wide workpieces up to 34-inches diameter, you can slide the headstock in and out to increase the distance between the drill chuck and the column up to 17-inches. You can also tilt the headstock from 45-degrees clockwise to 90-degrees counterclockwise for drilling angled holes or for horizontal boring machine use. Using the slide and tilt features, you can drill a line of straight or angled holes without the need to reposition your workpiece after drilling each hole.

Tilting Table

The W1669 features a precision ground cast iron table that features adjustable tilt from 90-degrees both left and right. The table can be adjusted for height and angle making this an extremely versatile machine capable of many applications. This drill press also features a safety paddle switch which provides a greater degree of safety over other types of 110 volts on/off switches due to its oversize paddle and removable lock-out key. No more fumbling around to locate the off button. Simply slap the paddle down to switch off power.

Built to Last

The W1669 Radial Drill Press has been specially designed by to provide many years of trouble free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Tilting Headstock
View larger
Specifications and Features
  • Motor: 1/2 HP, 110 volts
  • Overall height: Bench model: 31-1/2-inches
  • Spindle travel: 3-1/4-inch
  • Number of speeds: 5
  • Drill chuck: 5/8-inch
  • Head tilts: 45-degrees left / 90-degrees right
  • Range of speeds: 550, 880, 1,520, 2,490, 3,470 RPM
  • Swing: 34-inches maximum
  • Table: Precision ground cast iron
  • Table size: Bench model: 9-3/4-inch diameter
  • Table swing: 360-degrees
  • Table tilts: 90-degrees in both directions
  • Threaded Depth Stop
  • Cushioned Grip Quill Handles
  • Approximate shipping weight: 100 pounds
