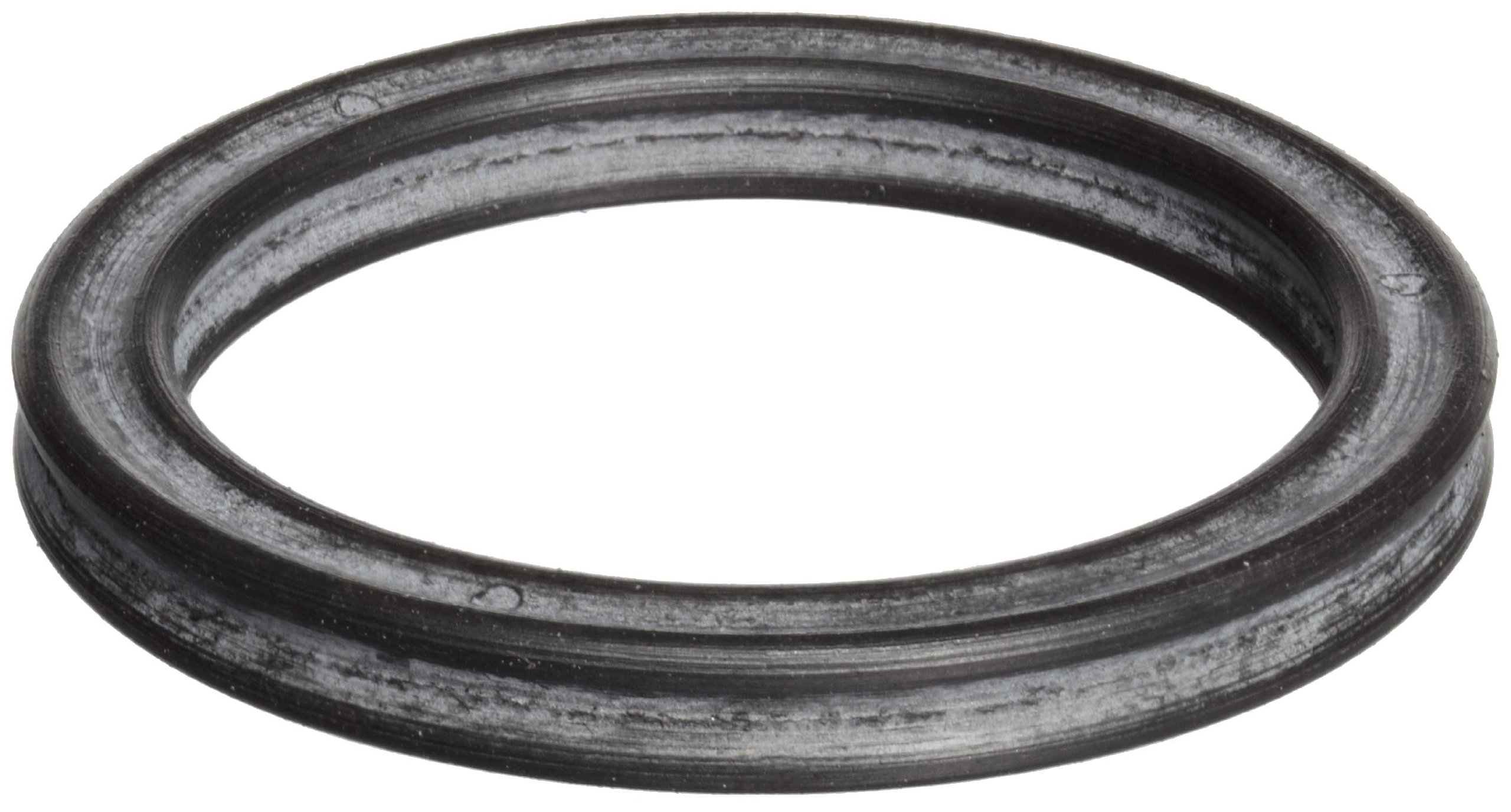

Viton Quad-Ring, 75A Durometer, Black
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Color Name
- Black
- Cross Section Shape
- Quad
- Hardness
- 75 A Durometer
- LowerTemperature Range
- -15 Degrees Fahrenheit
- Material Type
- Viton
- Specification Met
- AS568A
- System of Measurement
- Inch
- Upper Temperature Range
- 400 Degrees Fahrenheit
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Key Features
- Made of Viton (fluorocarbon elastomer) for use with a variety of chemicals and fuels
- Four-lobe design for lower friction and resistance to twisting
- Can be used across a wide temperature range from -15 degrees F (-26 degrees C) to 400 degrees F (205 degrees C)
- Quad-ring, four-lobe design for increased sealing surface and resistance to leakage
- Durometer (hardness) of 75A for resistance to penetration
Product Description
This Viton quad-ring is black in color, is used in a wide variety of static and dynamic sealing applications, and has a durometer of 75A.
Viton has excellent heat, fuel, and chemical resistance. Viton is acceptable for temperature applications between -15 degrees F (-26 degrees C) to 400 degrees F (205 degrees C). It is compatible for use with non-flammable hydraulic fuels, silicone oil, chlorinated hydrocarbons (trichlorethylene), fuels, aromatic hydrocarbons (benzene) and aliphatic hydrocarbons (propane), as well as high vacuum environments, ozone, and weathering. Viton is vulnerable to low molecular organic acids, ammonia gas, alkalis, amines, glycol-based brake fluids, and super-heated steam.
This Viton quad-ring has a shore durometer of 75A. Shore durometer is the hardness of a material, and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation on a scale of 0 to 100, with 100 indicating no indentation.
Quad-rings, also called X-rings, provide a pressure and fluid seal between overlapping surfaces in static and dynamic sealing applications, and are commonly used in engines, faucets, flanges, valves and various cylinders. They have a four-lobe design, to provide two contact points, which results in resistance to friction, twisting, and leakage. Quad-rings are available in various sizes, and can be ordered based on required nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter.
This Viton quad-ring meets standards defined by Aerospace Standard AS568A, which is the Aerospace Size Standard for O-rings.
