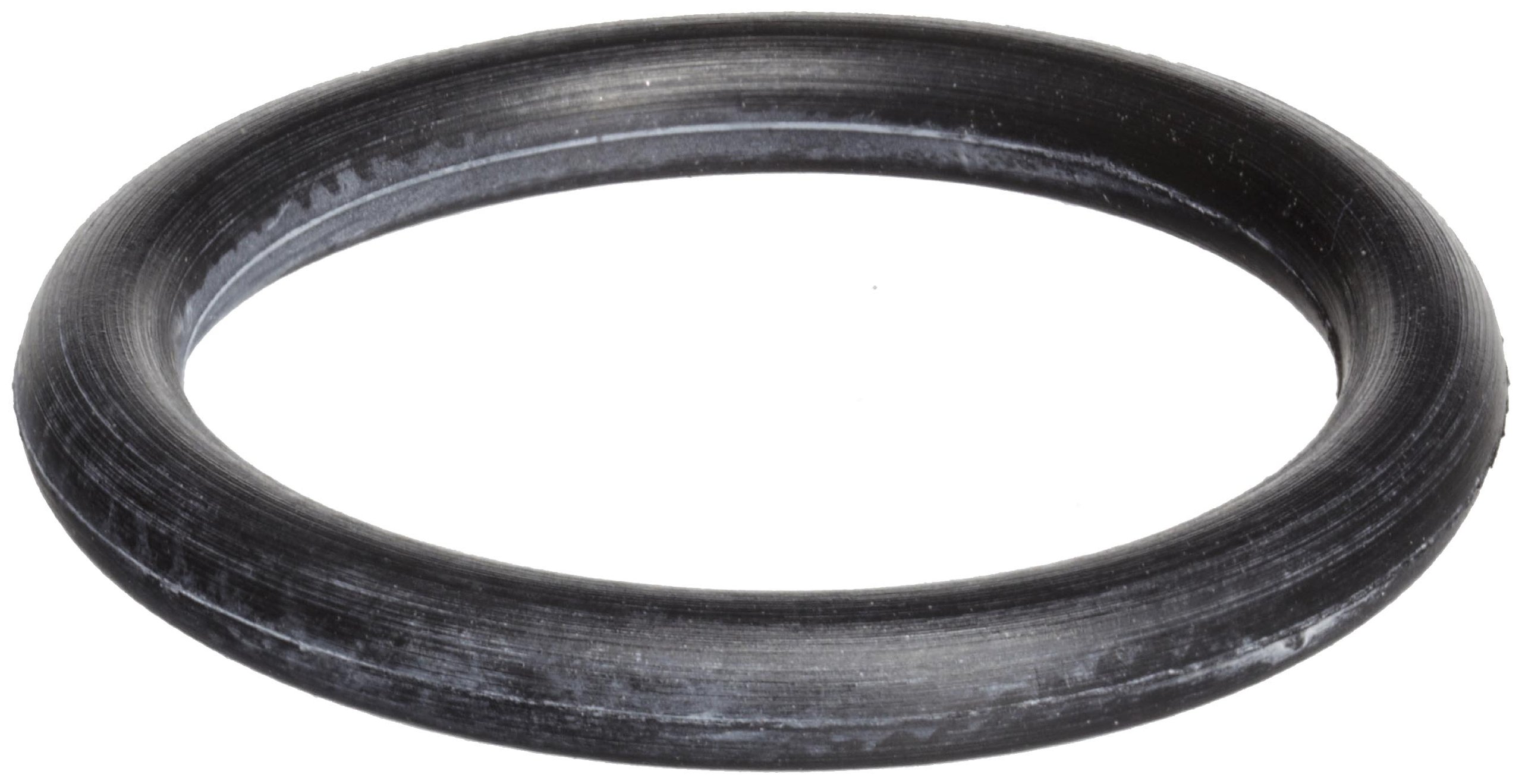

Viton O-Ring, 75A Durometer, Round, Black (Metric)

Be the first to review this item

Product Specifications
Nominal Width
n/a  millimeters
Material Type
Flurorelastomer
Color Name
Black
Nominal ID
n/a  millimeters
Brand Name
Small Parts
Dash Size
n/a
Cross Section Shape
Round
Upper Temperature Range
400  Degrees Fahrenheit
Hardness
75 A Durometer
Nominal OD
n/a  millimeters
LowerTemperature Range
-40  Degrees Fahrenheit
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 4 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 298 Next 20 »
Actual ID Actual OD Actual Width Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 298 Next 20 »
10 mm 13 mm 1.5 mm 25 B005RUPI00 2 $5.10 Buy Options
11 mm 14 mm 1.5 mm 25 B005RUPIDM 1 $7.15 Buy Options
11.5 mm 14.5 mm 1.5 mm 25 B005RUPIZA 1 $7.28 Buy Options
12 mm 15 mm 1.5 mm 25 B005RUPJ9A 13 $5.90 Buy Options
13 mm 16 mm 1.5 mm 25 B005RUPKF8 Usually ships in 3 to 4 weeks $8.80 Buy Options
13.5 mm 16.5 mm 1.5 mm 25 B005RUPKT4 4 $8.60 Buy Options
14 mm 17 mm 1.5 mm 25 B005RUPLAC 1 $8.09 Buy Options
14.5 mm 17.5 mm 1.5 mm 25 B005RUPLUW 2 $12.36 Buy Options
15 mm 18 mm 1.5 mm 10 B005RUPMLU Usually ships in 3 to 4 weeks $5.89 Buy Options
15.5 mm 18.5 mm 1.5 mm 25 B005RUPN3W 1 $13.99 Buy Options
16 mm 19 mm 1.5 mm 25 B005RUPNMS 1 $9.37 Buy Options
17 mm 20 mm 1.5 mm 25 B005RUPOBS 2 $16.15 Buy Options
17.5 mm 20.5 mm 1.5 mm 25 B005RUPP08 3 $14.67 Buy Options
18 mm 21 mm 1.5 mm 25 B005RUPPKS 1 $8.62 Buy Options
19 mm 22 mm 1.5 mm 25 B005RUPQ66 1 $14.87 Buy Options
19.5 mm 22.5 mm 1.5 mm 25 B005RUPQWK 1 $15.41 Buy Options
2 mm 5 mm 1.5 mm 25 B005RUP9DQ Usually ships in 3 to 4 weeks $8.91 Buy Options
20 mm 23 mm 1.5 mm 10 B005RUPRHY 2 $6.93 Buy Options
21 mm 24 mm 1.5 mm 10 B005RUPRRY 4 $9.18 Buy Options
21.5 mm 24.5 mm 1.5 mm 10 B005RUPS46 4 $9.18 Buy Options

Key Features

  • Metric O-ring made of Viton (fluorocarbon elastomer) for use with a variety of chemicals and fuels
  • Durometer (hardness) of 75A for resistance to penetration
  • Round cross-section provides a seal between cylindrical overlapping surfaces
  • For use across a wide temperature range from -15 degrees F/-26 degrees C to 400 degrees F/205 degrees C
  • Meets standards defined by Aerospace Standard AS568A

Product Description

This metric O-ring is made of black Viton and has a durometer of 75A, a round cross-section, and can be used across a wide temperature range (-15 degrees F/-26 degrees C to 400 degrees F/205 degrees C). Designed for use in a wide variety of sealing applications, this Viton O-ring meets standards defined by Aerospace Standard AS568A, which is the Aerospace Size Standard for O-rings.

Viton (fluorocarbon elastomer) has heat, fuel, and chemical resistance and is compatible for use with non-flammable hydraulic fuels, silicone oil, chlorinated hydrocarbons (trichlorethylene), aromatic hydrocarbons (benzene) and aliphatic hydrocarbons (propane). It works well in high vacuum environments and is vulnerable to low molecular organic acids, ammonia gas, alkalis, amines, glycol-based brake fluids, and super-heated steam.

The durometer hardness of this Viton O-ring is 75A. Durometers measure the hardness of a material and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation. On a scale of 0 to 100, a value of 0 indicates that a sample was completely penetrated, while a value of 100 shows no indentation in the sample. The letter following the number identifies the shore scale, which is either shore A or D. Shore A is used for softer plastics, while shore D is used for harder plastics.

O-rings provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section, and a hole in the center, similar to a doughnut. O-rings are available in various AS568A dash sizes, which is the standardized sizing for O-rings, and defines the nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter of an O-ring.
