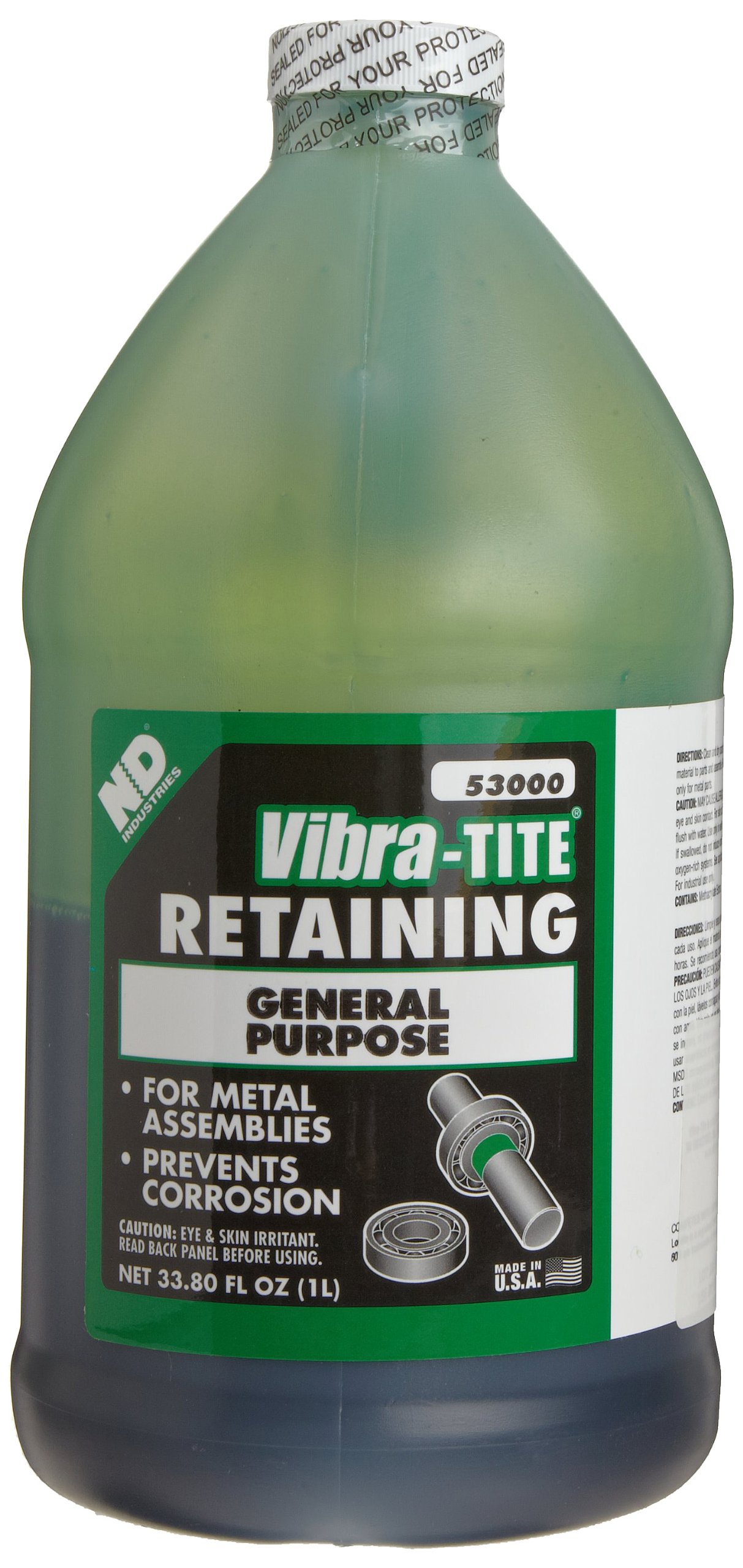

Vibra-TITE 530 General Purpose Anaerobic Retaining Compound

Be the first to review this item

Product Specifications
Manufacturer Series Number
530
Upper Temperature Range
300  Degrees Fahrenheit
Fixture Time
10 - 20  minutes
Color Name
Green
Full Cure Time
24  Hours
UNSPSC Code
31200000
Brand Name
Vibra-TITE
LowerTemperature Range
-65  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 8 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-5 of 5
1 liter B004UMP0RC yes $124.29 Buy Options
10 mililiters B00270B5D2 yes $9.15 Buy Options
2 milliliters B004UMOZZ0 yes $4.00 Buy Options
250 milliliters B004UMP0MM yes $50.87 Buy Options
50 milliliters B0025PIWY4 yes $26.76 Buy Options

Key Features

  • Increases the shear strength on non-threaded cylindrical metal assemblies
  • Fills voids between close-fitting metal assemblies
  • Creates a solid one-piece assembly
  • Seals joints against leakagePrevents corrosion

Product Description

Vibra-TITE 530 High Strength Retaining Compound is a single part, low viscosity, fast curing anaerobic resin used for bonding rigid assemblies of all types. This material can be used effectively to increase the strength of most mechanical assemblies. Vibra-TITE 530 can be used in a broad variety of applications such as locks keys and splines, locks bearings in place preventing spin-out, bonds rotor to shaft in low horsepower motors, augments press fits, locks bushings and sleeves in housings and on shafts, restores the fit to worn assemblies or out-oftolerance parts. This lower viscosity product is recommended for interference or press fit parts where large gap filling is not required. Ensure parts are clean, dry and free from oil and grease before use. Product is normally hand applied from the bottle onto parts. Fixture Speed with Primer is <5 minutes. Fixture Speed without Primer is 10-20 minutes at77 degree F. Shelf Life is 12 months at 68 degree F. 24 hours at 68 degree F Full Cure Time. Product should be stored in a cool and dry location at temperatures between -10 degree C to 30 degree C. Optimal storage is 22 +/- 4 degree C. Shelf life is 18 months from date of manufacture when stored at 22 +/- 4 degree C. General purpose. For stainless steel and other inert metal threaded pipes and fittings. Gasoline resistant. Low viscosity retaining compound recommended for diametral gap distances up to 0.005'' to augment press fits. 2000 Plus PSI Shear strength. 1.1 Specific gravity. N or T Suggested primer. 1 liter Jug.
