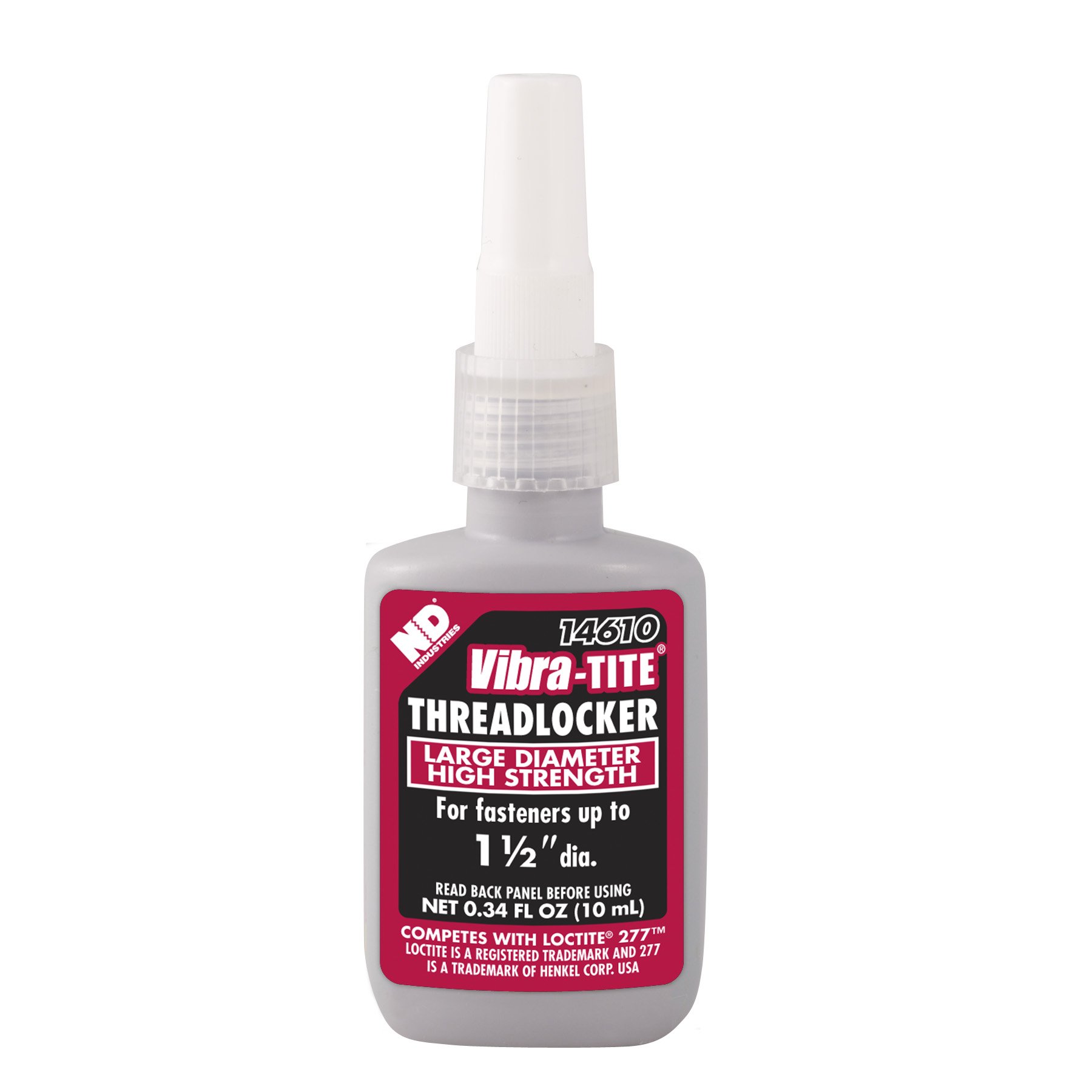

Vibra-TITE 146 Permanent Large Diameter High Strength Anaerobic Threadlocker, 10ml Bottle, Red

Be the first to review this item

ASIN B004UMOUF0

Product Specifications
Part Number
14610
Container Size
10  milliliters
UPC
745619146106
EAN
0745619146106
Number of Items
1
Size Name
10 mililiters
Specification for this product family (See all  products)
Manufacturer Series Number
146
Upper Temperature Range
300  Degrees Fahrenheit
Fixture Time
10 - 20  minutes
Color Name
Red
Full Cure Time
24  Hours
UNSPSC Code
31201634
Brand Name
Vibra-TITE
LowerTemperature Range
-65  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 18? Order in-stock items in the next 11 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Lock and seal threaded fasteners
  • Stop fasteners from loosening from shock and vibration
  • Performs better than lock washers, bevel washers and other forms of mechanical locking devices
  • Alleviates rust-lock
  • Prevent leakage

Package Details

Shipping Weight: 0.05 pounds
Package Size: 3.9 x 1.7 x 1.5 inches

Product Description

Vibra-TITE 146 Large Diameter High Strength Threadlocker is a red general purpose adhesive for permanent threaded assemblies. 146 locks fasteners 1" and larger in diameter, sealing against leakage and corrosion. It resists attack from lubricants and most industrial liquids and gases. Eliminates double nutting and/or welding of critical assemblies. Using Vibra-TITE 146 permits reduced casting thickness, and eliminates cracked castings due to interference fit stresses. It is recommended for larger diameter studs with coarse threads and is used to reclaim worn stud holes. Primers are recommended for large gaps and poor fitting parts. Ensure parts are clean, dry and free from oil and grease before use. Product is normally hand applied from the bottle onto threaded parts. Fixture Speed with Primer is <10 seconds. Fixture Speed without Primer is 60 minutes at 77 degree F. Shelf Life is 12 months at 68 degree F. 24 hours at 68 degree F Full Cure Time. 250-350 inches/lbs Typical Breakaway Strength. 250-350 inches/lbs Typical Prevailing Strength. Product should be stored in a cool and dry location at temperatures between -10 degree C to 30 degree C. Optimal storage is 22 +/- 4 degree C. Shelf life is 18 months from date of manufacture when stored at 22 +/- 4 degree C. Heat and hand tools required for disassembly. 0.01 inches Maximum gap fill. 300/250 lbs Torque strength, Break/Prevail. 1.12 Specific gravity. N or T Suggested primer. 10 ml Bottle.
