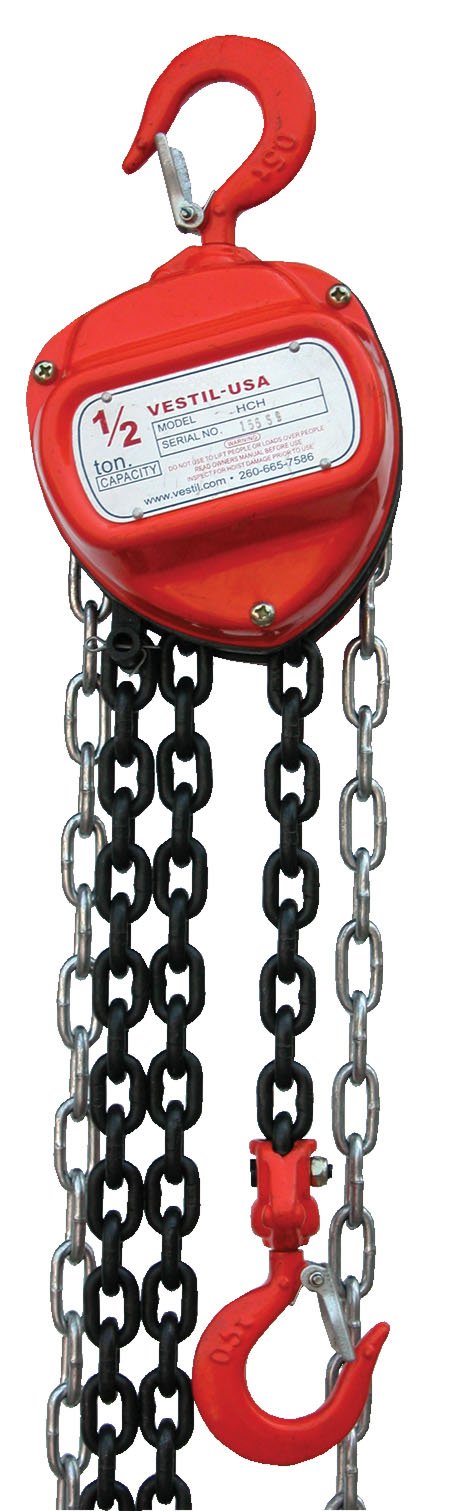

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Vestil HCH Hand Chain Hoist, Hook Mount

Be the first to review this item

Product Specifications
Manufacturer Series Number
HCH
Mounting Type
Hook
Material Type
Steel
Brand Name
Vestil

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 13 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Load Capacity Headroom Lift ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-4 of 4
2000 lbs 12" 20 ft B003UNYWH6 5 $184.34 Buy Options
2000 lbs 12" 15 ft B0052PMQQE 3 $169.83 Buy Options
4000 lbs 14-1/2" 15 ft B0052PMRDQ 5 $232.37 Buy Options
4000 lbs 14-1/2" 10 ft B0052PMR7W 2 $203.54 Buy Options

Key Features

  • Manually operated hand chain hoist with hook mount, stamped steel housing for resistance to wear, and steel components for strength
  • Low headroom for work in tight spaces
  • Grade 80 chain tempered to ISO 3077, galvanized hand chain, and hardened two-stage gears for strength
  • Forged steel mount and load hooks for strength
  • Manufacturer load tested to 150% of rated capacity, and produced to comply with ASME B30.16 standards

Product Description

The Vestil HCH is a manually operated hand chain hoist with a hook mount, stamped steel housing for resistance to wear, and steel components for strength, and low headroom for work in tight spaces. This hoist has a grade 80 chain tempered to ISO 3077, galvanized hand chain, and hardened two-stage gears for strength. The mount hook and load hook on this hoist are made of forged steel for strength. The Vestil HCH hand chain hoist has been load tested by the manufacturer to 150% of rated capacity, and is produced to comply with American Society of Mechanical Engineers (ASME) B30.16 standards.

Hoists are devices that use relatively small amounts of force to lift, lower, and pull heavy loads. Manual hoists transfer a small, hand-exerted force either across a series of gears to multiply the force into one large enough to lift the designated load, or over a pulley, drum, or sheave to leverage the force into one strong enough to lift the load. This makes it possible for an operator to manage heavy loads. The manual force is usually applied using a hand chain, lever, or lever ratchet, lifting the load by a hook attached to a chain, rope, or wire. Hand chain and lever hoists generally use mechanical disk brakes called Weston-style brakes that hold the load in place while the operator’s hands are released to make the next pull, secure the load once it has been lifted, and control the descent of the load as it is lowered. Ratchet puller hoists generally use ratchets instead of mechanical brakes to secure and control the load. Manual hoists are commonly attached to or suspended from structures by hook or trolley mounts, and are used in the transportation, construction, manufacturing, mining, and material handling industries, among others.

Capacity is the maximum rated load a hoist can handle. While manufacturers may indicate they have tested a hoist beyond its limits, operators should never attempt to lift a load heavier than the maximum rated load. Pull force describes the amount of force that needs to be applied to lift a load. If a 1/2 ton manual hoist specifies a pull force of 40 lbs., for example, the operator needs to be able to pull a 40 lb. weight in order to lift the maximum 1/2 ton (500 lb.) load. Headroom is the distance from the bottom of the load hook to the top of the hoist. This is the minimum amount of vertical space needed for the hoist to hang freely and operate correctly. Lift is the maximum vertical distance the load hook can move a load.

Vestil manufactures materials handling equipment, including hoists and trolleys, jib and gantry cranes, loading dock equipment, and storage solutions. The company, founded in 1968, is headquartered in Angola, IN.
