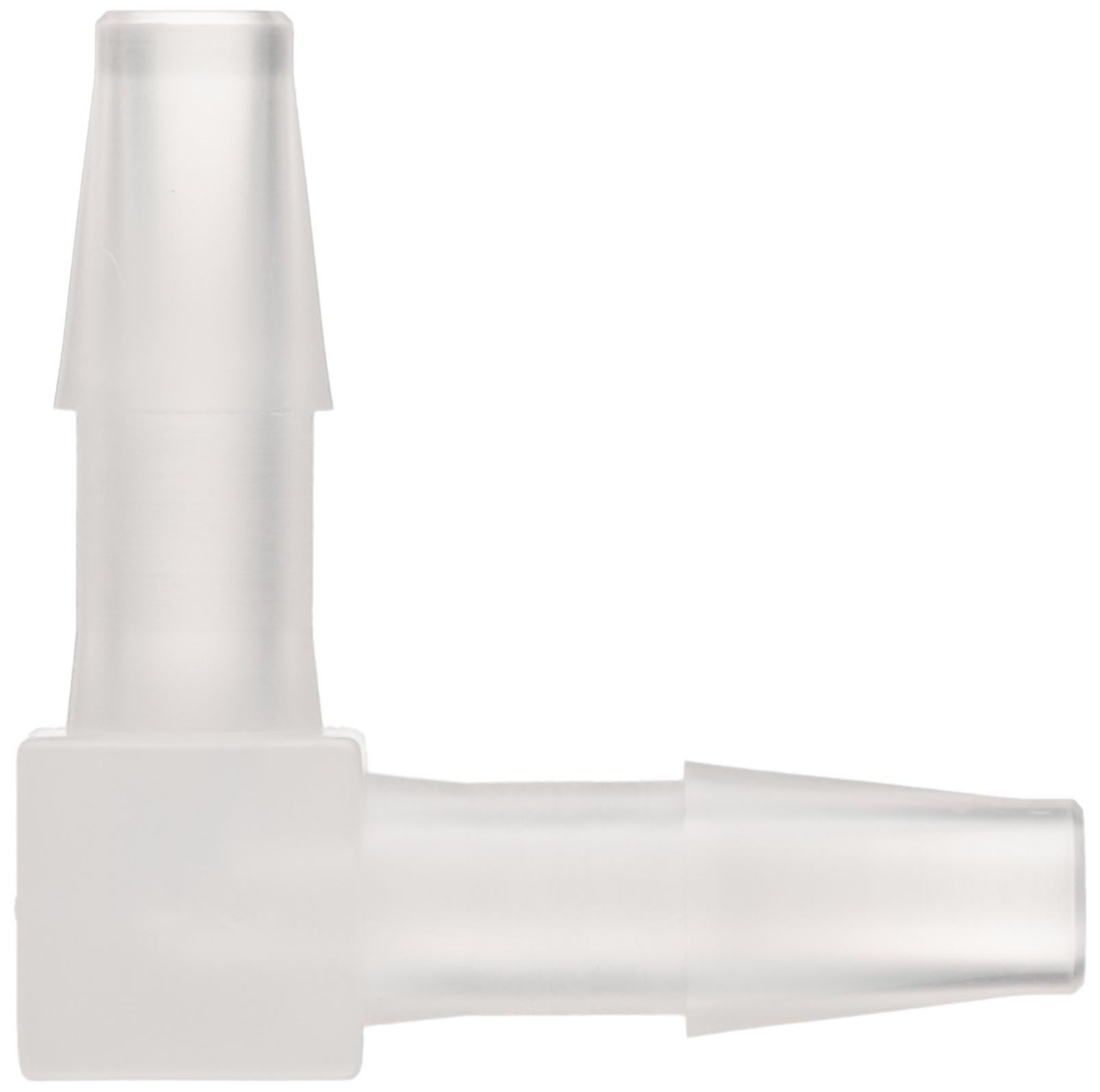

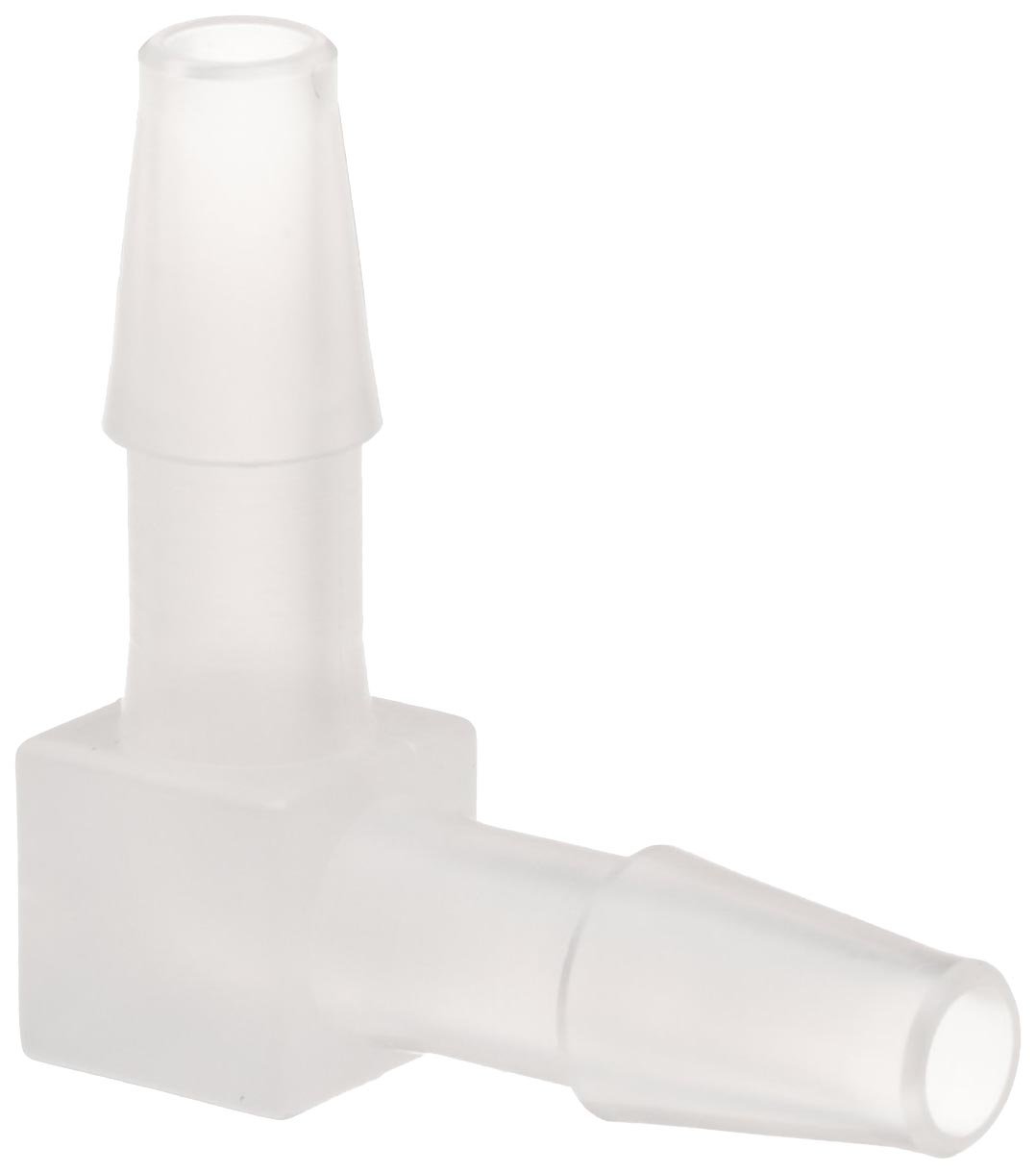

Value Plastics Natural Polypropylene Tube Fitting, Barbed 90 Degree Elbow, Tube ID

Be the first to review this item

Product Specifications
Item Shape
90 Degree Elbow
Specification Met
RoHS , ISO 9001 :2008
Material Type
Polypropylene (PP)
UNSPSC Code
40183100
Brand Name
Value Plastics
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 6 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-3 of 3
1/4" B000P7LV0G yes $24.83 Buy Options
3/16" B000P7L3HW yes $6.15 Buy Options
5/32" B000P7NSR0 yes $5.59 Buy Options

Key Features

  • 90-degree elbow with angled barbs for connecting two tubes at an angle
  • Fitting connects to tubing on both ends
  • Polypropylene for chemical resistance and dimensional stability
  • Longer barb extends the sealing surface of the fitting
  • Expands inside diameter of tubing from 42 to 69 percent for increased seal strength

Product Description

The Value Plastics barbed 90 degree elbow fitting is made of polypropylene and has tube connectors. This 90-degree elbow fitting, also called "ell," has angled barbs and connects two tubes at a 90-degree angle to change the direction of flow between tubes. It connects to tubing on both ends. This fitting is made of polypropylene, which resists most chemicals, has dimensional stability, and can be sterilized. It has a longer barb which extends the sealing surface of the fitting, expanding the inside diameter (ID) of the tubing from 42 to 69 percent for increased seal strength.

Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Barbed fittings are characterized by the presence of angled barbs that grab and hold on the inner diameter (ID) of a hose. They are designed so that hose is easily mounted over the fitting, but is difficult to remove. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Value Plastics manufactures plastic tubing fittings and connectors. The company, founded in 1968, is headquartered in Ft. Collins, CO, and meets International Organization for Standardization (ISO) standard 9001:2008.
