Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

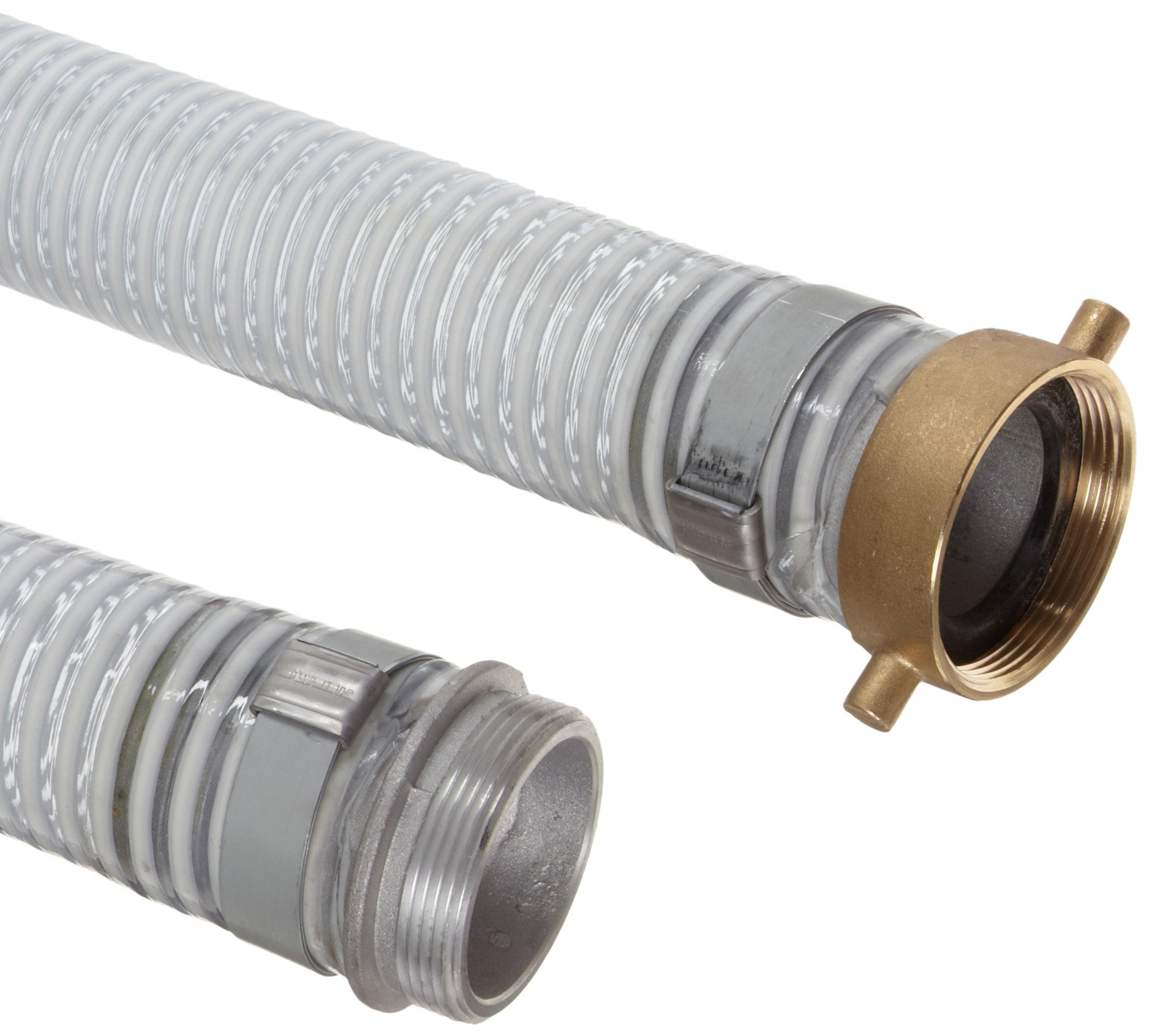

Unisource 1500 PVC Suction/Discharge Hose Assembly, MPT x NPSM Female Swivel Connection

Be the first to review this item

Product Specifications
For Use With Product Type
Suction/Discharge
Color Name
Clear
Material Type
PVC (Polyvinyl Chloride)
Brand Name
Unisource
Manufacturer Series Number
1500
Compatible Material
Water
Upper Temperature Range
150  Degrees Fahrenheit
Style Name
MPT x NPSM Female Swivel
Connector Type
Threaded
UNSPSC Code
40142000
Operating Vacuum Pressure
29.8  in Hg
System of Measurement
Inch
LowerTemperature Range
-10  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Mar 5? Order in-stock items in the next 9 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 23 Next 3 »
Inside diameter string Outside diameter Maximum bend radius Maximum pressure Item length string Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 23 Next 3 »
1-1/2 inches 1-53/64 inches 5 70 pounds_per_square_inch 20 feet 1 B0063LLVDU yes $53.63 Buy Options
1-1/2 inches 1-53/64 inches 5 70 pounds_per_square_inch 25 feet 1 B0063LKN9S yes $60.68 Buy Options
1-1/2 inches 1-53/64 inches 5 70 pounds_per_square_inch 50 feet 1 B0063LCHU6 yes $34.46 Buy Options
2 inches 2-21/64 inches 7 65 pounds_per_square_inch 10 feet 1 B0063LM8GE yes $57.14 Buy Options
2 inches 2-21/64 inches 7 65 pounds_per_square_inch 15 feet 1 B0063LK17M yes $69.19 Buy Options
2 inches 2-21/64 inches 7 65 pounds_per_square_inch 20 feet 1 B0063LGSHO Usually ships in 3 to 4 weeks $79.80 Buy Options
2 inches 2-21/64 inches 7 65 pounds_per_square_inch 25 feet 1 B0063LE50G yes $94.85 Buy Options
2 inches 2-21/64 inches 7 65 pounds_per_square_inch 50 feet 1 B0063L8WKA yes $116.03 Buy Options
2-1/2 inches 2-7/8 inches 8 65 pounds_per_square_inch 10 feet 1 B0063LJJDO yes $87.73 Buy Options
2-1/2 inches 2-7/8 inches 8 65 pounds_per_square_inch 15 feet 1 B0063LF4CO yes $31.84 Buy Options
2-1/2 inches 2-7/8 inches 8 65 pounds_per_square_inch 20 feet 1 B0063LCMRE yes $120.24 Buy Options
2-1/2 inches 2-7/8 inches 8 65 pounds_per_square_inch 25 feet 1 B0063LB77A yes $141.61 Buy Options
2-1/2 inches 2-7/8 inches 8 65 pounds_per_square_inch 50 feet 1 B0063L5VYK Usually ships in 3 to 4 weeks $284.00 Buy Options
3 inches 3-7/16 inches 10 60 pounds_per_square_inch 10 feet 1 B0063LHBIY yes $100.27 Buy Options
3 inches 3-7/16 inches 10 60 pounds_per_square_inch 15 feet 1 B0063LD0MU yes $121.14 Buy Options
3 inches 3-7/16 inches 10 60 pounds_per_square_inch 20 feet 1 B0063LB0G8 yes $42.22 Buy Options
3 inches 3-7/16 inches 10 60 pounds_per_square_inch 25 feet 1 B0063LAAZ0 yes $158.49 Buy Options
3 inches 3-7/16 inches 10 60 pounds_per_square_inch 50 feet 1 B0063L4E8Y Usually ships in 3 to 4 weeks $312.19 Buy Options
4 inches 4-1/2 inches 15 50 pounds_per_square_inch 10 feet 1 B0063LBKKO yes $162.10 Buy Options
4 inches 4-1/2 inches 15 50 pounds_per_square_inch 15 feet 1 B0063L9E5W yes $194.82 Buy Options

Key Features

  • Heavy-duty PVC suction hose assembly
  • Comes with MPT x Female NPSM swivel
  • Clear PVC with rigid white PVC helix tube
  • Threaded End Fitting
  • Clear Color

Product Description

Gasoline hose, coupled assembly. Flexsteel Futura with new Futurin cover resists cracking and fading, designed to dispense a wide range of fuels with extreme durability. The wire braid construction provides excellent kink resistance, low computer creep, and long service life. UL 330 and CUL approved. Nitrile synthetic rubber (ORS) tube. Futurin synthetic rubber (ORS) cover. Single wire braid reinforcement.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
