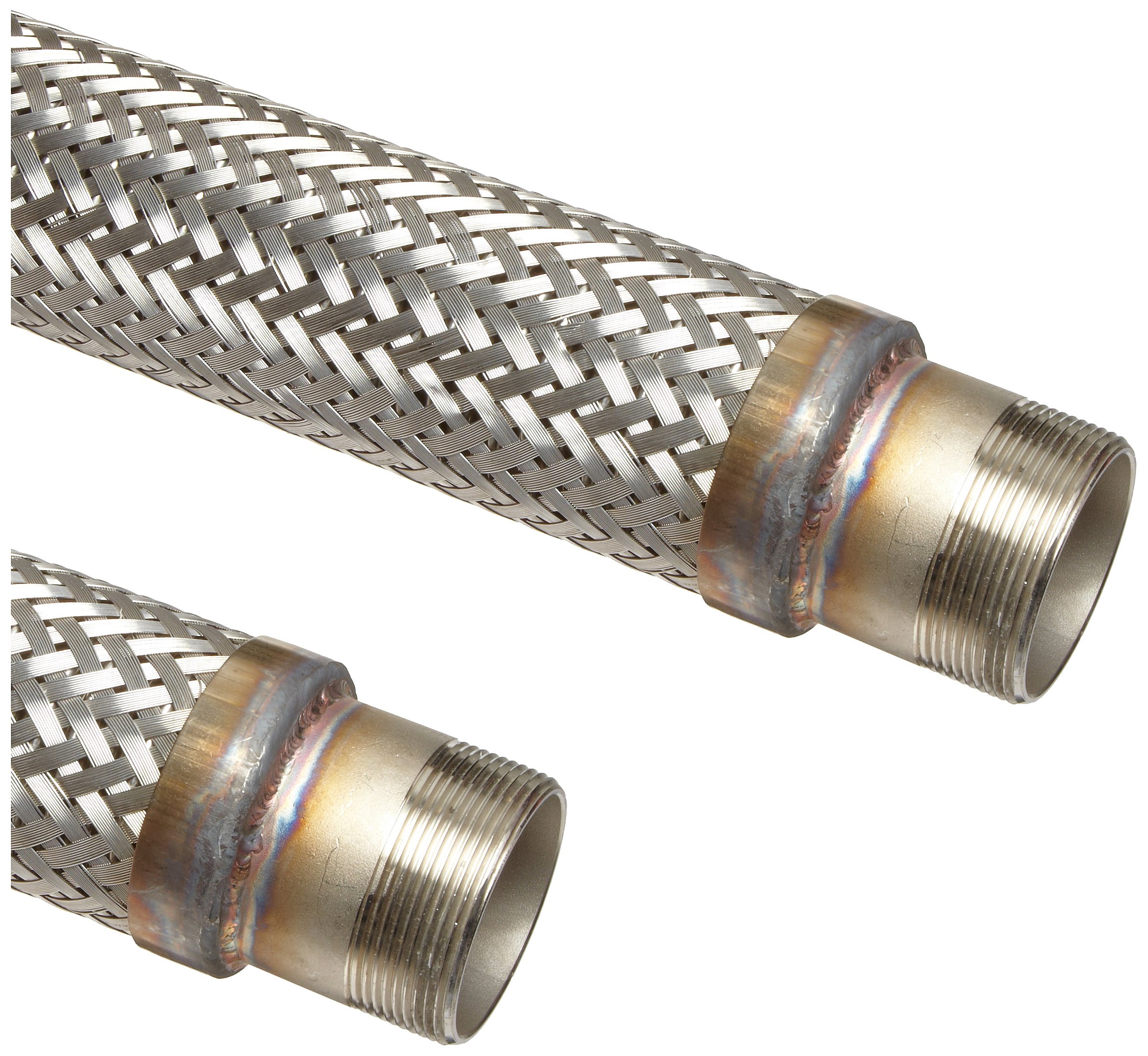

Unisource SF21 Stainless Steel Cryogenic Liquid Transfer Hose Assembly, Stainless Steel NPT Male Connection

Be the first to review this item

Product Specifications
Manufacturer Series Number
SF21
Upper Temperature Range
1500  Degrees Fahrenheit
Exterior Finish
Smooth Finish
Material Type
Stainless Steel
Color Name
Gray
Style Name
Stainless Steel NPT Male
Connector Type
Threaded
Brand Name
Unisource
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 10 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 47 Next 20 »
Inside Diameter Bend Radius Max Pressure Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 47 Next 20 »
1/4" 5 472 PSI 48" 1/4" 1 B0063LUM26 1 $44.44 Buy Options
1/4" 5 472 PSI 42" 1/4" 1 B0063LUX7A 1 $41.82 Buy Options
1/4" 5 1697 PSI 36" 1/4" 1 B0063LV8BA 1 $39.21 Buy Options
1/4" 5 1697 PSI 30" 1/4" 1 B0063LVFPO 1 $38.10 Buy Options
3/8" 5.5 1386 PSI 48" 3/8" 1 B0063LT2L8 1 $53.87 Buy Options
3/8" 5.5 1386 PSI 42" 3/8" 1 B0063LTXLW 1 $48.38 Buy Options
3/8" 5.5 1386 PSI 36" 3/8" 1 B0063LUN8E 1 $45.09 Buy Options
3/8" 5.5 1386 PSI 30" 3/8" 1 B0063LUY4M 1 $43.24 Buy Options
1/2" 6 1075 PSI 48" 1/2" 1 B0063LS5N4 2 $53.80 Buy Options
1/2" 6 1075 PSI 42" 1/2" 1 B0063LSL7E 1 $51.06 Buy Options
1/2" 6 1075 PSI 36" 1/2" 1 B0063LSZ7U 1 $48.26 Buy Options
1/2" 6 1075 PSI 30" 1/2" 1 B0063LT6XC 1 $44.59 Buy Options
3/4" 8 792 PSI 48" 3/4" 1 B0063LQLDU 1 $68.72 Buy Options
3/4" 8 792 PSI 42" 3/4" 1 B0063LR38M 1 $64.41 Buy Options
3/4" 8 792 PSI 24" 3/4" 1 B0063LSQJ2 2 $50.02 Buy Options
3/4" 8 792 PSI 18" 3/4" 1 B0063LT8JY 1 $46.23 Buy Options
3/4" 8 792 PSI 12" 3/4" 1 B0063LTTG6 2 $38.15 Buy Options
3/4" 8 792 PSI 36" 3/4" 1 B0063LRIX2 1 $56.04 Buy Options
3/4" 8 792 PSI 30" 3/4" 1 B0063LS7YQ 1 $55.36 Buy Options
1" 9 571 PSI 48" 1" 1 B0063LOT2A 1 $83.84 Buy Options

Key Features

  • Flexible stainless steel hose assembly for use in cryogenic liquid transfer operations
  • Corrugated 321 stainless steel tube for flexibility and resistance to extreme temperatures
  • Single-braid 300 series stainless steel reinforced cover for strength
  • Maximum temperature rating of 1,500 degrees F
  • Two factory-installed stainless steel male NPT connections

Product Description

The Unisource SF21 stainless steel cryogenic liquid transfer hose, suitable for use in cryogenic liquid or liquefied gas transfer operations, is constructed with a corrugated 321 stainless steel tube for flexibility and resistance to extreme temperatures, and a single-braid 300 series stainless steel reinforced cover for the strength necessary to reach its maximum pressure rating. This hose assembly remains flexible in temperatures ranging from low cryogenic temperatures to 1,500 degrees F. It comes equipped with two factory-installed stainless steel male National Pipe Thread Taper (NPT) threaded connections. This hose is suitable for use in a wide range of applications, including medical, food transportation, electrical equipment cooling, and others.

Industrial hoses and hose assemblies transfer or convey air or liquid in hose systems. When selecting industrial hoses or hose assemblies, use the STAMPED method to help determine the type of hose needed:

S= Size (ID, OD, and length)
T= Temperature (maximum and minimum temperatures of material being transported)
A= Application (industry or process)
M= Material (to be conveyed, type and concentration)
P= Pressure (maximum working pressure)
E= Ends (type of end connectors or couplings on hose)
D= Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses and hose assemblies are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Unisource manufactures industrial, hydraulic, and sanitary hoses as well as expansion joints and braided connectors. The company, founded in 1980, is headquartered in Portland, OR.
