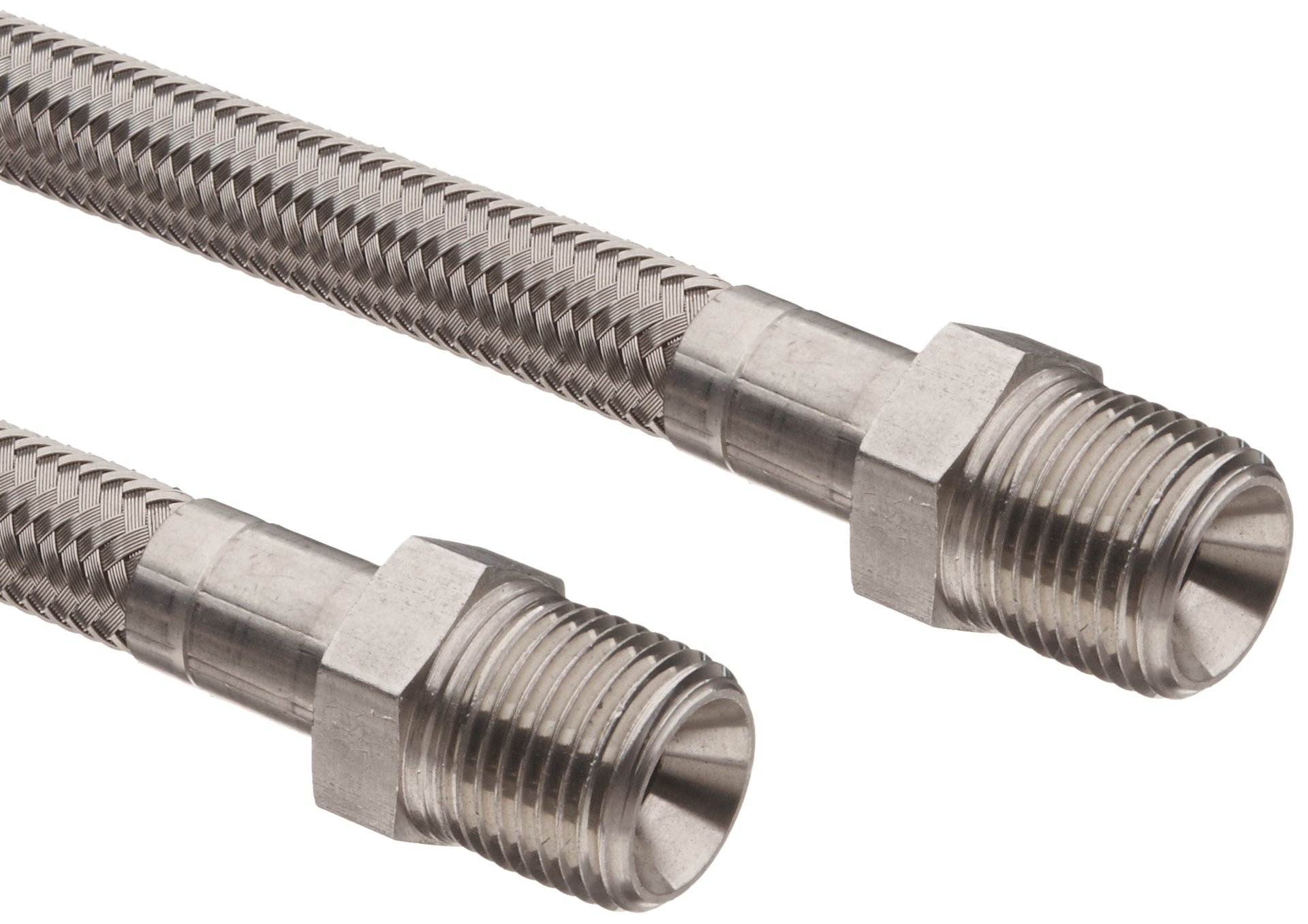

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Unisource TSC PTFE Chemical Hose Assembly, NPT Male Connection

Be the first to review this item

Product Specifications
For Use With Product Type
Chemical
Material Type
Polytetrafluoroethylene (PTFE)
Color Name
Gray
Brand Name
Unisource
Manufacturer Series Number
TSC
Compatible Material
Gas, Chemical
Upper Temperature Range
450  Degrees Fahrenheit
Specification Met
FDA
Connector Type
Threaded
UNSPSC Code
40142011
System of Measurement
Inch
LowerTemperature Range
-65  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 7 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-18 of 18
Inside Diameter Outer Diameter Bend Radius Max Pressure Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-18 of 18
1/4" 5/16" 2 3000 PSI 60" 1/4" 1 B0063LUYX8 yes $44.88 Buy Options
1/4" 5/16" 2 3000 PSI 48" 1/4" 1 B0063LV1YO yes $42.33 Buy Options
1/4" 5/16" 2 3000 PSI 42" 1/4" 1 B0063LV9O6 yes $39.66 Buy Options
1/4" 5/16" 2 3000 PSI 36" 1/4" 1 B0063LVCSY yes $38.02 Buy Options
1/4" 5/16" 2 3000 PSI 30" 1/4" 1 B0063LVJAK yes $38.87 Buy Options
3/8" 7/16" 4 2500 PSI 60" 3/8" 1 B0063LU0B4 yes $51.84 Buy Options
3/8" 7/16" 4 2500 PSI 48" 3/8" 1 B0063LUIAC Usually ships in 1 to 2 months $50.60 Buy Options
3/8" 7/16" 4 2500 PSI 42" 3/8" 1 B0063LUOJC yes $47.06 Buy Options
3/8" 7/16" 4 2500 PSI 36" 3/8" 1 B0063LUR9Y Usually ships in 1 to 2 months $46.62 Buy Options
3/8" 7/16" 4 2500 PSI 30" 3/8" 1 B0063LUZJ6 yes $45.31 Buy Options
3/8" 7/16" 4 2500 PSI 24" 3/8" 1 B0063LV2MU yes $43.29 Buy Options
3/8" 7/16" 4 2500 PSI 36" 3/8" 1 B0063LVHQ6 yes $24.32 Buy Options
3/8" 7/16" 4 2500 PSI 30" 3/8" 1 B0063LVJZK yes $22.56 Buy Options
1/2" 35/64" 5.2 2000 PSI 60" 1/2" 1 B0063LSSL8 yes $73.96 Buy Options
1/2" 35/64" 5.2 2000 PSI 48" 1/2" 1 B0063LT9NE yes $73.29 Buy Options
1/2" 35/64" 5.2 2000 PSI 42" 1/2" 1 B0063LTOC0 yes $65.73 Buy Options
1/2" 35/64" 5.2 2000 PSI 36" 1/2" 1 B0063LTYNO yes $63.94 Buy Options
1/2" 35/64" 5.2 2000 PSI 30" 1/2" 1 B0063LU87U yes $62.15 Buy Options

Key Features

  • Flexible pigtail hose assembly for chemical or gas transfer operations
  • Nonconductive smooth-bore PTFE tube for resistance to chemicals and high temperatures
  • Single-braid 300 series stainless steel reinforcement cover for strength
  • Temperature range of -65 to +450 degrees F
  • Two factory-installed stainless steel male NPT fittings

Product Description

This Unisource TSC PTFE chemical hose assembly is suitable for chemical or gas transfer operations. It is constructed with a nonconductive smooth-bore PTFE (polytetrafluorethylene) tube for resistance to chemicals and high temperatures, and a cover reinforced with a single braid of 300 series stainless steel to provide the strength for its maximum pressure rating. This hose exceeds Compressed Gas Association (CGA) Standard E.9 for flexible, PTFE-lined pigtail hoses for compressed gas service, and has a minimum burst pressure rating four times that of its maximum working pressure rating, also known as a 4:1 safety factor. It can withstand temperatures ranging from -65 to +450 degrees F, and comes equipped with two factory-installed stainless steel male National Pipe Taper (NPT) threaded fittings. This hose assembly is suitable for a wide variety of commercial and industrial applications, including automotive, gas conveyance, food processing, pharmaceutical, chemical transfer, or other applications where the chemical and heat requirements exceed the protections offered by rubber, metal, or plastic hose.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Unisource manufactures industrial, hydraulic, and sanitary hoses as well as expansion joints and braided connectors. The company, founded in 1980, is headquartered in Portland, OR.
