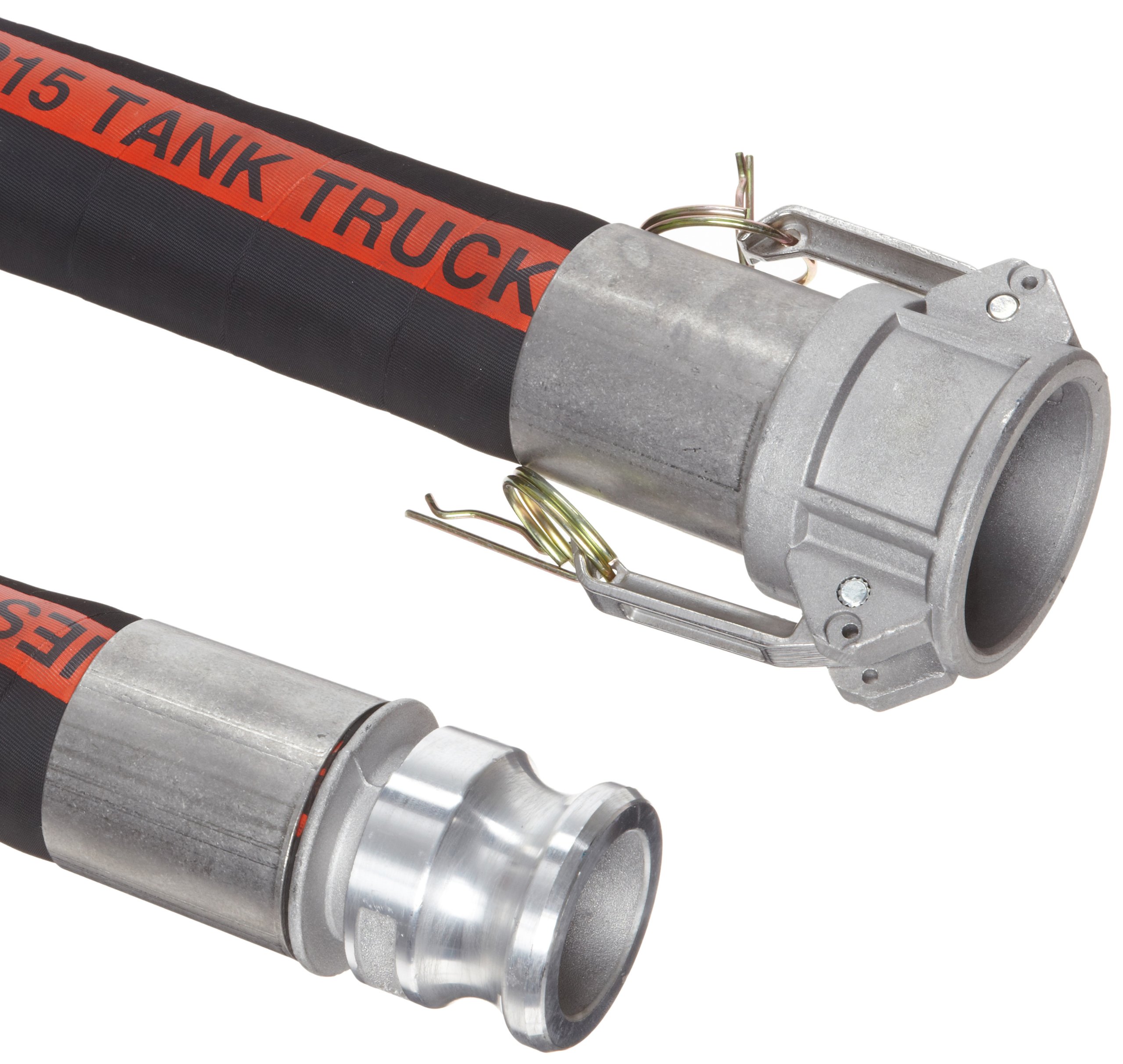

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Unisource 2215 Nitrile Petroleum Hose Assembly, Aluminum Cam And Groove Connection

Be the first to review this item

Product Specifications
For Use With Product Type
Petroleum
Material Type
Nitrile Rubber
Color Name
Black
Brand Name
Unisource
Manufacturer Series Number
2215
Compatible Material
Petroleum
Upper Temperature Range
180  Degrees Fahrenheit
Max Pressure
150  PSI
Connector Type
Cam And Groove
Style Name
Aluminum Cam And Groove
LowerTemperature Range
-40  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 16 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 29 Next 9 »
Inside Diameter Outer Diameter Bend Radius Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 29 Next 9 »
1" 1-5/16" 3 50 ft 1" 1 B0063LALOU Usually ships in 3 to 5 weeks $277.63 Buy Options
1" 1-5/16" 3 25 ft 1" 1 B0063LI3K4 3 $161.25 Buy Options
1" 1-5/16" 3 20 ft 1" 1 B0063LKJ6K 3 $132.92 Buy Options
1" 1-5/16" 3 15 ft 1" 1 B0063LMD8W 1 $101.46 Buy Options
1-1/4" 1-43/64" 3 25 ft 1-1/4" 1 B0063LD2VO 1 $181.47 Buy Options
1-1/4" 1-43/64" 3 20 ft 1-1/4" 1 B0063LFVI6 1 $152.81 Buy Options
1-1/4" 1-43/64" 3 15 ft 1-1/4" 1 B0063LJ5AQ 1 $119.09 Buy Options
1-1/4" 1-43/64" 3 10 ft 1-1/4" 1 B0063LMCZG 1 $93.62 Buy Options
1-1/4" 1-43/64" 3 50 ft 4" 1 B0063L83EU Usually ships in 3 to 5 weeks $334.19 Buy Options
1-1/2" 1-15/16" 4 50 ft 1-1/2" 1 B0063L5KNW 1 $346.81 Buy Options
1-1/2" 1-15/16" 4 25 ft 1-1/2" 1 B0063LB3OW 1 $201.09 Buy Options
1-1/2" 1-15/16" 4 20 ft 1-1/2" 1 B0063LCQIY 2 $160.02 Buy Options
1-1/2" 1-15/16" 4 15 ft 1-1/2" 1 B0063LG0T0 1 $137.28 Buy Options
1-1/2" 1-15/16" 4 10 ft 1-1/2" 1 B0063LKYPG 3 $97.93 Buy Options
2" 2-31/64" 4.5 50 ft 2" 1 B0063L2FKI 1 $398.85 Buy Options
2" 2-31/64" 4.5 25 ft 2" 1 B0063L8YJE 1 $219.23 Buy Options
2" 2-31/64" 4.5 20 ft 2" 1 B0063LAL4K 1 $185.90 Buy Options
2" 2-31/64" 4.5 15 ft 2" 1 B0063LCDVO 1 $148.84 Buy Options
2" 2-31/64" 4.5 10 ft 2" 1 B0063LGUTK 1 $108.37 Buy Options
3" 3-1/2" 7 50 ft 3" 1 B0063KYGJC Usually ships in 3 to 5 weeks $721.11 Buy Options

Key Features

  • Hose for conveying gasoline, ethanol blends, and diesel fuel
  • RMA Class A black nitrile synthetic rubber tube for resistance to oil, petroleum products, and aromatic compounds, with a black nitrile and PVC blended cover for resistance to oil, ozone, and abrasion
  • Multiple textile plies and dual wire helix reinforcement for strength
  • Temperature range of -40 to +180 degrees F
  • Factory-installed aluminum cam and groove couplings

Product Description

This Unisource 2215 nitrile petroleum hose assembly is suitable for conveying gasoline, ethanol blends, and diesel fuel. Its black nitrile synthetic rubber tube provides resistance to oil and petroleum products, and can handle up to 50% aromatic compounds in the volume being transferred. The tube has a Rubber Manufacturers Association (RMA) Class A (high oil resistance) rating for a maximum volume change of +25% and will retain a minimum of 80% of its tensile strength after exposure to oil. Its cover is made of a black nitrile and PVC (polyvinyl chloride) blend that resists oil, ozone, and abrasion. The hose is reinforced with multiple textile plies and a dual wire helix for a maximum pressure rating of 150 pounds per square inch (psi). This hose has a full vacuum rating of 29" Hg, can withstand temperatures ranging from -40 to +180 degrees F, and comes equipped with factory-installed aluminum cam and groove couplings. It is suitable for a wide range of commercial and industrial fuel transfer applications.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Unisource manufactures industrial, hydraulic, and sanitary hoses as well as expansion joints and braided connectors. The company, founded in 1980, is headquartered in Portland, OR.
