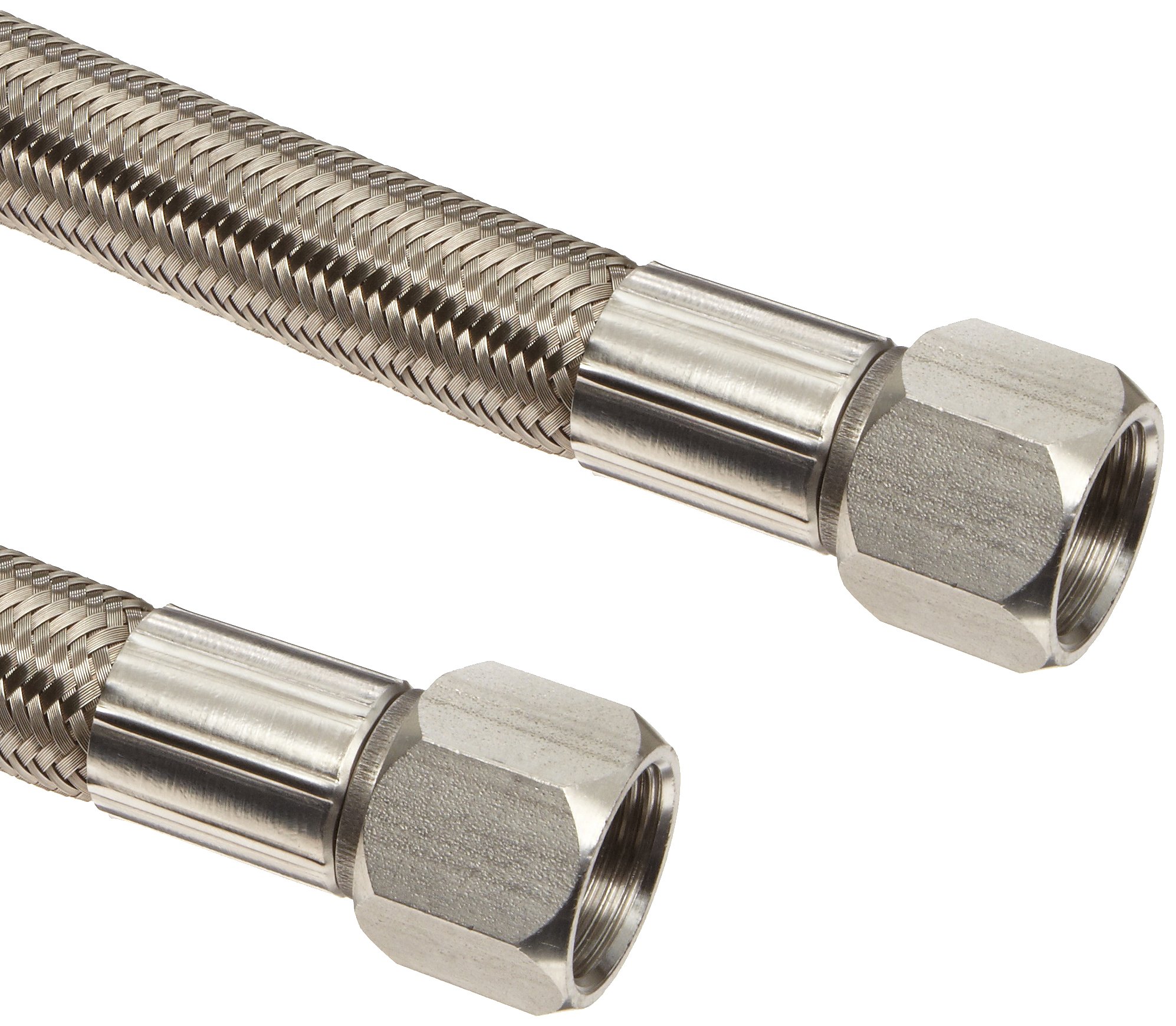

Unisource TSV PTFE Chemical Hose Assembly, Stainless Steel 316 JIC Female Connection

Be the first to review this item

Product Specifications
For Use With Product Type
Chemical/Antistatic
Color Name
Gray
Material Type
Polytetrafluoroethylene (PTFE)
Brand Name
Unisource
Manufacturer Series Number
TSV
Compatible Material
Air, Water, Chemical, Steam
Upper Temperature Range
400  Degrees Fahrenheit
Specification Met
FDA
Connector Type
JIC Flared
UNSPSC Code
40142011
Style Name
Stainless Steel 316 JIC Female
System of Measurement
Inch
LowerTemperature Range
-65  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 23 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 44 Next 20 »
Inside Diameter Outer Diameter Bend Radius Max Pressure Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 44 Next 20 »
1/2" 49/64" 1.5 1250 PSI 60" 1/2" 1 B0063LSU0M yes $107.77 Buy Options
1/2" 49/64" 1.5 1250 PSI 48" 1/2" 1 B0063LTAIS yes $99.69 Buy Options
1/2" 49/64" 1.5 1250 PSI 42" 1/2" 1 B0063LTPGA yes $92.42 Buy Options
1/2" 49/64" 1.5 1250 PSI 36" 1/2" 1 B0063LU1CW yes $90.38 Buy Options
1/2" 49/64" 1.5 1250 PSI 30" 1/2" 1 B0063LU8LQ yes $85.80 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 60" 3/4" 1 B0063LRKKI yes $177.36 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 48" 3/4" 1 B0063LS926 yes $164.53 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 42" 3/4" 1 B0063LSMI2 yes $172.15 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 36" 3/4" 1 B0063LSZLQ yes $151.33 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 30" 3/4" 1 B0063LTBAU yes $157.89 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 24" 3/4" 1 B0063LTQDM yes $155.14 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 18" 3/4" 1 B0063LU4KQ yes $129.17 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 12" 3/4" 1 B0063LU9ME yes $132.69 Buy Options
1" 1-11/32" 3 1000 PSI 60" 1" 1 B0063LQ6WG yes $220.82 Buy Options
1" 1-11/32" 3 1000 PSI 48" 1" 1 B0063LQV3K yes $203.93 Buy Options
1" 1-11/32" 3 1000 PSI 42" 1" 1 B0063LR47W yes $195.71 Buy Options
1" 1-11/32" 3 1000 PSI 36" 1" 1 B0063LRJG8 yes $187.36 Buy Options
1" 1-11/32" 3 1000 PSI 30" 1" 1 B0063LRXKK yes $177.85 Buy Options
1" 1-11/32" 3 1000 PSI 24" 1" 1 B0063LSE3A yes $169.60 Buy Options
1" 1-11/32" 3 1000 PSI 18" 1" 1 B0063LST76 yes $158.64 Buy Options

Key Features

  • Flexible hose assembly for conveying chemicals or gases
  • Convoluted PTFE tube for flexibility and resistance to chemicals and high temperatures
  • PTFE-impregnated fiberglass and 300 series stainless steel wire braid reinforcement cover for strength
  • Temperature range of -65 to +400 degrees F
  • Two factory-installed stainless steel female JIC fittings

Product Description

This Unisource TSV PTFE hose assembly is suitable for conveying chemicals or gases in applications requiring a flexible hose. Its convoluted tube provides improved flexibility over smooth-bore hoses and is constructed with PTFE (polytetrafluorethylene) for resistance to chemicals and high temperatures. Its reinforced cover made of PTFE-impregnated fiberglass and 300 series stainless steel wire braid provides the strength for its maximum pressure rating. This hose can withstand temperatures ranging from -65 to +450 degrees F, and comes equipped with two factory-installed 316 stainless steel female Joint Industry Council (JIC) fittings. This hose assembly is suitable for a variety of applications in chemical plants, food processing and pharmaceutical plants, pulp and paper mills, oil refineries, and others.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Unisource manufactures industrial, hydraulic, and sanitary hoses as well as expansion joints and braided connectors. The company, founded in 1980, is headquartered in Portland, OR.
