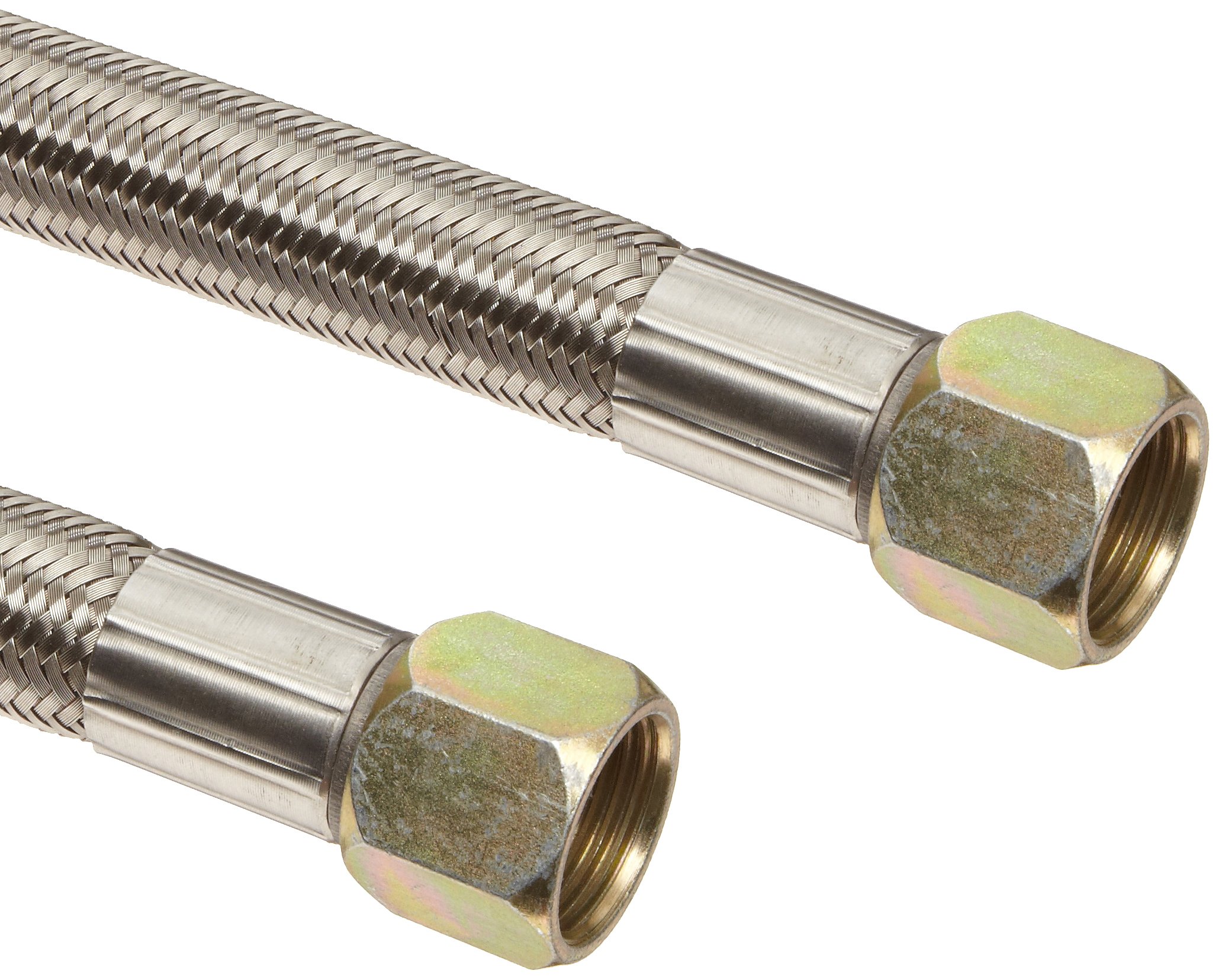

Unisource TSV PTFE Chemical Hose Assembly, Carbon Steel JIC Female Connection

Be the first to review this item

Product Specifications
For Use With Product Type
Chemical/Antistatic
Material Type
Polytetrafluoroethylene (PTFE)
Color Name
Gray
Brand Name
Unisource
Manufacturer Series Number
TSV
Upper Temperature Range
400  Degrees Fahrenheit
Compatible Material
Air, Water, Chemical, Steam
Specification Met
FDA
Style Name
Carbon Steel JIC Female
UNSPSC Code
40142011
Connector Type
JIC Flared
LowerTemperature Range
-65  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 5 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 44 Next 20 »
Inside Diameter Outer Diameter Bend Radius Max Pressure Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 44 Next 20 »
1/2" 49/64" 1.5 1250 PSI 60" 1/2" 1 B0063LTRZE yes $87.27 Buy Options
1/2" 49/64" 1.5 1250 PSI 48" 1/2" 1 B0063LU56E yes $81.38 Buy Options
1/2" 49/64" 1.5 1250 PSI 42" 1/2" 1 B0063LUJCO yes $72.91 Buy Options
1/2" 49/64" 1.5 1250 PSI 36" 1/2" 1 B0063LUSHA Usually ships in 3 to 4 weeks $67.13 Buy Options
1/2" 49/64" 1.5 1250 PSI 30" 1/2" 1 B0063LV3RE yes $62.53 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 60" 3/4" 1 B0063LSOEY yes $120.07 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 48" 3/4" 1 B0063LT3L2 yes $106.76 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 42" 3/4" 1 B0063LTI6C yes $107.51 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 36" 3/4" 1 B0063LTTVG yes $95.56 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 30" 3/4" 1 B0063LUBOA yes $88.74 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 24" 3/4" 1 B0063LUJW4 yes $81.87 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 18" 3/4" 1 B0063LUTA6 yes $76.76 Buy Options
3/4" 1-5/64" 2.5 1100 PSI 12" 3/4" 1 B0063LV4H8 yes $70.18 Buy Options
1" 1-11/32" 3 1000 PSI 60" 1" 1 B0063LQZ6I yes $150.96 Buy Options
1" 1-11/32" 3 1000 PSI 48" 1" 1 B0063LRLRA yes $134.18 Buy Options
1" 1-11/32" 3 1000 PSI 42" 1" 1 B0063LSA5W yes $125.59 Buy Options
1" 1-11/32" 3 1000 PSI 36" 1" 1 B0063LSNIQ yes $117.22 Buy Options
1" 1-11/32" 3 1000 PSI 30" 1" 1 B0063LT0EC yes $106.95 Buy Options
1" 1-11/32" 3 1000 PSI 24" 1" 1 B0063LTCBS yes $100.62 Buy Options
1" 1-11/32" 3 1000 PSI 18" 1" 1 B0063LTR4K yes $89.73 Buy Options

Key Features

  • Flexible hose assembly for conveying chemicals or gases
  • Convoluted PTFE tube for flexibility and resistance to chemicals and high temperatures
  • PTFE-impregnated fiberglass and 300 series stainless steel wire braid reinforcement cover for strength
  • Temperature range of -65 to +400 degrees F
  • Two factory-installed carbon steel female JIC fittings

Product Description

This Unisource TSV PTFE hose assembly is suitable for conveying chemicals or gases in applications requiring a flexible hose. Its convoluted tube provides improved flexibility over smooth-bore hoses and is constructed with PTFE (polytetrafluorethylene) for resistance to chemicals and high temperatures. Its reinforced cover made of PTFE-impregnated fiberglass and 300 series stainless steel wire braid provides the strength for its maximum pressure rating. This hose can withstand temperatures ranging from -65 to +450 degrees F, and comes equipped with two factory-installed carbon steel female Joint Industry Council (JIC) fittings. This hose assembly is suitable for a variety of applications in chemical plants, food processing and pharmaceutical plants, pulp and paper mills, oil refineries, and others.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Unisource manufactures industrial, hydraulic, and sanitary hoses as well as expansion joints and braided connectors. The company, founded in 1980, is headquartered in Portland, OR.
