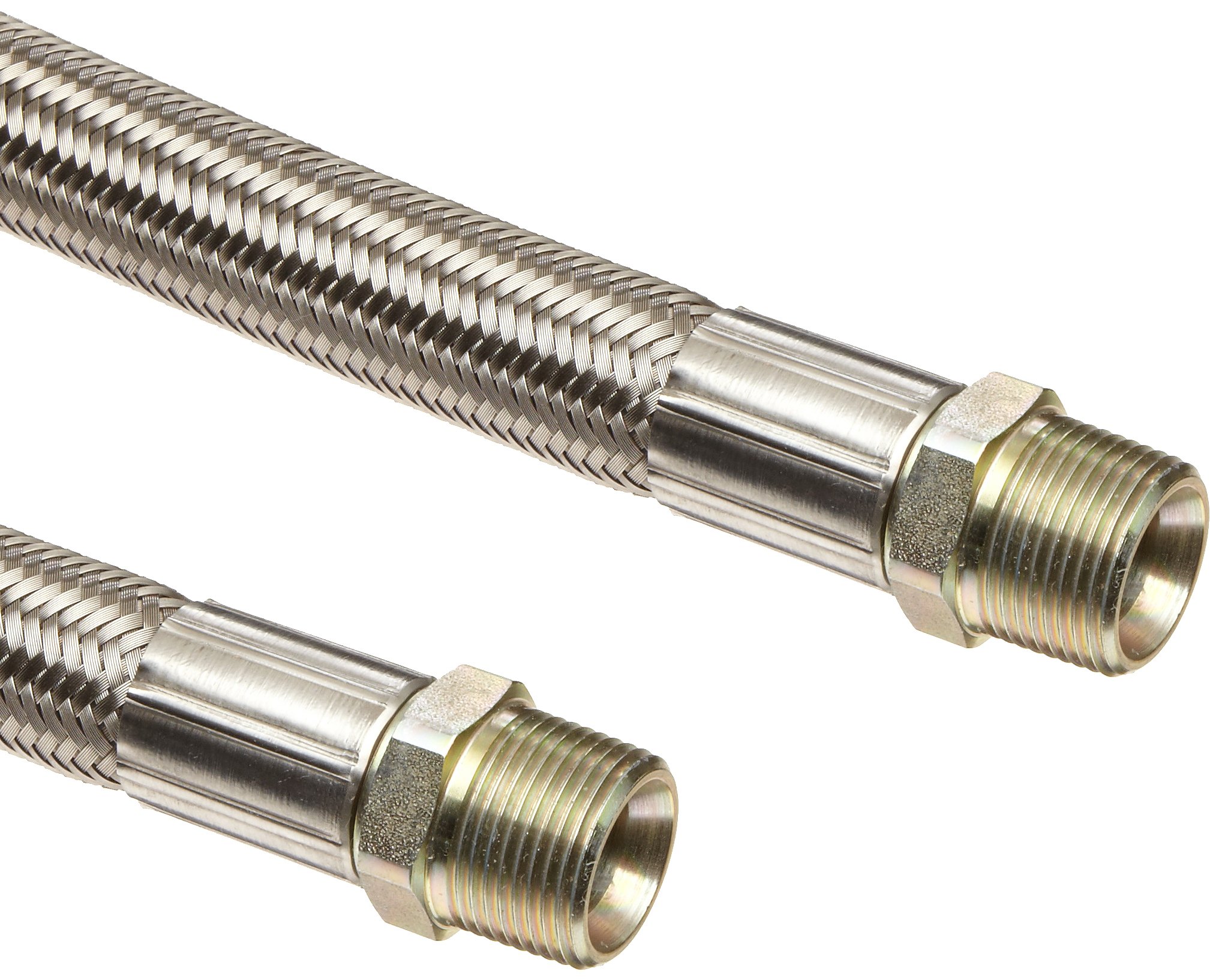

Unisource TSV PTFE Chemical/Antistatic Hose Assembly, Carbon Steel NPT Male Connection
Be the first to review this item
Product Specifications
- Brand Name
- Unisource
- Color Name
- Gray
- Connector Type
- Threaded
- For Use With Product Type
- Chemical/Antistatic
- LowerTemperature Range
- -65 Degrees Fahrenheit
- Manufacturer Series Number
- TSV
- Material Type
- Polytetrafluoroethylene (PTFE)
- Specification Met
- FDA
- Style Name
- Carbon Steel NPT Male
- System of Measurement
- Inch
- Upper Temperature Range
- 400 Degrees Fahrenheit
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 7 hours 16 minutes and choose One-Day Shipping at checkout.
Key Features
- Style TSV combines an inner core of convoluted PTFE, externally reinforced with PTFE-impregnated fiberglass and Series 300 stainless steel wire braid
- Carbon steel end fitting
- Tape-wrapped, convoluted style hose
- Threaded End Fitting
- Used in a variety of applications in chemical plants, food processing and pharmaceutical plants, pulp and paper mills, oil refineries, and particular OEM systems
Product Description
Style TSV combines an inner core of convoluted PTFE, externally reinforced with PTFE-impregnated fiberglass and Series 300 stainless steel wire braid. This material provides a continuous conductive path to the metal end fittings, dissipating static electricity build-up. A high pressure rated assembly is complete by attaching special swage type fittings made in a variety of styles. This tape-wrapped, convoluted style hose is used in a variety of applications in chemical plants, food processing and pharmaceutical plants, pulp and paper mills, oil refineries, and particular O.E.M. systems. High resistivity fluids or gases at high velocity cause positive electrical charges to build on the inside of the PTFE liner. If not dissipated to the end of the hose, the charge will build until it arcs through the tube wall to the braid, causing catastrophic hose failure. Style TSV - Non-conductive virgin convoluted PTFE with PTFE/fiberglass tape wrap. Style TSV PTFE assemblies can be hydrostatically tested prior to shipment. When specified, Unisource will hydrotest to 1-1/2 times the working pressure of the hose. Unisource also has in-house cleaning facilities for those assemblies requiring sanitary cleaning.
