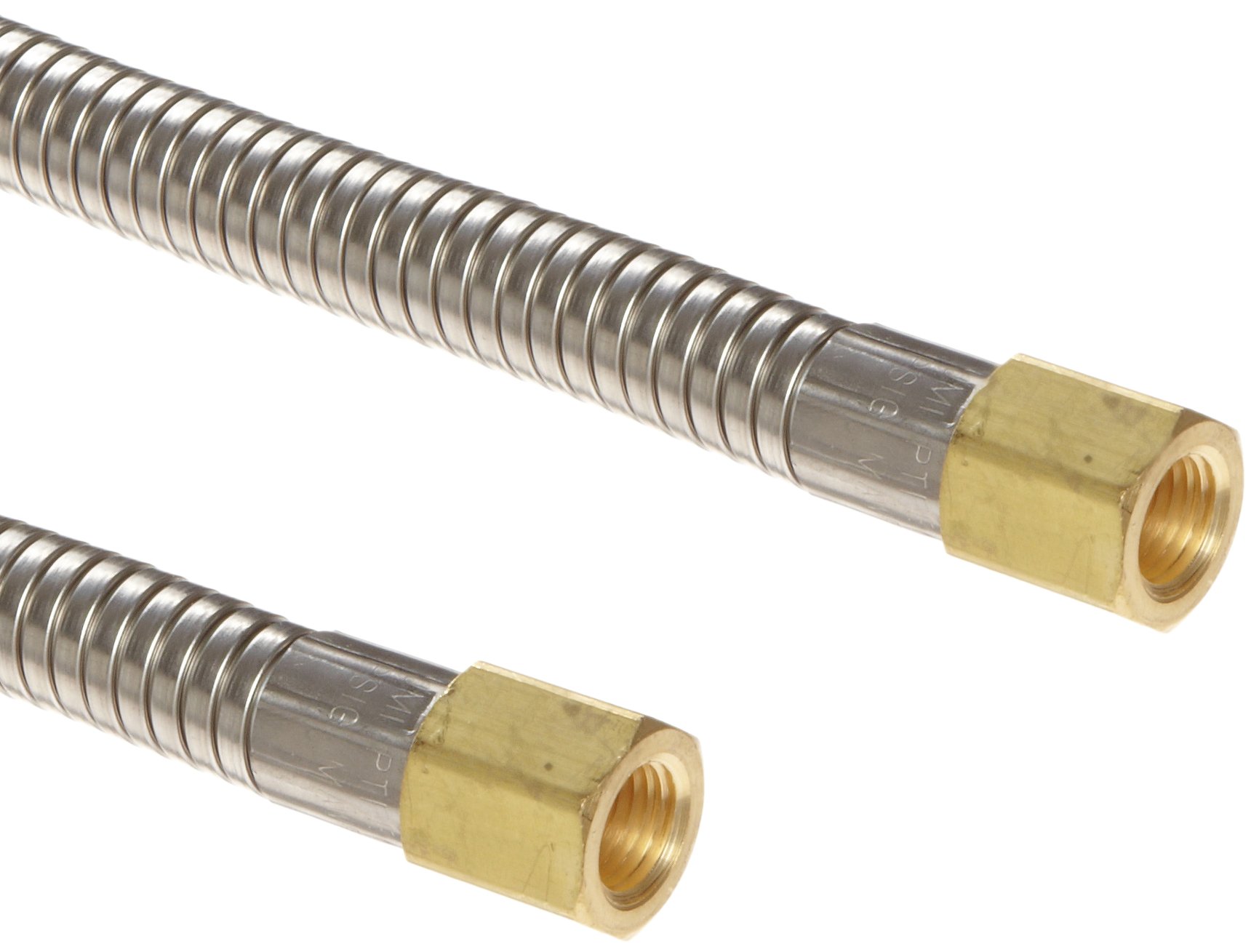

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Unisource TSCZ PTFE Braided Pigtail Hose Assembly, Brass NPT Female x NPT Female Connection

Be the first to review this item

Product Specifications
For Use With Product Type
Braided Pigtail
Material Type
Polytetrafluoroethylene (PTFE)
Brand Name
Unisource
Connection Size
1/4"
Manufacturer Series Number
TSCZ
Compatible Material
Gas, Chemical
Upper Temperature Range
450  Degrees Fahrenheit
Bend Radius
2
Max Pressure
3600  PSI
Connector Type
Threaded
UNSPSC Code
40142011
Style Name
Brass NPT Female x NPT Female
System of Measurement
Inch
LowerTemperature Range
-65  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 21 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Overall Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-2 of 2
48" 1 B0063LVHZ2 yes $74.74 Buy Options
36" 1 B0063LVNV0 yes $65.00 Buy Options

Key Features

  • Flexible pigtail hose assembly for high-pressure chemical or gas transfer operations
  • Nonconductive smooth-bore PTFE tube for resistance to chemicals and high temperatures
  • Dual-braid 300 series stainless steel reinforcement cover for strength
  • Temperature range of -65 to +450 degrees F
  • Two 1/4" factory-installed brass female NPT fittings

Product Description

This Unisource TSCZ PTFE braided pigtail hose assembly is suitable for high-pressure chemical or gas transfer operations. Its smooth-bore tube is constructed with nonconductive PTFE (polytetrafluorethylene) for resistance to chemicals and high temperatures, and is subjected to a process known as post-sintering, making it suitable for containment of lighter gasses, such as helium. It has a cover reinforced with two braids of 300 series stainless steel to provide the strength for a maximum pressure rating of 3,600 pounds per square inch (psi). This hose exceeds Compressed Gas Association (CGA) Standard E.9 for flexible, PTFE-lined pigtail hoses for compressed gas service, and has a minimum burst pressure rating four times that of its maximum working pressure rating, also known as a 4:1 safety factor. It can withstand temperatures ranging from -65 to +450 degrees F, and comes equipped with two 1/4" factory-installed brass female National Pipe Taper (NPT) threaded fittings. This hose assembly is suitable for a wide variety of commercial and industrial applications involving high-pressure chemical or gas conveyance or other applications where the requirements for resistance to chemicals or heat exceed the protections offered by rubber, metal, or plastic hose.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Unisource manufactures industrial, hydraulic, and sanitary hoses as well as expansion joints and braided connectors. The company, founded in 1980, is headquartered in Portland, OR.
