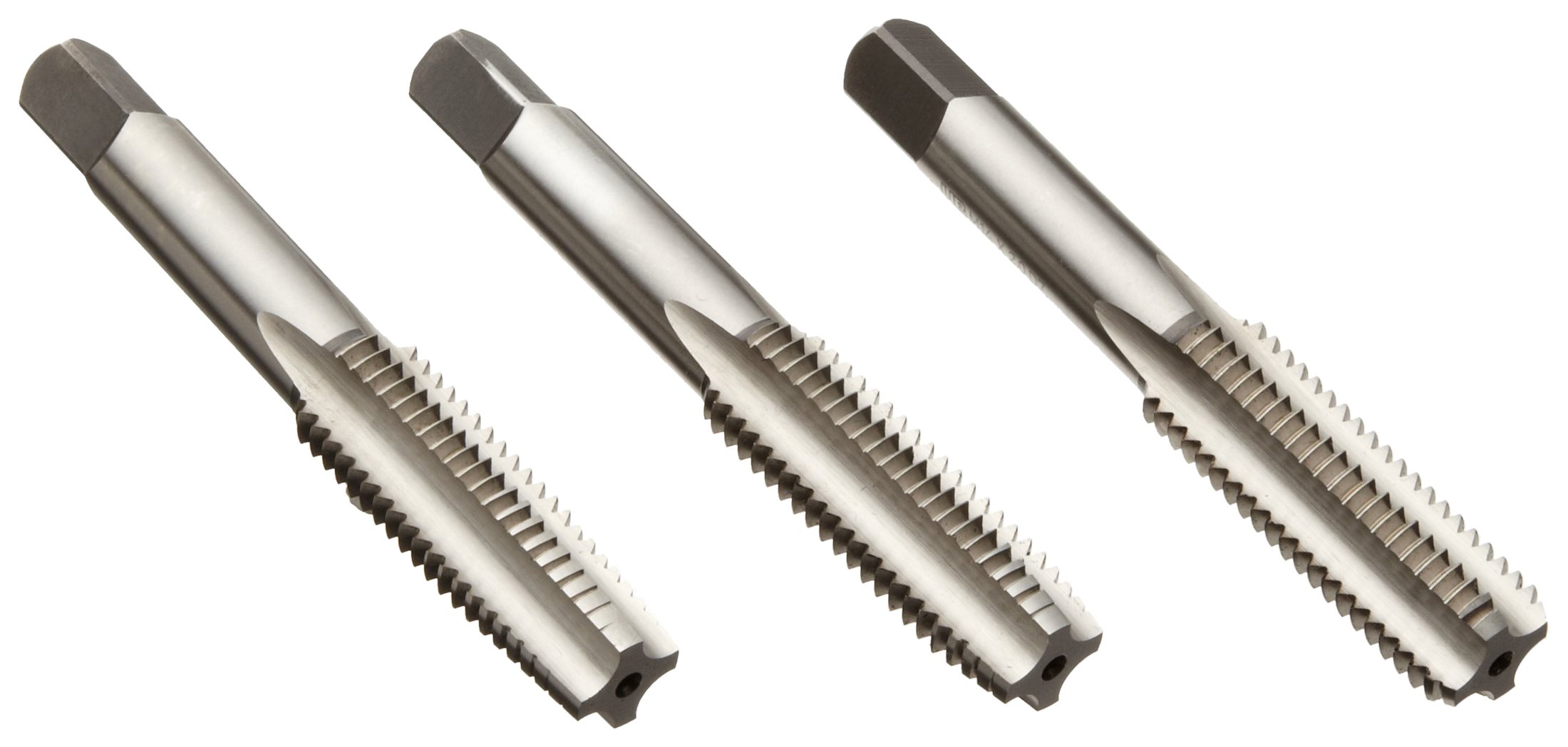

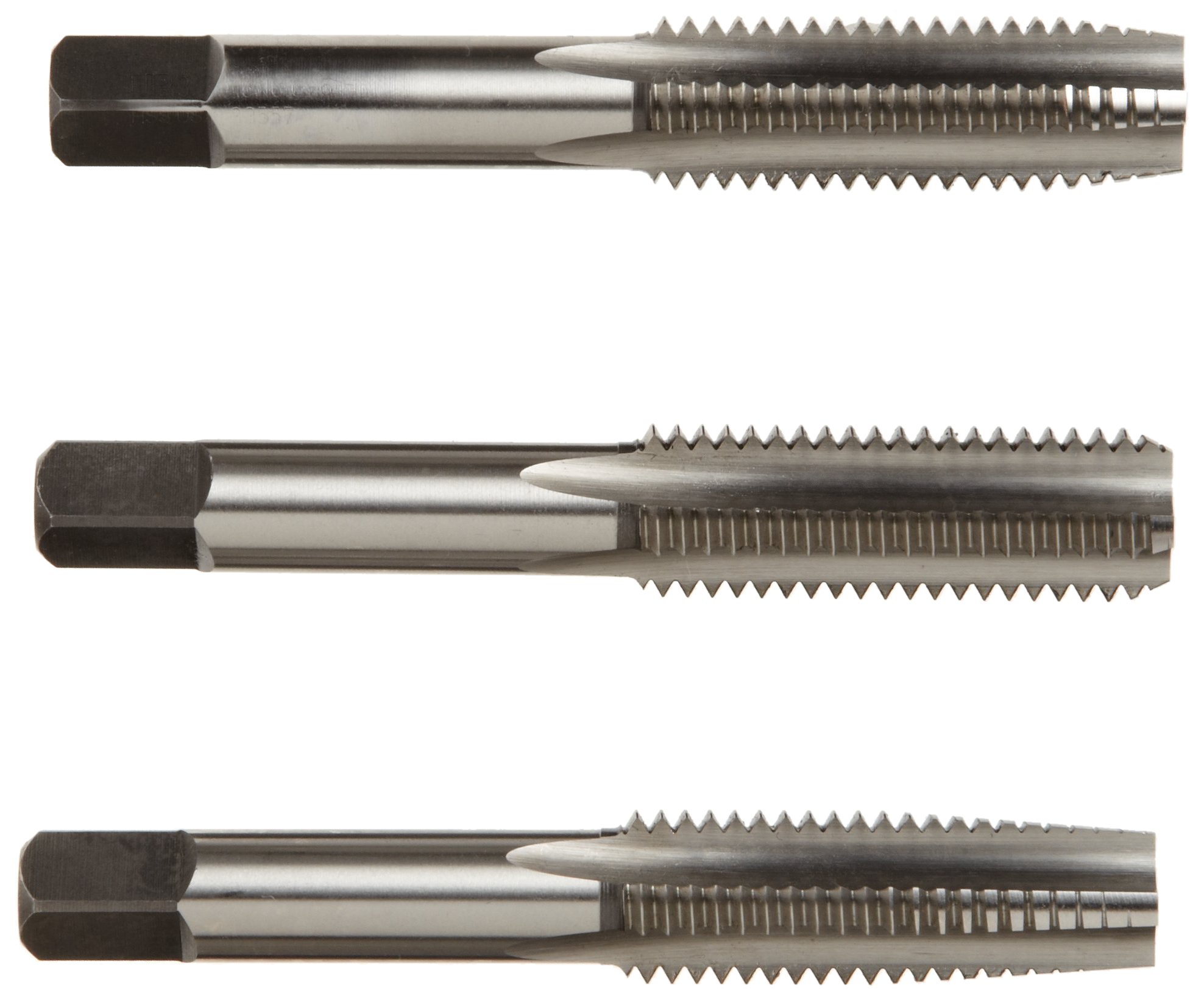

Union Butterfield 1700S High-Speed Steel Hand Tap Set, Uncoated (Bright) Finish, Round Shank with Square End, 3-Piece Set (1 Taper, 1 Plug, 1 Bottoming Chamfer)

Be the first to review this item

Product Specifications
Manufacturer Series #
1700S
Surface Coating
Uncoated (Bright)
Pitch Diameter Limit
6H
Shank Type
Round With Square End
Material Type
High_speed_steel
Thread Type
Metric
Chamfer Type
Set
Brand Name
Union Butterfield

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 5 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-19 of 19
Thread Size Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-19 of 19
M2-0.4 3 0.141" 0.4375" 1.75" 1012558 B003JY6GIO 2 $39.18 Buy Options
M2.5-0.45 3 0.141" 0.5" 1.8125" 1012560 B003JY6GG6 1 $27.10 Buy Options
M2.6-0.45 3 0.141" 0.5" 1.8125" 1012559 B003JY6GH0 1 $26.07 Buy Options
M3-0.5 3 0.141" 0.625" 1.3125" 1012561 B003JY6GKC 1 $24.12 Buy Options
M3.5-0.6 3 0.141" 0.6875" 2" 1012562 B003JY6GJI 1 $21.17 Buy Options
M4-0.7 4 0.168" 0.75" 2.125" 1012563 B003JY6GLG 1 $20.32 Buy Options
M5-0.8 4 0.194" 0.875" 2.375" 1012564 B003JY6GMA 1 $21.59 Buy Options
M6-1 4 0.255" 1" 2.5" 1012565 B003JY6GN4 2 $22.80 Buy Options
M7-1 4 0.318" 1.125" 2.7188" 1012576 B003JY6GO8 2 $23.08 Buy Options
M8-1 4 0.318" 1.125" 2.7188" 1012577 B003JY6GP2 1 $23.13 Buy Options
M8-1.25 4 0.318" 1.125" 2.7188" 1012566 B003JY6GPW 7 $22.87 Buy Options
M10-1.25 4 0.381" 1.25" 2.9375" 1012578 B003JY6GBQ 1 $34.20 Buy Options
M10-1.5 4 0.381" 1.25" 2.9375" 1012567 B003JY6GCA 1 $34.03 Buy Options
M12-1.25 4 0.367" 1.6563" 3.375" 1012579 B003JY6GCU 1 $41.26 Buy Options
M12-1.75 4 0.367" 1.6563" 3.375" 1012568 B003JY6GDE 1 $43.08 Buy Options
M14-2 4 0.429" 1.6563" 3.5938" 1012580 B003JY6GEI 1 $57.42 Buy Options
M16-2 4 0.48" 1.8125" 3.8125" 1012581 B003JY6GF2 1 $70.07 Buy Options
M18-2.5 4 0.542" 1.8125" 4.0313" 1012582 B003JY6GFM 1 $93.01 Buy Options
M20-2.5 4 0.652" 2" 4.4688" 1012583 B003JY6GHK 1 $133.48 Buy Options

Key Features

  • Hand threading tap set with straight flutes cuts threads in through holes and blind holes
  • Produces ANSI standard right-hand threads in metric sizes
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, for use on a broad range of materials
  • Round shank with square end allows tap to be used in hand or power-driven applications

Product Description

The Union Butterfield 1700S uncoated, high-speed steel three-piece hand threading tap set (including tapering, plug, and bottoming chamfers) has straight flutes and round shanks with square ends, and is used to create metric right-hand threads in a range of materials. The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening).

Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end makes it suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

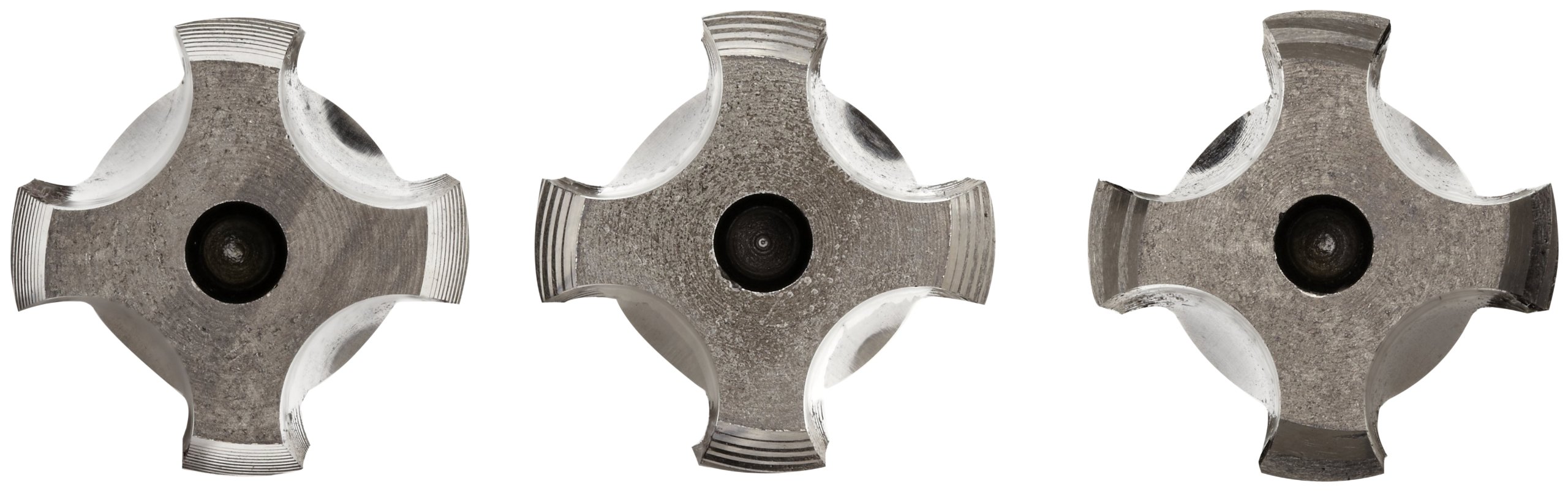

In the Union Butterfield 1700S series, taps with nominal diameters of 2 mm to 3 mm have three flutes and those with nominal diameters of 3.5 mm to 20 mm have four flutes. This tap set conforms to ANSI standards and can create threads to a depth 1 ½ times its diameter. It is suitable for the ANSI 6H tolerance class: 6H is used for a normal length of thread engagement and medium tolerance quality.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
