Union Butterfield 1700(M) High-Speed Steel Hand Tap, Uncoated (Bright) Finish, Round Shank with Square End

Be the first to review this item

Product Specifications
Manufacturer Series #
1700(M)
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Material Type
High Speed Steel
Thread Type
Metric
UNSPSC Code
27112806
Brand Name
Union Butterfield

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 2 days 40 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 102 Next 20 »
Thread Size Chamfer Type Number of Flutes Shank Diameter Length of Threads Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 102 Next 20 »
M1.6-0.35 Plug 2 0.141" 0.3125" 1.625" 6H 1012409 B003JY6EJK 1 $18.01 Buy Options
M1.6-0.35 Taper 2 0.141" 0.3125" 1.625" 6H 1012408 B003JY6EIQ 1 $18.59 Buy Options
M1.6-0.35 Bottoming 2 0.141" 0.3125" 1.625" 6H 1012410 B003JY6EKO 2 $18.82 Buy Options
M1.8-0.35 Plug 2 0.141" 0.375" 1.6875" 6H 1012412 B003JY6EMC 1 $17.94 Buy Options
M1.8-0.35 Taper 2 0.141" 0.375" 1.6875" 6H 1012411 B003JY6ELI 1 $17.94 Buy Options
M1.8-0.35 Bottoming 2 0.141" 0.375" 1.6875" 6H 1012413 B003JY6EMW 1 $17.94 Buy Options
M2-0.4 Plug 3 0.141" 0.4375" 1.75" 6H 1012415 B003JY6FPI 1 $18.83 Buy Options
M2-0.4 Taper 3 0.141" 0.4375" 1.75" 6H 1012414 B003JY6FOY 4 $18.80 Buy Options
M2-0.4 Bottoming 3 0.141" 0.4375" 1.75" 6H 1012416 B003JY6FQ2 2 $18.78 Buy Options
M2.3-0.45 Plug 3 0.141" 0.4375" 1.75" 6H 1012421 B003JY6F9E 1 $13.09 Buy Options
M2.3-0.45 Bottoming 3 0.141" 0.4375" 1.75" 6H 1012422 B003JY6F9Y 1 $13.09 Buy Options
M2.5-0.45 Plug 3 0.141" 0.5" 1.8125" 6H 1012424 B003JY6FAS 2 $13.09 Buy Options
M2.5-0.45 Taper 3 0.141" 0.5" 1.8125" 6H 1012423 B003JY6FAI 6 $13.09 Buy Options
M2.5-0.45 Bottoming 3 0.141" 0.5" 1.8125" 6H 1012425 B003JY6FBM 3 $13.09 Buy Options
M2.6-0.45 Plug 3 0.141" 0.5" 1.8125" 6H 1012427 B003JY6FCQ 1 $13.09 Buy Options
M2.6-0.45 Taper 3 0.141" 0.5" 1.8125" 6H 1012426 B003JY6FC6 6 $7.46 Buy Options
M2.6-0.45 Bottoming 3 0.141" 0.5" 1.8125" 6H 1012428 B003JY6FDA 1 $13.09 Buy Options
M3-0.5 Plug 3 0.141" 0.625" 1.9375" 6H 1012433 B003JY6FXA 7 $10.90 Buy Options
M3-0.5 Taper 3 0.141" 0.625" 1.9375" 6H 1012432 B003JY6FW6 5 $10.90 Buy Options
M3-0.5 Bottoming 3 0.141" 0.625" 1.9375" 6H 1012434 B003JY6FXU 1 $10.90 Buy Options

Key Features

  • Hand threading tap with straight flutes cuts threads in through holes and blind holes
  • Produces ANSI standard right-hand threads in metric sizes
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, for use on a broad range of materials
  • Round shank with square end allows tap to be used in hand or power-driven applications

Product Description

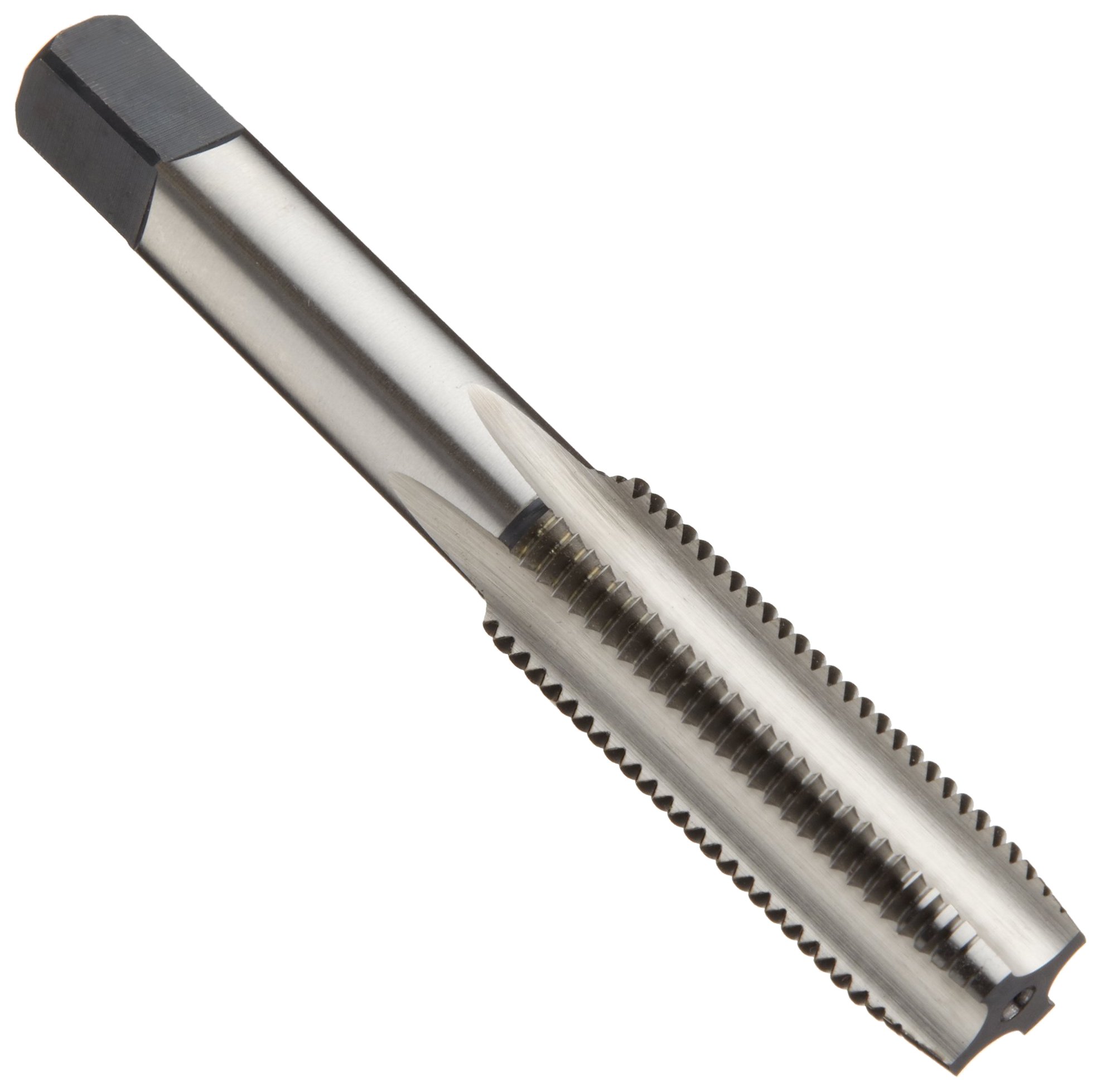

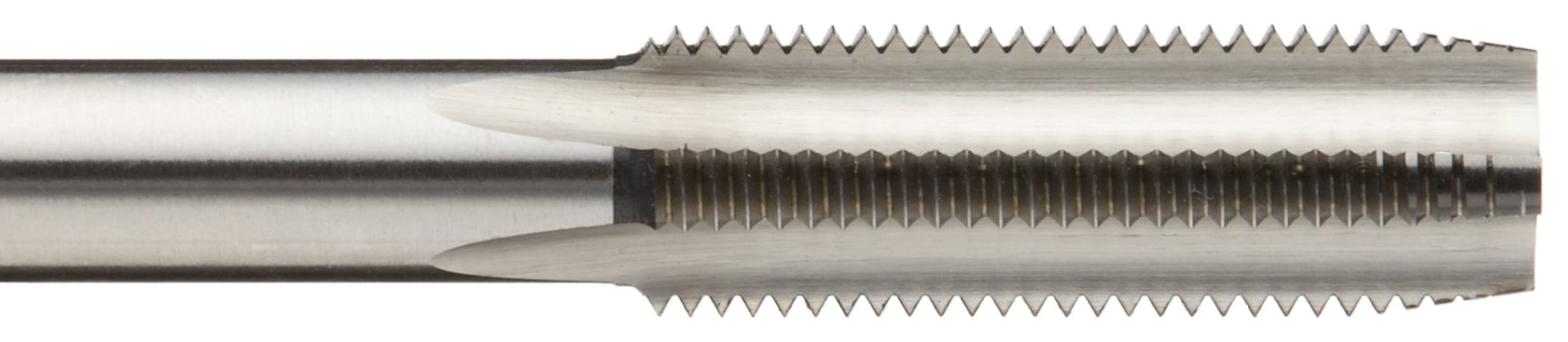

The Union Butterfield 1700(M) uncoated, high-speed steel hand threading tap has straight flutes and a round shank with a square end, and is used to create metric right-hand threads in a range of materials. The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening).

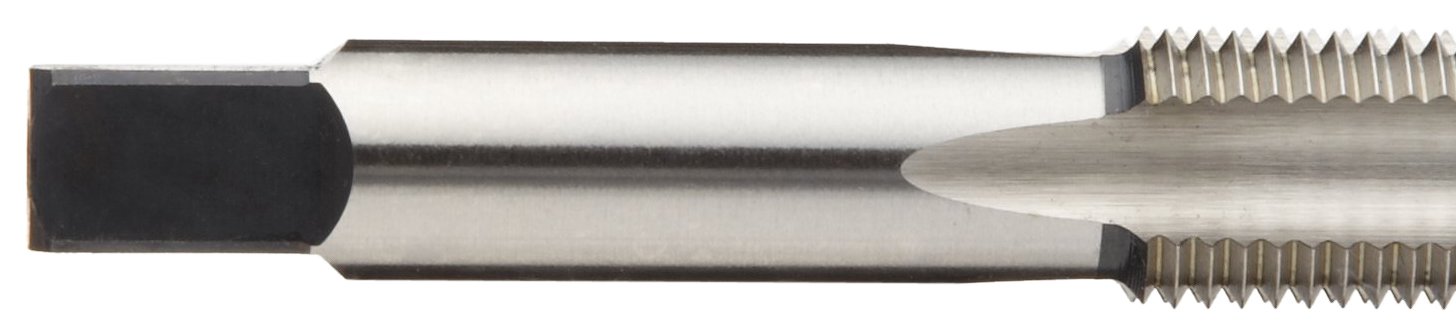

Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end makes it suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

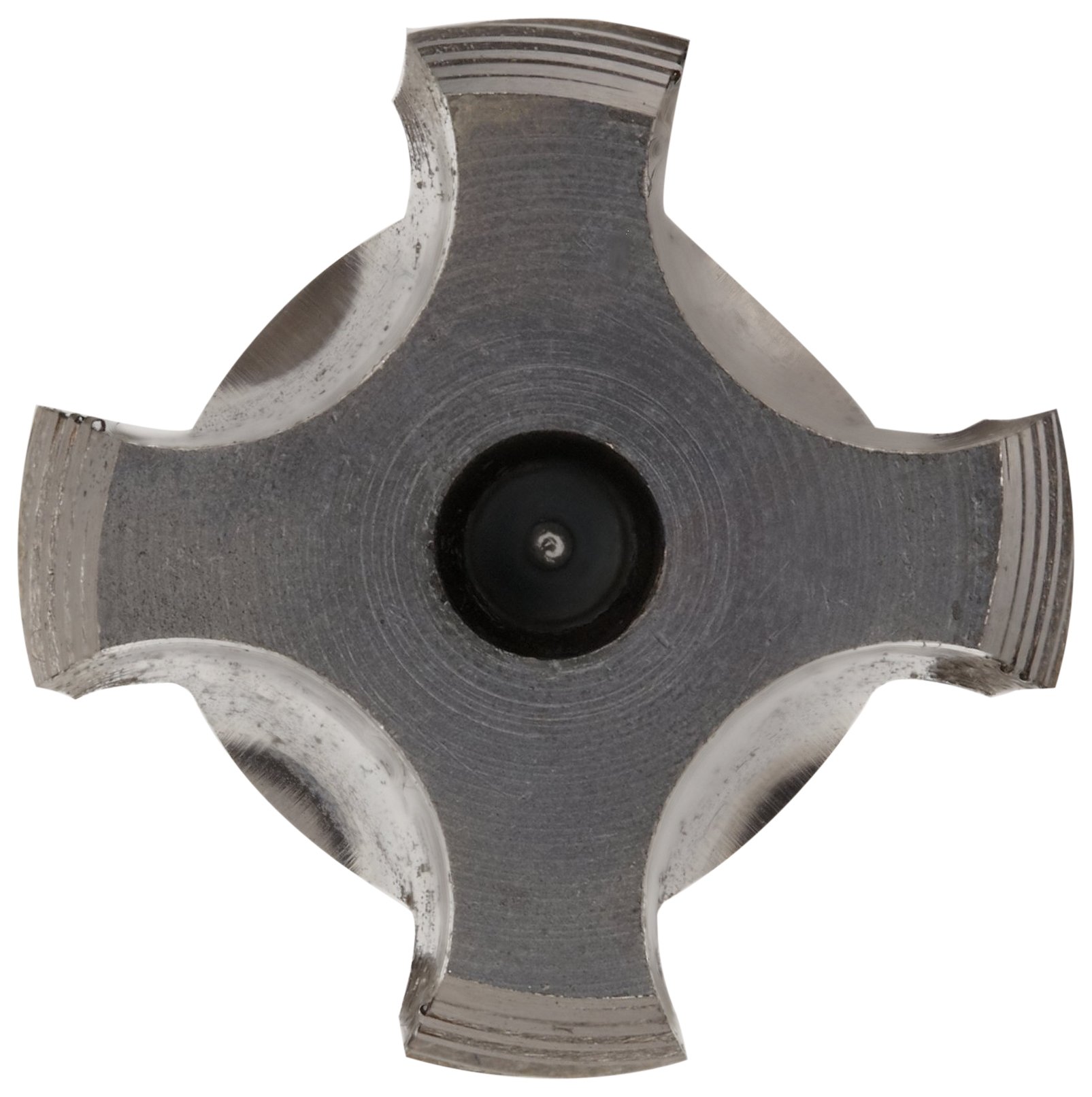

In the Union Butterfield 1700(M) series, taps with nominal diameters of 1.6 mm and 1.8 mm have two flutes, those with nominal diameters of 2 mm to 3.5 mm have three flutes, and those with nominal diameters of 4 mm to 36 mm have four flutes. Taps in this series are available with a variety of chamfers. This tap conforms to ANSI standards and can create threads to a depth 1 ½ times its diameter. It is suitable for the ANSI 6H tolerance class: 6H is used for a normal length of thread engagement and medium tolerance quality.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
