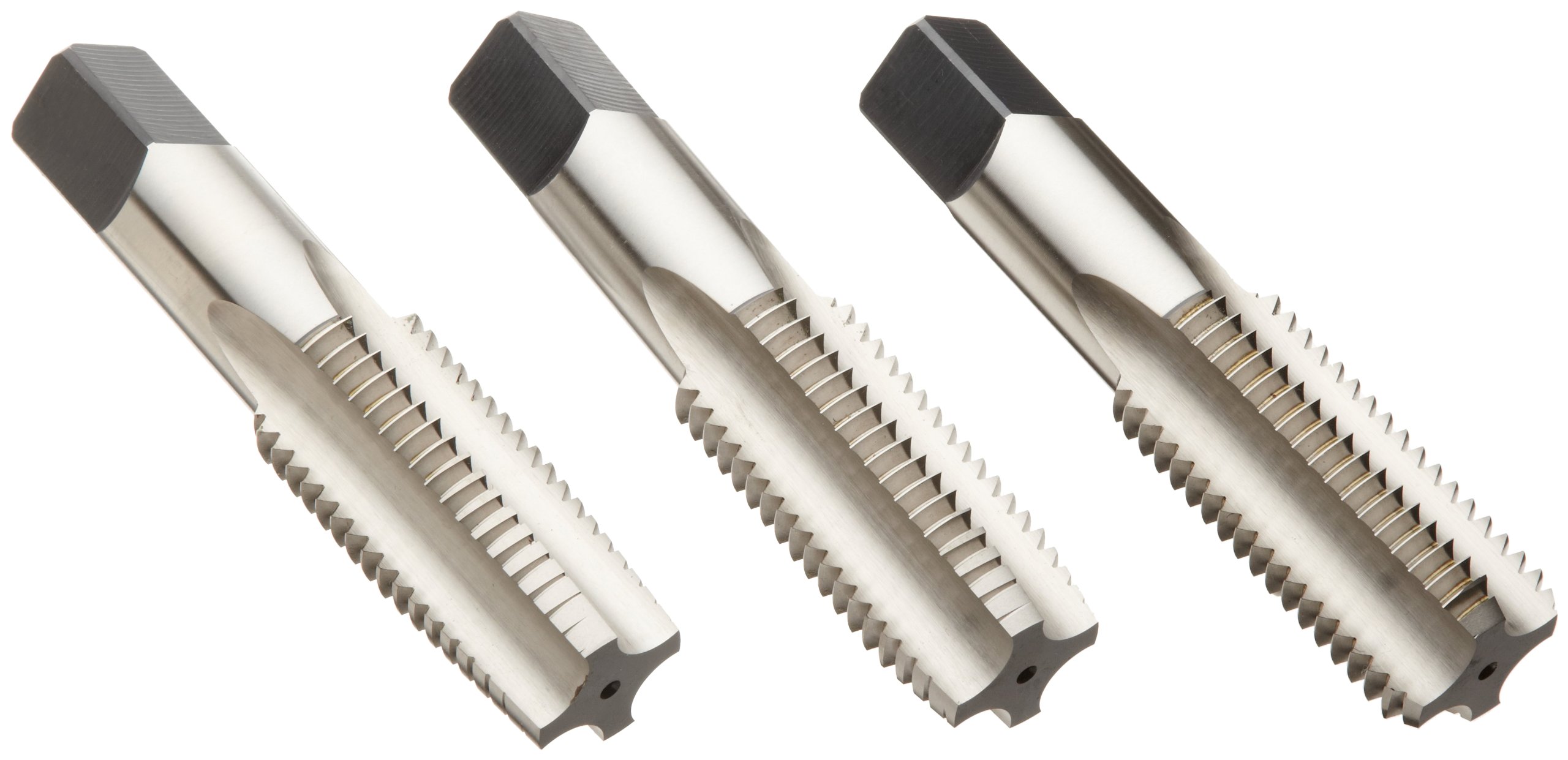

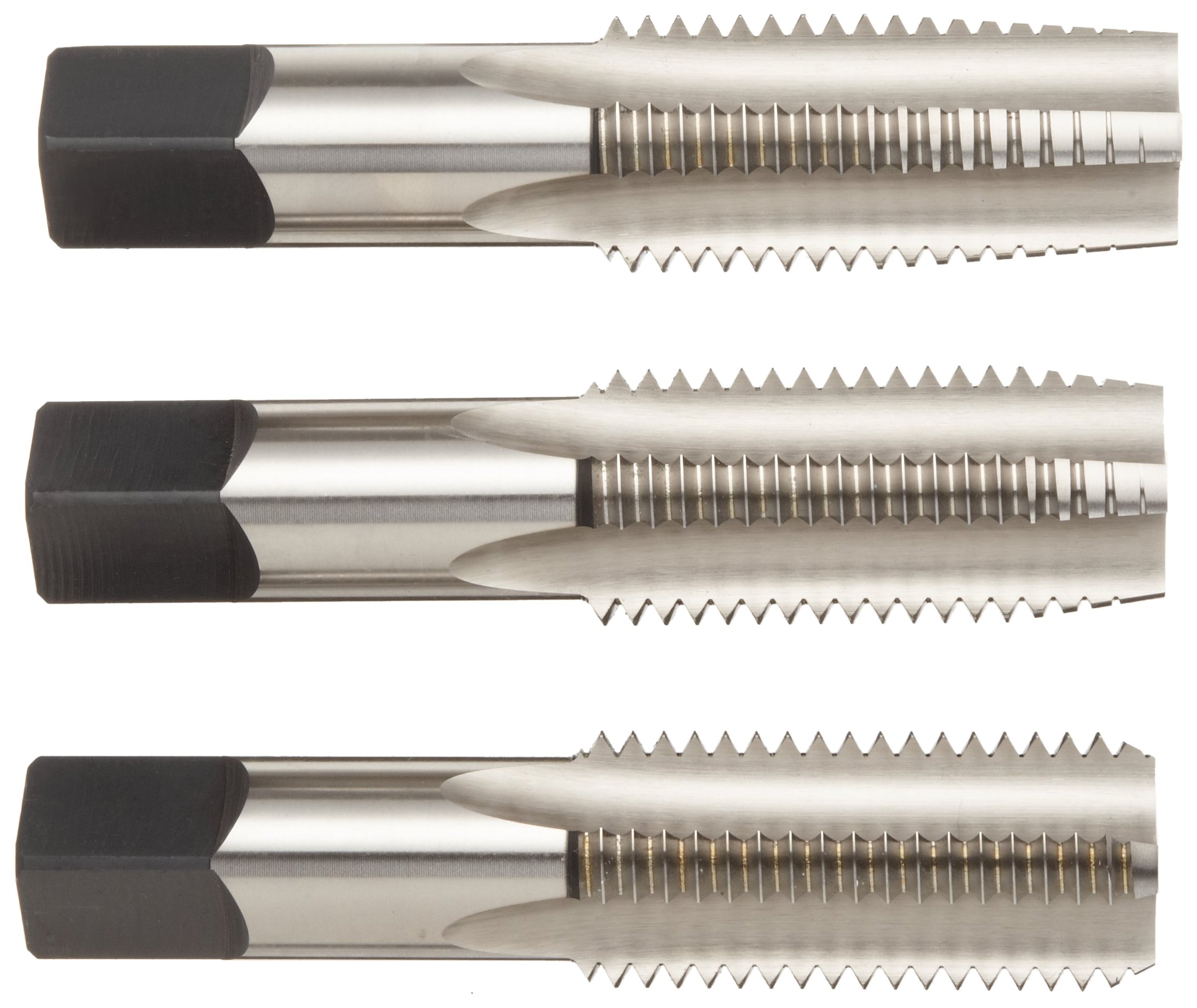

Union Butterfield 1500S(UNC)/1500S(UNF)/1500S(UNS) High-Speed Steel Hand Tap Set, Uncoated (Bright) Finish, Round Shank with Square End, 3-Piece (1 Taper, 1 Plug, 1 Bottoming Chamfer)

Be the first to review this item

Product Specifications
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Material Type
High Speed Steel
Chamfer Type
Brand Name
Union Butterfield

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Feb 2? Order in-stock items in the next 2 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 29 Next 9 »
Thread Size Thread Type Manufacturer Series # Number of Flutes Shank Diameter Length of Threads Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All All All All
Currently showing 1-20 of 29 Next 9 »
1/4"-20 UNC 1500S(UNC) 4 0.255" 1" 2.5" H3 1011029 B003JTIOX4 yes $19.84 Buy Options
1/4"-28 UNF 1500S(UNF) 4 0.255" 1" 2.5" H3 1011032 B003JTIP4W yes $19.68 Buy Options
5/16"-18 UNC 1500S(UNC) 4 0.318" 1.125" 2.7188" H3 1011035 B003JTIOZW yes $21.87 Buy Options
5/16"-24 UNF 1500S(UNF) 4 0.318" 1.125" 2.7188" H3 1011038 B003JTIP7E yes $21.76 Buy Options
3/8"-16 UNC 1500S(UNC) 4 0.381" 1.25" 2.9375" H3 1011041 B003JTIOZC yes $36.77 Buy Options
3/8"-24 UNF 1500S(UNF) 4 0.381" 1.25" 2.9375" H3 1011044 B003JTIP6U yes $20.46 Buy Options
7/16"-14 UNC 1500S(UNC) 4 0.323" 1.4375" 3.1563" H3 1011045 B003JTIP10 yes $32.62 Buy Options
7/16"-20 UNF 1500S(UNF) 4 0.323" 1.4375" 3.1563" H3 1011046 B003JTIP8I yes $33.52 Buy Options
1/2"-13 UNC 1500S(UNC) 4 0.367" 1.6563" 3.375" H3 1011047 B003JTIOWU yes $35.23 Buy Options
1/2"-20 UNF 1500S(UNF) 4 0.367" 1.6563" 3.375" H3 1011048 B003JTIP4C yes $39.85 Buy Options
9/16"-12 UNC 1500S(UNC) 4 0.429" 1.6563" 3.5938" H3 1011049 B003JTIP2E yes $21.47 Buy Options
9/16"-18 UNF 1500S(UNF) 4 0.429" 1.6563" 3.5938" H3 1011050 B003JTIP9W yes $56.52 Buy Options
5/8"-11 UNC 1500S(UNC) 4 0.48" 1.8125" 3.8125" H3 1011051 B003JTIP0G yes $66.52 Buy Options
5/8"-18 UNF 1500S(UNF) 4 0.48" 1.8125" 3.8125" H3 1011052 B003JTIP7Y yes $52.08 Buy Options
11/16"-11 UNS 1500S(UNS) 4 0.542" 1.8125" 4.0313" H3 1011053 B003JTIPB0 yes $74.30 Buy Options
11/16"-16 UNS 1500S(UNS) 4 0.542" 1.8125" 4.0313" H3 1011054 B003JTIPBA yes $74.32 Buy Options
3/4"-10 UNC 1500S(UNC) 4 0.59" 2" 4.25" H3 1011055 B003JTIOYI Usually ships in 10 to 12 days $87.14 Buy Options
3/4"-16 UNF 1500S(UNF) 4 0.59" 2" 4.25" H3 1011056 B003JTIP60 yes $84.42 Buy Options
7/8"-9 UNC 1500S(UNC) 4 0.697" 2.2188" 4.6875" H4 1011057 B003JTIP1K yes $122.37 Buy Options
7/8"-14 UNF 1500S(UNF) 4 0.697" 2.2188" 4.6875" H4 1011058 B003JTIP92 yes $122.32 Buy Options

Key Features

  • Hand threading tap set with straight flutes cuts threads in through holes and blind holes
  • Available in UNC (Unified Coarse), UNF (Unified Fine), or UNS (Unified Special) right-hand thread options for different applications
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, for use on a broad range of materials
  • Round shank with square end allows tap to be used in hand or power-driven applications

Product Description

The Union Butterfield 1500S(UNC)/1500S(UNF)/1500S(UNS) uncoated, high-speed steel three-piece hand threading tap set (including tapering, plug, and bottoming chamfers) has straight flutes and round shanks with square ends, and is used to create right-hand threads in a range of materials. It is available in three different ANSI thread specification standards: UNC (Unified Coarse), UNF (Unified Fine), or UNS (Unified Special). The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening).

Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end makes it suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

In the Union Butterfield 1500S series, 1500S(UNC) and 1500(UNS) taps all have four flutes. 1500S(UNF) taps with nominal diameters of 1/4” to 1 1/8” have four flutes and those with nominal diameters of 1 1/4” to 1 1/2” have six flutes. This tap set conforms to ANSI standards and can create threads to a depth 1 ½ times its diameter. It is suitable for ANSI 2B and 3B tolerance classes: 2B is an average quality fit for commercial and industrial fasteners; 3B produces close-tolerance fasteners that resist loosening, as in aerospace applications.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
