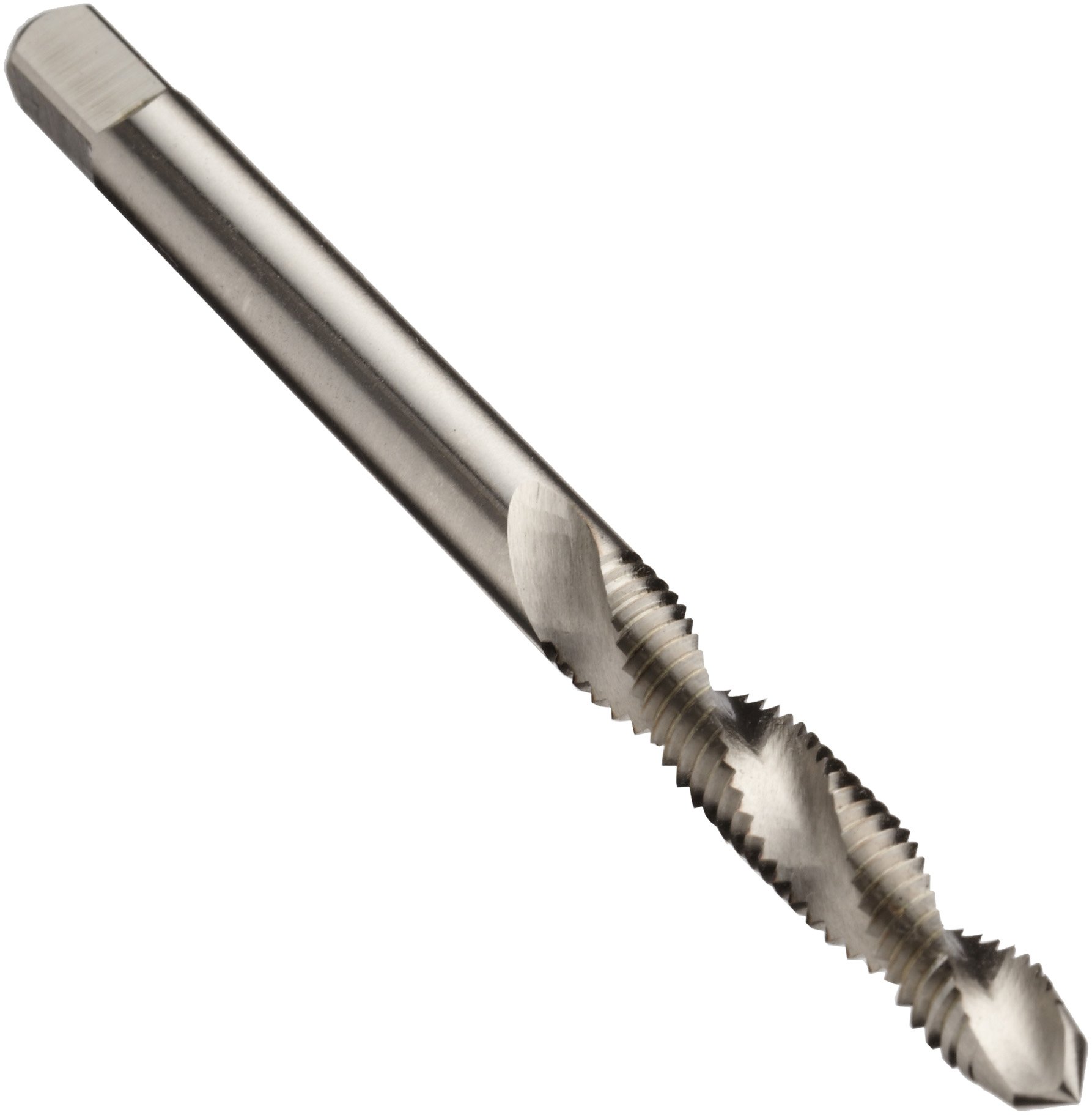

Union Butterfield 1582(UNC)/1582(UNF) High-Speed Steel Spiral Flute Tap, Uncoated (Bright) Finish, Round Shank with Square End

Be the first to review this item

Product Specifications
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Material Type
High Speed Steel
Number of Flutes
2
UNSPSC Code
27112806
Brand Name
Union Butterfield

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 4 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Thread Size Thread Type Manufacturer Series # Chamfer Type Shank Diameter Length of Threads Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All All
Currently showing 1-12 of 12
#4-40 UNC 1582(UNC) Plug 0.141" 0.5625" 1.875" H2 1010905 B003JY67BU yes $16.81 Buy Options
#4-40 UNC 1582(UNC) Bottoming 0.141" 0.5625" 1.875" H2 1010906 B003JY67CY Usually ships in 1 to 3 weeks $16.73 Buy Options
#5-40 UNC 1582(UNC) Bottoming 0.141" 0.625" 1.9375" H2 1010908 B003JY67EM yes $16.54 Buy Options
#5-40 UNC 1582(UNC) Plug 0.141" 0.625" 1.9375" H2 1010907 B003JY67DS yes $16.09 Buy Options
#6-32 UNC 1582(UNC) Bottoming 0.141" 0.6875" 2" H3 1010910 B003JY67GA yes $14.89 Buy Options
#6-32 UNC 1582(UNC) Plug 0.141" 0.6875" 2" H3 1010909 B003JY67FG yes $14.93 Buy Options
#8-32 UNC 1582(UNC) Plug 0.168" 0.75" 2.125" H3 1010913 B003JY67H4 Temporarily out of stock. Order now and we'll deliver when available. $15.54 Buy Options
#8-32 UNC 1582(UNC) Bottoming 0.168" 0.75" 2.125" H3 1010914 B003JY67I8 yes $14.89 Buy Options
#10-24 UNC 1582(UNC) Bottoming 0.194" 0.875" 2.375" H3 1010916 B003JY67AQ yes $5.03 Buy Options
#10-24 UNC 1582(UNC) Plug 0.194" 0.875" 2.375" H3 1010915 B003JY679W yes $18.30 Buy Options
#10-32 UNF 1582(UNF) Plug 0.194" 0.875" 2.375" H3 1010917 B003JY67J2 yes $18.30 Buy Options
#10-32 UNF 1582(UNF) Bottoming 0.194" 0.875" 2.375" H3 1010918 B003JY67JM yes $15.61 Buy Options

Key Features

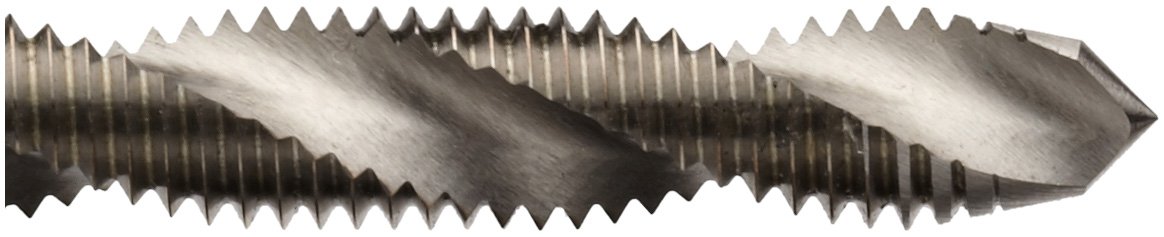

  • Spiral flute tap design pulls chips back from the tip of the tool and out of the hole to prevent clogging
  • Spiral flutes for creating threads in blind holes
  • Available in UNC (Unified Coarse) or UNF (Unified Fine) right-hand thread options for different applications
  • Uncoated (bright) tools have no additional surface treatment or coating, suitable for general-purpose applications

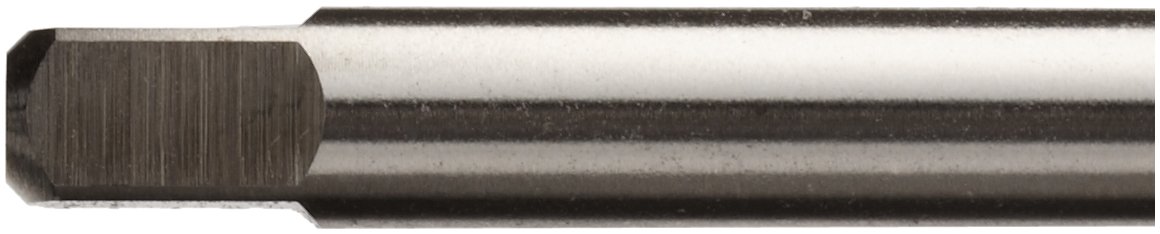

  • Round shank with square end helps to minimize rotation in the tool holder

Product Description

The Union Butterfield 1582(UNC)/1582(UNF) uncoated, high-speed steel spiral flute tap has a round shank with a square end and is used to create right-hand threads in a range of materials. It is available in two different ANSI thread specification standards: UNC (Unified Coarse) and UNF (Unified Fine). The 30-degree spiral flutes of this tap pull chips back from the tip of the tool, up and out the hole to prevent clogging. This characteristic makes the tap suitable for blind or bottoming holes.

Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

In the Union Butterfield 1582(UNC)/1582(UNF) series all taps have two flutes. They are available with a variety of chamfers. This tap conforms to ANSI standards and can create threads to a depth 2 ½ times its diameter. It is suitable for the ANSI 3B tolerance class: 3B produces close-tolerance fasteners that resist loosening, as in aerospace applications.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
