Union Butterfield 1785M High-Speed Steel Spiral Point Tap, Relieved Style, Uncoated (Bright) Finish, Round Shank with Square End, Plug Chamfer

Be the first to review this item

Product Specifications
Manufacturer Series #
1785M
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Pitch Diameter Limit
6H
Material Type
High_speed_steel
Thread Type
Metric
UNSPSC Code
27112806
Chamfer Type
Plug
Brand Name
Union Butterfield

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 9 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Thread Size Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-15 of 15
M2.5-0.45 2 0.141" 0.5" 1.8125" 1012662 B003JY6GVQ yes $20.45 Buy Options
M2.6-0.45 2 0.141" 0.5" 1.8125" 1012663 B003JY6GWA yes $20.45 Buy Options
M3-0.5 2 0.141" 0.625" 1.9375" 1012664 B003JY6GX4 yes $16.25 Buy Options
M4-0.7 2 0.168" 0.75" 2.125" 1012668 B003JY6GY8 yes $4.22 Buy Options
M4.5-0.75 2 0.194" 0.875" 2.375" 1012669 B003JY6GYS yes $14.10 Buy Options
M5 2 0.194" 0.875" 2.375" 1012672 B003JY6GZC yes $14.10 Buy Options
M7-1 2 0.318" 1.125" 2.7188" 1012676 B003JY6H0Q yes $4.48 Buy Options
M8-1.25 2 0.318" 1.125" 2.7188" 1012678 B003JY6H1A Usually ships in 4 to 6 weeks $16.25 Buy Options
M9-1.25 3 0.381" 1.25" 2.9375" 1012680 B003JY6H1U yes $16.25 Buy Options
M10-1.5 3 0.381" 1.25" 2.9375" 1012682 B003JY6GQQ yes $26.80 Buy Options
M11-1.5 3 0.323" 1.4375" 3.1563" 1012685 B003JY6GRA yes $6.08 Buy Options
M12-1.75 3 0.367" 1.6563" 3.375" 1012686 B003JY6GS4 yes $31.89 Buy Options
M14-2 3 0.429" 1.6563" 3.5938" 1012689 B003JY6GSO yes $44.68 Buy Options
M16-2 3 0.48" 1.8125" 3.8125" 1012693 B003JY6GTI yes $51.37 Buy Options
M18-2.5 3 0.542" 1.8125" 4.0313" 1012696 B003JY6GUC yes $68.80 Buy Options

Key Features

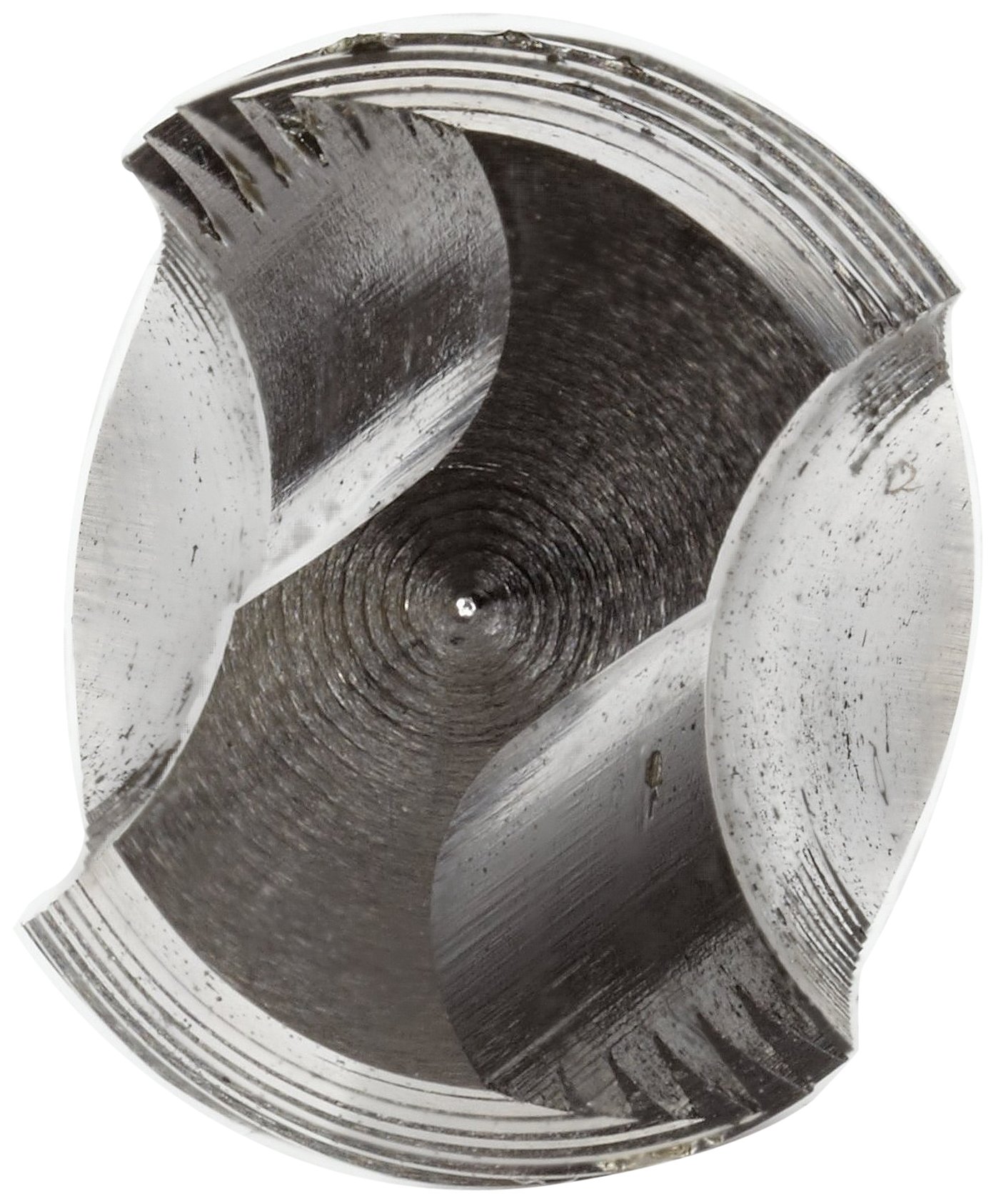

  • Spiral point tap pushes chips ahead of tool to reduce clogging

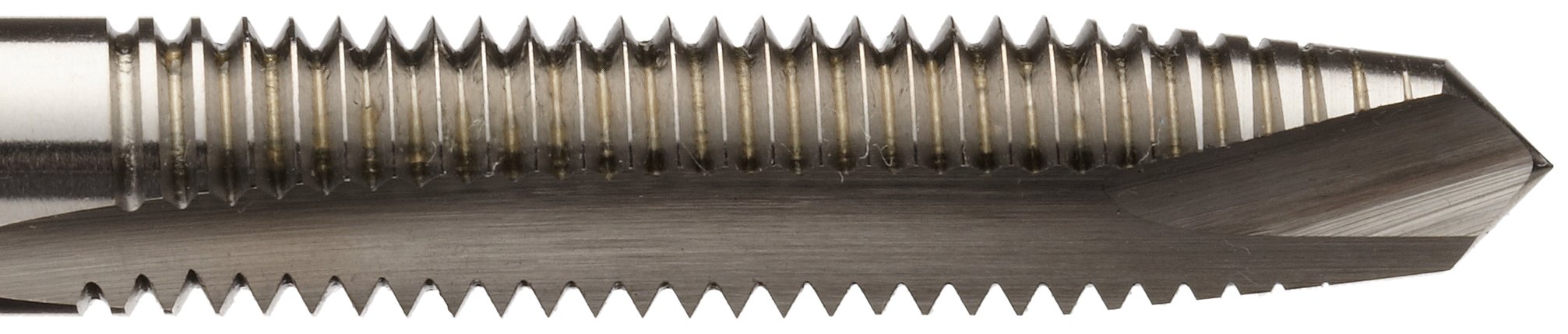

  • Spiral point with straight flutes for cutting threads in through holes
  • Relieved-style design reduces friction between tap and workpiece for reduced tool wear
  • Produces ANSI standard right-hand threads in metric sizes
  • Plug chamfer for easier starting and correct perpendicular alignment

Product Description

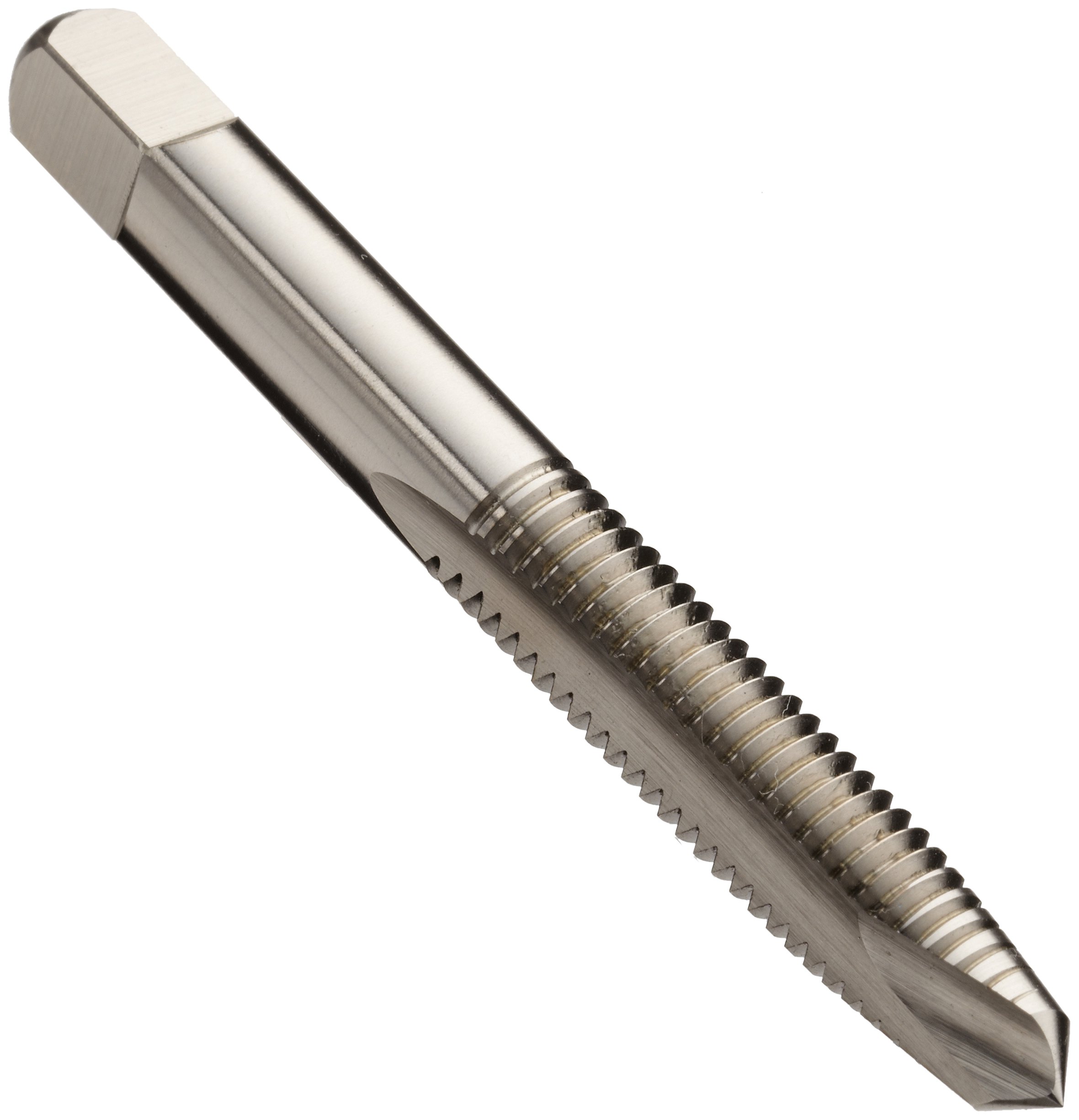

The Union Butterfield 1785M uncoated, high-speed steel spiral point tap has a relieved-style design, straight flutes with a plug chamfer, and a round shank with a square end, and is used to create right-hand threads in a range of materials. This tool produces ANSI standard threads in metric sizes. The spiral point of this tap (sometimes referred to as a “gun tap”) pushes chips ahead of the tool and the straight flutes reduce clogging. Both characteristics make it suitable for threading through holes (extending through the workpiece). Relieved-style tap design reduces the friction between tap and workpiece for reduced tool wear. A plug chamfer distributes cutting to ease tapping at the beginning of the hole and to maintain correct perpendicular alignment with the workpiece.

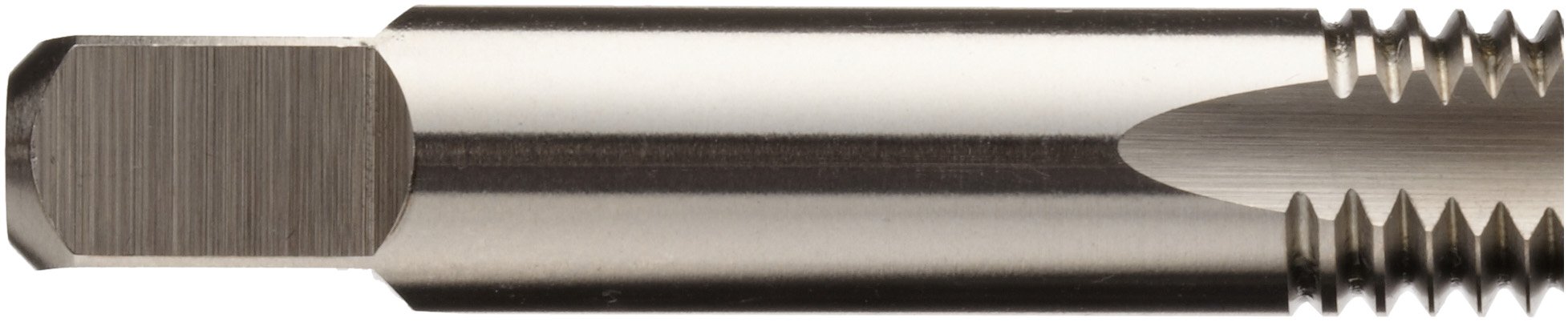

Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools, and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provide an economical alternative to coated tools. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

In the Union Butterfield 1785M tap series, taps with nominal diameters of 2 mm to 8 mm have two flutes and those with diameters of 9 mm to 18 mm have three flutes. All taps in this series have plug chamfers. This tap conforms to ANSI standards and can create threads to a depth 2 ½ times its diameter. It is suitable for the ANSI 6H tolerance class: 6H is used for a normal length of thread engagement and medium tolerance quality.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
