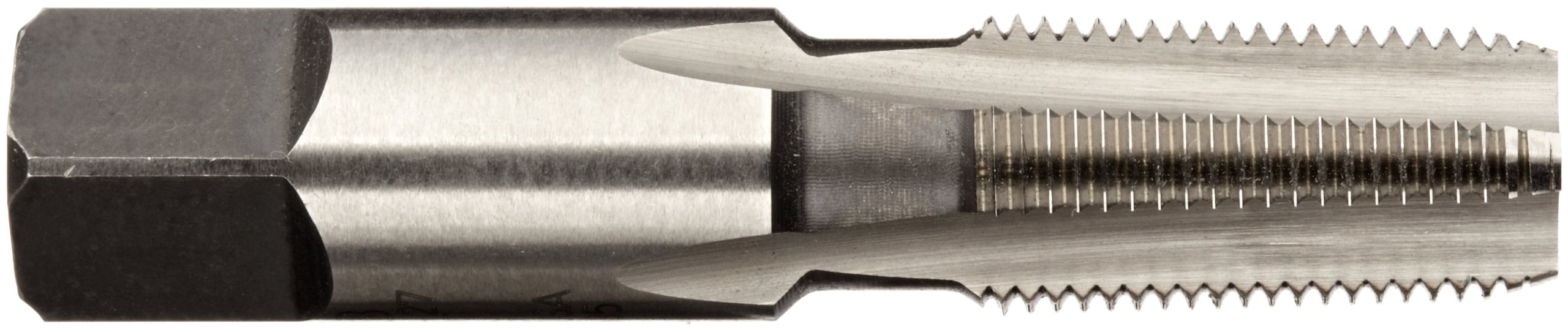

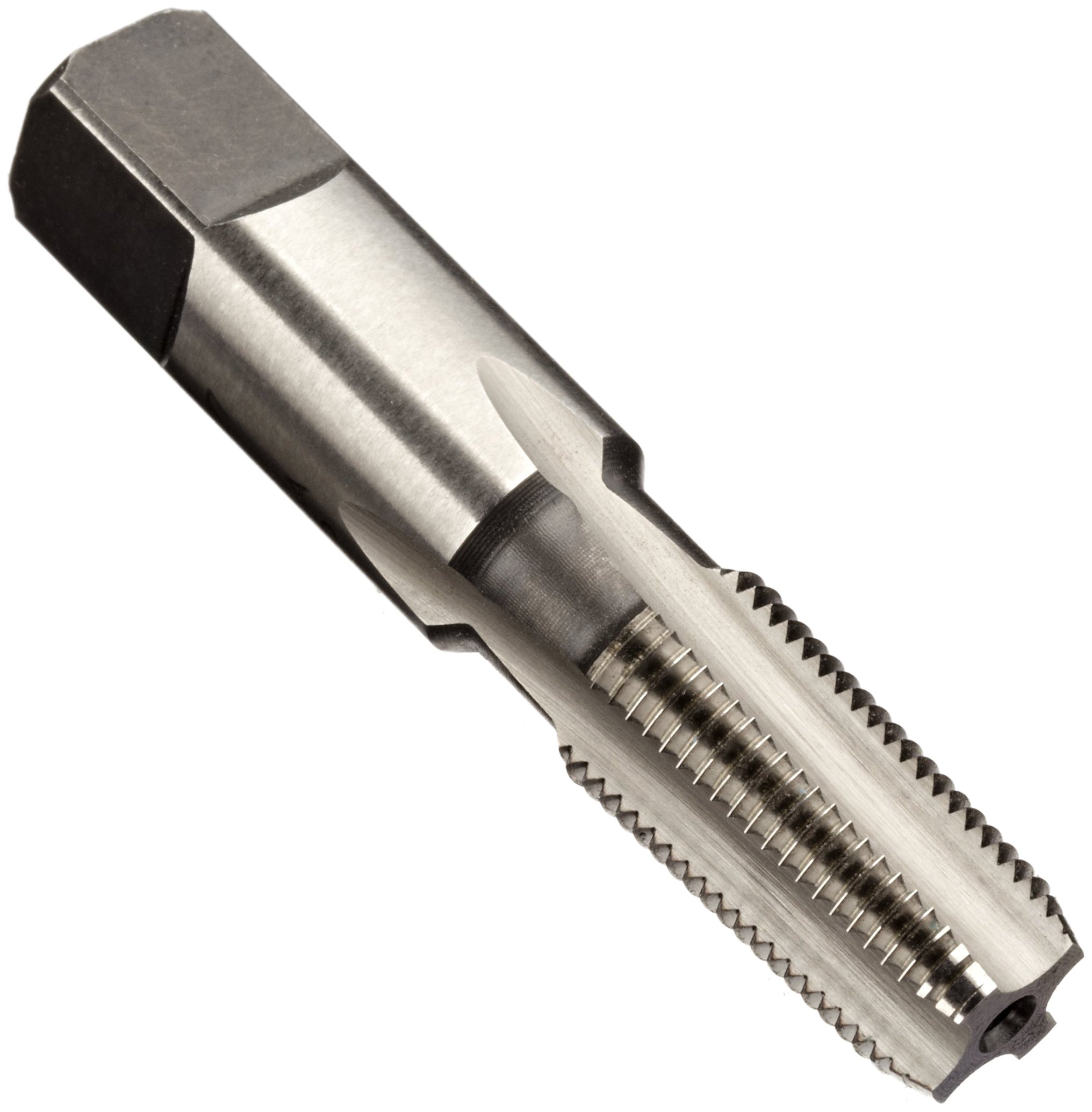

Union Butterfield 1541(NPT) High-Speed Steel Pipe Tap, Medium Hook, Uncoated (Bright) Finish, Round Shank with Square End

Be the first to review this item

Product Specifications
Manufacturer Series #
1541(NPT)
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Pitch Diameter Limit
6H
Material Type
High Speed Steel
Thread Type
NPT
UNSPSC Code
31201519
Chamfer Type
Pipe Tap
Brand Name
Union Butterfield

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 5 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Thread Size Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-11 of 11
1/16"-27 4 0.313" 0.6875" 2.125" 1010518 B003JY62OW yes $15.00 Buy Options
1/8"-27 4 0.438" 0.75" 2.125" 1010528 B003JY62RE yes $22.25 Buy Options
1/8"-27 4 0.438" 0.75" 2.125" 1010519 B003JY62QU yes $22.43 Buy Options
1/4"-18 4 0.563" 1.0625" 2.4375" 1010520 B003JY62Q0 yes $22.86 Buy Options
3/8"-18 4 0.7" 1.0625" 2.5625" 1010521 B003JY62TM yes $27.97 Buy Options
1/2"-14 4 0.688" 1.375" 3.125" 1010522 B003JY62PG yes $40.25 Buy Options
3/4"-14 5 0.906" 1.375" 3.25" 1010523 B003JY62T2 yes $55.44 Buy Options
1-1/4"-11.5 5 1.313" 1.75" 4" 1010525 B003JY62NS yes $112.68 Buy Options
1-1/2"-11.5 7 1.5" 1.75" 4.25" 1010526 B003JY62N8 yes $155.86 Buy Options
1"-11.5 5 1.125" 1.75" 3.75" 1010524 B001QQY90O yes $81.71 Buy Options
2"-11.5 7 1.875" 1.75" 4.5" 1010527 B003JY62S8 yes $207.60 Buy Options

Key Features

  • Pipe tap cuts threads in pipes and pipe fittings
  • NPT (National Pipe Taper) threads for compatibility with a range of threads
  • Straight flutes to cut threads in through holes and blind holes
  • Medium hook for general-purpose pipe tapping
  • Round shank with square end helps to minimize rotation in the tool holder

Product Description

The Union Butterfield 1541(NPT) uncoated, high-speed steel pipe tap has straight flutes with medium hook and a round shank with a square end, and is used to create NPT (National Pipe Taper) right-hand threads in a range of materials, with strength in carbon steel and alloy steel. NPT thread is an ANSI-standard thread configuration designed to be used with a sealant to create a leak-free tapered pipe joint. The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). Designed for average conditions, this tap has a medium hook, or rake angle, that is suitable for general-purpose pipe tapping.

Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

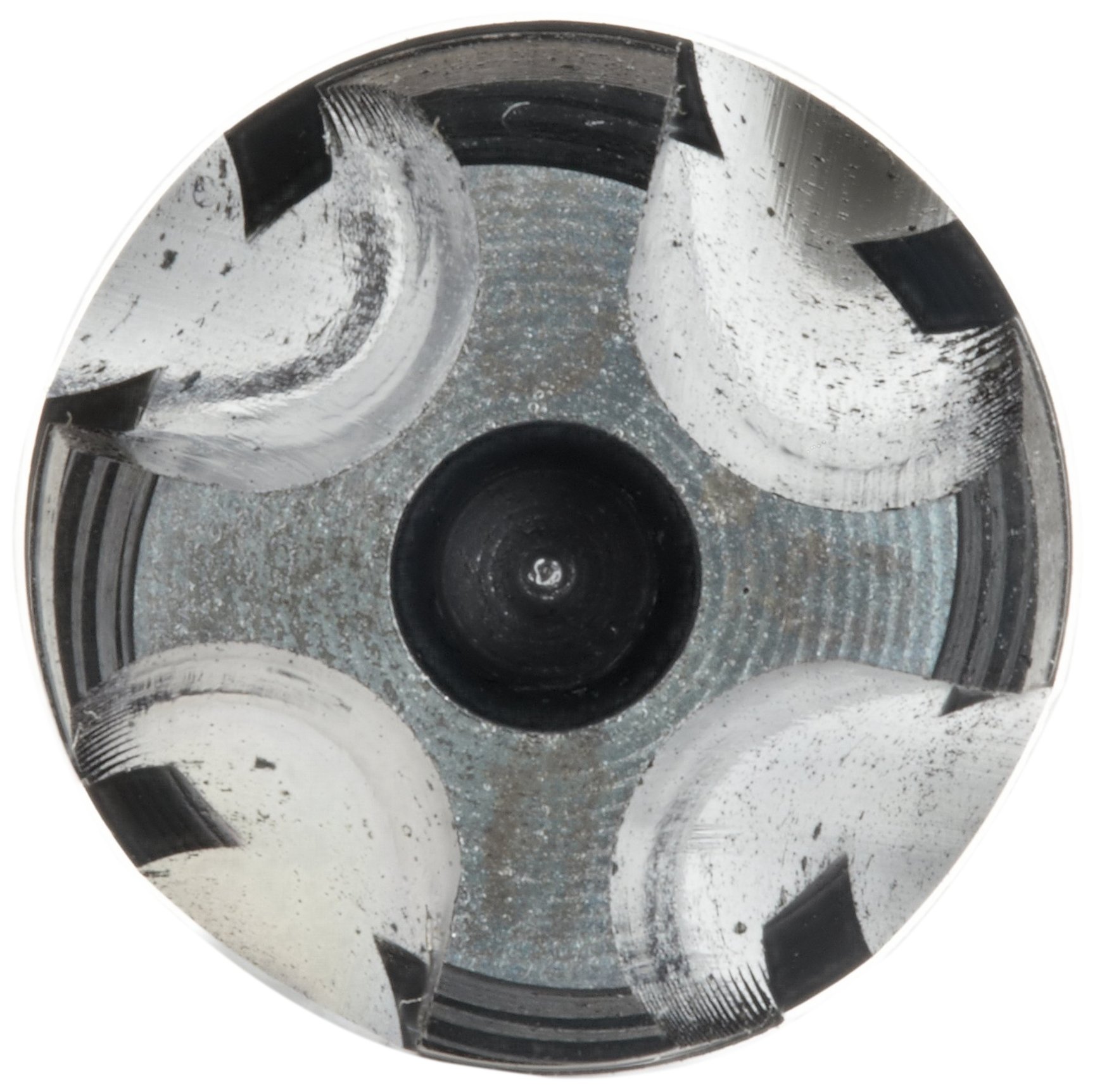

In the Union Butterfield 1541(NPT) series, taps with nominal diameters of 1/16” to 1/2” have four flutes, taps with nominal diameters of 3/4” to 1 1/4” have five flutes, and taps with nominal diameters of 1 1/2” and 2” have seven flutes. In this series all taps have semi-bottoming chamfers. This tap conforms to ANSI standards and is suitable for normal pipe thread tolerance.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
