Union Butterfield 4535 High-Speed Steel Chucking Reamer, Right Hand Spiral Flute, Round Shank, Uncoated (Bright) Finish

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Cutting Length
2.3/4  inches
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High Speed Steel
UNSPSC Code
23241611
Brand Name
Precision Twist
Flute Type
Right Hand Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 9 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 53 Next 20 »
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 53 Next 20 »
1/16" Inch 0.0625" 2-1/2" 5010054 B003JY6TFE yes $21.58 Buy Options
5/64" Inch 0.0781" 3" 5010055 B003JY6TZ4 yes $18.40 Buy Options
3/32" Inch 0.0938" 3" 5010056 B003JY6TVS yes $19.74 Buy Options
7/64" Inch 0.1094" 3-1/2" 5010057 B003JY6U12 yes $18.75 Buy Options
1/8" Inch 0.1250" 3-1/2" 5010058 B003JY6THC Usually ships in 2 to 5 weeks $20.62 Buy Options
9/64" Inch 0.1410" 4" 5010059 B003JY6U3A yes $20.52 Buy Options
5/32" Inch 0.1562" 4" 5010060 B003JY6TYK yes $23.26 Buy Options
11/64" Inch 0.1719" 4-1/2" 5010061 B003JY6TJK yes $21.54 Buy Options
3/16 " Inch 0.1875" 4-1/2" 5010062 B003JY6TV8 yes $21.28 Buy Options
13/64" Inch 0.2031" 5" 5010063 B003JY6TLI yes $23.41 Buy Options
7/32" Inch 0.2188" 5" 5010064 B003JY6U0S yes $22.49 Buy Options
15/64" Inch 0.2344" 6" 5010065 B003JY6TN6 yes $22.76 Buy Options
1/4" Inch 0.2500" 6" 5010066 B003JY6TGI yes $22.62 Buy Options
17/64" Inch 0.2656" 6" 5010067 B003JY6TO0 yes $22.27 Buy Options
9/32" Inch 0.2812" 6" 5010068 B003JY6U2G yes $24.25 Buy Options
19/64" Inch 0.2969" 6" 5010069 B003JY6TPE yes $24.25 Buy Options
5/16" Inch 0.3125" 6" 5010070 B003JY6TYA yes $24.12 Buy Options
21/64" Inch 0.3281" 6" 5010071 B003JY6TQ8 yes $25.99 Buy Options
11/32" Inch 0.3438" 6" 5010072 B003JY6TIQ yes $25.14 Buy Options
23/64" Inch 0.3594" 7" 5010073 B003JY6TRC yes $25.99 Buy Options

Key Features

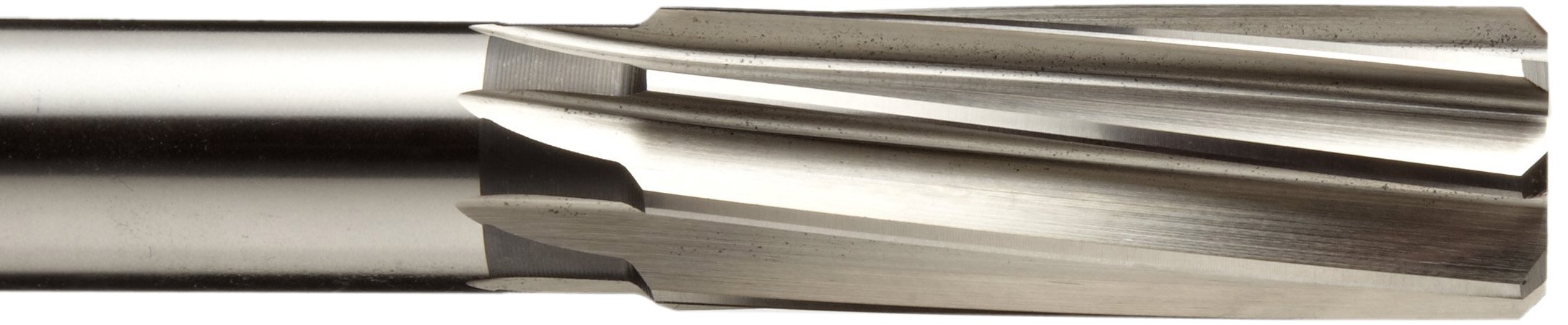

  • Spiral construction protects interrupted cuts by preventing whole-flute contact with the leading edge of the interruption
  • Right-hand spiral pulls chips away from the tip of the tool to prevent clogging in blind holes
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating for use on a broad range of materials
  • 45-degree bevel at the cutting tip facilitates entry to pre-drilled holes

Product Description

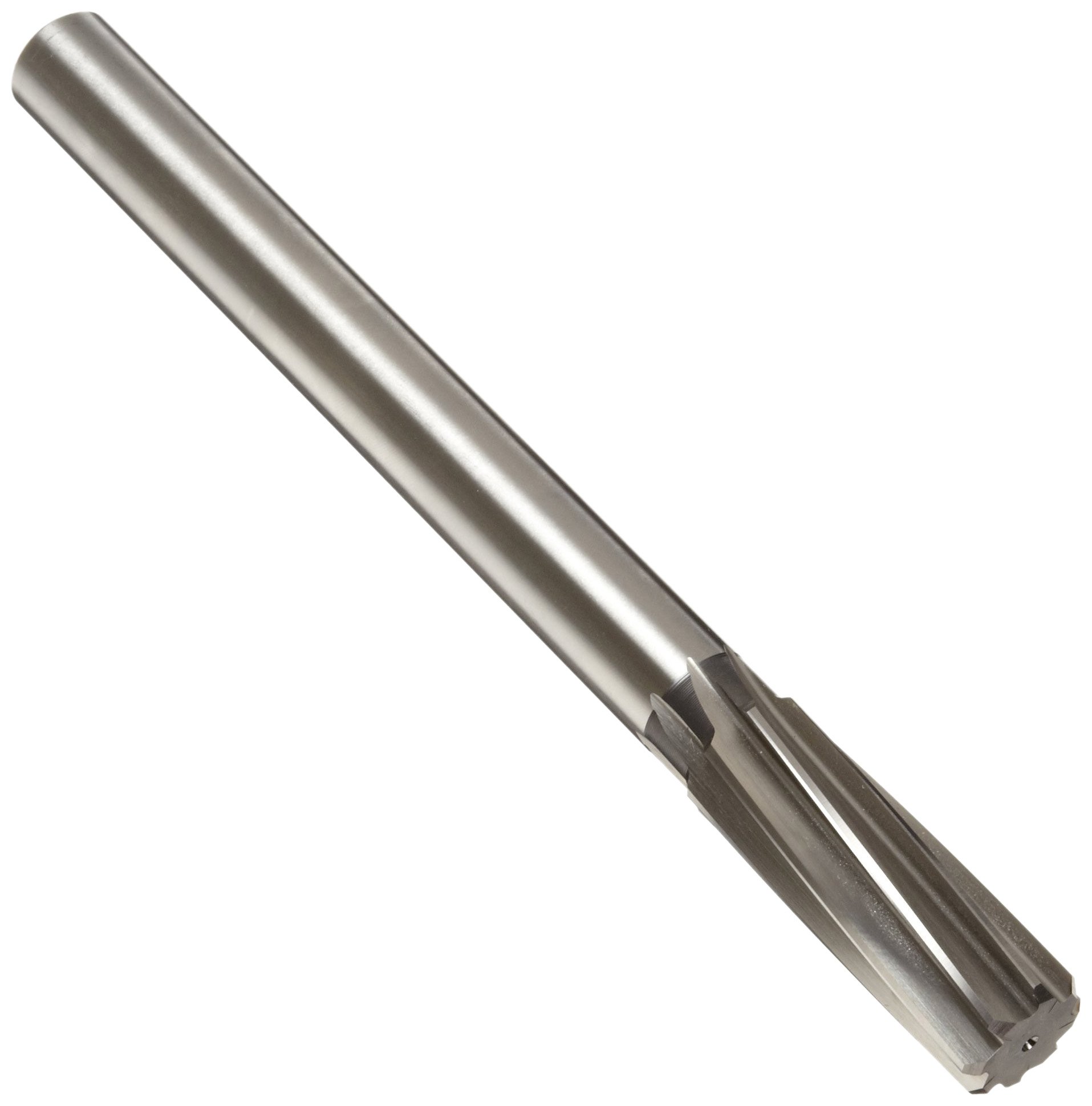

The Union Butterfield 4535 uncoated high-speed steel right-hand spiral flute chucking reamer (also called a machine reamer) is a round shank tool with a 45-degree bevel lead, commonly used for general purpose reaming; it is also chosen for reaming interrupted cuts and blind holes (with only one opening). This tool is often used in a drill press, screw machine, or lathe. Right-hand spiral reamers are useful for interrupted cuts and blind holes (with only one opening). Spiral construction prevents whole-flute contact with the leading edge in an interrupted cut, as in a keyway. This reduces the possibility of damage to the interruption and to the reamer flute. Right-hand spiral tools pull chips away from the tip of the tool, instead of driving chips in front of the tool. As a result right-hand spiral reamers are useful when reaming blind holes, since pulling chips out of the hole prevents clogging as well as tool damage that can result from clogging.

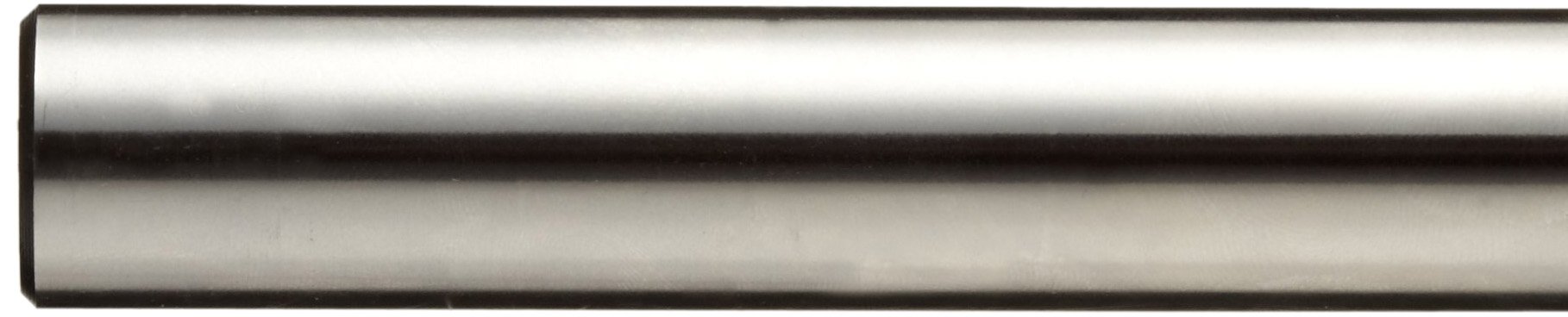

High-speed steel (HSS) is a common, general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provide an economical alternative to coated tools. Round shank allows the reamer to be used with a variety of tool-holding systems. Like most non-tapered chucking reamers, this tool has a 45-degree bevel at the cutting tip that facilitates entry to pre-drilled holes.

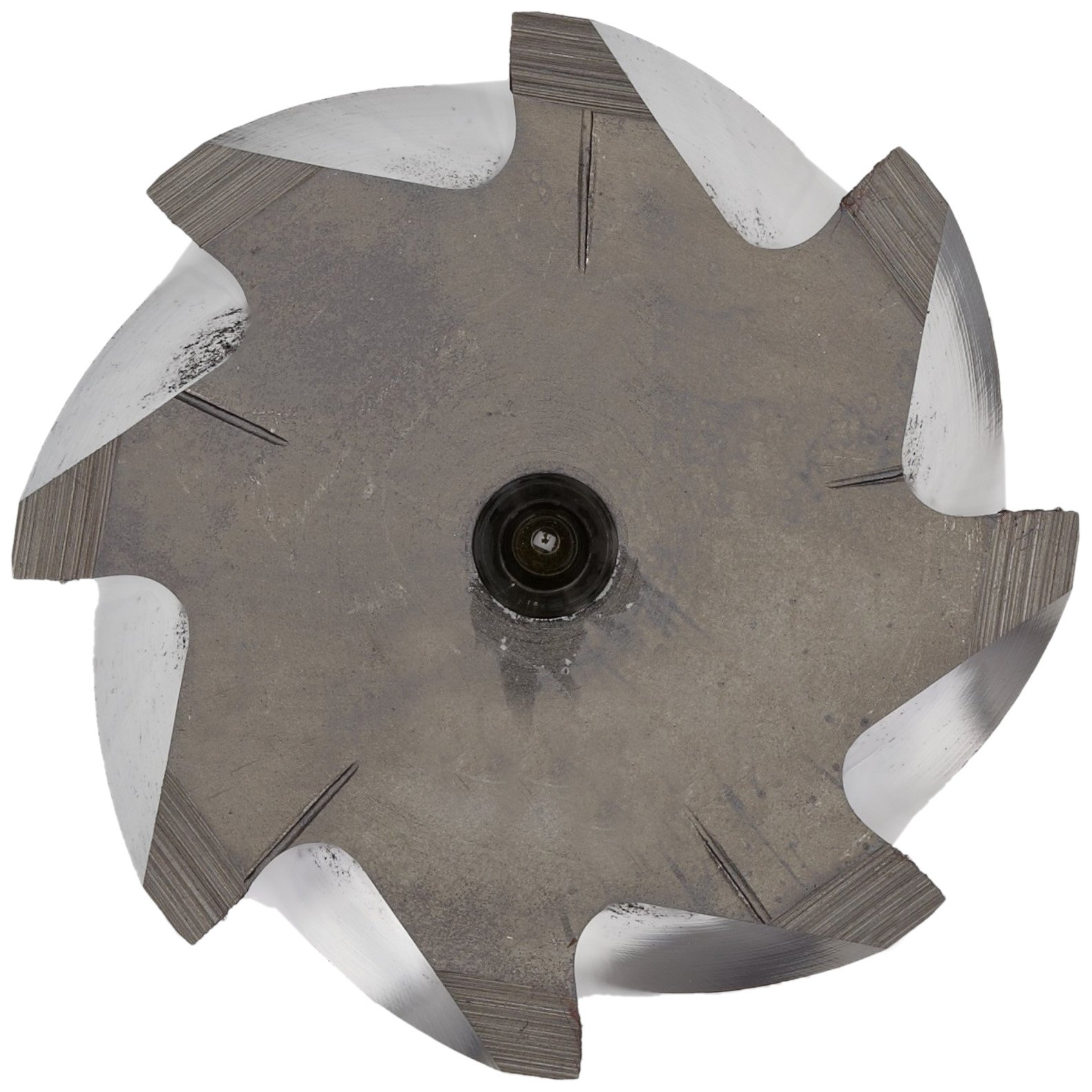

In the Union Butterfield 4535 series, reamers 0.0625” to 0.1410” in diameter have four flutes, 0.1562” to 0.5312” in diameter have six flutes, and 0.5625” to 1.5000” in diameter have eight flutes. Tolerances for reamers up to 0.5000” are +0.0002” to -0.0000”; larger than 0.0500” and up to 0.7500” are +0.0003” to -0.0000”; and larger than 0.7500” up to 1.5000” are +0.0004” to -0.0000”. There is an exception for reamers that are dowel-pin sized; their tolerances are +0.0000” to -0.0002”.

Reamers are used to finish existing holes. When holes are created using common applications such as drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameters may be slightly smaller than required. Reamers are made to exacting tolerances so they can correct such errors and create precisely round holes with exact dimensions. Reaming is often used before tapping screw threads.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
