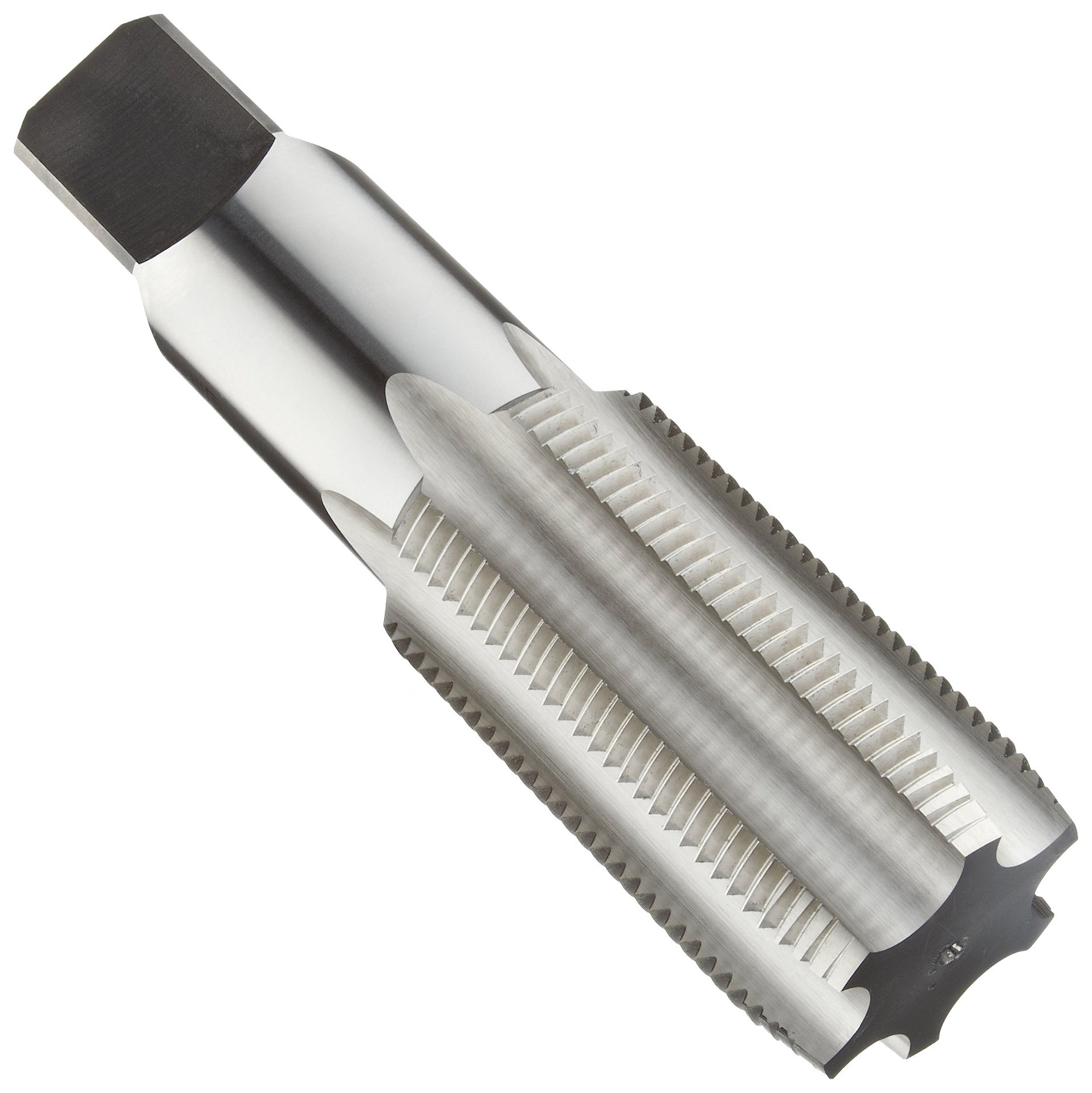

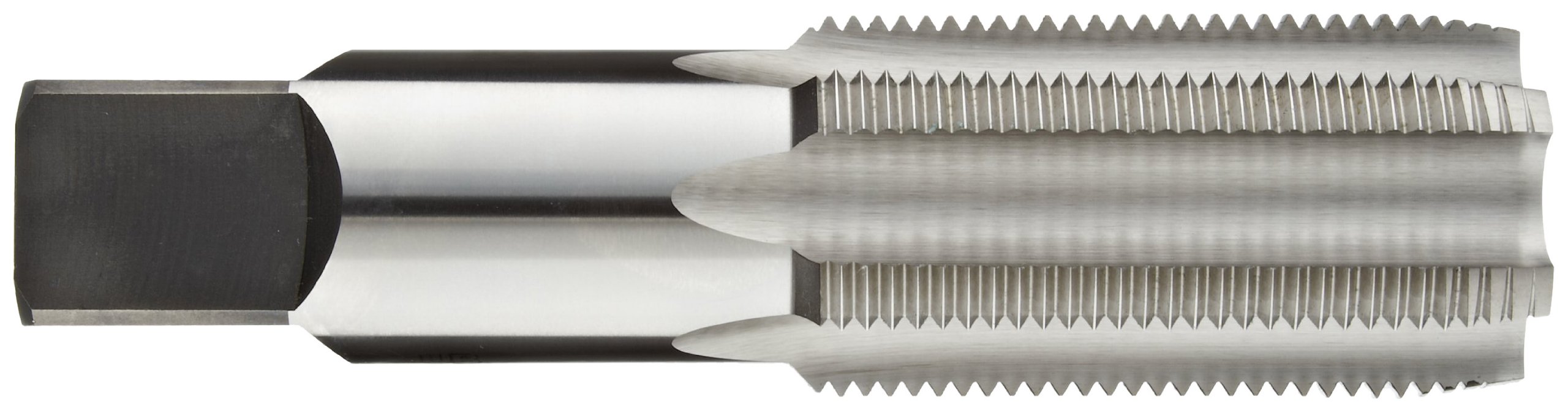

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Union Butterfield 1505(UNC)/1505(UNS) High-Speed Steel Hand Tap, 8-Pitch, Uncoated (Bright) Finish, Round Shank with Square End

Be the first to review this item

Product Specifications
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Material Type
High Speed Steel
UNSPSC Code
27112806
Brand Name
Union Butterfield

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 7 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 47 Next 20 »
Thread Size Thread Type Manufacturer Series # Chamfer Type Number of Flutes Shank Diameter Length of Threads Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All All
Currently showing 1-20 of 47 Next 20 »
1-1/8"-8 UNS 1505(UNS) Bottoming 4 0.896" 2.5625" 5.4375" H5 1013312 B003JTIPRE yes $52.88 Buy Options
1-1/8"-8 UNS 1505(UNS) Taper 4 0.896" 2.5625" 5.4375" H5 1013310 B003JTIPPQ Usually ships in 1 to 2 months $57.70 Buy Options
1-1/8"-8 UNS 1505(UNS) Plug 4 0.896" 2.5625" 5.4375" H5 1013311 B003JTIPQA Usually ships in 1 to 2 months $105.88 Buy Options
1-1/4"-8 UNS 1505(UNS) Bottoming 6 1.021" 2.5625" 5.75" H5 1013315 B003JTIPOW yes $62.26 Buy Options
1-1/4"-8 UNS 1505(UNS) Taper 6 1.021" 2.5625" 5.75" H5 1013313 B003JTIPMO yes $62.02 Buy Options
1-1/4"-8 UNS 1505(UNS) Plug 6 1.021" 2.5625" 5.75" H5 1013314 B003JTIPNS yes $20.12 Buy Options
1-3/8"-8 UNS 1505(UNS) Bottoming 4 1.108" 3" 6.0625" H5 1013318 B003JTIPVA yes $78.79 Buy Options
1-3/8"-8 UNS 1505(UNS) Taper 4 1.108" 3" 6.0625" H5 1013316 B003JTIPTW yes $87.65 Buy Options
1-3/8"-8 UNS 1505(UNS) Plug 4 1.108" 3" 6.0625" H5 1013317 B003JTIPUG yes $78.79 Buy Options
1-1/2"-8 UNS 1505(UNS) Plug 6 1.233" 3" 6.375" H5 1013320 B003JTIPKG yes $91.81 Buy Options
1-1/2"-8 UNS 1505(UNS) Bottoming 6 1.233" 3" 6.375" H5 1013321 B003JTIPLU yes $101.85 Buy Options
1-1/2"-8 UNS 1505(UNS) Taper 6 1.233" 3" 6.375" H5 1013319 B003JTIPJM yes $90.77 Buy Options
1-5/8"-8 UNS 1505(UNS) Bottoming 6 1.305" 3.1875" 6.6875" H6 1013324 B003JTIPXS yes $119.66 Buy Options
1-5/8"-8 UNS 1505(UNS) Taper 6 1.305" 3.1875" 6.6875" H6 1013322 B003JTIPVU yes $126.75 Buy Options
1-5/8"-8 UNS 1505(UNS) Plug 6 1.305" 3.1875" 6.6875" H6 1013323 B003JTIPWO yes $126.75 Buy Options
1-3/4"-8 UNS 1505(UNS) Bottoming 6 1.43" 3.1875" 7" H6 1013327 B003JTIPTC yes $101.11 Buy Options
1-3/4"-8 UNS 1505(UNS) Taper 6 1.43" 3.1875" 7" H6 1013325 B003JTIPRY yes $144.43 Buy Options
1-3/4"-8 UNS 1505(UNS) Plug 6 1.43" 3.1875" 7" H6 1013326 B003JTIPSS yes $130.18 Buy Options
1-7/8"-8 UNS 1505(UNS) Bottoming 6 1.519" 3.5625" 7.3125" H6 1013330 B003JTIQ00 yes $168.19 Buy Options
1-7/8"-8 UNS 1505(UNS) Taper 6 1.519" 3.5625" 7.3125" H6 1013328 B003JTIPYM yes $162.91 Buy Options

Key Features

  • Hand threading tap with straight flutes cuts threads in through holes and blind holes
  • ANSI standard 8-pitch threads for tapping large-diameter holes, including those with high-pressure requirements
  • Available in UNC (Unified Coarse) or UNS (Unified Special) right-hand thread options for different applications
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, for use on a broad range of materials

Product Description

The Union Butterfield 1505(UNC)/1505(UNS) uncoated, high-speed steel hand threading tap has straight flutes, 8-pitch threads, and a round shank with a square end, and is used to create right-hand threads for large-diameter tapping in a range of materials. It is available in two different ANSI thread specification standards: UNC (Unified Coarse) or UNS (Unified Special). The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). The 8-pitch standard (eight threads per inch) was designed for threading large-diameter bolts and nuts with high-pressure joints. It is now used mainly in oil-related industries, utilities, and general construction.

Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end makes it suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

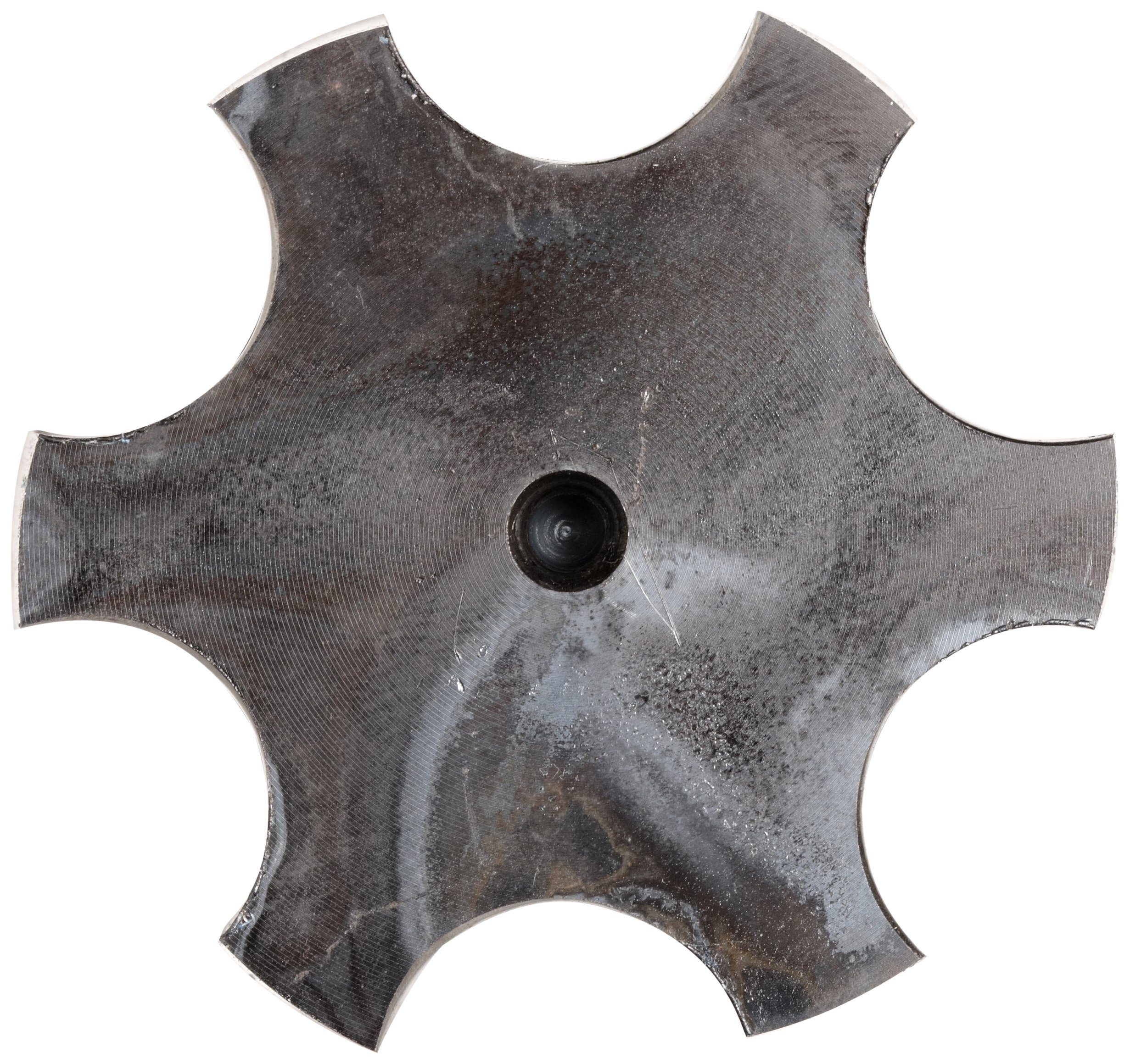

In the Union Butterfield 1505 series, the 1505(UNC) taps all have six flutes. 1505(UNS) taps with nominal diameters of 1 1/8” to 1 3/8” have four flutes and those with nominal diameters of 1 1/2” to 2 5/8” have six flutes. Taps in this series are available with a variety of chamfers. This tap conforms to ANSI standards and can create threads to a depth 1 ½ times its diameter. 1505(UNC) taps are suitable for the ANSI 2B tolerance class and 1505(UNS) taps are suitable for both 2B and 3B tolerance classes: 2B is an average quality fit for commercial and industrial fasteners; 3B produces close-tolerance fasteners that resist loosening, as in aerospace applications.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
