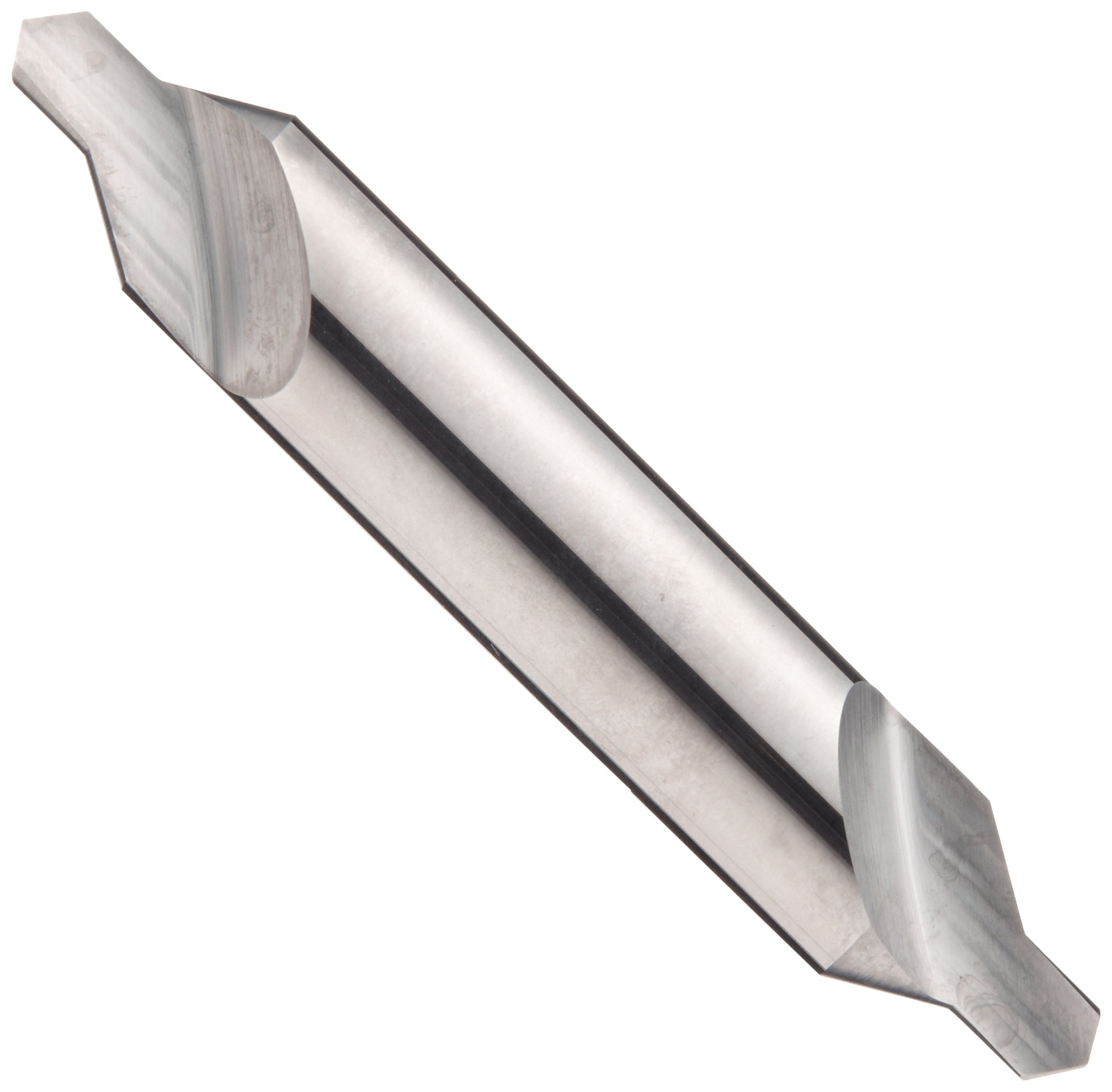

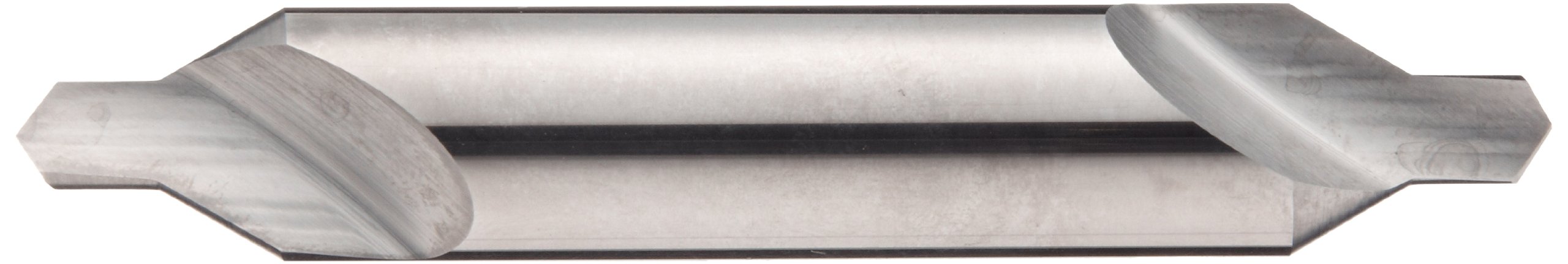

Ultra Tool Series 560 Solid Carbide Combined Drill and Countersink, Uncoated Finish, Plain Style, 60-Degree Countersink

Be the first to review this item

Product Specifications
Cutting Direction
right-hand
Finish Types
Uncoated (Bright)
Material Type
Carbide
Cutting Angle
60  Degrees
Brand Name
Ultra Tool
Flute Type
Spiral
Style Name
center drill
Special Features
Double End
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 17 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Trade Size Body Diameter Drill Point Diameter Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-8 of 8
#0 1/8" 1/32" 1-1/2" 56000 B006YZXLJ2 2 $14.12 Buy Options
#00 1/8" 0.025" 1-1/2" 56099 B006YZXIZ4 2 $13.41 Buy Options
#1 1/8" 3/64" 1-1/2" 56001 B006YZXMVY Usually ships in 2 to 4 weeks $13.25 Buy Options
#2 3/16" 5/64" 2" 56002 B006YZXODA 3 $20.75 Buy Options
#3 1/4" 7/64" 2" 56003 B006YZXQ3S Usually ships in 2 to 4 weeks $20.16 Buy Options
#4 5/16" 1/8" 2-1/2" 56004 B006YZXRBO 2 $28.37 Buy Options
#5 7/16" 3/16" 2-3/4" 56005 B006YZXSJU 2 $40.42 Buy Options
#6 1/2" 7/32" 3" 56006 B006YZXU3E 1 $68.44 Buy Options

Key Features

  • Plain-style combined drill and countersink creates a 60-degree countersink, which can be used as a center hole for machine centers

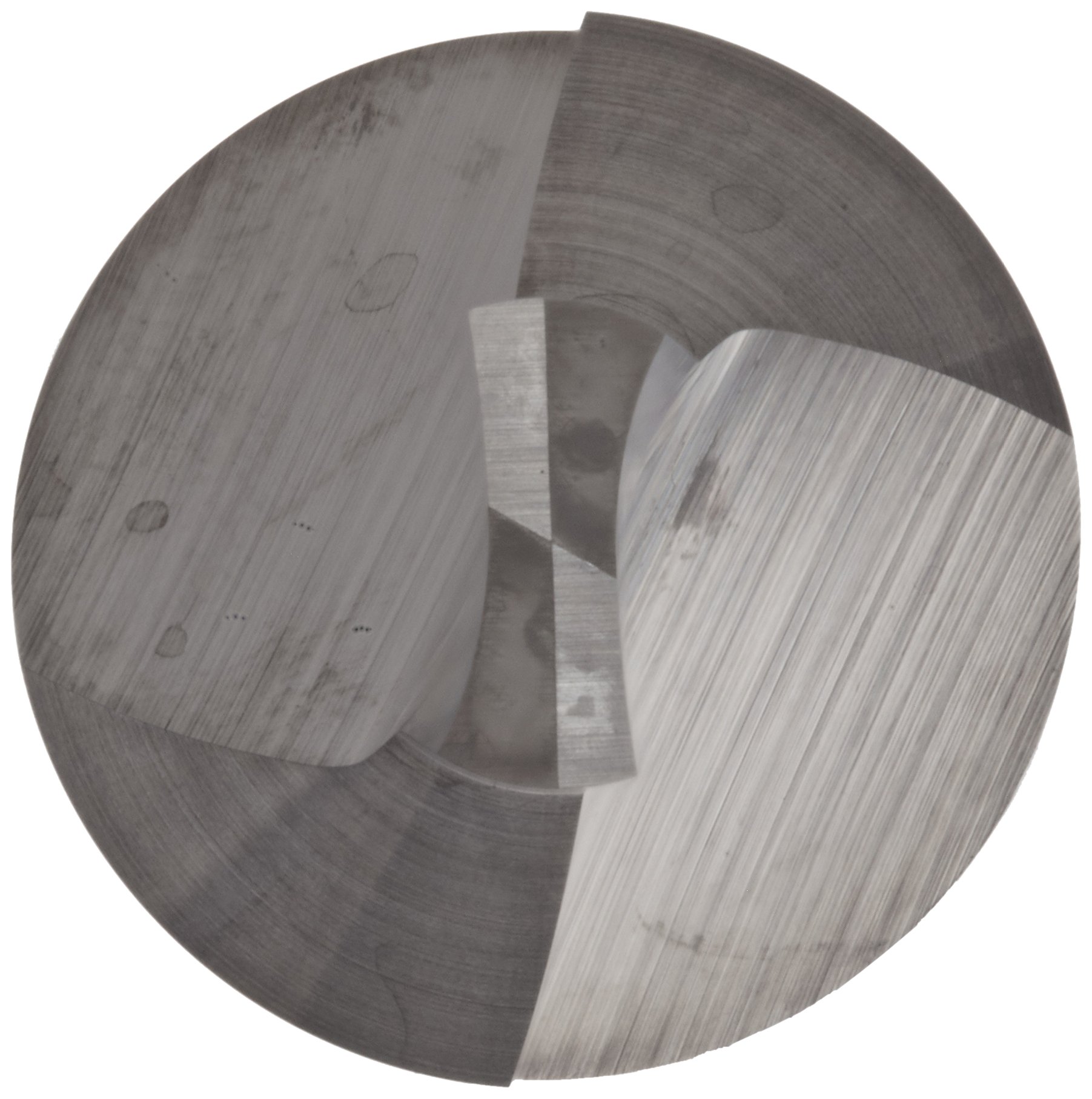

  • 118-degree conventional point drills a center hole while the two right-hand cutting flutes clear chips away to prevent clogging
  • Solid carbide is harder than high-speed or cobalt steel and provides longer tool life at higher speeds
  • Uncoated (bright) finish has no additional surface treatment or coating
  • Double-ended to provide two cutting ends

Product Description

The Ultra Tool Series 560 solid carbide combined drill and countersink with uncoated (bright) finish has a plain style to create a center hole with a 60-degree countersink that can be used as a center hole for machine centers. The 118-degree conventional point drills a center hole, while the two spiral flutes clear chips away to prevent clogging. Solid carbide is harder than high-speed or cobalt steel and provides longer tool life at higher speeds. The uncoated finish has no additional surface treatment or coating. The tool is double-ended to provide two cutting ends. The round shank accommodates most drill chucks.

Combined drill and countersinks are fluted cutting tools that drill a shallow hole with a conical or gradually widened opening, also known as a countersink, into the surface of a workpiece. These tools, also called combined drill countersinks, drill-point countersinks or center drills, are commonly used to create center holes that act as a bearing surface for a machine center. Some types reduce the two-step process of creating a countersunk pilot hole into one.

Ultra Tool manufactures reamers, grinding burs, drill bits, and other rotary cutting tools. The company, founded in 1972 and headquartered in Huntington Beach, CA, meets International Organization for Standardization (ISO) standard 9001:2000.
